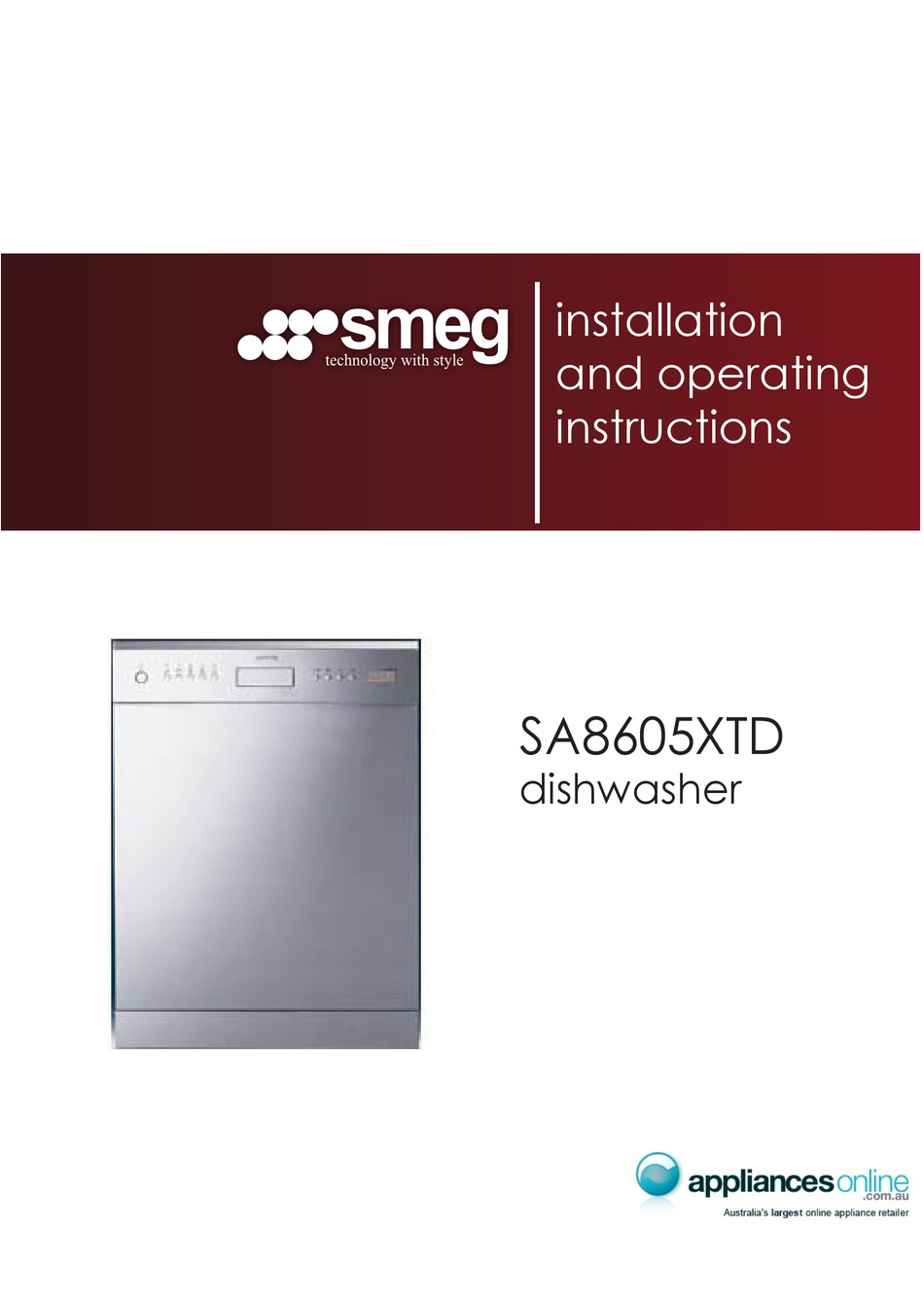

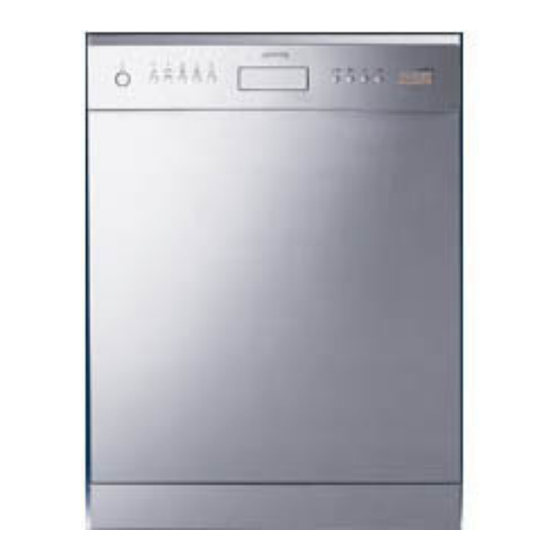

- Page 1 � � � � � � and operating technology with style instructions SA8605XTD dishwasher...
-
Page 2: Table Of Contents
Contents Safety and operating instructions Installation and hook-up Description of the controls Operating instructions Cleaning and maintenance Troubleshooting Thank you for choosing this product. We advise you to carefully read all the instructions contained in this manual, in order to understand how to operate your dishwasher safely and correctly. -
Page 3: Safety And Operating Instructions
Safety instructions 1. Safety and operating instructions THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT MUST ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER. BEFORE USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS CONTAINED IN THIS MANUAL. INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN COMPLIANCE WITH THE REGULATIONS IN FORCE. - Page 4 Safety instructions THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE 2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE). BY ENSURING THIS PRODUCT IS DISPOSED OF CORRECTLY, YOU WILL HELP PREVENT POTENTIAL NEGATIVE CONSEQUENCES FOR THE ENVIRONMENT AND HUMAN HEALTH, WHICH COULD OTHERWISE BE CAUSED BY INAPPROPRIATE WASTE HANDLING OF THIS PRODUCT.
- Page 5 Safety instructions DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM AND BEFORE THE DRYING CYCLE. KNIVES OR OTHER SHARP-ENDED COOKING UTENSILS MUST BE PLACED IN THE CUTLERY BASKET BLADE-DOWN, OR LAID HORIZONTAL IN THE TOP BASKET.
-
Page 6: Installation And Hook-Up
Installation instructions 2. Installation and hook-up Remove the polystyrene basket retainers. Position the appliance in the desired place of installation. The back or sides of the dishwasher may be placed up against walls or other furniture units. If the dishwasher is installed near a heat source, fit the special insulating panel to prevent overheating and malfunction of the appliance. -
Page 7: Connecting To Water Supply
Installation instructions 2.1 Water supply connection Preventing the risk of clogging or damage: if the water pipe is new or has not been used for a long time, before connecting to the water supply check that the water is clear and free of impurities, to prevent damage to the appliance. - Page 8 Installation instructions 2.2 Electrical connection and precautions CHECK THAT THE VOLTAGE AND THE FREQUENCY OF THE MAINS MATCH THE RATINGS ON THE NAME PLATE OF THE APPLIANCE POSITIONED ON THE INNER EDGE OF THE DOOR. THE PLUG ON THE SUPPLY CORD AND THE CORRESPONDING SOCKET OUTLET MUST BE OF THE SAME TYPE AND MEET THE REGULATIONS IN FORCE.
-
Page 9: User Instructions
User instructions 3. Description of the controls 3.1 Front panel All the dishwasher controls are grouped on the front panel. ON/OFF BUTTON SELECTION PROGRAM BUTTONS (P1…P5) ½ LOAD WASH BUTTON (on some models only) "2/1" OPTION BUTTON (on some models only) DELAY PROGRAM BUTTON (on some models only) START/STOP BUTTON POWER ON LIGHT... - Page 10 User instructions DURATION CONSUMPTION PROGRAMME, LOAD CROCKERY PROGRAM NUMBER & SYMBOL AND CUTLERY MINUTES WATER POWER PROGRESS LITRES (1) KWh (2) Pans and dishes 0,03 Cold prewash (**) SOAK awaiting a further wash Wash at 38°C Dishes 0,92 Cold rinse (**) QUICK with light dirt...
- Page 11 User instructions TABLE FOR CERTIFICATION BODIES Reference standard AS/NZS 2007 Reference program (*) NORMAL ECO Load 14 place-settings Type of detergent in accordance with AS/NZS 2007 pour 10g of cleaner on to the appliance door Amount of detergent and 20g into the dispenser Rinse aid setting The door can be opened at the end of the cycle approximately 50 mm for improved drying performance.
- Page 12 User instructions In the front there are one or two supports (depending on the models) for small plates (B). To use them, they have to be turned towards the front of the dishwasher.
- Page 13 User instructions 3.3 Washing programs The dishwasher is equipped with a control panel and an INFORMATION DISPLAY (9) from which it is possible to carry out all the power switch- on, switch-off and programming operations. Before starting a washing program make sure that: •...
- Page 14 User instructions PROGRAMMING In this dishwasher model all the programming operations are possible only with closed door. With open door, on the DISPLAY (9) will appear the symbols -- and the PILOT LIGHT PROGRAMS (8) remains out. SELECTION PROGRAM The program selection is possible through the relative buttons (2).
- Page 15 User instructions TO CHANGE A PROGRAM To change the running program it is necessary: • to interrupt the running program (see “I ”); NTERRUPTING A PROGRAM • select the new program; • to press again the START/STOP button (6) to make start the new program.
- Page 16 User instructions DELAYING THE PROGRAM (on some models only) (available in all programs except the soak program) The PROGRAM DELAY button (5) can be pressed to delay the start of the program by up to 12 hours. This means that the dishwasher can be operated at the time of day of your choice.
- Page 17 User instructions HALF LOAD WASH FUNCTION (on some models only) This function is recommended for loads of up to 7 place-settings, and cuts down on the use of water and electricity. By pressing the ½ LOAD WASH (3) button it is possible to select only upper basket washing.
- Page 18 User instructions TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT • Always try to run the dishwasher fully loaded. • Do not wash the dishes in running water. • Use the washing program that is most appropriate for each type of load.
-
Page 19: Operating Instructions
User instructions 4. Operating instructions Once the dishwasher has been correctly installed, prepare for use as follows: • Add the rinse aid and detergent. 4.1 Using the rinse aid and detergent dispensers detergent rinse dispensers are situated on the inner part of the door: the detergent dispenser is on the left, and the rinse aid dispenser is on the right. - Page 20 User instructions ADJUSTING THE RINSE AID DISPENSER SETTING The dishwasher is factory set for medium water hardness. However it possible to change the setting by turning the dispenser’s selector to the desired position: the amount of rinse aid dispensed is proportional to the selector position.
- Page 21 User instructions • The market offers liquid and powder detergents with differing chemical compositions, which may contain phosphates, or be phosphate-free but contain natural enzymes. - Detergents containing phosphates are more effective against grease and starch at temperatures above 60°C. - Enzyme detergents, on the other hand, are also effective at lower temperatures (from 40 to 55°C) and are more easily biodegradable.
- Page 22 User instructions 4.2 General warnings and recommendations Before using the dishwasher for the first time, it is advisable to read the following recommendations concerning dish types to be washed and their loading. There are generally no constraints on the washing of domestic dishes, but in certain cases it is necessary to take their characteristics into account.
- Page 23 User instructions Items which are not dishwasher-safe: • Wooden dishes, pots or pans: these may be damaged by the high washing temperatures. • Handcrafted items: these are rarely suitable for washing in a dishwasher. The relatively high water temperatures and the detergents used may damage them.
- Page 24 User instructions 4.3 Using the baskets The dishwasher has a capacity of 14 place-settings, including serving dishes. LOWER BASKET The lower basket receives the full force of the lower spray arm, and should therefore be used for the “toughest” items with a heavier degree of soiling.
- Page 25 User instructions LOADING THE LOWER BASKET Carefully load flat plates, soup plates, dessert and serving dishes, positioning them vertically. Pots, pans and their covers must be loaded upside down. When loading soup plates and dessert bowls, be sure to leave a gap between them. Loading examples: CUTLERY BASKET The cutlery should be arranged in an orderly manner inside the basket,...
- Page 26 User instructions It can also be separated into two parts. UPPER BASKET It is recommended to load the upper basket with small- or medium-sized items such as glasses, small plates, tea or coffee cups, shallow bowls and light objects made from heat resistant plastic. If the upper basket is used in the lowermost position, it can also be loaded with serving dishes, provided they are only slightly soiled.
- Page 27 User instructions LOADING THE UPPER BASKET Load the dishes with the top side facing forwards; cups and concave containers should always be loaded with the opening facing down. The left side of the basket can be loaded with cups and glasses on two levels.
-
Page 28: Cleaning And Maintenance
User instructions 5. Cleaning and maintenance Before carrying out any work, always unplug the appliance from the electrical supply or switch off the all-pole disconnection device. 5.1 General warnings and recommendations Avoid the use of acidic or abrasive detergents. Clean the outer surfaces and door-lining of the dishwasher regularly using a soft cloth moistened with water or with a normal detergent suitable for painted surfaces. -
Page 29: Cleaning The Filter Unit
User instructions CLEANING THE FILTER UNIT • It is advisable to periodically inspect the centre filter C and, if necessary, to clean it. To remove the filter, grip the tabs, turn them anticlockwise and lift upwards; • push the centre filter D from the underside to remove it from the micro-filter: •... -
Page 30: Before Starting
User instructions BEFORE STARTING THE DISHWASHER AFTER PROLONGED DISUSE: • Check that there are no deposits of sludge or rust inside the water pipe: if there are, allow the water to run from the water supply tap for a few minutes. •... - Page 31 User instructions If the dishes fail to dry or remain dull, check that: • there is rinse aid inside the special container; • the rinse aid dispenser setting is correct; • the detergent used is of good quality and has not lost its effectiveness (for example, through incorrect storage, with the box left open).
-
Page 32: Troubleshooting
User instructions 2. Troubleshooting The dishwasher is equipped with a self-diagnostics system that is capable of detecting and signalling a number of possible faults. TABLE OF FAULTS DETECTED BY THE SELF-DIAGNOSTICS SYSTEM FAULT DESCRIPTION Acquastop failure The anti-flooding system has been activated (for the relevant models only). - Page 33 User instructions FAULT DESCRIPTION Turbine flow-regulator malfunction (for the relevant models only) The appliance is not able to "measure" the amount of water loaded accurately. Interrupt the program and switch off the dishwasher. Switch the dishwasher back on, program it again and start the washing cycle. If the problem persists, contact the after-sales service.
- Page 34 Misurarel’altezzadelpannellocomandi;fare coinciderel’indicerelativo a tale valoreconilprofilo superiored ellaporta inlegno;tracciareilposizionamentodegliagganciporta. Measuretheheightofthecontrolpanel;bringthemarkrelatingtothisvalueintolinewiththetopedgeofthewoodendoor;markthepositionsofthedoorconnections. Measurerla hauteurdupanneaudecommandes;fairecoïnciderl’indexrelatifàcettevaleuravecleprofilsupérieur delaporteenbois;tracerlepositionnementdescrochetsdelaporte. DieHöhedesBedienfeldsmessen;Diediesem Wert entsprechendeMarkierungmitdemoberenProfilderHolztürzurDeckungbringen;DiePositionderTüraufhängungenanzeichen. Meetdehoogtevanhetbedieningspaneel;laatdemarkeringdiebijdiewaardehoort overeenstemmenmethetbovensteprofielvan dehouten deur; tekende positievandedeurhengselsaf. Medirlaalturadelpaneldemandos;hacercoincidirelíndicecorrespondienteadichovalorconelperfilsuperiorde la puertade madera;trazarelposicionamientode lasbisagrasde lapuerta. Meçaaalturadopaineldecomandos;façacomqueoindicadorrelativoaestevalorcoincida com o perfilsuperiordaportademadeira;marqueaposiçãodosganchosparaporta. Solosualcunimodelli Certainmodelsonly Seulementsurcertainsmodèles nurbeieinigeModellen Sóloenalgunosmodelos alleenindienvantoepassing ATTENZIONE: WICHTIG: Montare la porta e regolarelatensione delle Tür montieren, Türfedern vor Einbau mollelaterali primadell’installazione.
