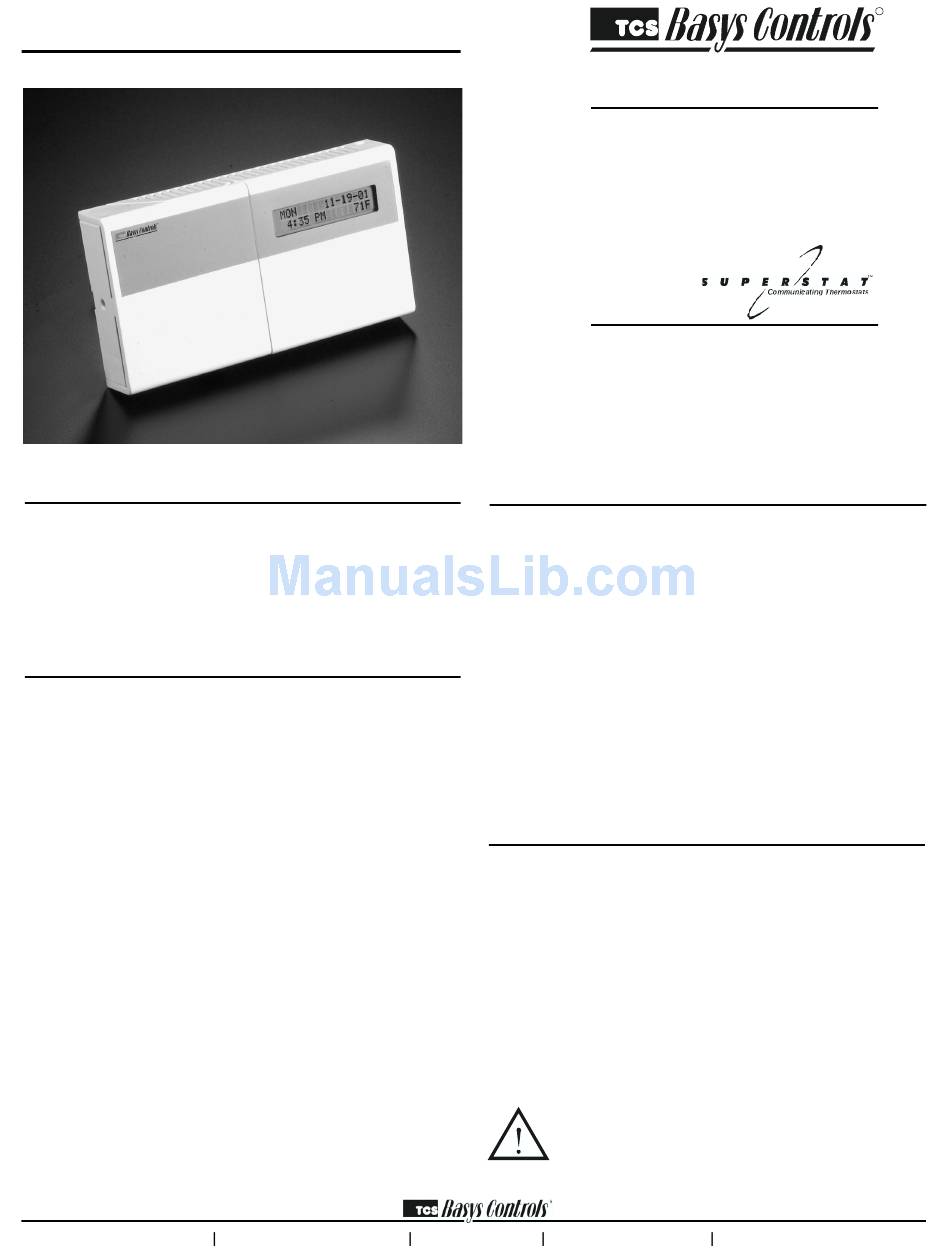

TCS Basys Controls SZ1017a Product Manual

Modulating thermostat
Hide thumbs Also See for SZ1017a:
Table of Contents

Advertisement

Quick Links

See also: Product Manual
Product Manual
Description
The SZ1017a, SZ1041, SZ1051 and SZ1053 are microproces-
sor-based programmable thermostats designed to control air
handling units with modulating economizers and/or modulat-
ing heating or cooling. The SZ1041, SZ1051 and SZ1053
have a 365-day time clock, while the SZ1017a has a 7-day
time clock.
Features
Stand-alone or network operation
!
Outdoor air sensor input with heating & cooling lockout
!
Adjustable delay on powerup for soft starts
!
P+I control option
!
Smart Recovery
!
No battery backup required
!
Built-in HVAC equipment protection
!
32 character LCD display
!
Six status LEDs for monitoring
!
Remote room sensing capability
!
User setpoint adjustment limits
!
Local and remote override capability
!
System and fan switching with access lockouts
!
Equipment monitoring inputs and indication
!
External time clock input
!
Access to programming or schedule may be locked out or
!
limited with the use of an access code
Fahrenheit or Celsius temperature display
!
2800 LAURA LANE
MIDDLETON, WI 53562
SZ1017a/SZ1041
SZ1051/SZ1053
Modulating Thermostats
Contents
Description
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Features
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Limiting Occupant Access . . . . . . . . . . . . . . . . . . . . . . . . .16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting
The SZ1017a, SZ1041, SZ1051 and SZ1053 are designed for
wall mounting using two #6 sheet metal screws, either over a
horizontally installed 2" x 4" junction box, or directly to block
or drywall.
For best results, the thermostat should be mounted on an inte-
rior wall which reflects normal room environment, at a height
of approximately five feet from the floor. Avoid areas exposed
to direct sunlight, unusual heat sources, open doors and win-
dows, or unventilated locations.
If using a remote room sensor, it should be mounted in the
manner described above. The thermostat may then be mounted
in an area which is accessible for adjusting its settings.
Caution: Remove power from thermostat prior to
mounting.
(800) 288-9383
FAX (608) 836-9044
1
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
www.tcs-basys.com
R
.1
.1
.1
.2
.4
.5
.11
.14
.15
.16
