Product Manual

Description

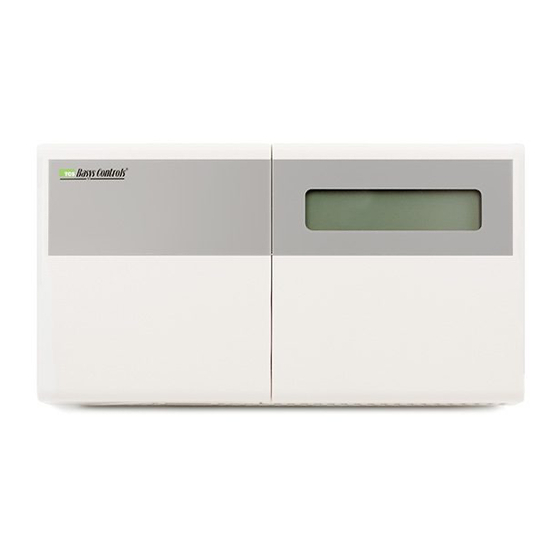

The SZ1022N and SZ1024N are microprocessor-based
programmable thermostats designed for conventional
multistage heating-and-cooling and heat pump applications,
respectively. Both the SZ1022N and SZ1024N feature a 7-day
time clock.

Features

Stand-alone or network operation
Discharge air sensor input with high and low limits
The SZ1022N offers up to three stages heating and two
stages cooling, or two stages heating and three stages
cooling, while the SZ1024N offers up to two compressor
and two auxiliary heat stages
Adjustable delay on powerup for soft starts
P+I control option
Smart Recovery
No backup battery required
Built-in HVAC equipment protection
32 character LCD display
Six LEDs for status monitoring
Remote room sensing capability
User setpoint adjustment limits
Local and remote override capability
System and fan switching with access lockouts
Auxiliary time clock output (economizers)
Fan interlock safety option
Filter service input and indication
Equipment monitoring inputs and indication
External time clock input
Energy management input for setpoint shift.
Access to programming or schedule may be locked out or
limited with the use of an access code
Fahrenheit or Celsius temperature display
2800 LAURA LANE • MIDDLETON, WI 53562 • (800) 288-9383 • FAX (608) 836-9044 • www.tcsbasys.com
SZ1022N/SZ1024N
Conventional Multistage
Heating & Cooling/Heat Pump
Thermostats
Communicating Thermostats
Contents
Description ...............................................................................1
Features ....................................................................................1
Mounting ..................................................................................1
Wiring.......................................................................................2
N2 Bus Connections ................................................................2
Setup.........................................................................................3
Programming............................................................................4
Setting Clock and Schedule .....................................................7
Operation..................................................................................8
Checkout and Troubleshooting ................................................9
LED Description ....................................................................11
Limiting Occupant Access .....................................................12
User's Guide ..........................................................................12
N2 Point Mapping Table (SZ1022N).....................................13
N2 Point Mapping Table (SZ1024N).....................................16

Mounting

The SZ1022N and SZ1024N are designed for wall mounting
using two #6 sheet metal screws, either over a horizontally
installed 2" x 4" junction box, or directly to block or drywall.
For best results, the thermostat should be mounted on an
interior wall which reflects normal room environment, at a
height of approximately five feet from the floor. Avoid areas
exposed to direct sunlight, unusual heat sources, open doors
and windows, or unventilated locations.
If using a remote room sensor, it should be mounted in the
manner described above. The thermostat may be mounted in
an area which is accessible for adjusting its settings.
R
1
R
Version 1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SZ1022N and is the answer not in the manual?

Questions and answers

Summary of Contents for TCS Basys Controls SZ1022N

  • Page 1: Table Of Contents

    Operation..................8 Discharge air sensor input with high and low limits Checkout and Troubleshooting ..........9 The SZ1022N offers up to three stages heating and two LED Description ..............11 stages cooling, or two stages heating and three stages Limiting Occupant Access .............12 cooling, while the SZ1024N offers up to two compressor User’s Guide ................12...
  • Page 2: Wiring

    Wiring POWERING THE SZ1022N AND SZ1024N The SZ1022N and SZ1024N are powered from 24 VAC +/- 20%. The SZ1022N and SZ1024N use standard terminal designations for wiring. See diagram below. Caution: Do not connect to 120 VAC. REMOTE SENSOR WIRING...
  • Page 3: Setup

    Setup Note: If using remote sensor(s), the calibration may need to KEYPAD ACCESS be adjusted. See “Checkout & Troubleshooting” section. The dipswitches in the cover (shown above connected with ribbon cable) must be set in order to lock the user out of the SENSOR SELECTION program and/or to set the clock and schedule.
  • Page 4: Programming

    Programming The SZ1022N and SZ1024N may be programmed through the Display Type Screen. Choose between TEMPS SHOWN IN: display and keypad, or with a PC. FAHRENHEIT and CELSIUS for temperature indication. FAHRENHEIT If programming with a PC, the following must be set through...
  • Page 5 (0 to 255) that the SET OVERRIDE Cool Stage 1 Differential Screen. 25a. COOL STAGE 1 SZ1022N or SZ1024N will maintain COOL STAGE 1 Enter a differential value for cool occupied setpoints when overridden. TIME: 180 MINUTES...
  • Page 6 First Stage Auxiliary Heat Screen. 27b. COOL STAGE 2 Auxiliary Heat Stage 2 Differential AUX HEAT STAGE 2 18b. Choose whether the thermostat will ENABLE STAGE 1 Screen. Enter a differential value for DIFF: DIFF: control a first stage of auxiliary heat. auxiliary heat stage 2.
  • Page 7: Setting Clock And Schedule

    DI2 Shift Screen. Enter the setpoint DI3 USED FOR: SET DI2 SETPOINT The SZ1022N and SZ1024N clock and schedule may be set shift value. This screen will only appear if DI2 is set to MONITOR. through the display and keypad, or with a PC. For more...
  • Page 8: Operation

    This override only activates when the thermostat is operating in the unoccupied mode. Both the software and the service The SZ1022N and SZ1024N allow DI1 to be set for fan button allows you to view the time remaining in the override proving to protect equipment on fan failure.
  • Page 9: Checkout And Troubleshooting

    At the beginning of The SZ1022N will control up to two stages each of heating the occupied mode, the occupied setpoint will be reached, and cooling, with a fifth stage that may be assigned as a third many times without the need for the second stage to come on.
  • Page 10 “R” to “G” and see if the fan comes on. This is a more to store the change. check for a mechanical relay failure. *SZ1022N* Heating or Cooling Does Not Come On At least one stage of heating is on whenever the heating LED V 1.2...
  • Page 11: Led Description

    LED Description Heat Stages Status Screen. Shows HEAT STAGE 1 OFF the status of the first and second stages of heating. HEAT STAGE 2 OFF Six LEDs on the face allow the occupant to view the current service operating status of the thermostat. status OCCUPIED Cool Stages Status Screen.
  • Page 12: Limiting Occupant Access

    An access code may be required as set in programming step # 41, or access may be denied altogether using dipswitches described in the setup section. POINT MAPPING TABLES SZ1022N ......Pages 13 -15 SZ1024N ......Pages 16 -18 TCS/Basys Controls Technical Support 800-288-9383 2800 LAURA LANE •...
  • Page 13: N2 Point Mapping Table (Sz1022N)

    Pointmap Table for SZ1022N (See page 16 for Pointmap Table for SZ1024N) UNITS POINT DESCRIPTION RANGE/VALUE ADDITIONAL NOTES DI2 control mode 0=cool lockout See Setup (page 8). 1=monitor 2=service DI3 control mode 0=filter service See Setup (page 7). 1=external override...
  • Page 14 Pointmap Table for SZ1022N (continued) UNITS POINT DESCRIPTION RANGE/VALUE ADDITIONAL NOTES Tuesday 0-1440 Wednesday 0-1440 Wednesday 0-1440 Wednesday 0-1440 Wednesday 0-1440 Thursday 0-1440 Thursday 0-1440 Thursday 0-1440 Thursday 0-1440 Friday 0-1440 Friday 0-1440 Friday 0-1440 Friday 0-1440 Saturday 0-1440 Saturday...
  • Page 15 Pointmap Table for SZ1022N (continued) UNITS POINT DESCRIPTION RANGE/VALUE ADDITIONAL NOTES Remote DI2 request 0=off, 1=on Remote DI3 request 0=off, 1=on Remote override request 0=off, 1=on This is a permanent override. Remote Fan request 0=off, 1=on Heat stage 1 relay status 0=off, 1=on Read only.
  • Page 16: N2 Point Mapping Table (Sz1024N)

    Pointmap Table for SZ1024N (See page 13 for Pointmap Table for SZ1022N) UNITS POINT DESCRIPTION RANGE/VALUE ADDITIONAL NOTES DI2 control mode 0=cool lockout See "Setup" (page 8). 1=monitor 2=service DI3 control mode 0=filter service See "Setup" (page 7). 1=external override...
  • Page 17 Pointmap Table for SZ1024N (continued) UNITS POINT DESCRIPTION RANGE/VALUE ADDITIONAL NOTES Wednesday 0-1440 Thursday 0-1440 Thursday 0-1440 Thursday 0-1440 Thursday 0-1440 Friday 0-1440 Friday 0-1440 Friday 0-1440 Friday 0-1440 Saturday 0-1440 Saturday 0-1440 Saturday 0-1440 Saturday 0-1440 Sunday 0-1440 Sunday 0-1440 Sunday 0-1440...
  • Page 18 Pointmap Table for SZ1024N (continued) UNITS POINT DESCRIPTION RANGE/VALUE ADDITIONAL NOTES Aux heat 1 relay status 0=off, 1=on Read only. Aux heat 2 relay status 0=off, 1=on Read Only Compressor 1 relay status 0=off, 1=on Read only. Compressor 2 relay status 0=off, 1=on Read only.
  • Page 19 2800 LAURA LANE • MIDDLETON, WI 53562 • (800) 288-9383 • FAX (608) 836-9044 • www.tcsbasys.com...
  • Page 20 Rev. 0305 2800 LAURA LANE • MIDDLETON, WI 53562 • (800) 288-9383 • FAX (608) 836-9044 • www.tcsbasys.com...
