Summary of Contents for Duratool 22-13810

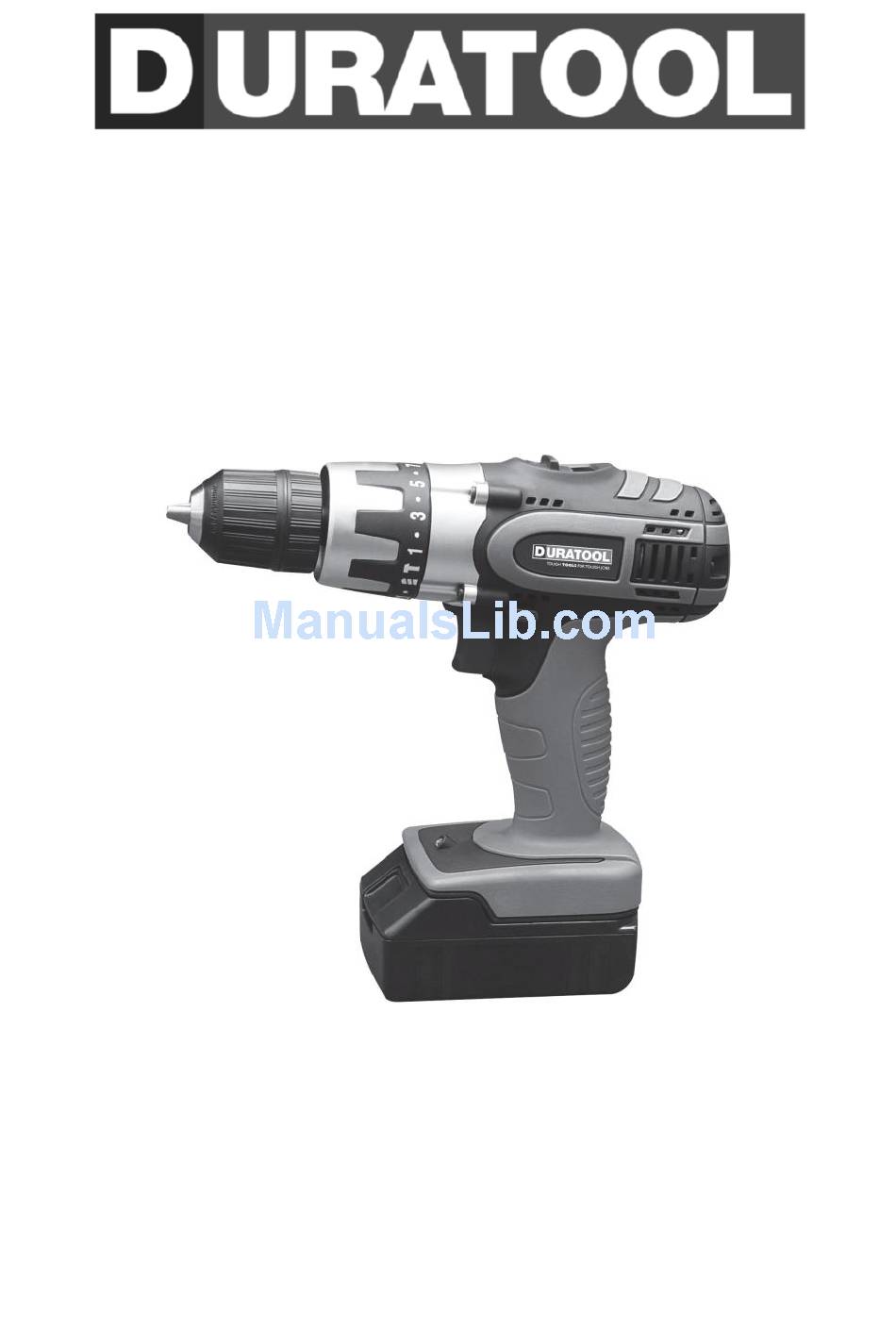

- Page 1 Model – 22-13810 18V Cordless Drill User and Safety Manual...
-
Page 2: Operating Controls
Operating Controls Keyless chuck 5. Easy-grip handle Torque control 6. Battery pack Ventilation slots 7. Battery release Rotational direction switch 8. Power trigger Tool Specifications Variable speed Control (2 gears) 0-350 / 0-1250 RPM Li-Ion Battery Voltage, Ah 18 V, 1.3Ah Charging time 1 hour Preset Torque Settings... - Page 3 Drill/Driver Please read the entire instruction manual before using the product and save it for future reference. The manufacturer reserves the right to make changes to any specifications and physical properties of the tool. If you have any questions concerning the tool, please contact the Customer Support team from which you purchased the tool.
- Page 4 When using electrical hand tools outdoors, use an extension lead that is suitable and rated for that purpose. 3) Personal Safety Pay attention to your actions and use common sense when using electrical hand tools. Never use electrical hand tools if you are tired, under the influence of drugs or alcohol, or otherwise impaired.
- Page 5 d. Store electrical hand tools out of children’s reach. Do not allow anyone unfamiliar with this tool or its functions to operate it. Electrical tools can be dangerous to inexperienced users. Maintain electrical hand tools by checking for any incorrect settings, parts that do not properly function, or anything else which cause the electrical hand tool to malfunction.
- Page 6 3) Never expose the battery or charger to liquids or excessive moisture. Charging Quick-charge battery Quick Charger Status LED’s 1) Remove the battery from the drill by pressing the battery release button and pushing the battery forward. 2) Connect the charger to a wall power outlet; the red LED will come on. 3) Place the battery onto the charger.
- Page 7 Torque This tool has an adjustable clotch set by the torque setting ring. IF set correctly, the clutch will disengage the fastening bit at the preset torque setting. The selection should be based on the size of the screw and the type of mattering being used. If in doubt, start at the lowest setting and work your way up.
- Page 8 Also when drilling into metal, use cutting oil to aid in drilling and preserving the bit and motor. Care and Cleaning Always keep the motor’s ventilation openings free of dust and debris. Cleaning the machine regularly using a moist cloth with a small amount of mild detergent.
