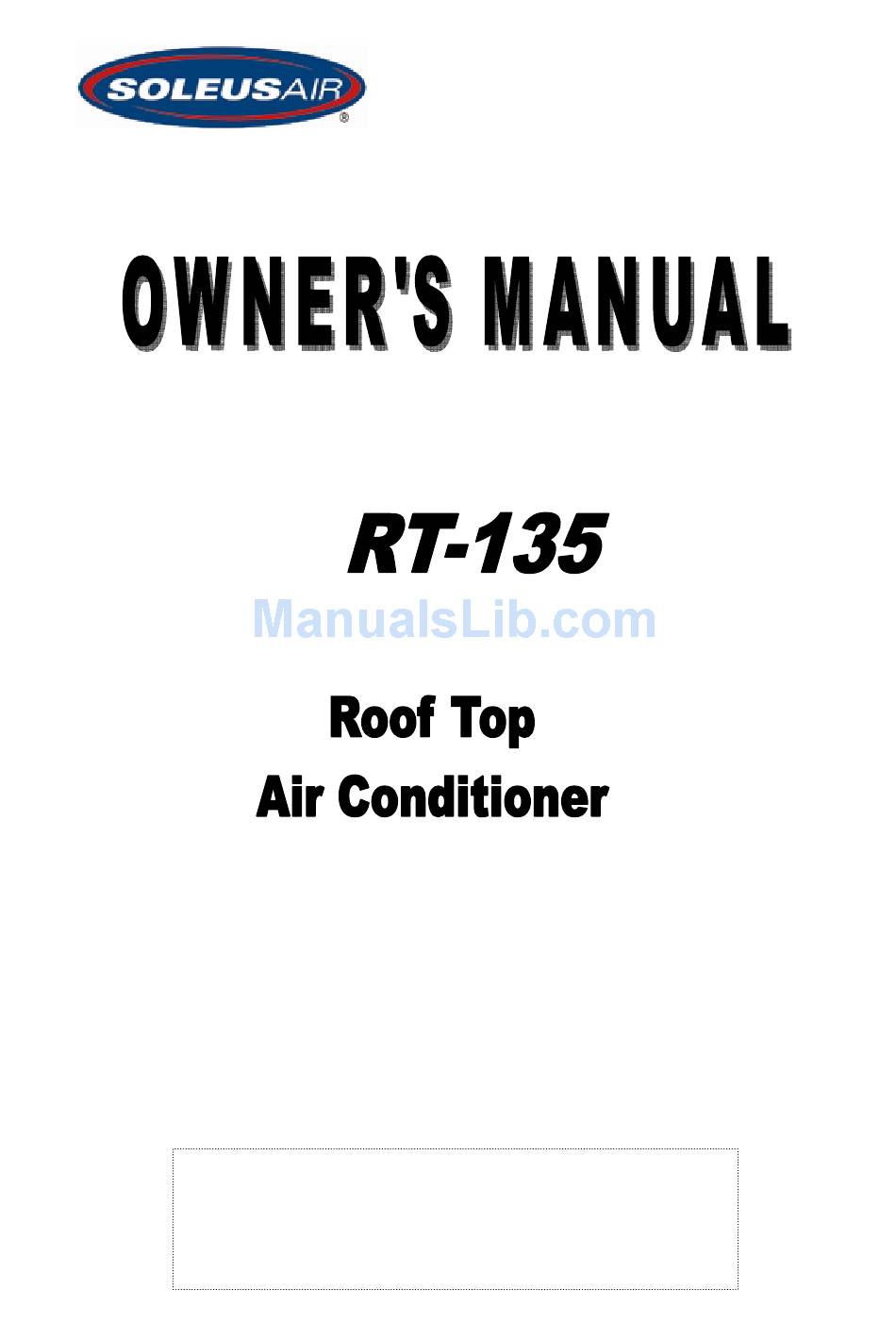

  • Page 1 Please read Owner’s Manual carefully before operating the unit...
  • Page 2 Main technical parameter of RT-135 Capability Cooling Capacity Operating Watts Capabilities: Rated Full Load Current Cooling Heating Capacity Operating Watts capabilities: Heating Rated Full Load Current Air Flow Volume Power Supply Operational Range-Cooling Operational Range-Heating Noise Inside The Room Level Outside The Room Refrigerant / Amount Top Mount Unit...

  • Page 3: Control Panel

    RT-135 series air-condition have the capability of cooling / heating / ventilation and dehumidification and contain the character of resisting shake attrition and high-dependability. It can be used for applications such as RV units, trucks & vans, small-scale shipping vehicles & farm equipment.
  • Page 4 Remote device Operation through the control panel or remote device Through the control panel in the room, user can control all functions of the air-conditioner. The parts of control contain the following functions: Switch The air-conditioner can be started or stopped by the button “ON/OFF”. The indicator lamp “POWER”...
  • Page 5 The scheme of refrigeration system CONDENSER EVAPORATOR COMPRESSOR THROTTLE...

  • Page 6: Schematic Circuit Diagram

    Schematic circuit diagram WAT1 WAT2 SENSOR1 SENSOR2...

  • Page 7: Trouble Shoot Chart

    3. Working voltage of the air-conditioner must keep within the range of 115VAC±10. If the voltage is too high or low will lead to damage of the compressor. 4. The normal working environment temperature of the air conditioner is: 0F to115F Maintenance and Safeguard It will keep at maximum performance ratings if you perform routine maintenance.

  • Page 8: Installation

    The gradient of install the platform must no more than 5°. If greater than 5° it can be influenced that condensation water of the air conditioner could overflow. You must avoid any wire and any pipeline before incision.
  • Page 9 3. You must make mounting hole on indoor installation frame align with the hole on the top of the air-conditioner and tightly Install canvas-pipe You must make the flange of the canvas-pipe align with air outlet of the top of air-conditioner connect them with screw, gasket, spring gasket and nut.
  • Page 10 5. Prepare installing of indoor equip: Disassemble the indoor equip. Install the indoor unit a) You must install the main of indoor tunnel and installation frame with four ST4.2X16 screw. Caution: It can be rotated from +90°to -90°. b) Installing the canvas pipe underparts You must put into metal flange from canvas pipe under part and tightly nip main vent-pipe connect...
  • Page 11 Check the complete installing manual to make sure unit is installed correctly and safe Switch on the power, operate the air conditioner according to above methods. If it runs improperly, for example abnormal noise, running current too high or no temperature, please check...
  • Page 12 Clean up the installing rubbish and restore decoration to original decor.

  • Page 13: Limited Warranty

    Warranty Soleus International Inc. warrants the accompanying Soleus Air RT-135 Roof Top Air Conditioner to be free of defects in material and workmanship for the applications specified in its operation instruction for the period of labor and parts specified below.

This manual is also suitable for:

Rt-135
