SAFA MEDIA Co., Ltd.
Missi2000 building 101, 725, Suseo-Dong,
Gangnam-Gu, Seoul, Korea
TEL: 02-3413-2020(Rep)
FAX: 02-3413-2029
E-Mail:safa@safa.co.kr

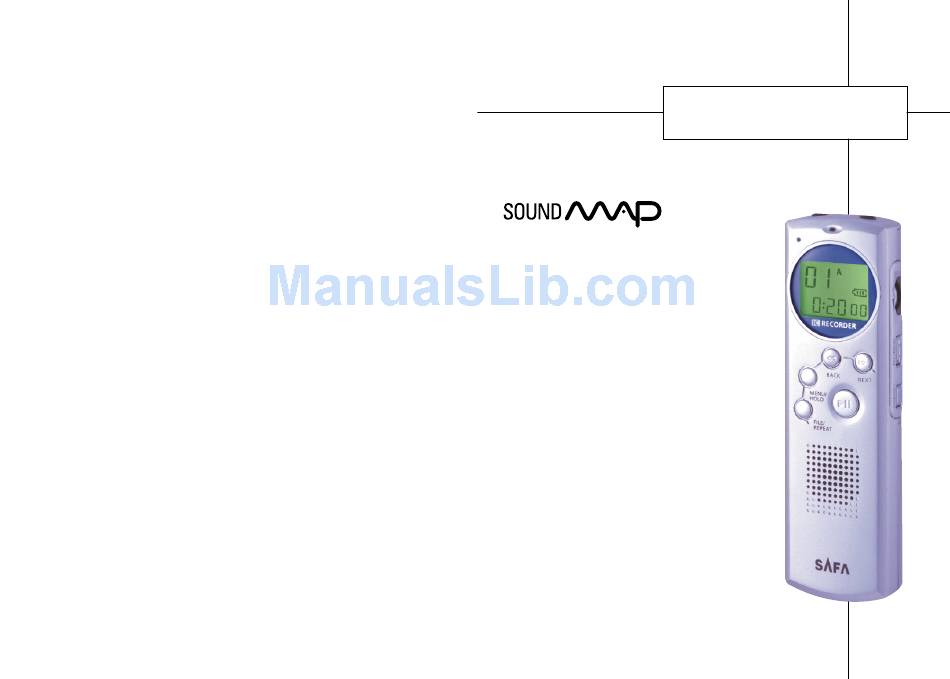

IC RECORDER
IRS-810L / IRS-1610L
Thank you for your purchasing a Sound MAP.
Please read this User Guide before you use your Sound MAP.
SF69-00139A
User's Manual
Advertisement
Table of Contents
Related Manuals for Safa Media IRS-810L
Summary of Contents for Safa Media IRS-810L
- Page 1 User's Manual IC RECORDER IRS-810L / IRS-1610L SAFA MEDIA Co., Ltd. Missi2000 building 101, 725, Suseo-Dong, Gangnam-Gu, Seoul, Korea TEL: 02-3413-2020(Rep) FAX: 02-3413-2029 E-Mail:safa@safa.co.kr Thank you for your purchasing a Sound MAP. Please read this User Guide before you use your Sound MAP.
-
Page 2: Table Of Contents
Special features Table of Contents Special features ............ 1 Preparation Cautions and Warnings........4 Names of each part ..........5 Check the components......... 5 LCD Indicator and Symbols ......... 6 Replacing Batteries..........7 Getting Started ............. 9 How to Use Recording .............. -
Page 3: Special Features
Cautions and Warnings Cautions Preparation 1. Do not attempt to open, repair, or modify your Sound MAP. 2. Do not use this product where the use of electronic devices is prohibited (such as in aircraft, etc.). Special features......... 1 3. Do not put this product or any of its accessories in your mouth. Cautions and Warnings ...... -
Page 4: Names Of Each Part
Names of each part LCD Indicator and Symbols Earphone jack Audio cable connector Built-in Microphone Recording/Playback Indicator LED Red = Recording, Green = Playback Volume Control Description of Screen Display Liquid Crystal Display NEXT BACK Fast forwarding, index change, (Fast rewinding, index change, and and menu change menu change) LCD screen... -
Page 5: Replacing Batteries
Replacing Batteries Be sure that the power is OFF. Open the battery cover. How to Use Do not replace the batteries while the power is on. It may cause the product malfunction. Insert the batteries. Getting Started.............. 9 (Figure 1) Recording .............. -
Page 6: Getting Started
Getting Started Recording Switching Sound MAP On Please note the followings before you start recording. Press the PLAY/PAUSE/REMAIN button to switch on the product. (Figure 2) Check that the product is in standby mode. The product will switch to standby mode. Alternatively, you can press the REC/PAUSE button. -
Page 7: Voice Recording
Recording with line-in Voice Recording Set recording sensitivity, file, VOR function and speed (SP or LP) before you start recording (see Pages 15 and 16). Set the recording speed (SP and LP), file, and VOR function before you start recording (see pages 15 and 16). Sound can be distorted during playback if the volume control is set too high during recording. -
Page 8: Playback
Playback Press and hold PLAY/PAUSE/REMAIN button during normal playback to display time of the current index (recorded time: REMAIN). Playback on other Indexes Normal Playback (Figure 10) 1) To move by one index 1. Press the FILE/REPEAT button to select the file (A, B, C, or D) you want. If you do not select a file, the last file you recorded will be played. -
Page 9: Menu
Menu Mic Recording Sensitivity Beep Setting (Figure 19) The factory default is BEEP ON mode. The factory default is high-sensitive mode. (Figure 15) 1. Press MENU/HOLD button once during Record/Playback/Stop state. 1. Press MENU/HOLD button for three times in Record/Playback/Stop (Figure 16) state. -
Page 10: Delete Function
Delete Function Saving into the external appliance To delete a particular index To save into the external audio (such as cassette recorder). Figure 25 1. Press STOP/DEL button briefly during playback or stop state. 1. Connect one end of the audio cable to the earphone jack of your Sound MAP and the other The index number appears and DEL flashes while your Sound MAP end to the Mic input jack or AUX jack of the external audio appliance. -
Page 11: Specification
Specifications IRS-1610L IRS-810L Item SP: 531 minutes SP: 265 minutes (8 hours 51 minutes) (4 hours 25 minutes) Maximum Recording Time References LP: 988 minutes LP: 493 minutes (16 hours 28 minutes) (8 hours 13 minutes) 33mm 110mm 19mm Dimensions... - Page 12 1. Malfunction due to user's negligence. 2. Malfunction due to unauthorized modification or repair 3. Malfunction due to natural hazards (such as fire, seawater, flood, or war). 4. When the warrantee period is expired. Smart Audio & Future Audiopia SAFA MEDIA Co., Ltd.
