Jensen CD510K Installation Manual

Jensen CD510K Installation Manual

Am/fm stereo receiver/cd player with optional cd changer control and detachable flip-over security panel
Hide thumbs Also See for CD510K:
Table of Contents

Advertisement

Quick Links

See also: Operation

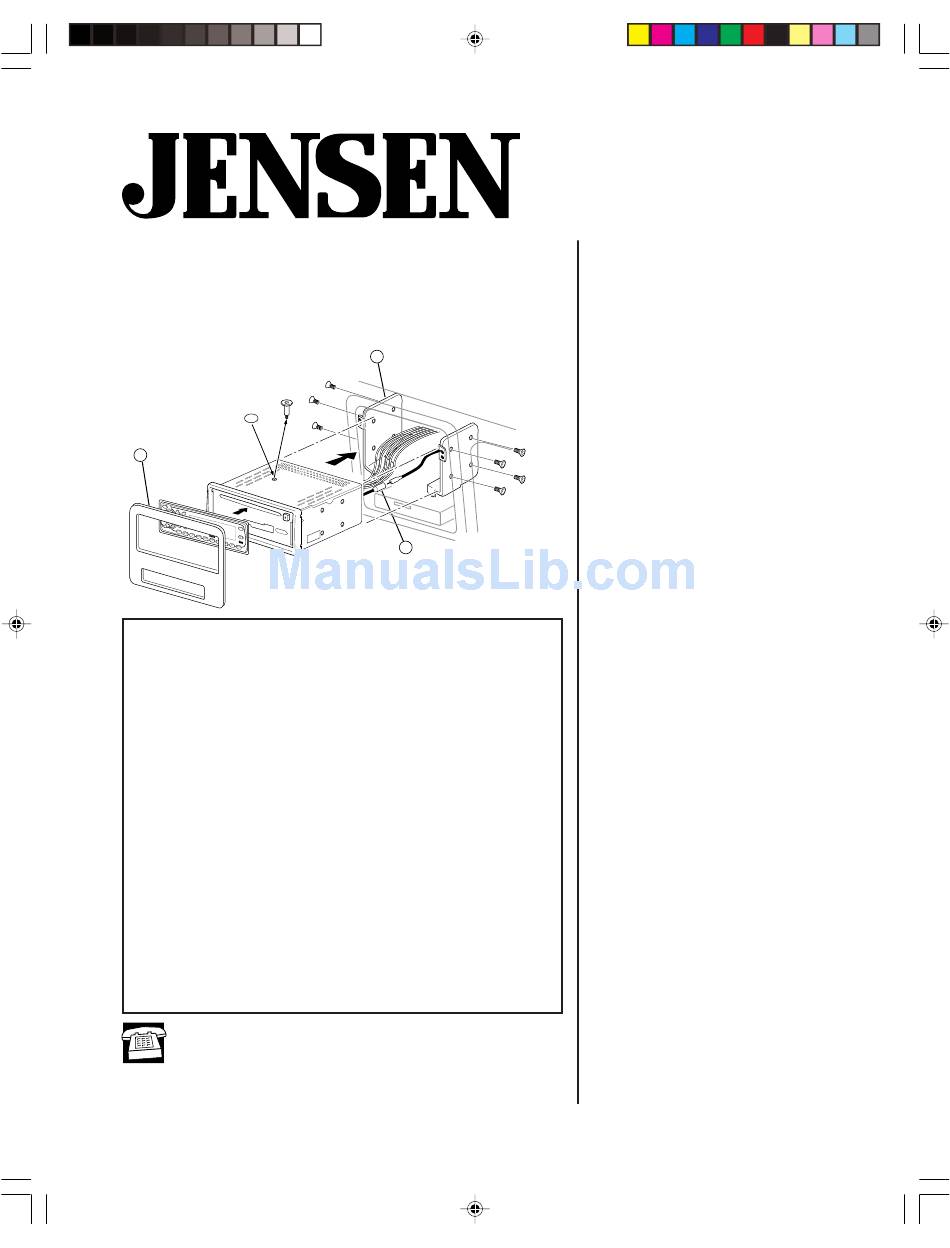

How to Install the CD510K AM/FM
Stereo Receiver/CD Player with Optional
CD Changer Control and Detachable
Flip-Over Security Panel
Final
installation
3
(page 11)
PWR
MON O
LOC LOU
D
REL
®
®
COMPA
CT
DIGITAL
AUDIO
Welcome!
What you're holding in your hands is no ordinary owner's
manual. We've tried to make the instructions in this book
clear and easy to follow.
For your Jensen stereo to work right, it must be installed
correctly. This manual will show you how to install your new
stereo like a pro. It's a good idea to read all of these
instructions before you begin the installation. Most
installations are straightforward and can be handled by a
do-it-yourselfer with the right tools, patience, and the ability
to follow instructions. But, do-it-yourself installation isn't for
everyone. If you still don't feel confident after reading this
book, consider turning the installation job over to someone
better suited to it.
Warranty Service
If your Jensen stereo should ever require service, you will
need to have the original dated receipt. If you ever need to
return the unit for any reason, always include the receipt
with the product.
Technical Assistance
For technical assistance with the installation of the
CD510K, call 1-800-323-0221.
®
Install brackets
1
(page 4)
2
Install wiring
(pages 6 and 7)
Installation
Contents
Installation ............................. 2
Speaker Requirements .............. 2
Installation .................................. 2
Installation .................................. 2
• Connections ........................ 3
• Crimp Connections ............. 3
Disconnect Battery ..................... 4
Remove Old Radio .................... 4
Wiring ....................................... 5
• Fuse Adapters .................... 5
Speaker Wire ...................... 5
Connect Wires ........................... 6
Wiring Color Codes .................... 6
Installation .................................. 7
Testing .................................... 8
Reconnect Battery ..................... 8
Test Power Wiring ...................... 8
View/Set the Clock ..................... 8
Test Memory Wiring ................... 9
Final Installation ....................... 11
Troubleshooting ................ 12
Warranty .............................. 13

Advertisement

Table of Contents
loading

Related Manuals for Jensen CD510K

Summary of Contents for Jensen CD510K

  • Page 1: Table Of Contents

    Install Wiring Inside the Car ..6 clear and easy to follow. Wiring Diagram–Advanced For your Jensen stereo to work right, it must be installed Installation ........7 correctly. This manual will show you how to install your new Testing ........8 stereo like a pro.

  • Page 2: Installation

    Speaker Requirements Wiring Harness Adapter For a basic installation, you can purchase a Only connect the CD510K to speakers rated in wiring harness adapter for your car's existing the load impedance range of 4 to 8 ohms. radio connectors. This makes installation easy.

  • Page 3: Connections

    Stretch electrical sound better, great or INCREDIBLE! tape tightly over splice. Better Sound Install a Jensen tape deck or CD player like you’re doing now. High power units can make your existing speakers sound better and play louder.

  • Page 4: Disconnect Battery

    ® CD510K Disconnect Battery Before you begin, always disconnect the battery negative terminal. Remove Old Radio Your original car radio is installed in one of four ways, depending on the car. Front Load Mount Standard Bracket Mount (GM, Dodge, Jeep) Some cars use a special removal tool to release the radio (Ford and Mercury).

  • Page 5: Wiring

    No convenient power wire? Install a fuse Some speakers connect to the original adapter having a spade connector. radio with a single wire. Your Jensen radio requires two wires per speaker. You must locate each speaker and run a second wire Fuse from the speaker (–) terminal to the radio.

  • Page 6: Wiring With A Wiring Adapter

    1. Connect wiring adapter to the car's exist- Splice, crimp or solder the wires from the ing wiring harness. Jensen connector to the wiring adapter. Match the wires according to the chart (below) and 2. Connect antenna extender cable (not the wiring adapter instructions.

  • Page 7: Wiring Diagram-Advanced Installation

    Using green/black violet/black an incorrect fuse could damage radio. The CD510K uses one 10 amp (in the green violet filter box) and two 1 amp fast blow AGC fuses as part of rear wiring harness.

  • Page 8: Testing

    ® CD510K Testing Before you finish the installation, you should do the following tests to make sure the wiring is correct and everything is operating properly. Reconnect Battery View/Set the Clock When wiring is complete, To view the time, press DISP button to reconnect the battery temporarily display clock.

  • Page 9: Test Antenna Connection

    ® CD510K Test Antenna Connection Test Memory Wiring 1. With the radio playing, 1. Press the Tuning hold button 1 for five Ring up or down. seconds. You just stored The radio should the current station in tune to a nearby memory.

  • Page 10: Test Speaker Connections

    ® CD510K Test Speaker Connections These tests make sure the speakers are connected right. If speakers don’t play at all, both wires may not be connected. If the wrong speaker plays (you hear front speakers when you expect rear speakers) make sure you connected the wires right.

  • Page 11: Final Installation

    ® CD510K Final Installation 1. Slide radio chassis into half sleeve. 2. Secure to strap using nut if possible. 3. Reinstall any items you removed from the dashboard. (supplied) 1. Remove trim ring from front of radio. 2. Mount factory brackets on new radio using existing screws from old radio.

  • Page 12: Troubleshooting

    Press Reset button ER-8 appears on display Disc reading error Try a different CD Can’t find cause of problem Call Jensen Technical Assistance (1-800-323-0221) Reset Button / Remove Radio Detachable Flip-Over Panel from Dash 1. Press REL button to open flip-over panel.

  • Page 13: Warranty

    Jensen will pay the return shipping charges if the product is What is Covered. Except as otherwise specified below, returned to an address inside the USA or Canada.
