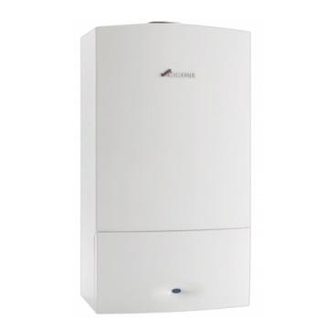

Worcester GREENSTAR 24i junior Instruction Manual

Wall hung rsf gas fired condensing combination boiler for sealed central heating systems and mains fed domestic hot water
Hide thumbs Also See for GREENSTAR 24i junior:
Table of Contents

Advertisement

Quick Links

See also: Installation, Commissioning & Servicing Instructions , Instructions for Installation and Servicing

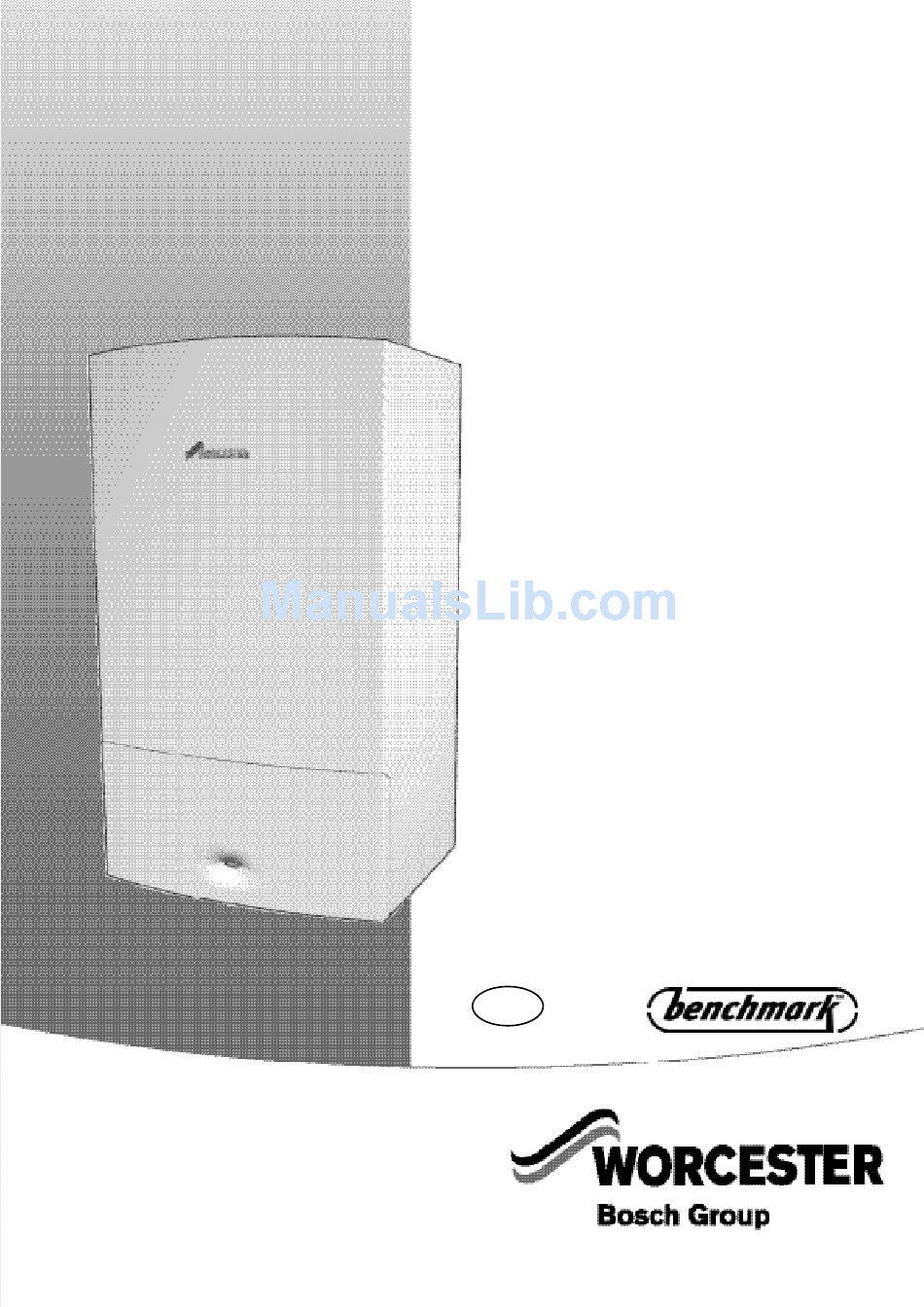

INSTRUCTION MANUAL
INSTALLATION, COMMISSIONING & SERVICING
WALL HUNG RSF GAS FIRED CONDENSING COMBINATION BOILER
GREENSTAR 24i
FOR SEALED CENTRAL HEATING SYSTEMS AND MAINS FED
DOMESTIC HOT WATER
j
j
u
u
n
n
i
i
o
o
r / 28i
r
THE APPLIANCE IS FOR USE WITH
NATURAL GAS OR L.P.G. (Cat II 2H3P TYPE C13, C33 & C53)
NATURAL GAS:
LIQUID PETROLEUM GAS:
UK/IE
j
j
u
u
n
n
i
i
o
o
r
r
24i junior GC NUMBER 47-311-86
28i junior GC NUMBER 47-311-87
24i junior GC NUMBER 47-311-90
28i junior GC NUMBER 47-311-91

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GREENSTAR 24i junior and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Worcester GREENSTAR 24i junior

Summary of Contents for Worcester GREENSTAR 24i junior

  • Page 1 DOMESTIC HOT WATER THE APPLIANCE IS FOR USE WITH NATURAL GAS OR L.P.G. (Cat II 2H3P TYPE C13, C33 & C53) NATURAL GAS: 24i junior GC NUMBER 47-311-86 28i junior GC NUMBER 47-311-87 LIQUID PETROLEUM GAS: 24i junior GC NUMBER 47-311-90...
  • Page 2 the nation’s favourite PLUMBING & HEATING SUPPLIES FREE SHIPPING SECURE PAYMENTS on all orders over £100 to mainland UK shop online with confidence FINANCE AVAILABLE PRICE MATCH spread the cost with low interest rates always get the best deals available we have H U G E R E D U C T I O N S...
  • Page 3 SENTINEL 0800 389 4670 www.sentinel-solutions.net FLUE TERMINAL GUARDS: TOWER FLUE COMPONENTS LTD. Vale Rise, Tonbridge TN9 1TB 01732 351555 INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior INSTALLATION & 8 716 115 166a (06/2008) SERVICING INSTRUCTIONS...

  • Page 4: Table Of Contents

    L.P.G. CONVERSION FAULT FINDING & DIAGNOSIS FAULT FINDING CENTRAL HEATING FUNCTION PREHEAT AND DHW FUNCTION PROTECTION FUNCTION BENCHMARK CHECKLIST SERVICE INTERVAL RECORD SHEET INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior CONTENTS 8 716 115 166a (06/2008)

  • Page 5: Safety Precautions & Symbols

    IMPORTANT - The service engineer must complete the Service Record on the Benchmark Checklist after each service. INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior SAFETY PRECAUTIONS 8 716 115 166a (06/2008)

  • Page 6: General Information

    • Plate type DHW heat exchanger Syphon assembly.................... 1 Installation instructions.................. 1 Irish Guidelines Leaflet ................. 1 Warranty Return Envelope ................1 INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior GENERAL INFORMATION 8 716 115 166a (06/2008)

  • Page 7: Technical Data

    Noise output level (Max central heating) dB(A) Total boiler weight 39.5 39.5 39.5 39.5 Lift weight 27.1 27.1 27.1 27.1 SEDBUK 90.1 90.1 91.8 91.8 INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior TECHNICAL DATA 8 716 115 166a (06/2008)

  • Page 8: Layout & Components

    32 F LU E AI R P R ES S U R E SWITC H CONNECTION (BLANKED OFF ON THIS APPLIANCE) INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior LAYOUT & COMPONENTS 8 716 115 166a (06/2008)
  • Page 9 50 CH TEMPERATURE CONTROL 51 POSITION FOR OPTIONAL PROGRAMMER 52 SERVICE MODE BUTTON 53 BURNER ON INDICATOR LIGHT (GREEN) 54 MASTER SWITCH ON/OFF INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior LAYOUT & COMPONENTS 8 716 115 166a (06/2008)

  • Page 10: Cleaning Primary Systems

    • It may be necessary to use a power flushing machine to aid the cleansing procedure in some circumstances INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior CLEANING PRIMARY SYSTEMS 8 716 115 166a (06/2008)

  • Page 11: Mains Supply

    In such circumstances, the advice of the local water authority should be sought. INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior MAINS SUPPLY 8 716 115 166a (06/2008)

  • Page 12: Water Systems & Pipework

    • Do not use galvanised pipes or radiators. INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior WATER SYSTEMS & PIPEWORK 8 716 115 166a (06/2008)

  • Page 13: Condensate Pipework

    An air break must be installed in the 32/43 mm pipework, between the boiler condensate outlet and the drainpipe, outside the property, to avoid flooding during adverse weather conditions. INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior CONDENSATE PIPEWORK 8 716 115 166a (06/2008)

  • Page 14: Pressure Relief Pipework

    (as shown) to help prevent freezing. L - Outside wall O,M - Drain pipe N - External drain INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior PRESSURE RELIEF PIPEWORK 8 716 115 166a (06/2008)

  • Page 15: Boiler Location & Clearances

    Total side clearance must be removable door) is must be increased to (approx): increased to: reduced to: 50mm 511mm 505mm 25mm 596mm 569mm INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior BOILER LOCATION & CLEARANCES 8 716 115 166a (06/2008)

  • Page 16: Boiler Location

    Additional RCD (Residual Current Device) pro- tection may be required. Refer to the latest IEE wiring regulations. INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior BOILER LOCATION & CLEARANCES 8 716 115 166a (06/2008)

  • Page 17: Plumbing Manifold

    Further guidance on pipe routing can be found printed on the boiler template (supplied with the boiler). Mains Gas Mains Water Supply 22mm (DHW IN) 15mm INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior PLUMBING MANIFOLD 8 716 115 166a (06/2008)

  • Page 18: Flue Options

    High level horizontal flue with 2x90° bends FLUE OPTIONS The Greenstar series has the option of two horizontal RSF (60/100 telescopic and 80/125) flue systems and two vertical RSF (60/100 or 80/125) flue systems: The systems have different maximum flue lengths This page shows various fluing options with the straight flue lengths required to achieve the maximum flue length.

  • Page 19: Flue Terminal Positions

    50 mm) around the flue and fixed to the wall with plated screws. See Contact Information (inside front cover). INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior FLUE TERMINAL POSITIONS 8 716 115 166a (06/2008)
  • Page 20 FLUE TERMINAL POSITIONS INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior FLUE TERMINAL POSITIONS 8 716 115 166a (06/2008)

  • Page 21: Installation

    2. Remove template (F) and wall mounting frame (E) from the packaging. 3. Remove boiler bottom panel (D) and installer pack (C). INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior UNPACKING WALL FRAME AND 8 716 115 166a (06/2008) ANCILLARY ITEMS...

  • Page 22: Wall Mounting Template / Flue Opening

    This kit can be used in conjunction with the optional filling loop 7 716 192 281(not sup- plied with the boiler). INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior WALL MOUNTING PLATE FLUE OPENING 8 716 115 166a (06/2008)

  • Page 23: Unpacking The Appliance

    6.2). Remove any packaging within the boiler and the packaging base (C). CAUTION: Caps fitted to pipes must be removed before hanging the boiler. INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior UNPACKING THE APPLIANCE 8 716 115 166a (06/2008)

  • Page 24: Boiler Connections

    UP until the stop on the inside of the handle is over the shoulder of the metal bracket to secure in place. Stop in locked position INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior BOILER CONNECTIONS 8 716 115 166a (06/2008)
  • Page 25 15mm compression joint (J) using the compression nut and olive supplied in the hardware literature pack. 22mm 15mm 22mm 15mm 22mm INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior BOILER CONNECTIONS 8 716 115 166a (06/2008)

  • Page 26: Flue Installation

    After cutting, the end must be square and free from burrs to prevent damage to the 130mm flue seals. INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior FLUE INSTALLATION 8 716 115 166a (06/2008)
  • Page 27 Do not attempt to force beyond the limit stops. INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior FLUE INSTALLATION 8 716 115 166a (06/2008)
  • Page 28 • The flue is set at an angle of 3° or 52mm per 1m length. Flat at back This screw should be fitted last for rear exit INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior FLUE INSTALLATION 8 716 115 166a (06/2008)

  • Page 29: Condensate Connections

    Re-fit the drainage cap to bottom of the syphon. DRAINAGE CAP DISCHARGE HOSE WALL FRAME CONNECTOR INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior CONDENSATE CONNECTION 8 716 115 166a (06/2008)

  • Page 30: Electrics

    5 Optional external frost stat connection (ST6): Connect froststat cables to terminals (FS) and (FR). These are not polarity sensitive. 6 Refit panels. INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior ELECTRICS 8 716 115 166a (06/2008)

  • Page 31: Position Of Wired Components

    POSITION OF WIRED COMPONENTS INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior POSITION OF WIRED COMPONENTS 8 716 115 166a (06/2008)

  • Page 32: Pre-Commissioning Checks

    22mm 15mm 22mm 15mm 22mm Preplumbing manifold connector Condensate pipe INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior PRE-COMMISSIONING CHECKS 8 716 115 166a (06/2008)

  • Page 33: Filling The System

    This kit can be used in conjunction with the optional filling loop 7 716 192 281(not sup- plied with the boiler). INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior FILLING THE SYSTEM 8 716 115 166a (06/2008)

  • Page 34: Starting The Appliance

    To reset press and hold the reset button (E) for 2 seconds. The boiler will be reset. CAUTION: DO NOT PRESS POWER INDICATOR (B) TO RESET BOILER. INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior STARTING THE APPLIANCE 8 716 115 166a (06/2008)

  • Page 35: Water Treatment

    The addition of sealing agents to the system water is not recommended as this can cause problems with deposits left in the heat exchanger. INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior WATER TREATMENT 8 716 115 166a (06/2008)

  • Page 36: Commissioning

    When the ECO button is illuminated the boiler will be in Economy mode with pre-heat no longer active. Inlet Test Nipple INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior COMMISSIONING 8 716 115 166a (06/2008)

  • Page 37: Finishing Commissioning

    If the appliance is unused and exposed to freezing conditions, shut off all the mains supplies and drain the system and boiler. INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior FINISHING COMMISSIONING 8 716 115 166a (06/2008)

  • Page 38: Inspection And Service

    Commissioning. Operate the appliance and take note of any irregularities. Refer to Fault Finding for rectification procedures. INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior INSPECTION AND SERVICE 8 716 115 166a (06/2008)
  • Page 39 2.1 Remove screw (C) securing control. 2.2 Gently pull the control forward until it is fully lowered into the service position. INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior INSPECTION AND SERVICE 8 716 115 166a (06/2008)
  • Page 40 28i junior - 3.9 mbar 28i junior - 4.6mbar • Pressures measured below these figures will indicate that the heat exchanger will require cleaning. INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior INSPECTION AND SERVICE 8 716 115 166a (06/2008)
  • Page 41 Catch the debris and condensate from the syphon into a suitable container. Re-fit the drainage cap (E) to bottom of the syphon. INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior INSPECTION AND SERVICE 8 716 115 166a (06/2008)
  • Page 42 (K). Remove clamping plate (L). Remove spark/flame electrode assembly from boiler. Remove seal from the top of the heat exchanger. INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior INSPECTION AND SERVICE 8 716 115 166a (06/2008)
  • Page 43 BETWEEN THE AIR/GAS MANIFOLD AN D TH E H EAT E XCHANG E R I S DISTURBED THE SEALING GASKET MUST BE REPLACED. INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior INSPECTION AND SERVICE 8 716 115 166a (06/2008)

  • Page 44: Replacement Of Parts

    Undo the flue connection from the sump and push the flue tube up. Push the flue limit thermostat outwards from the sump. INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior REPLACEMENT OF PARTS 8 716 115 166a (06/2008)
  • Page 45 Replace valve with new seals and check for gas soundness. Note: The valve will require setting; follow procedure “Setting the air/gas ratio” . INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior REPLACEMENT OF PARTS 8 716 115 166a (06/2008)
  • Page 46 Remove 5 screws (C) retaining the rear panel of the control and remove panel. Spare Fuse order T1.6L 250V F2 T2.5H 250V F1 T500L 250V F3 INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior REPLACEMENT OF PARTS 8 716 115 166a (06/2008)
  • Page 47 IS RE-FITTED TO THE NEW CONTROL. IF THIS IS NOT DONE THE BOILER WILL INDICATE ERROR AND WILL NOT FUNCTION. 10.3 INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior REPLACEMENT OF PARTS 8 716 115 166a (06/2008)
  • Page 48 Lift up assembly and remove from boiler. NOTE: After re-assembly, check the CO/CO levels as described in the setting of the air/gas ratio section. INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior REPLACEMENT OF PARTS 8 716 115 166a (06/2008)

  • Page 49: Electrode Assembly

    IMPORTANT: IF THE JOINT BETWEEN THE AIR/GAS MANIFOLD AND THE HEAT EXCHANGER IS DISTURBED THE SEALING GASKET MUST BE REPLACED. 15.4 15.2 15.3 15.1 INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior REPLACEMENT OF PARTS 8 716 115 166a (06/2008)

  • Page 50: Diverter Valve Motor

    19.1 Withdraw the spring clip. 19.2 Withdraw the sensor (D) from the housing. To refit, follow the above in reverse. 19.2 19.1 INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior REPLACEMENT OF PARTS 8 716 115 166a (06/2008)

  • Page 51: Pressure Gauge

    23.2 Withdraw the drain tap from its housing To refit, follow the above in reverse. Ensure any seals that have been disturbed are renewed. INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior REPLACEMENT OF PARTS 8 716 115 166a (06/2008)

  • Page 52: Ch Pressure Relief Valve

    25.2 Withdraw the pressure release valve (A) from its housing. To refit, follow the above in reverse. Ensure any seals that have been disturbed are renewed. INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior REPLACEMENT OF PARTS 8 716 115 166a (06/2008)

  • Page 53: Dhw Heat Exchanger

    27.2 Remove the heat exchanger To refit, follow the above in reverse. Ensure any seals that have been disturbed are renewed. 27.2 INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior REPLACEMENT OF PARTS 8 716 115 166a (06/2008)

  • Page 54: Expansion Vessel

    Gently raise the boiler off the mounting frame. Replace expansion vessel and refit the boiler to the mounting frame. Follow the commissioning procedure in this manual. INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior REPLACEMENT OF PARTS 8 716 115 166a (06/2008)
  • Page 55 Remove manometer and re-seal inlet pressure point on gas valve. Re-assemble and refit boiler case. ‘C’ INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior REPLACEMENT OF PARTS 8 716 115 166a (06/2008)

  • Page 56: Setting The Air/Gas Ratio

    Remove manometer and re-seal inlet pressure point on gas valve. Re-assemble and refit boiler case. INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior REPLACEMENT OF PARTS 8 716 115 166a (06/2008)

  • Page 57: Short Parts List

    GC No. E27 305 Fuse 0.5 Amp F3 WORCESTER Part No. 1 904 522 730 0 GC No. E27 300 INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior REPLACEMENT OF PARTS 8 716 115 166a (06/2008)

  • Page 58: L. P. G. Conversion

    S ET TI N G TH E AI R / GAS R ATI O 28kW NG SECTION OF THIS MANUAL. 28kW LPG INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior LPG CONVERSION 8 716 115 166a (06/2008)

  • Page 59: Fault Finding & Diagnosis

    :Replace control board if: 5V is not across the red and black cables. :1.5V-3.5V is across the yellow and black cables (with water flowing). Otherwise replace flow sensor. INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior FAULT FINDING 8 716 115 166a (06/2008)

  • Page 60: Central Heating Function

    Over temperature shut- Gas valve OFF. down if water tempera- 3 minute wait Fan overrun ture is 5°C above set 30 seconds value. Room thermostat and/or mains programmer ON Fan (& gas) (or link fitted at modulation GREEN 10 second END OF ST10) Fan to...

  • Page 61: Preheat And Dhw Function

    FAULT FINDING Burner shut down if & DIAGRAMS primary temperature 94°C (until 84°C) Over temperature shut- Wait down if water tempera- Gas valve OFF. 5 seconds ture is 8°C above set value. DOMESTIC Tap open WATER (recognised DEMAND by flow (priority over Fan (&...

  • Page 62: Protection Function

    PROTECTION FUNCTION Boiler temperature Run autofroststat below 8°C function Pump run 5 seconds Pump antiseize every 24hrs INSTALLATION & SERVICING INSTRUCTIONS FOR WORCESTER GREENSTAR 24 i junior/28 i junior PROTECTION FUNCTION 8 716 115 166a (06/2008)
  • Page 65 If in the unlikely event the boiler does not give complete satisfaction, before calling for a service engineer, the installer should check the following:- No Central Heating Is the room stat correctly wired up at the boiler and the Pack Number room thermostat? Refit the link between Ls and L on terminal block ST 10.

This manual is also suitable for:

Greenstar 28i junior

Table of Contents
