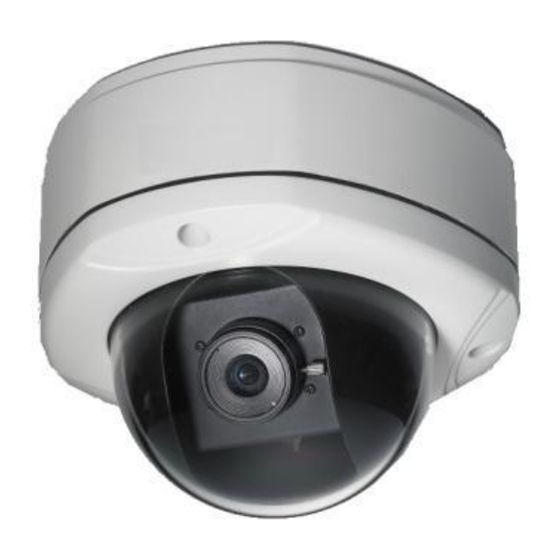

MODEL#: IN-DO4MF
H.264 4-Megapixel IP D/N Vandal Proof PoE
Rugged Dome Camera
HARDWARE USER MANUAL
01/10/2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IN-DO4MF and is the answer not in the manual?

Questions and answers

Related Manuals for Inaxsys IN-DO4MF

Summary of Contents for Inaxsys IN-DO4MF

  • Page 1 MODEL#: IN-DO4MF H.264 4-Megapixel IP D/N Vandal Proof PoE Rugged Dome Camera HARDWARE USER MANUAL 01/10/2011...

  • Page 2: Table Of Contents

    Accessing Camera If you have DHCP server / router in your network: ...... 14 If you do NOT have DHCP server / router in your network: ..14     8272 Pascal Gagnon Saint-Leonard, Quebec, Canada H1P 1Y4 www.inaxsys.com...
  • Page 3 Operation of this equipment in a residential area is likely to cause harmful interference in which case the users will be required to correct the interference at their own expense.     8272 Pascal Gagnon Saint-Leonard, Quebec, Canada H1P 1Y4 www.inaxsys.com...

  • Page 4: Introduction

    Package Contents H.264 4 Megapixel IP D/N Vandal Proof PoE Rugged Dome Camera Power Adaptor (Optional) Product CD Terminal Blocks for Power DI/O and Audio Accessories Drill Template     8272 Pascal Gagnon Saint-Leonard, Quebec, Canada H1P 1Y4 www.inaxsys.com...

  • Page 5: Features And Benefits

    Reliable and accurate motion detection with instant warning enables immediate response in every condition. Quick and simple search and playback function lets you easily find the images and video you want.     8272 Pascal Gagnon Saint-Leonard, Quebec, Canada H1P 1Y4 www.inaxsys.com...

  • Page 6: Safety Instructions

    Refer all servicing to qualified service personnel. Damage Requiring service Disconnect this video product from the power supply immediately and refer servicing to     8272 Pascal Gagnon Saint-Leonard, Quebec, Canada H1P 1Y4 www.inaxsys.com...
  • Page 7 Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine if the video product is in proper operating condition.     8272 Pascal Gagnon Saint-Leonard, Quebec, Canada H1P 1Y4 www.inaxsys.com...

  • Page 8: Physical Description

    By this time the reset to default operation is already completed. This will take around 20 seconds from power up. You may then release the     8272 Pascal Gagnon Saint-Leonard, Quebec, Canada H1P 1Y4 www.inaxsys.com...
  • Page 9 1. Attach the cables for the device securely to the supplied green connector block. 2. Once cables are connected, push connector block into the terminal connector on camera.     8272 Pascal Gagnon Saint-Leonard, Quebec, Canada H1P 1Y4 www.inaxsys.com...
  • Page 10 12V pin. NAME DESCRIPTION AC Power Input E-Ground of power 7) Audio Input / Output The IP device supports audio input and output via terminal block     8272 Pascal Gagnon Saint-Leonard, Quebec, Canada H1P 1Y4 www.inaxsys.com...

  • Page 11: Product Specification

    Protocol & Service ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 connector Security IP address filtering; HTTPS encryption; Password protected user levels     8272 Pascal Gagnon Saint-Leonard, Quebec, Canada H1P 1Y4 www.inaxsys.com...
  • Page 12 Camera: CE, FCC; Adapter: CE, TUV-GS, UL, RCM, CCC • Integration SV Integration Software Development Kit (SDK) available Firmware Access Browser Microsoft Internet Explorer 6.0 or newer     8272 Pascal Gagnon Saint-Leonard, Quebec, Canada H1P 1Y4 www.inaxsys.com...
  • Page 13 H.264 4-Megapixel IP D/N Vandal Proof PoE Rugged Dome Camera Hardware User Manual  8272 Pascal Gagnon  Saint-Leonard, Quebec, Canada  H1P 1Y4  www.inaxsys.com...
  • Page 14 H.264 4-Megapixel IP D/N Vandal Proof PoE Rugged Dome Camera Hardware User Manual  8272 Pascal Gagnon  Saint-Leonard, Quebec, Canada  H1P 1Y4  www.inaxsys.com...
  • Page 15 H.264 4-Megapixel IP D/N Vandal Proof PoE Rugged Dome Camera Hardware User Manual  8272 Pascal Gagnon  Saint-Leonard, Quebec, Canada  H1P 1Y4  www.inaxsys.com...

  • Page 16: Installation Procedure

    Remove the plug if your cable will go through the one at the side of the rugged dome 3) Connect cables to connectors Please follow the instructions in the Physical Description section for how to connect to each connector.     8272 Pascal Gagnon Saint-Leonard, Quebec, Canada H1P 1Y4 www.inaxsys.com...

  • Page 17: Accessing Camera

    3. Change your IP address by going to Control Panel ->Manage Network Connections -> Right click on the connection to change -> Option -> TCP/IP IPv4 Properties.     8272 Pascal Gagnon Saint-Leonard, Quebec, Canada H1P 1Y4 www.inaxsys.com...
  • Page 18 Password: 123456 6. After logging in, you will see the video from camera. To go to the main menu, click the ”Setup” button on the top left.     8272 Pascal Gagnon Saint-Leonard, Quebec, Canada H1P 1Y4 www.inaxsys.com...
  • Page 19 192.168.0.101). For the second device or more you add into the network, please type the correct IP. 13. Adjust the default Video setting by going to Video & Audio ->Video     8272 Pascal Gagnon Saint-Leonard, Quebec, Canada H1P 1Y4 www.inaxsys.com...
