Inaxsys IN-EDO2MIRA Quick Manual

The Quick Guide is for quick installing and connecting the 2-Megapixel Full HD Extreme Vandal Dome Remote
Focus Camera. For details, please refer to the IP Camera's User Manual.

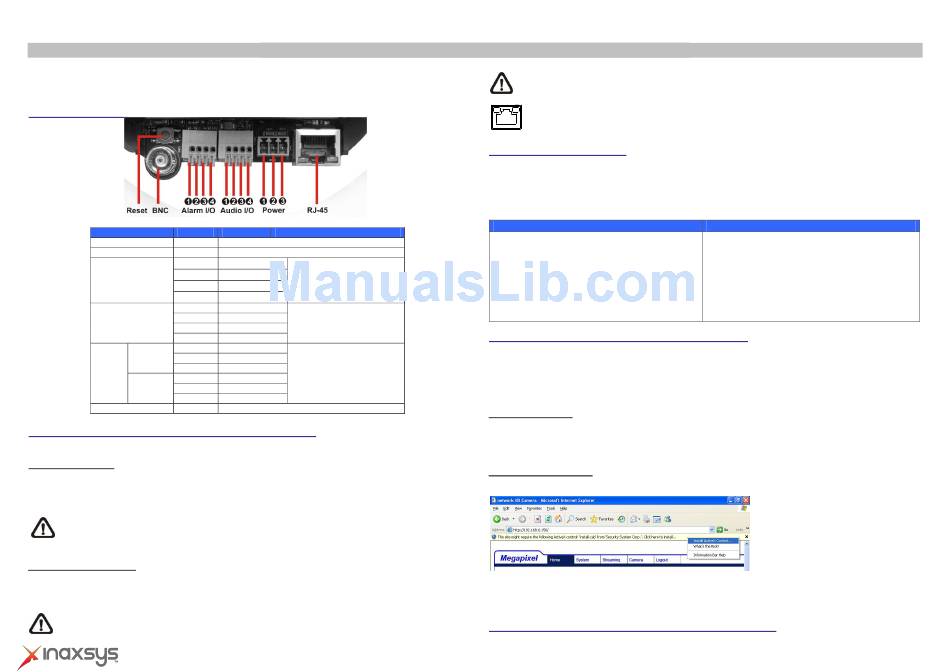

Camera's Connectors
Connector Pin No.
Reset Button -
BNC -
1
2
Alarm I/O
3
4
1
2
Audio I/O
3
4
1
DC 12V 2
3
Power
1
AC 24V 2
3
RJ-45 -
IP Camera Installation
Please follow the instructions below to complete IP Camera installation.
Power up the Camera
To power up the IP Camera, please plug the camera's DC 12V / AC 24V cable into the power terminal block.
Alternatively, connect the Ethernet cable to the camera's PoE port and plug the other end of the cable into a PoE
switch.
NOTE: If using PoE, make sure Power Sourcing Equipment (PSE) is in use in the network.
Ethernet Cable Connection
Connect one end of the CAT5 Ethernet cable to the RJ-45 connector of the IP Camera, and the other end of the
cable to the network switch or PC.
NOTE: In some cases, you may need to use an Ethernet crossover cable when connecting the IP Camera
directly to the PC.
2-Megapixel Full HD Extreme Vandal Dome Remote Focus Quick Guide
Definition Remarks
Restore to factory default
Analog Video Output
GND (Input－)
Input＋
Alarm connection
Output－
Output＋
Output (L)
Output (R)
Two-way audio transmission
GND
Input
Power
Reserved
GND
Power connection
Power-1
Earth GND
Power-2
10/100 Mbps Ethernet/ PoE
 8272 Pascal Gagnon 
NOTE: Check the status of the link indicator and activity indicator LEDs; if the LEDs are unlit, please check
LAN connection.
Green Link Light indicates good network connection.
Orange Activity Light flashes for network activity indication.
Before Login to the IP Camera
A client program will be automatically installed on your PC when connecting to the IP Camera. Before logging in to
the IP Camera, please ensure downloading the ActiveX control is allowed by either changing the ActiveX controls
and plug-ins or setting Internet's security level to default. For further details, please refer to the IP Camera's user
manual.
ActiveX Controls and Plug-ins Settings
Step 1: Start the Internet Explorer (IE).
Step 2: Select <Tools> from the main menu of the
browser. Then Click <Internet Options>.
Step 3: Click the <Security> tab and select "Internet",
and click <Custom level> to change ActiveX
settings.
Step 4: Set "ActiveX controls and plug-ins" items to
<Prompt> or <Enable>.
IP Camera Login
The IP Camera's default IP address is: 192.168.0.100. Therefore, to access the IP Camera for the first time, set the
PC's IP address as: 192.168.0.XXX; for example:
IP Address: 192.168.0.100
Subnet Mask: 255.255.255.0
Login ID & Password
 Key in the IP Camera's IP address in the URL bar of the Web browser window and press "Enter."
 Enter the default user name (admin) and password (123456) in the prompt request dialogue. Note that user name
is case sensitive.
Install the ActiveX Control
 After connecting to the IP Camera, the request for installing the ActiveX control will appear just below the URL bar.
 Right Click on the information bar, and press "Install ActiveX Control..." to permit ActiveX control installation.
 In the pop-up security warning window, click "Install" to start downloading DC Viewer software on the PC.
 Press "Finish" after DC Viewer installation is complete.
Browser-based Viewer
The main page of the IP Camera user interface is shown as the figure below. Please note that function buttons will
Saint-Leonard, Quebec, Canada  H1P 1Y4  www.inaxsys.com
Internet Security Level
Step 1: Start the IE.
Step 2: Select <Tools> from the main menu of the
browser. Then Click <Internet Options>.
Step 3: Click the <Security> tab and select "Internet."
Step 4: Down the page, press "Default Level" and click
"OK" to confirm the setting. Close the browser
window, and open a new one later for
accessing the IP Camera
