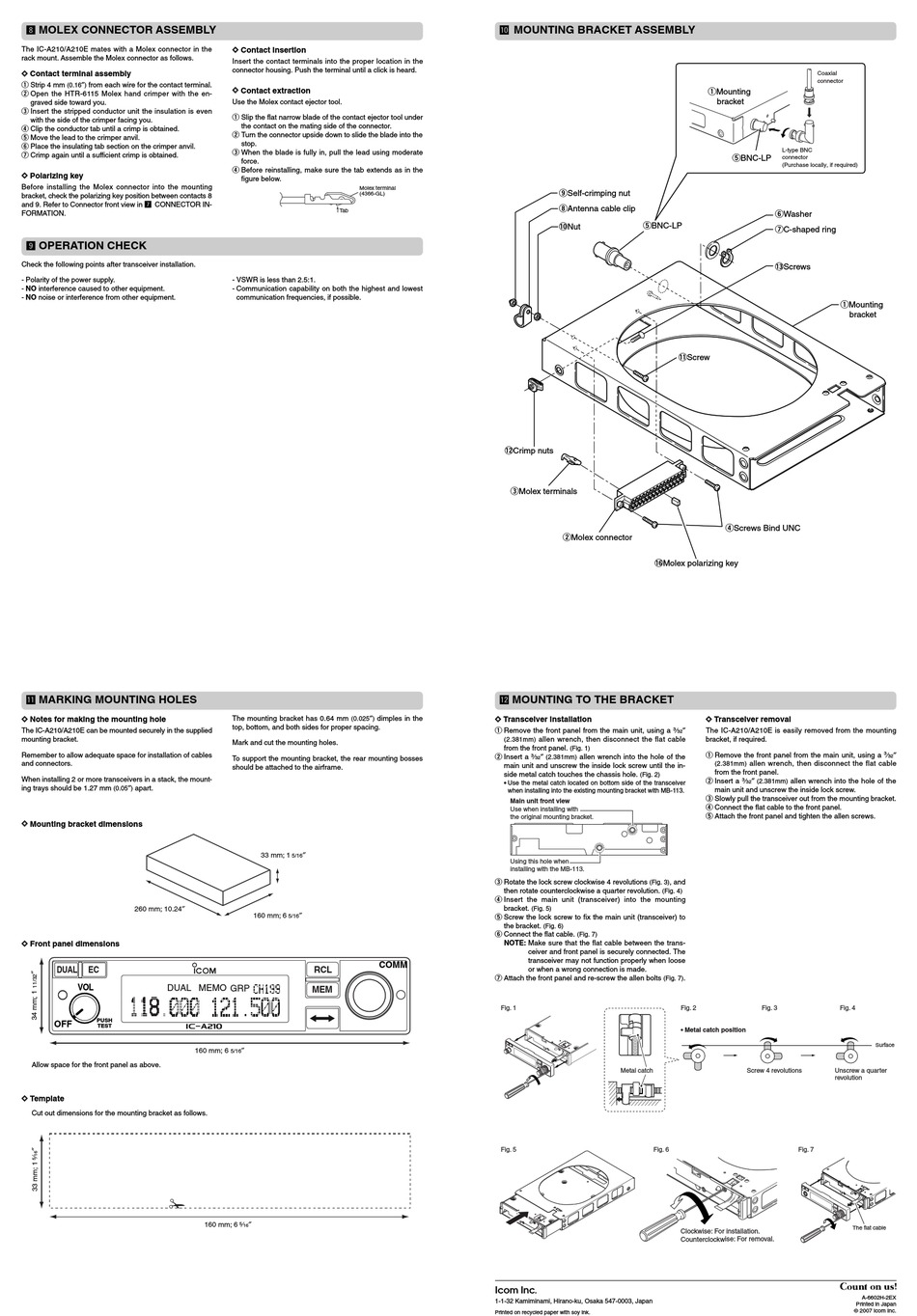

Icom IC-A210 Installation Manual page 2

,
MOLEX CONNECTOR ASSEMBLY
The IC-A210/A210E mates with a Molex connector in the
rack mount. Assemble the Molex connector as follows.
D D Contact terminal assembly
"
q Strip 4 mm
(0.16 ) from each wire for the contact terminal.
w Open the HTR-6115 Molex hand crimper with the en-
graved side toward you.
e Insert the stripped conductor unit the insulation is even
with the side of the crimper facing you.
r Clip the conductor tab until a crimp is obtained.
t Move the lead to the crimper anvil.
y Place the insulating tab section on the crimper anvil.
u Crimp again until a sufficient crimp is obtained.
D D Polarizing key
Before installing the Molex connector into the mounting
bracket, check the polarizing key position between contacts 8
and 9. Refer to Connector front view in m CONNECTOR IN-
FORMATION.
.
OPERATION CHECK
Check the following points after transceiver installation.
- Polarity of the power supply.
- NO interference caused to other equipment.
- NO noise or interference from other equipment.
⁄1
MARKING MOUNTING HOLES
D D Notes for making the mounting hole
The IC-A210/A210E can be mounted securely in the supplied
mounting bracket.
Remember to allow adequate space for installation of cables
and connectors.
When installing 2 or more transceivers in a stack, the mount-
"
ing trays should be 1.27 mm (0.05 ) apart.
D D Mounting bracket dimensions
260 mm; 10.24"
D D Front panel dimensions
DUAL EC
VOL
DUAL
PUSH
OFF
iA210
TEST
160 mm; 6
Allow space for the front panel as above.
D D Template
Cut out dimensions for the mounting bracket as follows.
D D Contact insertion
Insert the contact terminals into the proper location in the
connector housing. Push the terminal until a click is heard.
D D Contact extraction
Use the Molex contact ejector tool.
q Slip the flat narrow blade of the contact ejector tool under
the contact on the mating side of the connector.
w Turn the connector upside down to slide the blade into the
stop.
e When the blade is fully in, pull the lead using moderate
force.
r Before reinstalling, make sure the tab extends as in the
figure below.
Molex terminal
(4366-GL)
Tab
- VSWR is less than 2.5:1.
- Communication capability on both the highest and lowest
communication frequencies, if possible.
"
The mounting bracket has 0.64 mm
(0.025 )
top, bottom, and both sides for proper spacing.
Mark and cut the mounting holes.
To support the mounting bracket, the rear mounting bosses
should be attached to the airframe.
"
33 mm; 1
5/16
"
160 mm; 6
5/16
RCL
MEMO GRP
MEM
"
5/16
"
160 mm; 6 5 ⁄
16
⁄0
MOUNTING BRACKET ASSEMBLY
!2 C rimp nuts
eMolex terminals
⁄2
MOUNTING TO THE BRACKET
dimples in the D D Transceiver installation
q Remove the front panel from the main unit, using a
(2.381mm) allen wrench, then disconnect the flat cable
from the front panel.
"
w Insert a 3
⁄ (2.381mm)
32
main unit and unscrew the inside lock screw until the in-
side metal catch touches the chassis hole.
• Use the metal catch located on bottom side of the transceiver
when installing into the existing mounting bracket with MB-113.
Main unit front view
Use when installing with
the original mounting bracket.
Using this hole when
installing with the MB-113.
e Rotate the lock screw clockwise 4 revolutions
then rotate counterclockwise a quarter revolution.
r Insert the main unit (transceiver) into the mounting
bracket.
(Fig. 5)
t Screw the lock screw to fix the main unit (transceiver) to
the bracket.
(Fig. 6)
y Connect the flat cable.
NOTE: Make sure that the flat cable between the trans-
ceiver and front panel is securely connected. The
transceiver may not function properly when loose
COMM
or when a wrong connection is made.
u Attach the front panel and re-screw the allen bolts
Fig. 1
Fig. 5
1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan
Printed on recycled paper with soy ink.
qMounting
bracket
tBNC-LP
oSelf-crimping nut
iAntenna cable clip
tBNC-LP
!0 N ut
!1 S crew
rScrews Bind UNC
wMolex connector
!6 M olex polarizing key
D D Transceiver removal
"
3
⁄ The IC-A210/A210E is easily removed from the mounting
32
bracket, if required.
(Fig. 1)
q Remove the front panel from the main unit, using a
allen wrench into the hole of the
(2.381mm)
from the front panel.
(Fig. 2)
w Insert a
main unit and unscrew the inside lock screw.
e Slowly pull the transceiver out from the mounting bracket.
r Connect the flat cable to the front panel.
t Attach the front panel and tighten the allen screws.
, and
(Fig. 3)
(Fig. 4)
(Fig. 7)
(Fig. 7) .
Fig. 2
• Metal catch position
Metal catch
Fig. 6
Coaxial
connector
L-type BNC
connector
(Purchase locally, if required)
yWasher
uC-shaped ring
!3 S crews
qMounting
bracket
"
3
⁄
32
allen wrench, then disconnect the flat cable
"
3
⁄ (2.381mm) allen wrench into the hole of the
32
Fig. 3 Fig. 4
Surface
Screw 4 revolutions Unscrew a quarter
revolution
The flat cable
A-6602H-2EX
Printed in Japan
© 2007 Icom Inc.
