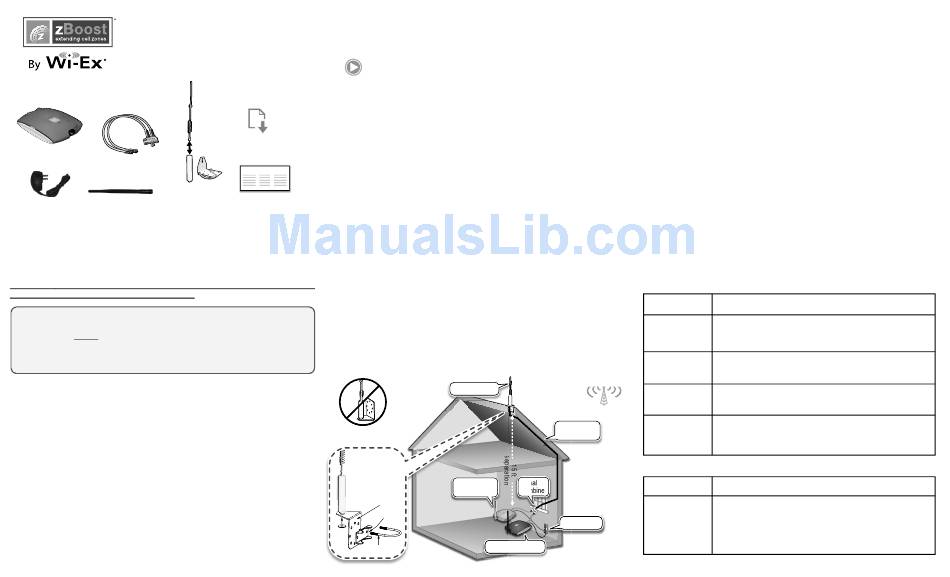

zBoost VLTE-AWS Setup Overview

PACKAGE CONTENTS
zBoost Base Unit with
Silver Mounting Bracket
zBoost Signal Combiner
Quad Band Signal
Antenna (2 pieces) and
Power Supply Base Unit Antenna
Mounting Hardware
SETTING UP YOUR zBOOST SIGNAL BOOSTER
®
zBoost DataBlast 4G signal booster extends a 4G Data Zone™ for multiple users/
devices operating on the 4G network specified on the front of the box. The zBoost
DataBlast upgrade system boosts data speeds by up to 20 times when integrated with
your existing cellular signal boosting system.
Important: By joining two signal boosters to a single exterior antenna, the
signal could be reduced by as much as 3dB.
Before installing, please note the following important factors in determining your zBoost
performance:
• At least 15 vertical feet is needed between the Signal Antenna (receives the
outside signal) and the Base Antenna (rebroadcasts the signal indoors). Separation
less than 15 vertical feet will result in decreased performance.
• Keep the Signal Antenna at least 3 feet above any metal.
Boost data transmission in 4 easy steps:
FIRST: Replace existing Signal Antenna with zBoost Quad Band Antenna.
Verify that the location of the Signal Antenna is in the area of strongest signal. The
coverage your zBoost DataBlast provides is largely determined by the quality of signal
received by the Signal Antenna. If your best signal is 1 bar, your coverage will be
limited to one small room.
To maximize signal coverage, place the Signal Antenna where you find the strongest
signal (up high or outside) and at least 3 feet above any metal.
IMPORTANT: Incorrectly mounting the Signal Antenna to the mounting bracket (see
figure A) will impede performance. Ensure that the Signal Antenna is properly
positioned in the mounting bracket as pictured.
To mount antenna to a pole: Attach bottom of antenna to pole bracket as
pictured. Use U-Bolt to secure bracket to pole and fasten.
To mount antenna to a flat surface: Attach bottom of antenna to pole bracket
as pictured. Secure bracket to desired surface using provided screws. Use of
the Saddle and U-Bolt are not necessary for this option.

SETUP OVERVIEW

Download the YX550-Upgrade User Guide at www.Wi-Ex.com
SECOND: Disconnect the coaxial cable from the existing booster Base Unit and
connect to the zBoost Signal Combiner.
Existing RG-59 or RG-6 should not exceed 50 feet. If the cable length exceeds 50 feet,
it should be replaced with RG-11. Existing RG-11 should not exceed 100 feet.
The zBoost DataBlast requires at least 15 feet of vertical separation between the Base
User Guide available
Unit and the Signal Antenna. Generally, increasing this distance (up to 40 feet) will
at www.Wi-Ex.com
increase the performance and decreasing the distance will limit the performance of
both boosters.
SETUP OVERVIEW
THIRD: Connect one end of the zBoost Signal Combiner to the DataBlast Base
Unit and connect the remaining end to the existing booster.
Setup Overview
Assemble the Base Unit and Base Unit Antenna and position the antenna vertically.
Place the Base Unit next to your existing signal booster. For the widest possible signal
area, it is recommended that you position the Base Unit near the middle of a room.
The Base Unit can be placed on a flat surface (e.g., a bookshelf, desk, end table, etc.)
and performs best when located at least 4 feet above the floor or approximately the
height of a cell phone when it is typically in use (avoid placing the Base Unit on the
floor).
Keep the Base Unit at least 2 feet away from other cords, metal objects or other
wireless devices such as wireless routers or wireless access points. The zBoost
DataBlast performs best when there are no obstructions between the zBoost Base
Unit and your mobile device.
Important: The cable connections should remain hand-tight. Once you have them in
their permanent location, verify that all three connections remain secure.
Note: To mount it on an interior wall, first remove the silver bracket from the Base Unit,
mount the bracket to a wall with 2 screws (not provided), then placing the Base Unit
back into the bracket keeping the antenna vertical.
Figure A Figure A
Pole Bracket
Saddle
U-Bolt
Signal Antenna
Cell Tower
Existing
Coaxial Cable
Signal
Existing
Combiner
Signal Booster
Power Supply
DataBla DataBlast Base Unit
zBoost
DataBlast
YX550 Upgrade
FOURTH: Connect the DataBlast Base Unit to the provided power supply and
plug into a power outlet.
When your zBoost system is in place and fully connected, walk throughout your home
or office and verify that you have fast, reliable data speeds. If the signal strength has
improved, your zBoost is working. Remember, coverage varies based on outdoor
signal level, building construction, and antenna placement. Coverage in adjoining
rooms will be reduced by walls and building materials.
Upon initial power up, a solid GREEN LED should appear indicating normal conditions.
If a RED light appears, adjustments may be needed to optimize performance. If you
find the increased signal coverage is acceptable, however, no additional adjustments
are needed. See LED Indicator section for more information.
Should you desire to improve coverage, you may:
• Relocate the Signal Antenna in order to capture a better signal–higher is better.
• Increase the distance between the Base Units and the Signal Antenna.
BASE UNIT LED INDICATORS
At Initial Power Up Only
Normal condition at power up.
Solid GREEN
zBoost is working, but at reduced performance and coverage due to
Slowly Alternating
"non-ideal" setup. Increase the distance between antenna and
RED and GREEN
amplifier to achieve maximum performance and coverage.
Indicates insufficient distance between the antenna and the amplifier.
Fast Flashing RED
The amplifier is operating at significantly reduced coverage.
System is receiving signals from either the mobile device or the base
Solid RED
station transceiver which are too strong for proper operation.
Fast Alternating The amplifier is disabled.
RED and GREEN
followed by no light
After Initial Power Up
Normal condition
Solid GREEN
Solid RED System is receiving signals from either the mobile device or the base
station transceiver which are too strong for proper operation.
Unplug your system and re-orient the Signal Antenna and/or Base
Unit to reduce excessive signal. If LED remains RED after
reconnecting power, contact customer support at 1-800-871-1612.
®
Models:
• VLTE-AWS
TM
• ALTE-AWS
Rev B
