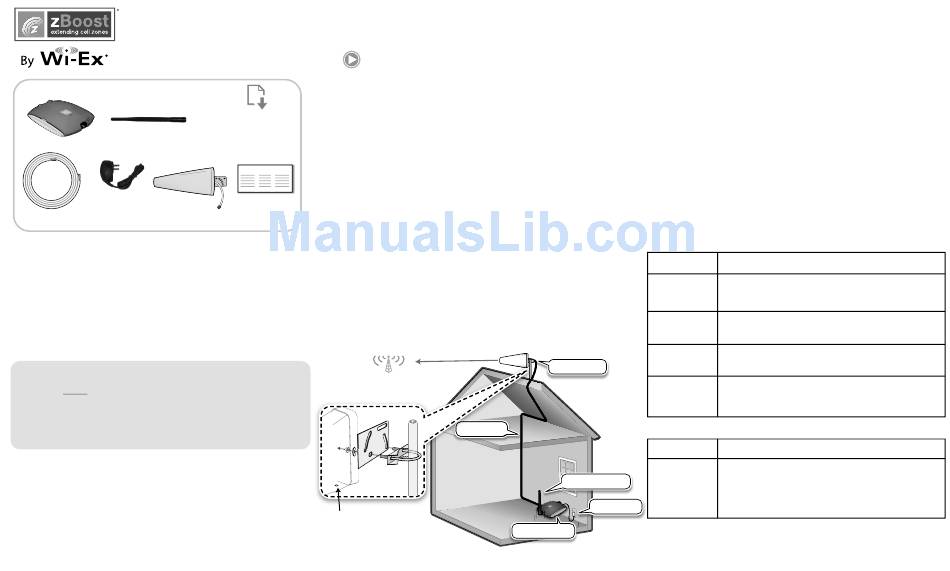

zBoost SOHO YX560SL Setup Overview

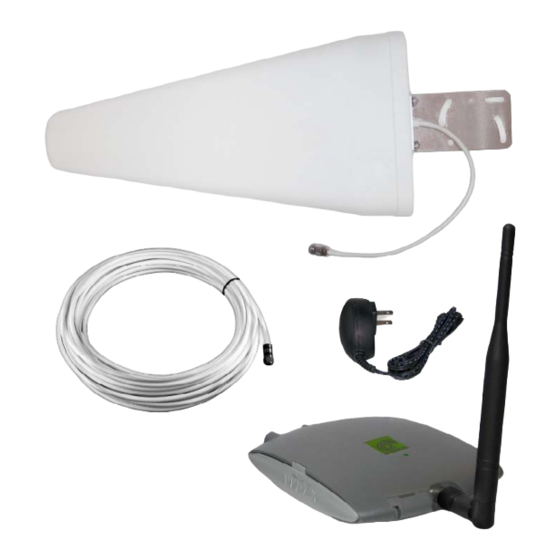

PACKAGE CONTENTS
Base Unit Antenna
zBoost Base Unit
Power Supply
Coax Cable
Signal Antenna
RG-6, 50 feet
and attached L-Bracket
SETTING UP YOUR zBOOST
®
The zBoost YX560SL is designed to provide increased in-building voice and data
coverage, up to 6500 square feet, and better reach into rural environments. The
YX560SL supports multiple users and all devices operating on (CEL) 800MHz &
(PCS) 1900MHz Networks.
Boost voice and data transmission and increase call clarity in 4 easy steps:
FIRST: Choose a location for the Signal Antenna using your cell phone to
determine the area of strongest signal. The coverage your zBoost provides is
largely determined by the quality of signal received by the Signal Antenna. This
location will be typically found on the roof.
Before installing, please note the following important factors in determining your
zBoost performance:
• At least 15 vertical feet is needed between the Signal Antenna (receives the outside
signal) and the Base Antenna (rebroadcasts the signal indoors). Separation less than
15 vertical feet will result in decreased performance.
• Keep the Signal Antenna at least 2 feet above any metal such as wiring, A/C ducts,
truss plates, etc. When attaching the cable to the antenna, run the cable straight down
from the antenna. Avoid draping the coax near the antenna.
To get the maximum benefit, you will want to take special care in pointing the Signal
Antenna in the direction of best signal for your wireless service provider. If you are
unsure of the direction of your provider's closest network tower, see the Antenna
Aiming section of the User Guide or you may wish to use a YX699 RF signal meter
to help during this process. Once you have determined the optimum location and
angle, connect the L-bracket to the antenna and secure the antenna bracket to a
mast (not provided) using the provided antenna hardware.
SECOND: Place the zBoost Base Unit where you want to create a Cell Zone
Connect the Base Unit Antenna to the Base Unit and place it where you need signal.
For the widest possible signal area, position the Base Unit near the middle of a
SETUP OVERVIEW
Download the YX560SL SOHO User Guide at www.Wi-Ex.com
room. You may also mount it on an interior wall by first removing the silver bracket,
screwing the bracket to a wall (screws not provided) then snapping the Base Unit
back in place keeping the Base Antenna vertical. This Base Unit uses an
omni-directional antenna that delivers signal in a circular pattern around the
User Guide available
antenna.
at www.Wi-Ex.com
Keep the Base Unit off the floor and at least 2 feet away from other cords, metal
objects or other wireless devices such as wireless routers or wireless access points.
The zBoost SOHO performs best when there are no obstructions between the
zBoost Base Unit and your mobile device.
SETUP OVERVIEW
Remember, the zBoost SOHO requires at least 15 feet of vertical separation
between the Base Unit and the Signal Antenna. Generally, increasing this distance
(up to 40 feet) will increase the performance and decreasing the distance will limit
Setup Overview
zBoost performance.
THIRD: Run the provided coaxial cable between the Base Unit and Signal
Antenna. Use the provided 50 feet of RG-6 coaxial cable to connect the Signal
SIGNAL BOOSTER
Antenna and the Base Unit. To run the cable from exterior to interior through a
window, an 8 inch window-entry cable is available for purchase (Part: YX030-08W).
Should you need additional cable length, 15 foot extensions (Part: YX030-15W) are
available at www.Wi-Ex.com. Please note: Cable longer than 65 feet is not
recommended.
FOURTH: Connect the zBoost Base Unit to the provided power supply and
plug into a power outlet. When your zBoost system is in place and fully connected,
walk throughout your home or office and verify that you are able to reliably place
calls. If the signal strength has improved, your zBoost is working.
Antenna Bracket
Hole faces down
TM .
Signal Antenna
Cell Tower Cell Tower
Coaxial Cable Coaxial Cable
zBoost Base Unit
Remember, coverage varies based on outdoor signal level, building construction,
and antenna placement. Coverage in adjoining rooms will be reduced by walls and
building materials.
Upon initial power up, a solid GREEN LED should appear indicating normal
conditions. If a RED light appears, adjustments may be needed to optimize
performance. If you find the increased signal coverage is acceptable, however, no
additional adjustments are needed. See LED Indicator section for more information.
Should you desire to improve coverage, you may:
• Relocate the Signal Antenna in order to capture a better signal–higher is better.
• Increase the distance between the Base Unit Antenna and the Signal Antenna.
• Purchase an upgrade antenna available at www.Wi-Ex.com.
BASE UNIT LED INDICATORS
At Initial Power Up Only
Normal condition at power up.
Solid GREEN
zBoost is working, but at reduced performance and coverage due to
Slowly Alternating
"non-ideal" setup. Increase the distance between antenna and
RED and GREEN
amplifier to achieve maximum performance and coverage.
Indicates insufficient distance between the antenna and the amplifier.
Fast Flashing RED
The amplifier is operating at significantly reduced coverage.
System is receiving signals from either the mobile device or the base
Solid RED
station transceiver which are too strong for proper operation.
Fast Alternating The amplifier is disabled.
RED and GREEN
followed by no light
After Initial Power Up
Normal condition
Solid GREEN
Solid RED System is receiving signals from either the mobile device or the base
station transceiver which are too strong for proper operation.
Base Unit Antenna
Unplug your system and re-orient the Signal Antenna and/or Base
Unit to reduce excessive signal. If LED remains RED after
Power Supply reconnecting power, contact customer support at 1-800-871-1612.
zBoost ®
SOHO YX560SL
DMAN-0058 Rev A
