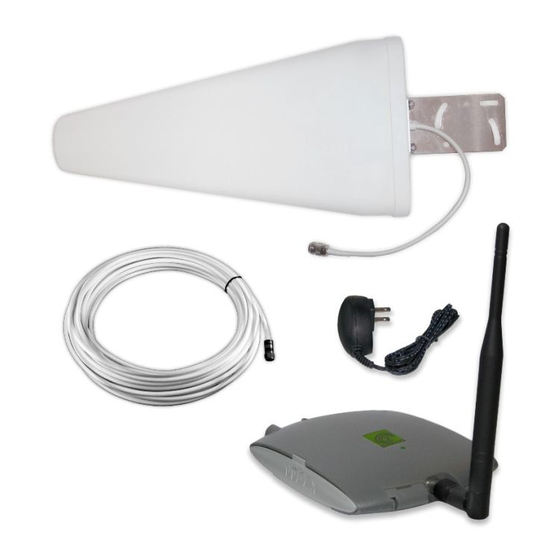

- Page 1 YX560SL User Guide zBoost products have a 30-day money back guarantee when purchased directly from Wi-Ex®. If product is purchased from a reseller or third party, the purchaser is subject to the policies of the third party. 2 Year Manufacturer Warranty. Register at www.Wi-Ex.com...
-
Page 2: Fcc Information
Compatibility – Dual Band zBoosts are compatible with 800MHz and 1900MHz regardless of technology- including CDMA and GSM. Patented technologies protect the carrier network. zBoost® products have more awards, more sales and more locations than all other signal boosters…COMBINED. FCC Information FCC ID: SO4YX545-PCS-CEL2 Warning: Changes or modifications to this device not expressly approved by Wi-Ex®... -
Page 3: Safety And Product Warranty Information
Copyright © 2012 by Wireless Extenders, Inc. Power Supply Trademarks Wireless Extenders, Wi-Ex, the Wi-Ex logo, zBoost, the zBoost logo and Extending Cell Zones are registered trademarks of Wireless Extenders, Inc. Safety Guidelines In accordance with FCC requirements of human exposure to radiofrequency fields, the radiating element (antenna) shall be positioned such that a minimum separation distance of 8 inches (20cm) is maintained between the radiating element and the user and/or general population. -
Page 4: Table Of Contents
SECOND: Place the zBoost Base Unit ..............6 THIRD: Run Coaxial Cable Between the Base Unit and Signal Antenna ....6 FOURTH: Connect the zBoost Base Unit to the Power Supply ......6 FIFTH: Antenna Aiming ...................7 Confirm That Your zBoost is Working Properly ............8 Improving Your Coverage Area ...................8... -
Page 5: Overview
Preparing to Set Up Your zBoost Product Overview Thank you for choosing zBoost. You will now be able to use your cell phone INSIDE your home or Tools Needed office. Gone are the days when you had to go to the window upstairs or walk outside to use your The following tools are needed to set up zBoost: cell phone. -
Page 6: Additional Cable Requirements
The power supply consumes less than 10W (less than 0.2A). For more information on power consumption, see “Technical Specifications” on page 10. Note The zBoost YX560SL base unit MUST only be used Additional Cable Requirements with the provided power adaptor. Use of other power... -
Page 7: Second: Place The Zboost Base Unit
To get the maximum benefit, you will want to take special care to point the antenna in the direction Connect the zBoost Base Unit to the power supply and plug into a power outlet. When your zBoost of the best signal for your wireless service provider. -
Page 8: Confirm That Your Zboost Is Working Properly
If the signal meter shows improvement, your zBoost unit is working. When your zBoost system is in place and fully connected, you should walk throughout the room Solutions: Move away from receiving and see that you are able to reliably place calls. -
Page 9: Technical Specifications
Product is covered by patent US 7,706,744. Other U.S. and foreign patents pending. No, if no signal is present outdoors zBoost products will not work for you. Also, keep in mind if your best signal is 1 bar at the Signal Antenna, your coverage will be limited to a small room. You could improve that with an upgraded antenna. -
Page 10: Warranty Information
YX560SL User Guide zBoost YX560SL User Guide ® ® Make sure you keep… Warranty Information Please keep your sales receipt or other document showing proof of purchase. Attach it to this User Guide and keep both nearby. Also, keep the original box and packing material in case you need to return your product.
