WARRANTY
If you have any problems with this tool, please call FPC Corporation
toll-free at 1-800-860-3838 before returning it to the place of purchase.
FPC Corporation warrants this product to be free from defects in material and
workmanship, under normal conditions of use and when used in accordance with
FPC operating instructions, for a period of 90 days from the date of purchase by the
user. Within the 90 day warranty FPC at its option shall repair or replace product.
Product must be returned at the distributor/user expense, either within warranty or
out. Repaired or replaced product will receive a 60 day warranty. USER MUST BE
USING THE PROPER NAILS FOR THIS WARRANTY TO BE VALID. WARRANTY IS
VOID IF INCORRECT TYPE OF NAILS ARE USED.
Visit us at surebonder.com for our full line of products
FPC Corporation - 355 Hollow Hill Drive - Wauconda, IL 60084
Phone: (847) 487- 4583
website: www.surebonder.com
Fax: (847) 487-0174
e-mail: sales@surebonder.com

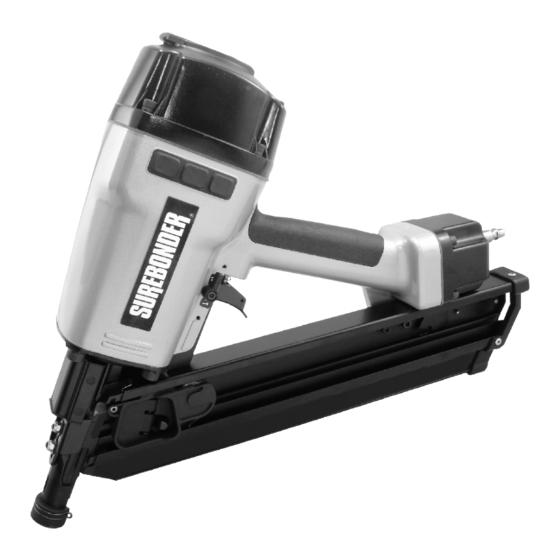

Model 9773 Framing Nailer
33° Clipped Head 3-1/2" Framing Nailer
Includes: 3 Allen wrenches, open/closed end 8mm wrench & oil
Read All Safety Rules and Instructions Carefully
Save this manual for Future Reference
1211
®
Clipped Head
Paper Tape
2"- 3-1/2"
Operating Instructions
33
0
Advertisement
Table of Contents
Related Manuals for Surebonder 9773
Summary of Contents for Surebonder 9773
- Page 1 USING THE PROPER NAILS FOR THIS WARRANTY TO BE VALID. WARRANTY IS VOID IF INCORRECT TYPE OF NAILS ARE USED. Visit us at surebonder.com for our full line of products 33° Clipped Head 3-1/2" Framing Nailer Includes: 3 Allen wrenches, open/closed end 8mm wrench & oil...
- Page 2 DANGER Improper use of this nailer can result in death or serious injury. This manual contains important information about product safety. Read and understand this entire manual before operating this nailer IMPORTANT SAFETY WARNINGS: THE SAFETY WARNINGS BELOW CANNOT COVER ALL POSSIBLE SITUATIONS THAT MAY OCCUR.
- Page 3 IMPORTANT SAFETY WARNINGS: continued Disconnect air hose from nailer: before performing maintenance. when clearing a jam. when tool is not in use. when moving it to another location. when handing nailer to another person. DO NOT place finger on trigger when disconnecting air hose - the nailer could fire when reconnected to the air supply.
-
Page 4: Troubleshooting
The nailer comes factory-equipped with a male quick connector. The nailer must always be connected to the air supply with a coupling that removes all pressure when it is disconnected. Purchase Drive Pin Kit # 9773-410. Drive blade worn? Purchase Seal Kit # 9773-400. -
Page 5: Specifications
Air Inlet Size: 1 /4” N .P.T (6.8mm) Weight of Tool: 8.27 lbs. NAIL SELECTION Use SUREBONDER 750 Series 33° Clipped Head Framing Nails or most 33° paper tape collated nails 2” to 3-1/2". Exhaust Deflector Depth Adjustment Exhaust deflector can be positioned to point in any Using wrench provided, adjust the safety .113... -
Page 6: Adjusting Air Pressure
Mode of Operation Adjusting Air Pressure This nailer is equipped with a contact safety mechanism and does not operate unless the contact ! WARNING mechanism is depressed. There are two methods of operation to drive nails with this nailer. Do not exceed 120 psi. Adjust the air pressure at recommended operating pressure 60 to 100 psi They are: 1) Intermittent operation (Trigger fire ).
