User's Manual
x

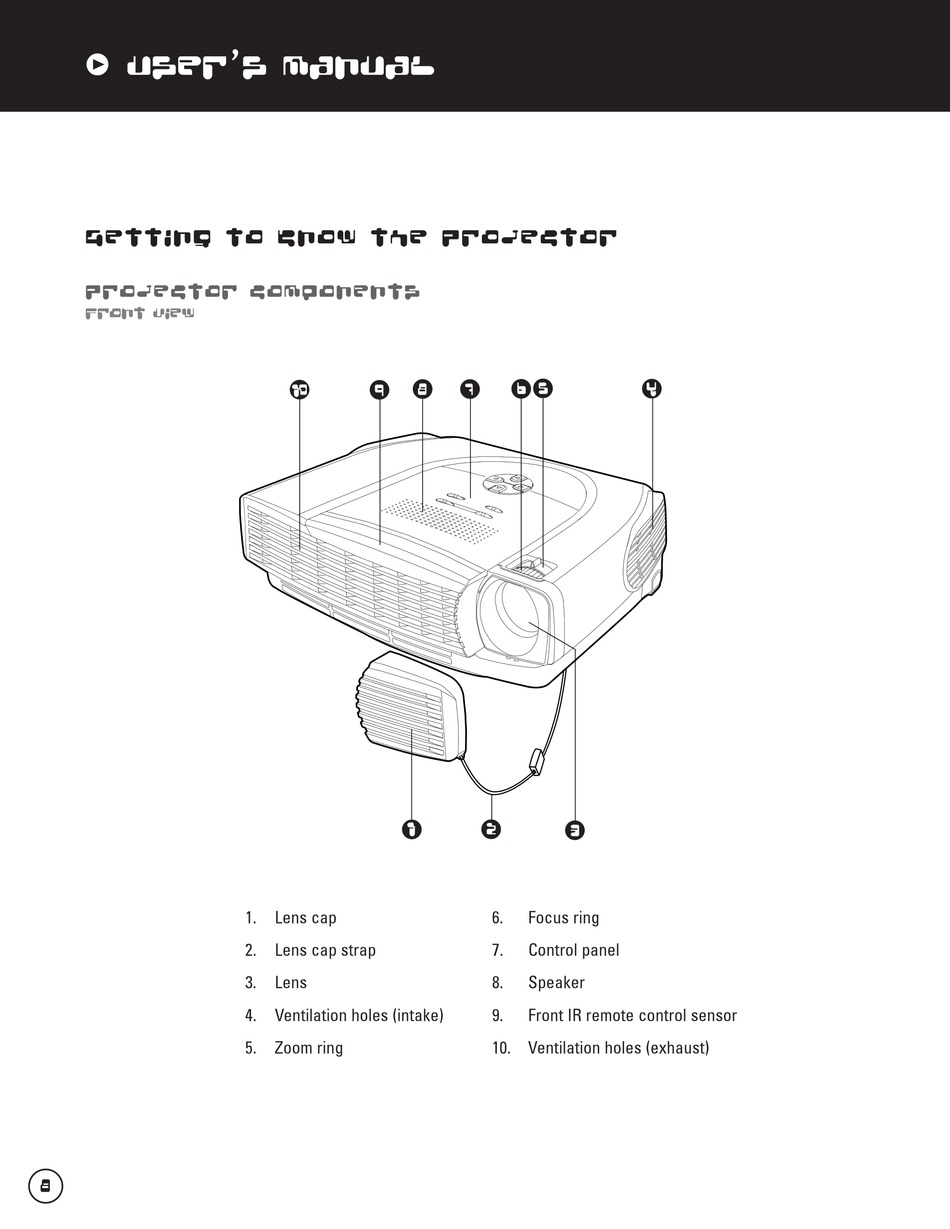

Getting to Know the Projector

Projector Components

Front View
1.
2.
3.
4.
5.
Lens cap
Lens cap strap
Lens
Ventilation holes (intake)
Zoom ring
6.
Focus ring
7.
Control panel
8.
Speaker
9.
Front IR remote control sensor
10. Ventilation holes (exhaust)
