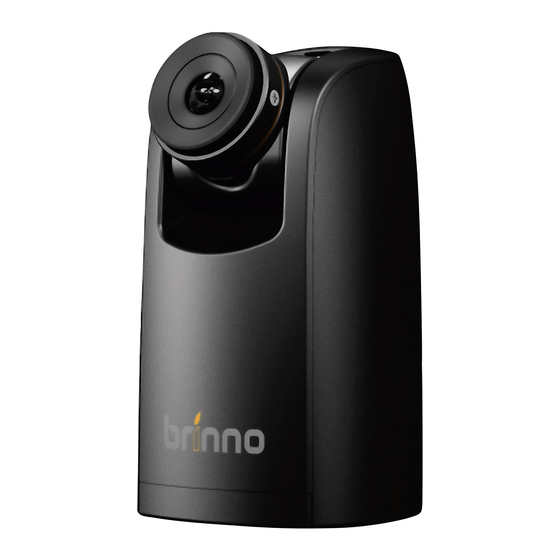

Brinno TLC 200 User Manual

Timelapse hd video camera
Hide thumbs Also See for TLC 200:
Table of Contents

Advertisement

Quick Links

Download this manual
TLC 200

User Manual

www.brinno.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TLC 200 and is the answer not in the manual?

Questions and answers

Related Manuals for Brinno TLC 200

Summary of Contents for Brinno TLC 200

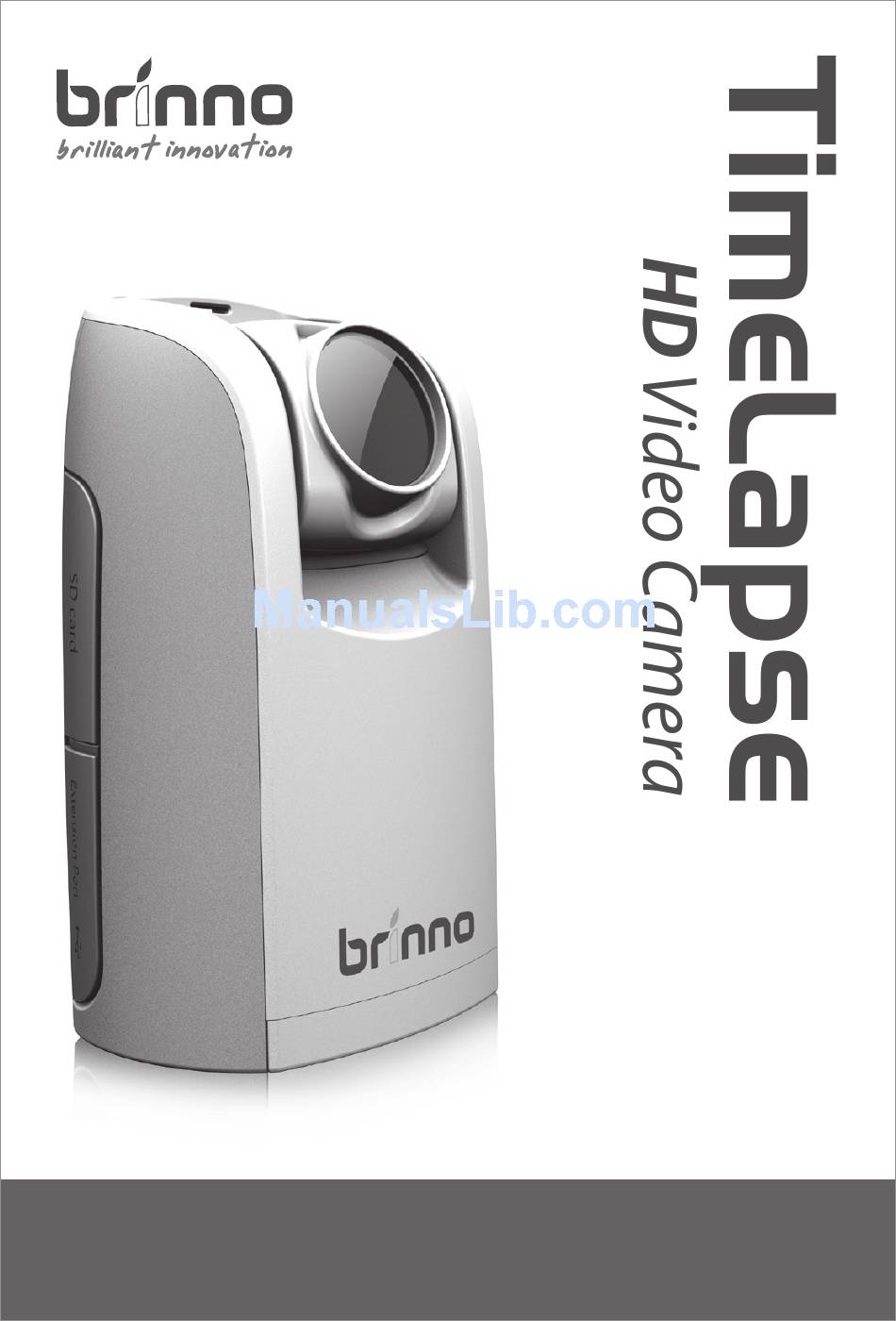

  • Page 1: User Manual

    TLC 200 User Manual www.brinno.com...
  • Page 2 17 Days 10 Seconds 260000 30 Days 20 Seconds 210000 48 Days 30 Seconds 180000 62 Days 1 Minute 120000 83 Days 5 Minutes 34560 10 Minutes 17280 1 Hour 2880 120 Days 4 Hours 24 Hours Brinno TimeLapse Camera TLC200...
  • Page 3 Thank you for purchasing a Brinno TimeLapse Camera! The Brinno TimeLapse Camera (TLC 200) uses unique Time Lapse and Power Saving technologies to capture images for days, weeks, or even months. You can use it to record your Daily Life, Projects, anything that moves, you can record. The Brinno TimeLapse Camera TLC200 captures photos and stores them as videos making them easy to view.

  • Page 4: Package Contents

    Power Switch Accessories Strap Eyelet LED Indicator (For Shutter Line, Motion sensor) LCD Screen Tripod Screw Hole MENU ( ) Button Connector for Micro USB cable TIME ( ) Button (For extension power supplier, DC 5V) TLC200 Brinno TimeLapse Camera...

  • Page 5: Display Icons

    Preview image capture window BATTERY EMPTY Status icon Battery Empty Please replace battery imediately. SD Card Full Please download files to clear SD card space. FULL SD Card Error Please replace SD card. No Card Please Insert SD card. ERROR NO CARD www.brinno.com...
  • Page 6 You can press the OK button to wake up camera. Initial Step-1 Install Batteries and SD Card Open battery door. Insert 4 AA batteries. Close battery door. Be sure the battery cover is locked into place. TLC200 Brinno TimeLapse Camera...

  • Page 7: Install Sd Card

    Rotate the Power switch to ON position. Process screen It may display other information on screen, please refer to page 3. Set Up screen Now, you can set Date and Time and Time Interval before you use your TimeLapse Camera! www.brinno.com...

  • Page 8: Set Date And Time

    Set up screen. (ASAP option: everysecond can capture 2 photos) Now you are back to the Set up screen Now, you are ready to go to Preview screen and start recording your Time Lapse Videos. TLC200 Brinno TimeLapse Camera...

  • Page 9: Start Recording

    Time Lapse Videos! LED Indicator Green LED light: indicates Image capture in process When the Green LED flashes, the Time Lapse Camera (TLC200) is capturing photos. Red LED light: Low battery level, Low recording space on your SD card www.brinno.com...

  • Page 10: Menu Setting

    Image Quality Set the image quality for your camera. Image Image Image Quality Quality Quality Best Better Good Select Image Quality There are three options you can select: Best, Better, Good Brinno TimeLapse Camera...

  • Page 11: Time Stamp

    You can choose to enable your camera to keep recording video in a low light environment (< 5 Lux). MENU Low Light Low Light Recording Select Low Light Recording. ON: Allows your camera to record video in a low light environment. OFF: Your camera will go to sleep in a low light environment. www.brinno.com...

  • Page 12: Output Resolution

    When finished, press OK to exit set up. Output Resolution You can change video resolution with this setting. MENU Resolution Resolution Output 1280x720 640x480 Resolution Select Output Resolution. There are two options you can select: 1280x720, 640x480. Brinno TimeLapse Camera...

  • Page 13: Led Display

    OFF: During capture period the LED indicator will not flash . Band Filter Select the correct fluorescent lighting frequency to match your indoor lighting frequency. MENU Band Filter None Band 50 Hz Filter 60Hz Select Band Filter. None: For outdoor environment. 50 Hz: USA 60 Hz: Europe www.brinno.com...

  • Page 14: Firmware Version

    Select YES and press the OK button to reset your camera. Default Settings: Function Setting 10 FPS AVI Frame Rate Better Image Quality Time Stamp Low Light Recording 1280x720 Output Resolution LED Display None Band Filter 2 Seconds Time Interval Brinno TimeLapse Camera...
  • Page 15 Accessories Time Lapse Camera...
  • Page 16 Capture the changes of magnificent scenery, and discover the city in a different way. You will capture an entirely new scene when you add the wide angle lens! Accessories Camera Pouch (ATP100) Easy way to secure your Time Lapse Camera and accessories. Brinno TimeLapse Camera...
  • Page 17 In the past, in order to create stop motion video, you will need Hi-end equipment and lots of time to edit thousands photos. But now, the Brinno TLC200 and shutter line will help you save time and make it easy to make a stop motion video! www.brinno.com...

  • Page 18: For Outdoor Use

    The Weather Resistant Housing (ATH100) allows the Time Lapse Camera (TLC200) to function safely outdoors in any weather. Your Time Lapse Camera(TLC200) will be protected against severe weather, so you can keep recording images in any season or location. Brinno TimeLapse Camera...

  • Page 19: Specifications

    * SD Card may or may not be included, please check the contents list on the package. Thank you for purchasing a Brinno TimeLapse Camera! If you have any questions or problems setting up your Brinno TimeLapse Camera please contact the sales staff where you purchased our product or email us at Brinno Incorporated directly customerservice@brinno.com...
  • Page 20 7F, No. 75, Zhou Zi St., Taipei City 11493, Taiwan Phone: +886-2-8751-0306 Fax: +886-2-8751-0549 301-0014-00 Email: customerservice@brinno.com EN A10...
