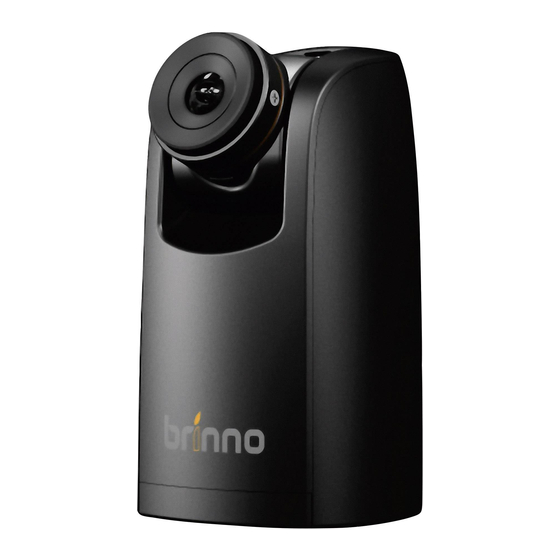

Brinno TLC 200 User Manual

Timelapse hd video camera
Hide thumbs Also See for TLC 200:
Table of Contents

Advertisement

Quick Links

See also: User Manual
TLC 200

User Manual

www.brinno.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TLC 200 and is the answer not in the manual?

Questions and answers

Related Manuals for Brinno TLC 200

Summary of Contents for Brinno TLC 200

  • Page 1: User Manual

    TLC 200 User Manual www.brinno.com...
  • Page 2 210000 48.6 Days 30 Seconds 180000 62.5 Days 1 Minute 120000 83.3 Days 5 Minutes 35000 121.5 Days 10 Minutes 18000 125 Days 1 Hour 3200 133.3 Days 4 Hours 141.7 Days 24 Hours 137 Days Brinno TimeLapse Camera TLC200...
  • Page 3 Thank you for purchasing Brinno TimeLapse Camera! Brinno TimeLapse Camera (TLC 200) using unique Time Lapse and Power Saving technology to capture frames for long time using, you can use it to record your Daily Life, Projects, anything you want to record. Brinno TimeLapse Camera TLC200 is an easy solution for creating Time Lapse videos.

  • Page 4: Package Contents

    Power Switch (For Shutter Line, PIR sensor using) Strap Eyelet LED Indicator Connector for Micro USB cable LCD Screen Tripod Screw Hole (Only for extension power supplier, MENU ( ) Button DC 5V) TIME ( ) Button Brinno TimeLapse Camera TLC200...

  • Page 5: Display Icons

    Video/ Image resolution Preview image BATTERY EMPTY Status icon Battery Empty Please replace battery imediately. SD Card Full Please clear up SD card space. FULL SD Card Error Please replace SD card. No Card Please Insert SD card. ERROR NO CARD www.brinno.com...
  • Page 6 You can press OK button to wake up camera. Initial Step-1 Install Batteries and SD Card Open battery door. Insert 4 AA batteries. Close battery door. Be sure the battery cover is locked into place. Brinno TimeLapse Camera TLC200...

  • Page 7: Install Sd Card

    Rotate the Power switch to ON position. Process screen It may display other information on screen, please refer to page 3. Setting screen Now, you can Set Date and Time and Time Interval before your first time to use TimeLapse Camera! www.brinno.com...

  • Page 8: Set Date And Time

    Press MENU ( ) and TIME ( ) to select pre-set time interval or custom it by yourself, finally press OK to confirm and back to setting screen. At setting screen Now, you are ready to go to Preview screen and start record your Time Lapse Video. Brinno TimeLapse Camera TLC200...

  • Page 9: Start Recording

    LED Indicator Green LED light: Capturing image. During recording process, the Green LED will flash once when it is capturing image, the flashing frequency depends on time interval setting. Red LED light: Low battery level, Low SD card level. www.brinno.com...

  • Page 10: Output Resolution

    Select Set Date & Time. At the highlight field, press MENU ( ) to decrease value, press TIME ( ) to increase value, press OK to confirm and go to next field, when finished press OK to exit setting. Brinno TimeLapse Camera TLC200...
  • Page 11 < 5 Lux) or not. MENU Low Light Low Light Recording Select Low Light Recording. ON: Allows your camera to record video in a low light environment . OFF: Your camera will go into Sleep Mode in a low light environment. www.brinno.com...

  • Page 12: Time Stamp

    You can choose if the LED indicator will flash while capturing frame. MENU LED Display Display Select LED Display. ON: When camera is capturing frame, the LED indicator will flash once. OFF: During capture period LED indicator will not flash . Brinno TimeLapse Camera TLC200...

  • Page 13: Band Filter

    None: For outdoor environment. 50 Hz: USA 60 Hz: Europe Firmware Version Display the current firmware version of camera. MENU Firmware Firmware 1.00.0 Version Select Firmware Version. Show the firmware version till 30 seconds, also you can press OK button to exit. www.brinno.com...

  • Page 14: Default Setting

    Select YES and press OK button to reset your camera. Default setting: Function Setting Time Interval 2 Seconds Output Resolution 1280x720 AVI Frame Rate 10 FPS Low Light Recording Time Stamp LED Display None Band Filter Brinno TimeLapse Camera TLC200...

  • Page 15: Specifications

    * SD Card included or not, depends on the description on package box. Thank you for purchasing Brinno TimeLapse Camera! If you have any questions or problems setting up your Brinno TimeLapse Camera please contact the sales staff where you purchased our product or email us at Brinno Incorporated directly customerservice@brinno.com...
  • Page 16 7F, No. 75, Zhou Zi St., Taipei City 11493, Taiwan Phone: +886-2-8751-0306 Fax: +886-2-8751-0549 301-0014-00 Email: customerservice@brinno.com EN-A6...
