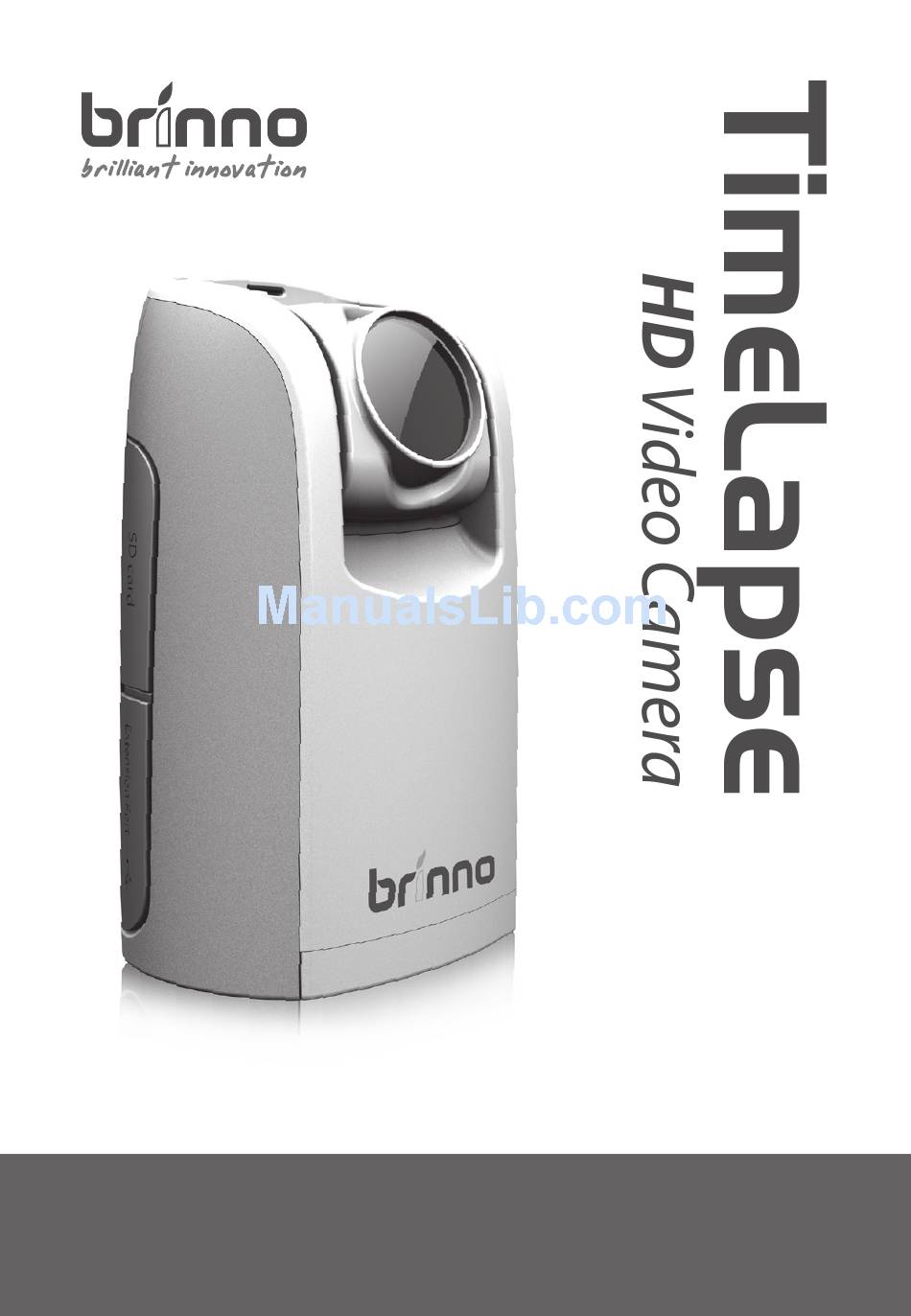

Page 1: User Manual
TLC 200 User Manual www.brinno.com... - Page 2 WELCOME BRINNO F A M I L Y ! Share your Welcome to awesome Time Brinno!!! Lapse videos with other Brinno fans on our facebook page !!! facebook.com/BrinnoInc...
- Page 3 www.brinno.com...
-
Page 4: Optional Accessories

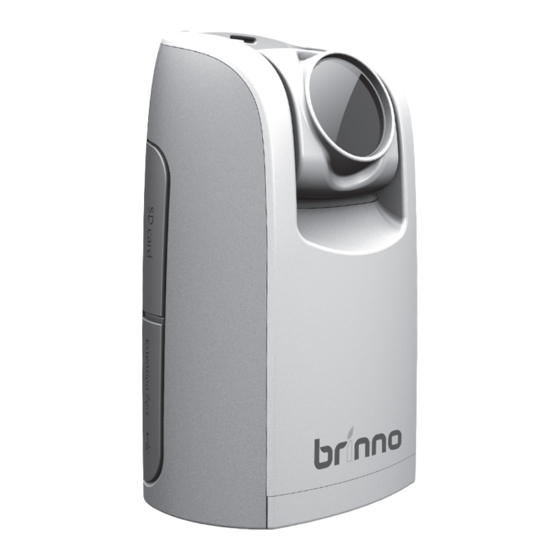

Optional Accessories Weather Resistant Housing Brinno Reader (ATH110) (ABR100) Bike Cam Holder Shutter Line (ABH100) (ATS110) Camera Wall Mount Motion Sensor (AWM100) (ATM100) Pan Lapse Pouch (ART100) (ATP100) Brinno TimeLapse Camera TLC200... - Page 5 Thank you for purchasing a Brinno TimeLapse Camera! The Brinno TimeLapse Camera (TLC 200) uses unique Time Lapse and Power Saving technologies to capture images for days, weeks, or even months. You can use it to record your Daily Life, Projects, anything that moves, you can record. The Brinno TimeLapse Camera TLC 200 captures photos and stores them as videos making them easy to view.
-
Page 6: Band Filter
If the screen goes to sleep, press OK to wake up. 720P / 480 START Band Filter None / 50 Hz / 60 Hz Firmware Version Media Statistic Subject to change without notice, please refer to Reset brinno.com/support for latest information. Brinno TimeLapse Camera TLC200... -
Page 7: Package Contents
Connector for Extension Acces- OK/ START Button sories Battery Door Power Switch (For ATS110, ATM100) Strap Eyelet LED Indicator Connector for Micro USB cable LCD Screen Tripod Screw Hole (For extension power supplier, DC 5V) MENU ( ) Button www.brinno.com... -
Page 8: Display Icons
Status icon EMPTY Battery Empty Please replace battery immediately. SD Card Full Please download files to clear SD card space. FULL SD Card Error Please replace SD card. No Card Please Insert SD card. ERROR NO CARD Brinno TimeLapse Camera TLC200... -
Page 9: Install Sd Card
Open battery door. Insert 4 AA batteries. Close battery door. Be sure the battery cover is locked into place. Initial Step-2 Install SD Card Open SD card cover. Insert SD card until it clicks into place. Close SD card cover. www.brinno.com... -
Page 10: Turning The Camera On
Press TIME ( ) to select Set Date & Time (MENU 7/13), and press OK. At the highlight field, press MENU ( ) to decrease value, press TIME ) to increase value, press OK to confirm and go to the next field. When finished press OK to exit set up. Brinno TimeLapse Camera TLC200... - Page 11 At Preview Screen After 30 seconds without activity on the set up or preview screen, the LCD screen will turn off automatically to save power. You can press the OK button to wake up the camera. www.brinno.com...
-
Page 12: Start Recording
LED Indicator Green LED light: indicates Image capture in process When the Green LED flashes, the Time Lapse Camera (TLC 200) is capturing photos. Red LED light: Low battery level, Low recording space on your SD card Brinno TimeLapse Camera TLC200... -
Page 13: Menu Setting
30 FPS: If the video plays at 30 frames per second, the video will look smooth, and the video length will be shorter. Image Quality Set the image quality for your camera. MENU Quality Best Image Better Quality Good Select Image Quality There are three options you can select: Best, Better, Good www.brinno.com... -
Page 14: Time Stamp
OK to exit. Time Stamp You can choose if you want to show the time stamp at bottom of your video. MENU Time Stamp Time Stamp Select Time Stamp. Select OFF or ON. Brinno TimeLapse Camera TLC200... -
Page 15: Low Light Recording
Select the scene to fit your Photographic needs. MENU Scene Set Daylight Scene Night Select Scene. There are two options you can select: Daylight, Night. Option Description Daylight For any Daytime photography. Special setting for Nighttime photography shooting. Night Low ISO setting, long exposure time. www.brinno.com... - Page 16 The LCD panel will show REC then turn off to save power. The camera will automatically activate at the start recording time you selected. ONCE YOU ACTIVATE TIMER, YOUR TIME LAPSE CAMERA WILL ONLY WORK AT THE TIMER SETTING PERIOD. Brinno TimeLapse Camera TLC200...
-
Page 17: Output Resolution
) to increase the value, press OK to confirm and go to the next field. When finished, press OK to exit set up. Output Resolution You can change video resolution with this setting. MENU Resolution 720 P Output Resolution Select Output Resolution. There are two options you can select: 720P, 480. www.brinno.com... -
Page 18: Led Display
Select the correct fluorescent lighting frequency to match your indoor light- ing frequency. MENU Flicker Set None Band 50 Hz Filter 60 Hz Select Band Filter. None: For outdoor environment. 50 Hz: Europe 60 Hz: USA Brinno TimeLapse Camera TLC200... -
Page 19: Firmware Version
In this mode, the LCD will display the SD card capacity, so you will know how much free space remains on the SD card. MENU S i z e Media Used Statistics F r e e Select Media Statistics. Display the SD card storage status. www.brinno.com... -
Page 20: Default Settings
Select YES and press the OK button to reset your camera. Default Settings: Function Setting 10 FPS AVI Frame Rate Image Quality Better Time Stamp Low Light Recording Daylight Scene 1280x720 Output Resolution LED Display None Band Filter 2 Seconds Time Interval Brinno TimeLapse Camera TLC200... - Page 21 Recording a building being Construction built or any construction 30 min~ 1 hr 15~30 project Recording a bike ride or Biking 1 sec 10~30 trip You’re the leading Face time character in your time Shutter line lapse lapse videos www.brinno.com...
- Page 22 Length of Battery Usage Time Interval Capture Frames Battery Life ASAP 270000 2.2 Days 1 Second 245000 2.8 Days 5 Seconds 228000 13 Days 10 Seconds 197800 23 Days 20 Seconds 137400 32 Days 30 Seconds 105200 36 Days 1 Minute 61800 43 Days 5 Minutes...
-
Page 23: Specifications
Specifications Camera Model TLC200 LCD Screen 1.44" TFT LCD Lens Rotating Angle 120° Waterproof Optional, (In use with Weather Resistant Housing (ATH 110)) Capture Mode Time Lapse Auto generate Time Lapse video Stop Motion Optional, (In use with Shutter Line (ATS 110)) Motion Activated Optional, (In use with Motion Sensor (ATM 100)) Optics Lens... - Page 24 7F, No. 75, Zhou Zi St., Taipei City 11493, Taiwan Phone: +886-2-8751-0306 Fax: +886-2-8751-0549 301-0014-00 Email: customerservice@brinno.com EN A11...
