SR Scales SR520 Owner's Manual

Stand-on scale system
Hide thumbs

Advertisement

Quick Links

Download this manual

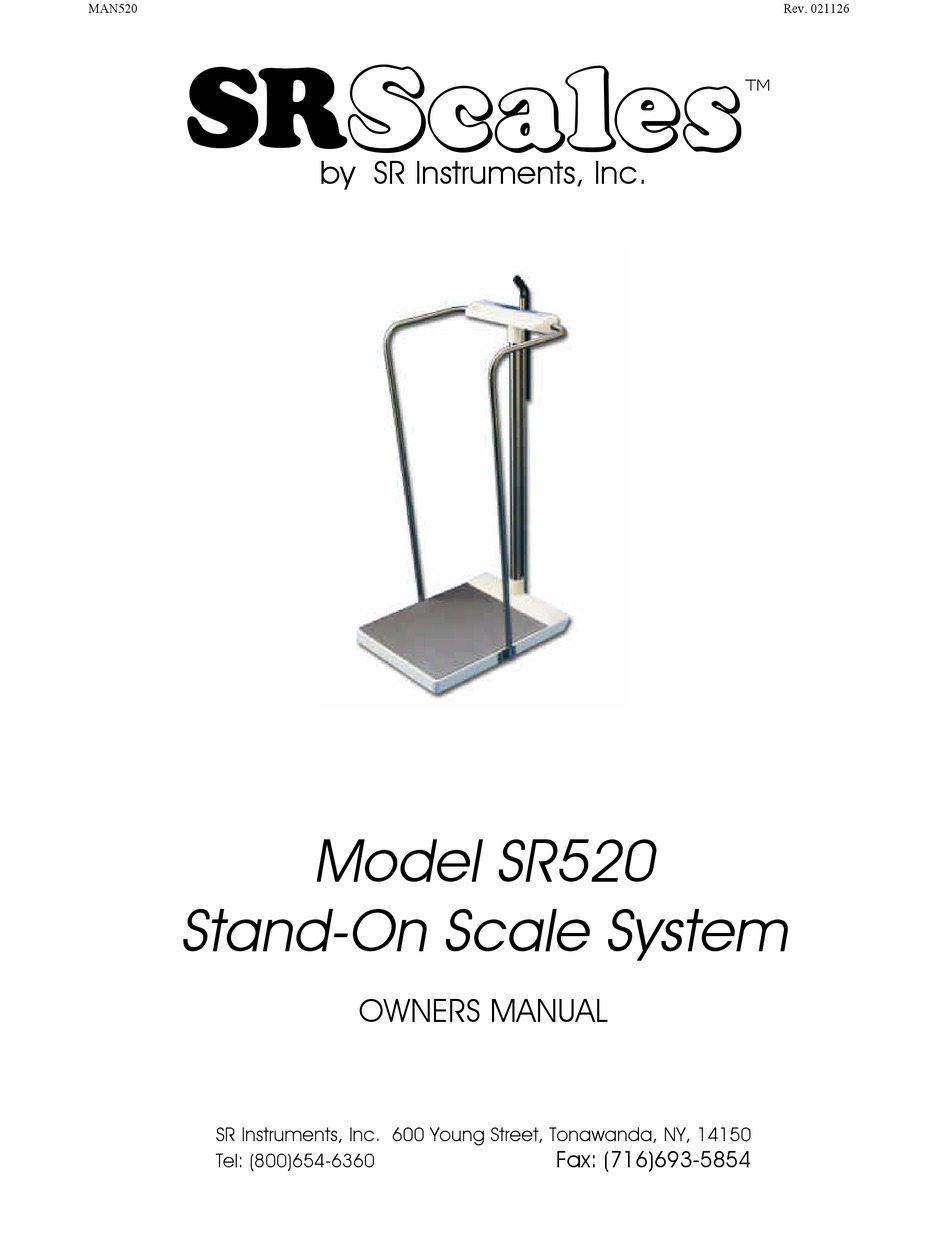

MAN520
Rev. 021126
S
by SR Instruments, Inc.
Model SR520
Stand-On Scale System
OWNERS MANUAL
SR Instruments, Inc. 600 Young Street, Tonawanda, NY, 14150
Fax: (716)693-5854
Tel: (800)654-6360
