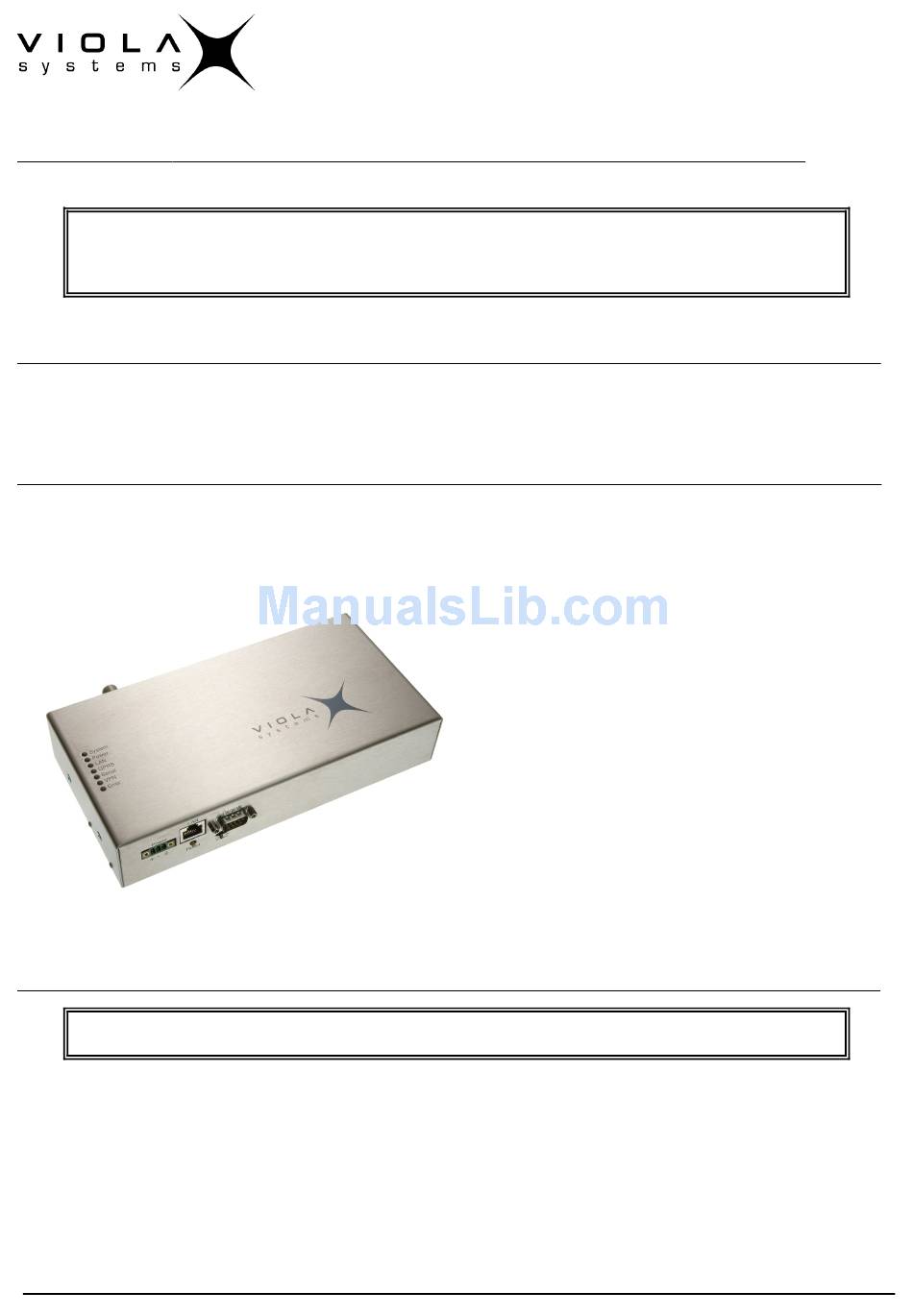

Viola Systems Arctic Quick Start Manual

Edge router
Hide thumbs Also See for Arctic:
1
2
3
4
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
User Manuals

Overview

This document is a short description how to power up Arctic series (firmware 4.x.x and 5.x.x)
product and how to get it operational. For further documentation consult product User Manuals.

Physical connections and switches

Antenna side:
1. Antenna connector (FME)
2. SIM card slot

Installing SIM card

NOTE: If you have PIN code querying enabled on your SIM card, do not install the card before
setting the code. The SIM card could lock up if done otherwise. SIM card is not included.
1. Power off the Arctic. It is recommended to turn power off while installing/removing the SIM card.
2. Push the yellow button in the SIM card slot to eject the SIM card tray.
3. Insert the SIM card to the tray and push the SIM card tray firmly and carefully back to its holder.
Viola Systems Ltd.
Phone: +358 (0)201 226 226
Arctic EDGE Router

Quick Start Guide

User manual for Arctic EDGE Router (2280) are available at:
http://www.violasystems.com/docs/edgerouter/
Front panel:
3. Power supply connector (12-32V)
4. Power switch
5. Console Serial port (RS-232)
6. Ethernet (LAN)
7. Reset switch
Fax: +358 (0)201 226 220
www.violasystems.com
support@violasystems.com
1(4)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Arctic and is the answer not in the manual?

Questions and answers

Related Manuals for Viola Systems Arctic

Summary of Contents for Viola Systems Arctic

  • Page 1: Quick Start Guide

    The SIM card could lock up if done otherwise. SIM card is not included. 1. Power off the Arctic. It is recommended to turn power off while installing/removing the SIM card. 2. Push the yellow button in the SIM card slot to eject the SIM card tray.
  • Page 2 1. Connect the cross-over Ethernet cable between the Arctic and your computer. 2. Configure your computer to use the same IP address space than Arctic (laptop IP for example 10.10.10.11 with netmask 255.0.0.0). Check the connection to Arctic with ping utility.
  • Page 3 1. Switch off the Arctic if necessary 2. Connect a null modem serial cable to console serial connector 3. Open a terminal connection to Arctic using the following serial communication settings: 19200-8-N-1, no flow control. 4. Switch on the Arctic by turning the power switch to ON position 5.
  • Page 4 1. Set your Ethernet device to use the IP address of the Arctic as its default gateway. 2. Check that the IP address of your Ethernet device belongs to the same network as the Arctic. 3. Check GPRS Settings. Note that “Default Route” needs to be enabled in GPRS settings.
