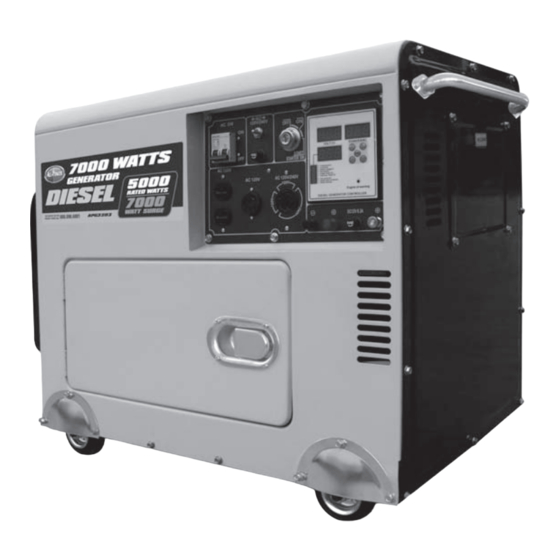

All-Power APG3203 Operator's Manual

7000 watt diesel generator

Table of Contents

Download this manual

7000 Watt

Diesel Generator

Diagrams within this manual may not be drawn proportionally. Due to continuing improvements,

actual product may differ slightly from the product described herein.

READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL

BEFORE ATTEMPTING TO OPERATE THIS MACHINE. FAILURE TO COMPLY WITH

THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

Operator's Manual

WARNING

Model

APG3203

Table of Contents

Need help?

Do you have a question about the APG3203 and is the answer not in the manual?

Page 1 Operator’s Manual Model 7000 Watt APG3203 Diesel Generator Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual product may differ slightly from the product described herein. WARNING READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL BEFORE ATTEMPTING TO OPERATE THIS MACHINE.
Page 2 Preface This manual will instruct you in the proper operation and service of your diesel generator. Please read this manual prior to using the generatore to ensure safe and proper operation. At all times, follow the instructions to keep the generator in the best working condition and to extend its life.
Page 7 1.Techcial Specifications and Data Model APG3203 Rated frequency 60 Hz Rated voltage 240V / 120V Rated current 21A / 42A Rated output power 5,000 watts Max output power 7,000 watts Rated rotation speed 3,600 RPM Phase number Single Pole number...
Page 8 Start Switch AC Output Digital Control Panel Circuit Breaker (AC SW) DC Output Engine Access Panel...
Page 14 Engine Start...
Page 20 NOTE: For remote STOP just press and hold the remote control button until unit stops.
Page 26 10.Troubleshooting and Solutions Problem Possible Causes Remedies Not enough fuel Refill with fuel Fuel valve is not open Open the fuel valve The engine start lever is not Turn it to the RUN position in RUN position Fuel injection pump and Remove the nozzle and nozzle not delivering fuel, or repair it at test table...
