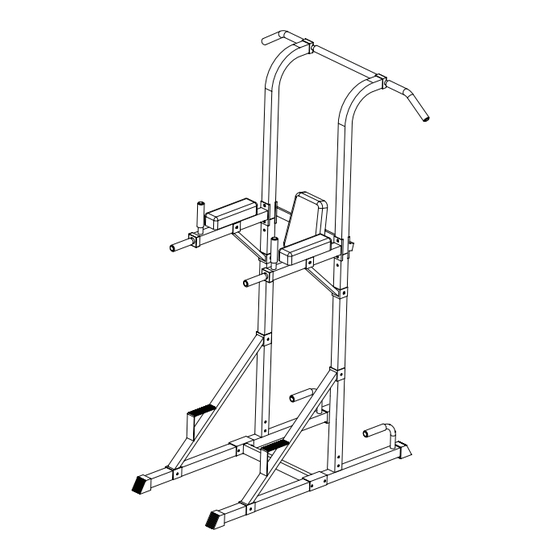

- Page 1 XM-4434 POWER TOWER Owner’s Manual !CAUTION Read all precautions and instructions in this manual before using this equipment.
-
Page 2: Table Of Contents
Table of Contents Important Safety Information Assembly Parts List Exploded View Warranty Information... -
Page 3: Important Safety Information
Important Safety Information Please read all instructions carefully before using this product. SAFETY TIPS Consult with your physician before engaging in any vigorous exercise. Know your heart rate and/or pulse as well as your physician-recommended heart rate training zone. Proper medical clearance is recommended for anyone beginning an exercise program especially if you are 35 years of age or older or suffer from heart respiratory problems. -
Page 4: Assembly
Assembly Hardware Identifier See the drawings below to identify the hardware used in the assembly. The number in paren- theses is the reference number of the part. Note: Some hardware may be pre-installed in some parts. M10 Nylon Locknut (C1) M10 Washer (B1) M8 Washer (B2) M10 x 20mm Bolt (A1) -
Page 5: Assembly
Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 1 Place the Left and Right Base (1 & 2) parallel to each other. Connect the Bottom Brace (9) to the Left and Right Base (1 & 2). Secure them with four M10x70 Bolts (A2), and four M10 Nylon Locknuts (C1). - Page 6 Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 2 Connect the Pull-up Bar (18) to the both of the Upper Upright Tubes (11) and secure them with two M10 x 55 Bolts (A3) and two Washers D10 (B1). Connect two Upper Upright Tubes (11) to the Lower Upright Tubes (6) and secure them using four M10 x 20 Bolts (A1) and four Washers D10 (B1).
-
Page 7: Upper Cross Brace
Assembly NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. STEP 3 Attach the two Armrests (19) to each of the Extend Arms (13) and secure them with four M8x70 Bolts (A4) and four Washers D8 (B2). Attach the Backrest Board (20) to the Upper Cross Brace (12) and secure it with two M8x40 Bolts (A5) and two Washers D8 (B2). -
Page 8: Parts List
Parts List XM-4434 Parts List Rev A REF # PART # DESCRIPTION 223-00313 LEFT/RIGHT BASE 223-00313 LEFT/RIGHT BASE 206-00227 SHORT FOAM GRIP 223-00317 LOWER SUPPORT BAR 206-00071 2" SQUARE SLEEVE 223-00314 LOWER UPRIGHT 206-00229 PROTECTIVE COVER 206-00228 ROUND PLUG, 25X1.5... -
Page 9: Exploded View
Exploded View... -
Page 10: Warranty Information
WARRANTY 4400 Nitro Series 7600 Carbon Series intended for residential use only intended for light institutional and/or residential use This warranty applies only in the United States and Canada to products manufactured by XMark ® under the XMark ® brand name. This only to you, the original purchaser. - Page 11 XMark Fitness, LLC 2791 Valley View Drive Shreveport, LA 71108 Customer Service: 1-800-719-4605...
