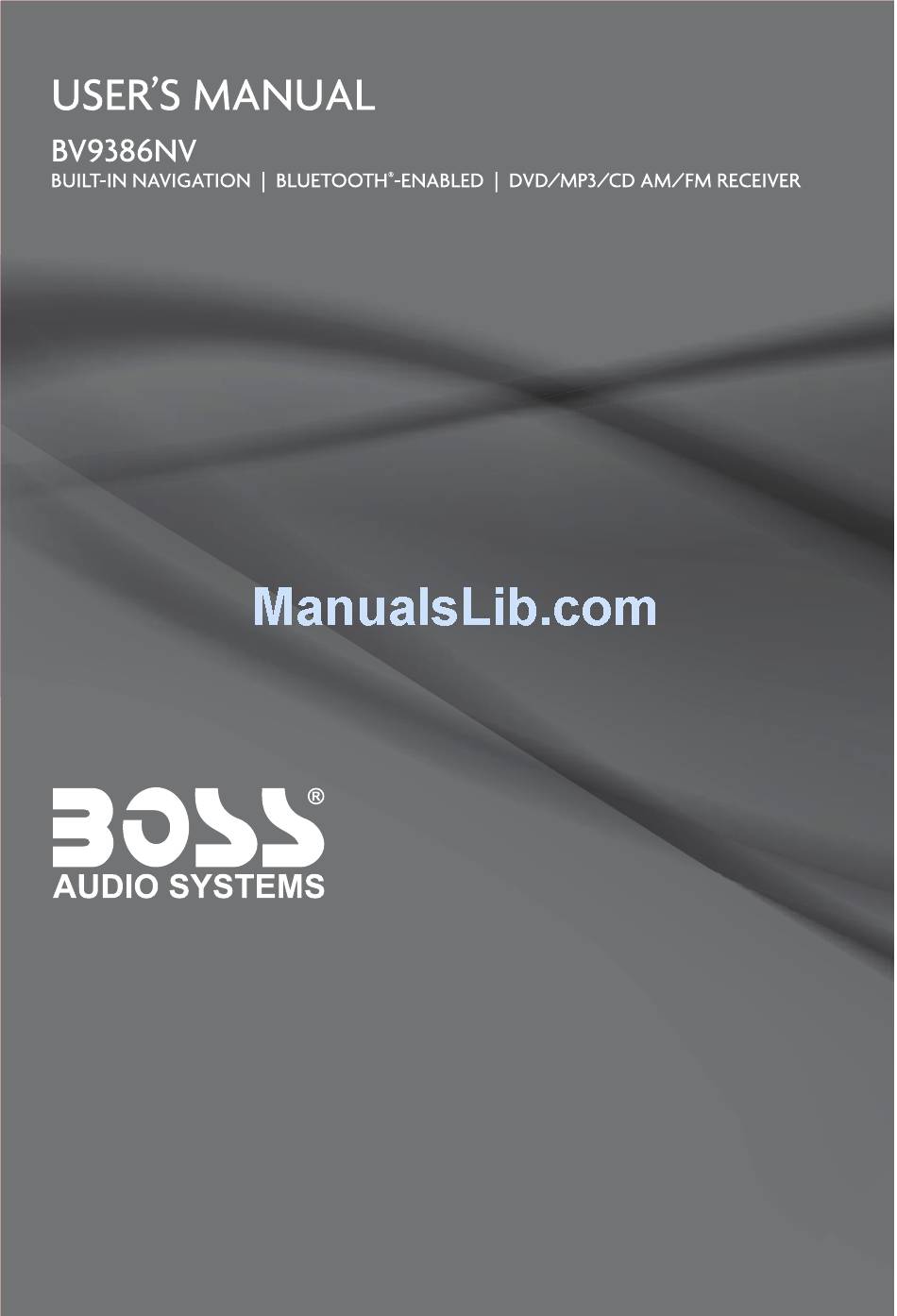

Boss BV9386NV User Manual

Built-in navigation/bluetooth-enabled dvd/mp3/cd am/fm receiver featuring 6.2" (157mm) widescreen touchscreen digital tft monitor

Hide thumbs Also See for BV9386NV:

User manual (83 pages)

User manual (31 pages)

User manual (119 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the BV9386NV and is the answer not in the manual?

Questions and answers

Summary of Contents for Boss BV9386NV

Page 3: Safety Precautions
Safety Precautions P l e a s e d o n ' t c h a n g e t h e f u s e o n Please read through these operating the power cord without professional instructions so you will know how to guidance, using improper fuse may cause damage to this unit or even cause keep this manual in a safe place for...
Page 4 Safety Precautions dirty, please use a clean silicone cloth and neutral detergent Expanding Systems Note:...
Page 5: Before Using
Before Using Front Panel Notice: ] Button: [MENU] Button: / MUTE] Knob [MAP] Button: Reset Button Press to reset system settings to factory default (except password and parental lock Map Slot A/V Input USB Connector SD Interface Connector Remote sensor Disc slot Internal Microphone...
Page 6: Remote Control
Before Using Remote Control 1. Return to the home menu 2. Eject the disc 3. Access to tuner source 4. Access to disc source 5. - Search an available radio station by decreasing tuning frequency - Select the previous chapter/track for playback 6.
Page 7 Before Using Notes on Remote Control Usage Uninstall Battery Install Battery PULL OUT PUSH IN...
Page 8: Basic Operations
Basic Operations Parking Brake display video only when the vehicle is applied. preventing the driver from watching content while driving. Rear video screens are not affected. Mute Power On / Off Press the knob on the unit to turn the unit on. The buttons on the front of the unit light up for a moment and the current mode status appears in the LCD.
Page 9 Basic Operations Select Preset Audio Adjust Audio Parameters Adjust FAD BAL Notes:...
Page 10 Basic Operations Set Date /Time Set Date Set Clock Mode Set Time Tip:...
Page 11 Radio Mode Radio Display 2 3 4 Select Radio as Playing Source Select One Radio Band Tune Auto Tuning Note: Manual Tuning Method 1: Method 2:...
Page 12 Radio Mode Preset Station Search Stations Automatically Manual Store Tune to a Preset Station Local Seeking Audio Selection...
Page 13: Radio Mode
Radio Mode RDS Basics Adjust RDS Settings RDS ( Radio Data System ) AF Function Note: EON ( Enhanced Other Networks ) TA Function...
Page 14 Radio Mode CT (Clock Time) PTY Function...
Page 15: Playback Mode
Playback Mode Load/eject Note: Eject a Disc Touchscreen Controls Controlling Playback Connect a USB Device Remove a USB Device Insert/Remove a SD Card Play/Pause...
Page 16 Playback Mode Previous/Next Search for a Folder For Video Files For Audio Files For Picture Files For Folder Control Repeat For DVD/VCD movie disc:...
Page 17 Playback Mode Repeat A-B Select Audio Mode Select Subtitle Language Video Setup...
Page 18: Playback Information
Playback Mode Playback Information For DVD DVD T:01/08 C:005/012 For VCD Track:01/08 Elapsed Time 00:01:20 00:30:17 Direct Track Entry Rotate Pictures Zoom...
Page 19: Bluetooth Mode
Bluetooth Mode Pair a Bluetooth Device the Bluetooth device ID in the pairing list. Disconnect Bluetooth Device Make a Call...
Page 20 Bluetooth Mode Receive a Call Adjust Bluetooth Settings Music Mode A2DP AVRCP...
Page 21: Display System
Settings Display System Adjust General Settings General settings Options Description Japan Off/10s/20s Calibration calibrate the touch screen through calibration setting function. Adjust the response positions of the touch panel as followings: 1. Press the [ Calibration ] option on the setup menu to enter. 2.
Page 22: Adjust Sub Settings
Settings Adjust SUB settings Sound settings Options Description Adjust Time Settings Time settings Options Description 12Hr/24Hr Adjust Language Settings Language settings Description Adjust Bluetooth Settings Bluetooth settings Options Description Pairing code...
Page 23 Settings Adjust Disc Rating DVD rating Options Description On/Off Adjust Volume Settings...
Page 24: Other Modes
Other Modes Listen to Other Devices Reset Replace a Fuse Steering Wheel Control Programming...
Page 25: Speci Cations
Speci cations General Negative Screen DVD Player AUX IN Preout Video Environment 14°F °F 4°F Operating Humidity Notice: the temperature is over 158...
Page 26 Speci cations Supported Formats: Unsupported Formats: Supported MP3 Disc Format: Supported Video Formats: ·MP4 Region Code Disc Cautions...
Page 27: Troubleshooting
Troubleshooting Problem Cause Corrective action General Unit fuse blown. Install new fuse with correct rating. Car battery fuse blown. Install new fuse with correct rating. Unit can not power on Illegal operation Reset the unit. Improper audio output connection. Check wiring and correct. Volume set too low.
Page 28: Wire Connections
Wire Connections VIDEO OUT SUB OUT SUB OUT Yellow/Camera-Video CAR AUDIO SYSTEMS BOSS AUDIO CAR STEREOS...
