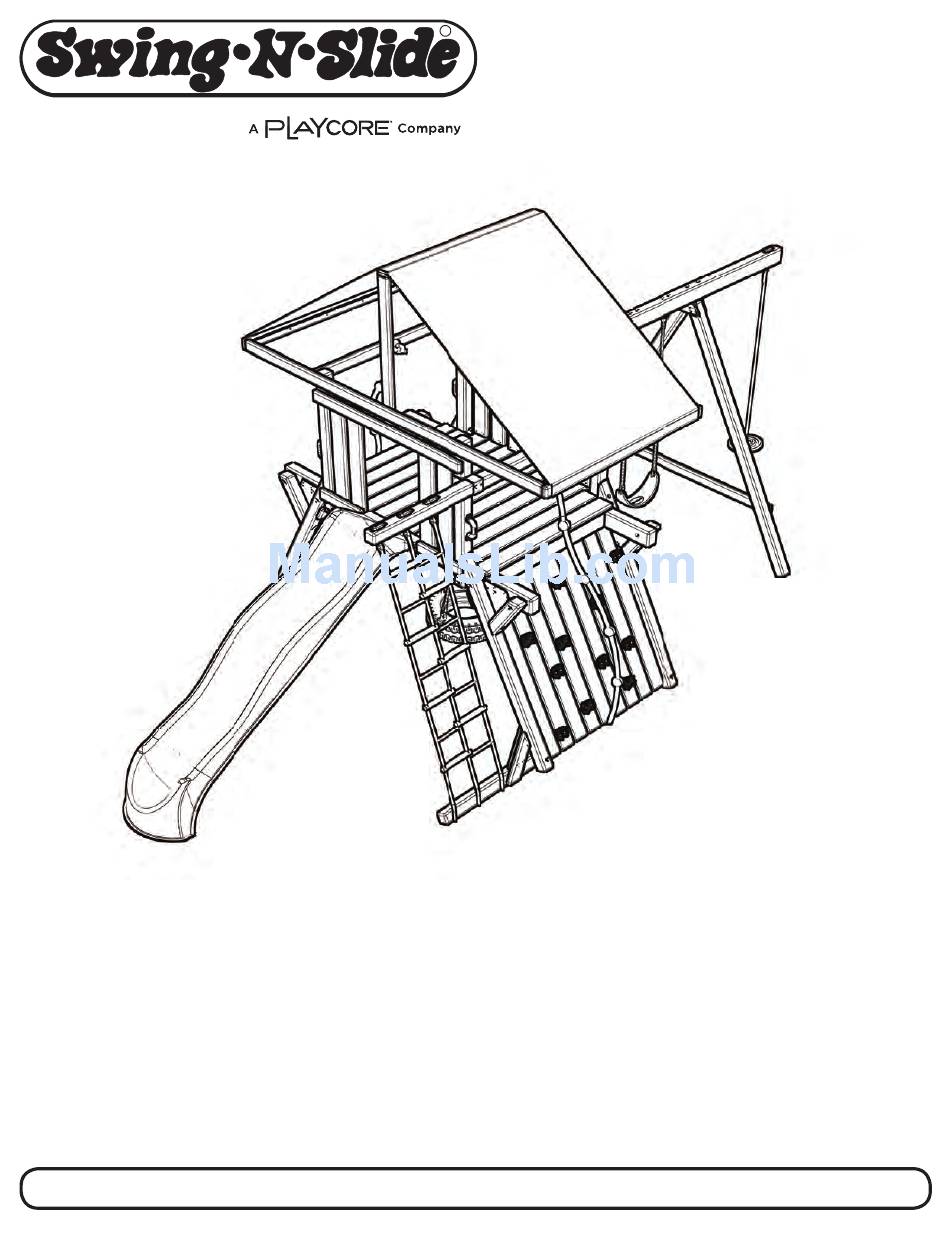

Swing-N-Slide PB 5200 Assembly Instructions Manual

Playground
Hide thumbs

Advertisement

Quick Links

Download this manual
Meijer.com
PB 5200
R R
PB 6200
Warning:
Do not allow children on the playset until
is has been completly built and properly anchored

ASSEMBLY INSTRUCTIONS

Swing•N•Slide • 1212 Barberry Drive • Janesville, Wisconsin 53545
Visit our web site at: www.swing-n-slide.com or call us at 1-800-888-1232
© Playcore Inc. 2012
Printed in USA
LA 7000

Advertisement

loading
Need help?

Need help?

Do you have a question about the PB 5200 and is the answer not in the manual?

Questions and answers

Related Manuals for Swing-N-Slide PB 5200

Summary of Contents for Swing-N-Slide PB 5200

  • Page 1: Assembly Instructions

    Do not allow children on the playset until is has been completly built and properly anchored ASSEMBLY INSTRUCTIONS Swing•N•Slide • 1212 Barberry Drive • Janesville, Wisconsin 53545 Visit our web site at: www.swing-n-slide.com or call us at 1-800-888-1232 © Playcore Inc. 2012 Printed in USA LA 7000...
  • Page 2 Meijer.com Safety Checklist for Swing-N-Slide Playsets & Accessories Save this instruction sheet in the event the manufacturer needs to be contacted. Observing the following statements and warnings reduces the likelihood of serious or fatal injury. Installation Safety – Have You: ...
  • Page 3 Swing-N-Slide® will repair, or at its discretion, replace any part within the stated warranty period which is defective in workmanship or materials. This decision is subject to verifi cation of the defect upon delivery of the defective part to Swing-N-Slide® at 1212 Barberry Drive, Janesville, Wisconsin, 53545. Any part(s) returned to Swing-N-Slide® must have prior ap- proved Return Authorization Number and proof of purchase, including the date of purchase.
  • Page 4 Meijer.com DIMENSIONS MINIMUM USE ZONE FOR PLAY EQUIPMENT SHALL EXTEND NO LESS THAN 72” FROM ALL SIDES OF THE PLAY STRUCTURE. SWING USE ZONE EXTENDS NO LESS THAN 144”.

  • Page 5: Tools Required

    Meijer.com TOOLS REQUIRED DRILL 1/2” & 9/16” SOCKET HAMMER ADJUSTABLE TAPE MEASURE & WRENCH WRENCH PHILLIPS BIT CARPENTER SAFETY GLASSES 1/8” DRILL BIT SQUARE INCLUDED HARDWARE 1-1/4” Lag Screw (x20) T-20 Bit (x1) 1/4-20 Weld Nut (x48) 2” Lag Screw (x72) 1/4”...
  • Page 6 Meijer.com INCLUDED HARDWARE 5/16”-18 x 3-3/4” Carriage Bolt (x2) NOTE: Included hardware is used for multiple kits and will result in extra parts. 5/16” Wood Loc Washer (x10) 3/8” Wood Loc Washer (x24)
  • Page 7 Meijer.com INCLUDED COMPONENTS 4x4 Wrap Loc (x3) 4x4 Shelf Loc (x4) Angle Brace (x4) EZ Frame Bracket (x2) Beam Brace (x1) L Bracket (x4) Anchor It Strap (x6) Anchor It (x6) Quick Link (x12) Swivel (x1) Bolt Cover (x4) Climbing Rock (x24) Steering Wheel w/ Hdw (x1) Super Speedwave Slide (x1) Play Handle (x4)
  • Page 8 Meijer.com INCLUDED COMPONENTS Disc Swing (x1) XD Swing Seat (x2) Tire Swing (x1) 33” Coated Chain (x4) SA 2891 SA 2889 SA 2890 SA 2892 Rock Wall Panel (x3) Deck Panel A (x2) Deck Panel B (x1) Swing Beam Panel (x1) SA 2904 ID Tag w/ Hdw (x1) Plan (x1)
  • Page 9 Meijer.com BOARD LIST...
  • Page 10 Meijer.com USE THE CORRECT FASTENER Use the guides below to help select the correct length, quantity & location of screws for the board installation. Avoid splitting your lumber by offsetting your screws at least 3/4” from edge. All hardware should be driven until fl ush with the surface or no deeper than 1/16”. 2x4 to 4x4 &...

  • Page 11: Bracket Installation

    Meijer.com BRACKET INSTALLATION Shelf-Loc bracket CORRECT INCORRECT Cup-Loc bracket CORRECT INCORRECT Bracket mounting 1. Always use lag screws 2. Brackets interlock with each other. NEVER position them in a non-interlocking position. 3. Place lag screws in brackets only where instructed. Do NOT fi...
  • Page 12 Meijer.com STEP 1 2” Lag Screw (x8) PF 4517 4x4x51 39” Post A (2) 2” Lag Screws PF 4517 per bracket 4x4x51 39” Post B PF 4517 4x4x51 39” Post C (2) 2” Lag Screws per bracket 1. Attach brackets as shown. Note the hole orientation of the board.
  • Page 13 Meijer.com STEP 2 PF 4516 4x4x18-3/8 Post A Post C Upright Support PF 4519 4x4x73-1/2 Upright Support A Support B 3/8” Loc Nut 3/8” Washer 3/8 Wood Loc Washer 3/8”-16 x 6” Carriage Bolt PF 4517 Post B 4x4x51 Support C Support D 1.
  • Page 14 Meijer.com STEP 3 Support A Support B 5/16 Wood Loc Washer 5/16”-18 x 7” Carriage Bolt Support C Support D 1. Insert hardware into Upright(s) as shown. Note the post & bracket orientation.
  • Page 15 Meijer.com STEP 4 Support B Support A Angle Brace HOLD FLUSH Support D Support C 2” Lag Screw (x24) 1. Slide Angle Brace over bolt and attach as shown. Note the post & bracket orientation.
  • Page 16 Meijer.com STEP 5 Support A 3/8 Wood Loc Washer 3/8”-16 x 7 Carriage Bolt Support B 5/16” Washer & Loc Nut Frame 1 PF 4523 4x6x105-1/4 Joist 3/8” Loc 3/8” Washer 5/16” Washer & Loc Nut Check to make sure structure is square 1.
  • Page 17 Meijer.com STEP 6 Support D 3/8 Wood Loc Washer 3/8”-16 x 7 Carriage Bolt Support C 5/16” Washer & Loc Nut Frame 2 PF 4523 4x6x105-1/4 Joist 3/8” Loc 3/8” Washer 5/16” Washer & Loc Nut Check to make sure structure is square 1.
  • Page 18 Meijer.com STEP 7 2” Lag Screw (x24) 1. Attach Angle Brace to deck joist(s) as shown.
  • Page 19 Meijer.com STEP 8 PF 4509 2x4x120 30” FLUSH 30” Frame 1 PF 4509 2x4x120 30” FLUSH Check to make sure structure is square 30” Frame 2 2-1/2” Deck Screw (x12) 1. Attach top board as shown. Note the post & bracket orientation.
  • Page 20 Meijer.com STEP 9 18-3/8” OFFSET 1” FROM TOP OF DECK JOIST Angle Brace 1-1/4” Lag Screw (x8) 1. Attach L Bracket(s) to deck joist as shown on Frame 1 & Frame 2.
  • Page 21 Meijer.com STEP 10 Check to make sure structure is square (2) PF 4511 2x6x46 FLUSH TOP SURFACES 1-1/4” Lag Screw (x12) 1. Attach boards as shown.
  • Page 22 Meijer.com STEP 11 TIGHT TO BOTTOM OF JOIST PF 4514 2x6x60 2-1/2” Deck Screw (x8) 1. Attach board as shown.
  • Page 23 Meijer.com STEP 12 Check to make sure structure is square 3/8” Washer 3/8”-16 x 5-1/2” Carriage Bolt 3/8” Loc Nut 3/8 Wood Loc PF 4515 Washer 2x6x60 Base 3/8” Washer 3/8”-16 x 7” Carriage Bolt 3/8” Loc Nut 3/8 Wood Loc Washer PF 4520 4x4x96...
  • Page 24 Meijer.com STEP 13 (2) PF 4501 2x4x18 Angle Support FLUSH BACKSIDE FLUSH 3-1/2 FLUSH 2-1/2” Deck Screw (x10) 1. Laminate boards and attach as shown.
  • Page 25 Meijer.com STEP 14 FLUSH WITH POST TIP: Flex bracket(s) to make installation of 4x4 easier PF 4521 4x4x96 Accessory Arm Top 2” Lag Screw (x8) 1. Attach board as shown.
  • Page 26 Meijer.com STEP 15 PF 4536 PF 4506 2x4x60 2x4x63 Rope Support (2) 2-1/2” Deck (3) 2-1/2” Deck Screws per joint Screws per joint FLUSH FLUSH PF 4506 2x4x63 (2) 2-1/2” Deck Screws per joint Check to make sure structure is square 2-1/2”...
  • Page 27 Meijer.com STEP 16 2-3/4” gap from post 1/2” gap 1/2” gap 2-3/4” gap from post SA 2889 Deck Panel A SA 2890 Deck Panel B SA 2889 Deck Panel A 2-1/2” Deck Screw (x48) 1. Attach deck panel(s) as shown.
  • Page 28 Meijer.com STEP 17 PF 4505 2x4x60 FLUSH (2) PF 4527 2x4x18 (4) 2-1/2” Deck Screws per board 45” 9” FLUSH 1-3/4” gap typical (4) PF 4510 2x6x37 2-1/2” Deck Screw (x30) 1. Attach boards as shown.
  • Page 29 Meijer.com STEP 18 SA 2892 Swing Beam Panel 45” 2-1/2” Deck Screw (x12) 1. Attach Swing Beam Panel as shown.
  • Page 30 Meijer.com STEP 19 5/16”-18 x 3-1/2” Beam Brace Hex Head Bolt 5/16” Washer PF 4518 4x4x60 Swing Beam Support TIP: Flex bracket(s) to make 5/16” installation of 4x4 easier Washer 5/16” Loc Nut 2” Lag Screw (x8) FLUSH WITH POST 2-1/2”...
  • Page 31 Meijer.com STEP 20 PF 4505 2x4x60 (2) 2-1/2” Deck Screws per joint PF 4504 PF 4508 2x4x51 2x4x85-1/2 FLUSH BOTTOM EDGES 59-3/4” 2-1/2” Deck Screw (x19) 1. Attach boards as shown.
  • Page 32 Meijer.com STEP 21 EZ Frame Bracket 2-1/2” Deck Screw (x22) FLUSH EDGES (2) PF 4522 4x4x104 PF 4507 2x4x78 26-1/8” 102-1/4” 1. Attach EZ frame bracket(s) to boards as shown. 2. Attach board as shown.
  • Page 33 Meijer.com STEP 22 SA 2904 Swing Beam Assembly 5/16”-18 x 9” Carriage Bolt 5/16”-18 x 6” Carriage Bolt 5/16”-18 x 6” Carriage Bolt 5/16” Wood Loc Washer 5/16” Wood Loc Washer 5/16” 5/16” Loc Nut Washer 5/16” 2-1/2” Deck 5/16” Washer Screw Loc Nut...
  • Page 34 Meijer.com STEP 23 3/8” gap typical (3) SA 2891 Rock Wall Panel 2-1/2” Deck Screw (x36) 1. Attach rock wall panels as shown.
  • Page 35 Meijer.com STEP 24 Note: (9) PF 4512 (2) PF 4528 Screw through front 2x6x53 2x4x53 boards into 2x2(s). (2) 2-1/2” Deck Screws per joint (2) PF 4525 2x2x57-1/2 PF 4529 2x6x76 Racking Support 2-1/2” Deck Screw (x72) 1. Assemble rock wall and attach to unit as shown.
  • Page 36 Meijer.com STEP 25 TIGHT TO BOTTOM OF JOIST PF 4514 2x6x60 2-1/2” Deck Screw (x8) 1. Attach board as shown.
  • Page 37 Meijer.com STEP 26 1/4-20 T-Nut Climbing Rock Note: 1/4” Loc Maximum hardware Washer thickness is 1-1/2” 8mm Washer 1/4”-20 x 2-1/4 Hex Head Bolt 1. Mark locations of Climbing Rocks on both rock walls and drill a 3/8” hole (Avoid rear supports). 2.
  • Page 38 Meijer.com STEP 27 1” Rope Staple 1. Insert rope(s) thru hole in top support board(s) and tie an overhand knot. 2. Tie an overhand knot approximate every 18” for hand grips, for a total of 5 knots. 3. Pull bottom of rope under Rock Wall, attach one rope staple, fold back onto itself and attach 2nd staple.
  • Page 39 Meijer.com STEP 28 Swivel SA 2890 Deck Panel B Underdeck View 5/16”-18 x 3-3/4” Carriage Bolt 5/16” 5/16 Wood Loc Washer Washer 5/16” Loc Nut Underdeck View Top deck view 1. Center the Swivel under the deck, mark hole locations and drill two 3/8” holes. 2.
  • Page 40 Meijer.com STEP 29 5/16”-18 x 7-3/8” Eye Bolt 5/16” Washer 5/16” Loc Nut Tire Swing 1. Attach hardware to Tire Swing as shown.
  • Page 41 Meijer.com STEP 30 33” Coated Chain Quick Link Tighten Quick Link(s) Quick Link Quick Link “Open” “Closed” Note: For correct installation, the thread must be at the bottom 1. Attach hardware as shown. 2. Attach Tire Swing to swivel.
  • Page 42 Meijer.com STEP 31 5/16”-18 x 3” Carriage Bolt 5/16” Loc Nut 5/16” Washer Steering Wheel Spacer Note: If lumber is greater than 2” thick, you will need to counterbore the hole appropriately. 1. Choose location for the Steering Wheel and drill one 3/8” hole. 2.
  • Page 43 Meijer.com STEP 32 5/16” Loc Nut 5/16” Washer Cargo Net 2” Deck Screws Bolt Cover 1/2” Rope Staple 1. Insert eye bolt(s) into Accessory Arm Top and fasten as shown. 2. Attach Bolt Cover(s) over each eye bolt end as shown. 3.
  • Page 44 Meijer.com STEP 33 1/4” Washer 1/4 x 1-3/4” Pan Screw 11” ABOVE DECK 1-3/4” Pan Screw (x8) 1. Mount Safety Handle(s) on posts as shown.
  • Page 45 Meijer.com STEP 34 HOLD THE TARP END 1” FROM TOP OF BOARD Tarp Snap Screw (x10) 1. Wrap one end of the tarp around one support and tap the head of the snap(s) to leave an indent. 2. Install the Snap Screws at the indentations and attach the tarp to them. 3.
  • Page 46 Meijer.com STEP 35 Tighten Quick Link(s) XD Swing Seat Quick Link Quick Link Quick Link “Open” “Closed” Note: For correct installation, the thread must be at the bottom 1. Attach Quick Link(s) to swing hangers as shown. 2. Attach XD Swing Seat(s) to Quick Link(s).
  • Page 47 Meijer.com STEP 36 2” Deck Screws 5/16” Loc Nut Bolt Cover 5/16” Washer Disc Swing 1. Insert eye bolt into swing beam and fasten as shown. 2. Attach Bolt Cover over eye bolt end as shown.
  • Page 48 Meijer.com STEP 37 1” Truss Screws 1-1/4” Deck Screws 2” Grade 1-1/4” Deck Screws PF 4526 2x4x15-3/4 Slide Stake 1” Truss Screw (x4) 1-1/4” Deck Screw (x2) 1. Attach slide as shown.
  • Page 49 Meijer.com STEP 38 5/16” Washer Fold up 1-1/2” Lag Anchor-It Screw Strap Anchor-It 5/16 x 1-1/2” Lag Screw (x6) 1. Place swing set in fi nal location and mount Anchor-It(s) at locations circled above. 2. Twist the Anchor-It into the ground until only the loop is exposed. 3.
  • Page 50 Meijer.com STEP 39 1/2” Pan Screw (x2) 1. Attach ID Tag as shown.
  • Page 51 Meijer.com...
  • Page 52 Available Monday - Friday, 7am - 5pm (CST) Weekend support available April through Labor Day Also available on Memorial Day, Fourth of July & Labor Day Technical Support from experienced Swing-N-Slide Customer Service Representatives who have actually built a swing set themselves. © Playcore Inc. 2012...
