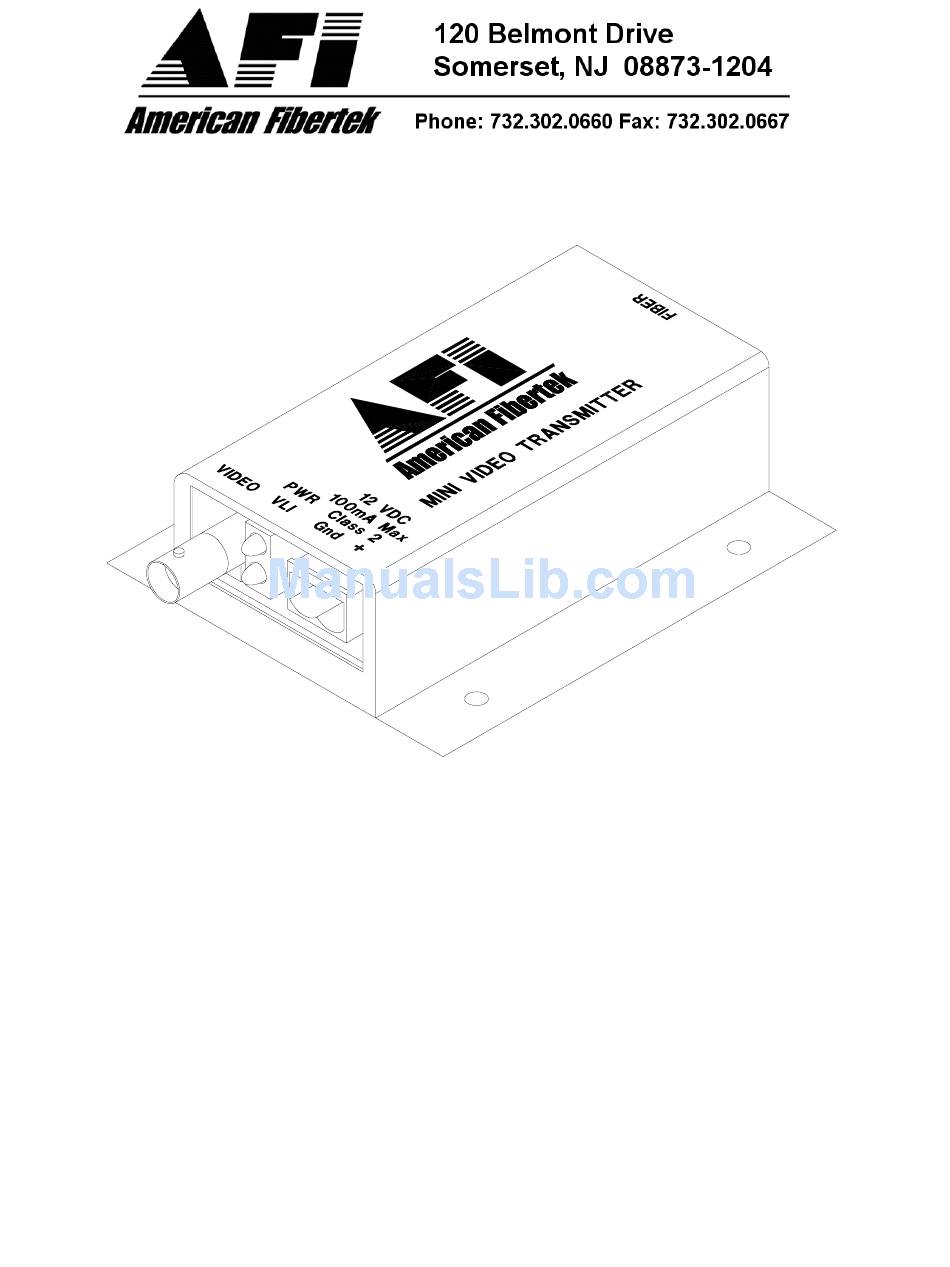

- Page 1 Instruction Manual MTM-300 Mini Video Transmitter © Copyright 2005, American Fibertek, Inc. 0602JD...
- Page 2 1300 nm wavelength source. The M300 Series product is designed to operate over an optical loss budget range of 0 to 12 dB. The MTM-300 operates on 50 um or 62.5 um multimode fiber. Refer to the data sheets for detailed performance specifications.
- Page 3 Current draw is approximately 100mA maximum. In the USA and in Canada an American Fibertek PS-12 is supplied with this unit. The negative side of the power input is directly connected to ground. ANSI/NFPA 70 Class 2 wiring is recommended.
- Page 4 Power Indicator Power Status Green Voltage Present Voltage Not Present A green LED indicator is provided for the video input to the MTM-300. Video status associated with this LED is summarized below. Video Level Indicator Video Status Green Proper Input Video Present...
