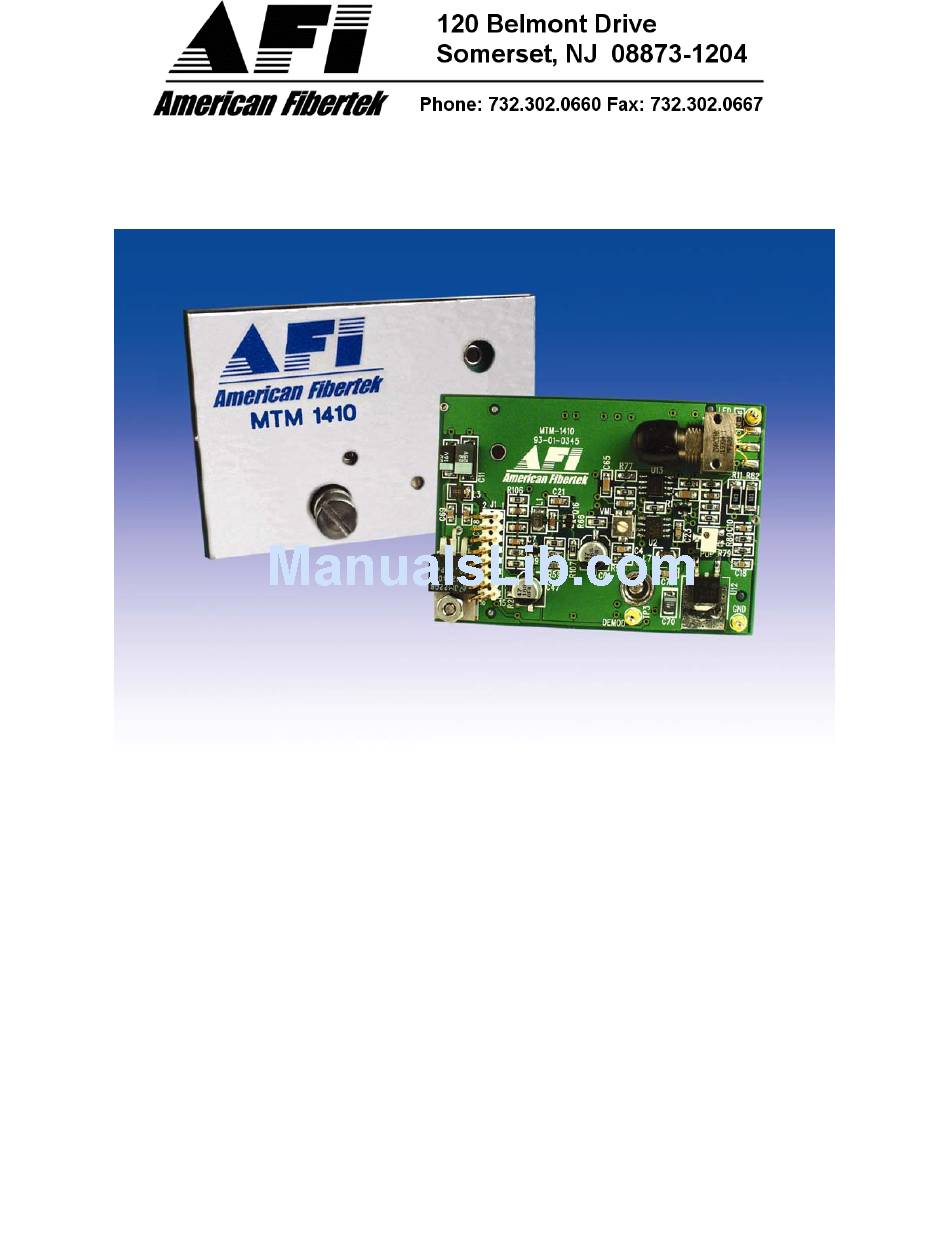

Instruction Manual

MTM-1410

Video Transmitter With

RS422 Control Data

Table of Contents

Need help?

Do you have a question about the MTM-1410 and is the answer not in the manual?

Page 2 Pelco Spectra III dome. Line up the 16 pin connector block of the MTM-1410 to fit in place of this J4 jumper. Insert pins into socket and tighten the screw on the MTM-1410 unit into the white post extending from the back box board. Verify that power and fiber cables move freely after tightening screw.
Page 3: Important Notice
This is accomplished by including a factory installed non-metalic patchcord with each unit. Please do not remove this patchcord. Failure to use this patchcord when installing this unit in the back box will result in damage to the back box circuit board and possibly the MTM-1410. FIBER CABLE MTM-1410 installed into back-box.
Page 4 LIFETIME WARRANTY INFORMATION American Fibertek, Inc warrants that at the time of delivery the products delivered will be free of defects in materials and workmanship. Defective products will be repaired or replaced at the exclusive option of American Fibertek. A Return Material Authorization (RMA) number is required to send the products back in case of return.
