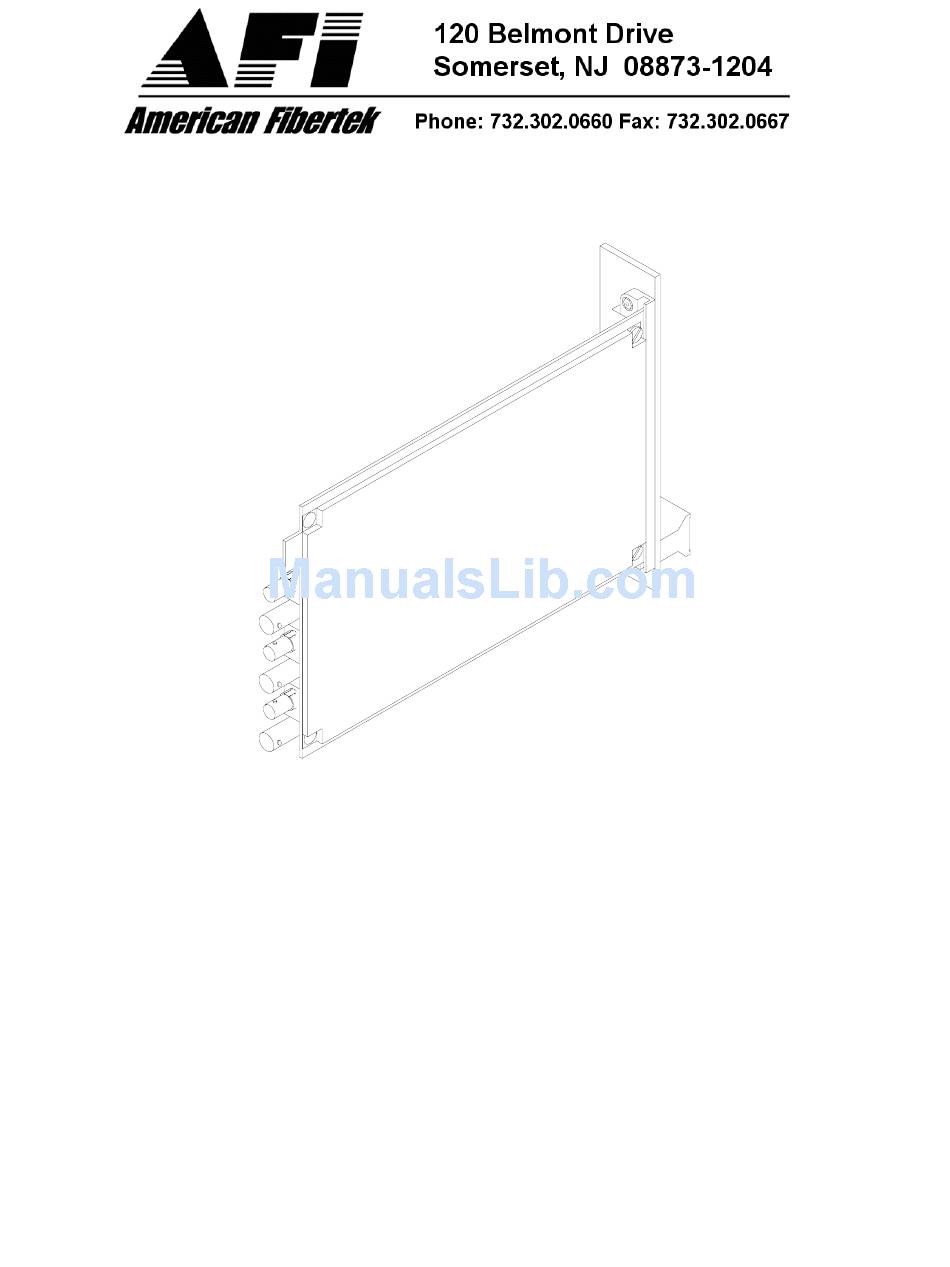

- Page 1 Instruction Manual RTM-30 Three Video Transmitters © Copyright 2003, American Fibertek, Inc. 0716JD...
- Page 2 0 to 12 dB with a maximum distance of up to 2.5 km. The RTM-30 operates on 50 um or 62.5 um multimode fiber. Refer to the data sheets for detailed performance specifications.
- Page 3 The RTM-30 transmitter provides the following LED status indicators to aid in installation and troubleshooting: VLI 1 THROUGH VLI 3 A bi-color LED indicator is provided for each of the video inputs to the RTM-30. DC power and video status associated with these LEDs are summarized below. Video Presence LED...
- Page 4 LIFETIME WARRANTY INFORMATION American Fibertek, Inc warrants that at the time of delivery the products delivered will be free of defects in materials and workmanship. Defective products will be repaired or replaced at the exclusive option of American Fibertek. A Return Material Authorization (RMA) number is required to send the products back in case of return.
