Page 1: User Manual
User Manual VoIP FXS+PSTN Gateway DBL Technology Co.,Ltd. http://www.dbltek.com Support@dbltek.com Marketing@dbltek.com Date: 2010-12-17... -
Page 2: Table Of Contents
Http://www.dbltek.com VoIP FXS+PSTN Gateway Contents 1 Introduction..................3 1.1 General Information ................... 3 1.2 Protocols ......................3 1.3 Hardware Specification..................4 1.4 Software Specification ..................4 1.5 List of the Package .......................5 2 Installation ..................6 2.1 Product View and Interface ................6 2.2 Connection Diagram.................. - Page 3 Http://www.dbltek.com VoIP FXS+PSTN Gateway 4.3.5 Save Changes....................37 4.3.6 Discard Changes .....................37 Phone Book ......................37 Tools........................38 4.5.1 Online Upgrade....................38 4.5.2 Change Password ....................39 4.5.3 Reset Configuration..................39 4.5.4 Reboot.......................40 4.6 Gain Settings ........................40...
-
Page 4: Introduction
Http://www.dbltek.com VoIP FXS+PSTN Gateway 1 Introduction 1.1 General Information A VoIP FXS Gateway / Analog Telephone Adapter (ATA) is a telephone extension to the IP network. It offers a traditional telephone line (PSTN) interface to an analog telephone, PBX line extension, or a fax machine. Its WAN port interface allows access to the IP network in order to offer voice and fax services. -
Page 5: Hardware Specification
Http://www.dbltek.com VoIP FXS+PSTN Gateway TFTP Client Hyper Text Transfer Protocol (HTTP) Dynamic Host Configuration Protocol (DHCP) Domain Name System (DNS) User account authentication using MD5 Out-band DTMF Relay: RFC 2833 and SIP Info 1.3 Hardware Specification ARM9E Processor for high performance DSP for voice codec and voice processing Two 10/100M Based Ethernet ports for WAN/LAN connections. -
Page 6: List Of The Package
Http://www.dbltek.com VoIP FXS+PSTN Gateway Memory Dial Caller ID Multiple Language Support Billing Information for accounting purpose 1.5 List of the Package a) One FXS+PSTN gateway b) One AC/DC Adapter (DC24V/300mA) c) One Ethernet cable (3-Meter long) -
Page 7: Installation

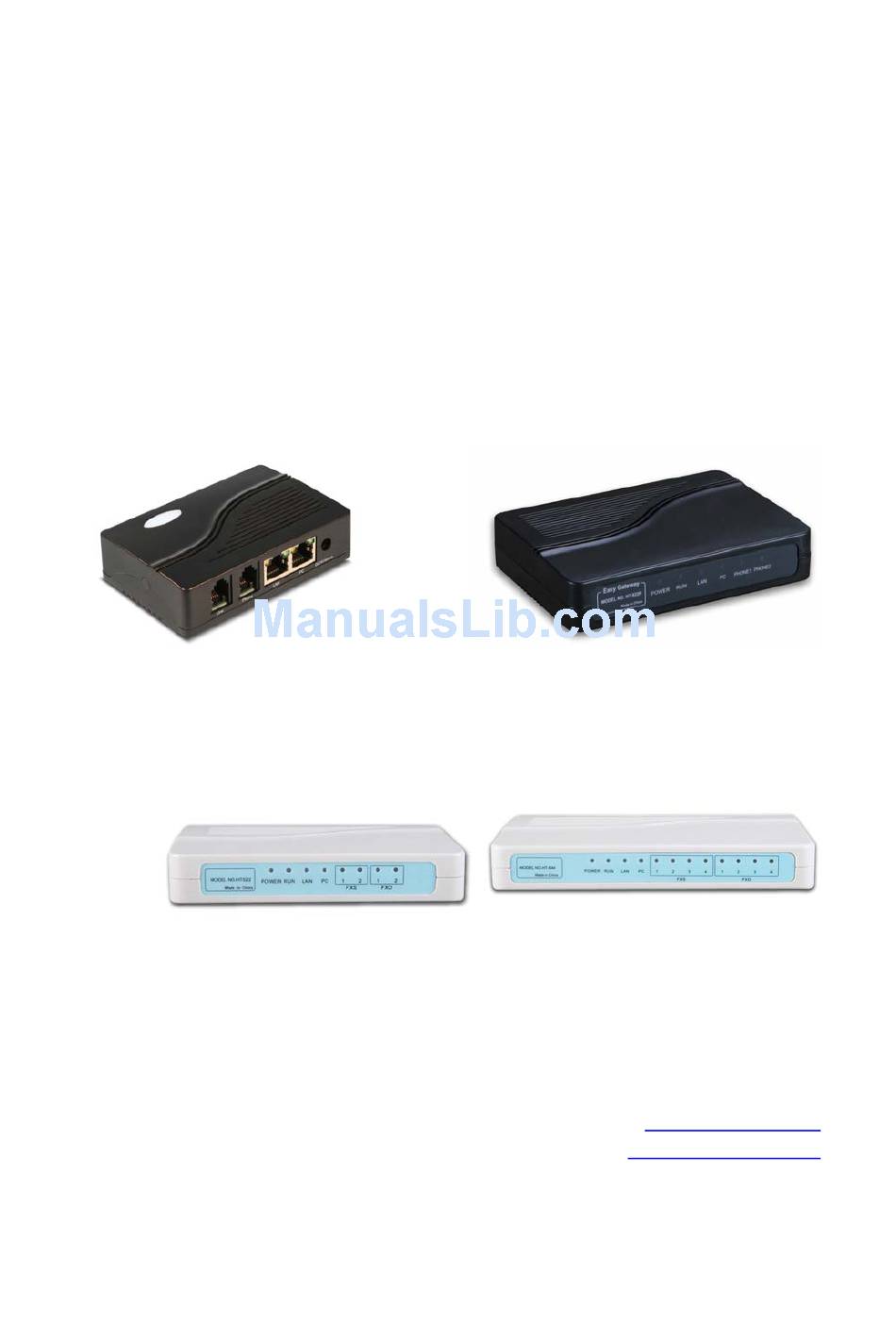

Http://www.dbltek.com VoIP FXS+PSTN Gateway 2 Installation The device is designed for easy installation and can be installed in various network environments. 2.1 Product View and Interface Picture HT-812P Picture HT-822P... -
Page 8: Connection Diagram
Http://www.dbltek.com VoIP FXS+PSTN Gateway Picture HT-522 Picture HT-544 1） LAN Connect this port to a network device (Broadband modem/router) with internet access via a RJ-45 Ethernet cable. 2） PC Connect this port to an Ethernet Hub or PC via a RJ-45 Ethernet cable. -
Page 9: Indicators
Http://www.dbltek.com VoIP FXS+PSTN Gateway 2.3 Indicators There are two LEDs installed under the Blue Button and they are defined as follows: DESCRIPTION 1. When the device is booting up, the LED Power / RUN (RED color) flashes at a rate of 100ms ON and 100ms OFF. -
Page 10: Basic Operations
Http://www.dbltek.com VoIP FXS+PSTN Gateway 3 Basic Operations 3.1 Commands The commands are used to access / control the FXS+PSTN series device via the phone set connected to the Phone port. There are two sets of * commands and they are for: 1. -
Page 11: Star Commands For Phone Operation
Http://www.dbltek.com VoIP FXS+PSTN Gateway bridge mode.) *11983185922# Reset all system parameters back to factory defaults. Please see section 2.1 for hardware reset option. Note: These commands are factory preset and cannot be modified. 3.1.2 Commands for Phone Operation The available commands for phone operation are 3-digit long at least and some contains operands. -
Page 12: Phone Operation
Http://www.dbltek.com VoIP FXS+PSTN Gateway 3.3 Phone Operation The device supports both VoIP and PSTN calls once it is properly setup for VoIP service and the Line port is properly connected to a PSTN line. Phone calls are made via the phone set connected to the Phone port. -
Page 13: Answer A Call Waiting Call
Http://www.dbltek.com VoIP FXS+PSTN Gateway 3.3.2 Answer a Call Waiting Call When an incoming call occurs during an active call, it is referred as a Call Waiting Call. The user hears an alerting (CAS) tone when a Call Waiting call occurs. For VoIP calls, this call waiting feature is only available in SIP;... -
Page 14: Call Forward
Http://www.dbltek.com VoIP FXS+PSTN Gateway 3.3.5 Call Forward The device supports the Call Forward feature which allows calls to be forwarded to a designated number under various conditions: Unconditional, Busy, No Answer, Busy or No Answer. This feature requires the support from the VoIP service provider and is enabled in the built-in web server. -
Page 15: Emergency Calls
Http://www.dbltek.com VoIP FXS+PSTN Gateway 3.3.8 Emergency Calls The Emergency Calls feature is safety feature to make sure that all emergency numbers defined to be dialed out as PSTN calls. The Emergency Calls are edited / defined via the built-in Web Server. Up to 10 entries of Emergency Calls can be entered. Please refer to... -
Page 16: Web Server Configuration
Http://www.dbltek.com VoIP FXS+PSTN Gateway 4 Web Server Configuration Other than Auto Provisioning, the device comes with a built-in Web Server (HTML) for device configuration. In order to access this Web Server, the LAN or PC IP Address must be known. Commands are available to generate a voice prompt of the LAN or PC IP Address required. - Page 17 Http://www.dbltek.com VoIP FXS+PSTN Gateway FXS+PSTN series device supports two login levels. For Administrator, please enter User name = “admin” and Password = “admin” (factory default). For User, please enter User name = “user” and the Password = “1234” (factory default).
-
Page 18: Status
Http://www.dbltek.com VoIP FXS+PSTN Gateway 4.2 Status The Status page provides a brief summary of the Current Phone (Device) and Network information. 4.2.1 Phone Information A. Serial Number Each HT-FXS+PSTN series is assigned with a unique serial number by the factory. -
Page 19: Preference
Http://www.dbltek.com VoIP FXS+PSTN Gateway 4.3.1 Preference This page configures the general settings in the device: Language, Time Zone, Time server, Auto-Provision, Key(#) as Delimiter, Auto-dial Timeout, Network Tones, INFO Server, China Phone Code. a) Language - This field sets the language to be used for initial access to the built-in Web Server. - Page 20 Http://www.dbltek.com VoIP FXS+PSTN Gateway specifies the location of the designated provision server. The auto provision procedure is executed at boot up time and is repeated at a duration specified in the parameter Provision Interval. e) Remote Control – This feature is intended for remote technical support and it enables the HT-FXS+PSTN series to connect to a remote server.
-
Page 21: Network Configuration
Http://www.dbltek.com VoIP FXS+PSTN Gateway 10. tone #2 frequency, 300-3000(Hz) 11. tone #3 frequency, 300-3000(Hz) 12. tone #4 frequency, 300-3000(Hz) 13. tone #1 level, 0~31(0=3dB, -1dB per step) 14. tone #2 level, 0~31(0=3dB, -1dB per step) 15. tone #3 level, 0~31(0=3dB, -1dB per step) 16. - Page 22 Http://www.dbltek.com VoIP FXS+PSTN Gateway host, This allows the HT-812P to obtain all related network information / settings from the DHCP host. 2. Static IP – This mode sets the LAN port IP manually which can either be a public or private IP.
-
Page 23: Call Settings
Http://www.dbltek.com VoIP FXS+PSTN Gateway To simplify network IP assignments, enable the DHCP Server for the PC Port. This allows network devices connected Port to obtain network IP and related information from the PC Port. Please consult your network administrator for proper settings of the DHCP Server 4.3.3 Call Settings... -
Page 24: Phone
Http://www.dbltek.com VoIP FXS+PSTN Gateway 4.3.3.1 H.323 Phone The H.323 Phone selection for Endpoint Type refers to the protocol used. The basic H.323 settings are: 1. Endpoint Mode – Gatekeeper Mode supports making a VoIP call via a call server. Registration to the server is required. Direct Mode supports making a VoIP call by dialing the IP addresses or an alias. - Page 25 Http://www.dbltek.com VoIP FXS+PSTN Gateway Picture HT-822P Picture HT-522 Picture HT-544 Config by Group allows up to 4 groups of configuration for phone number, H.323 ID and gatekeeper. Since there is only one FXS port, all four groups are sharing the same FXS port.
- Page 26 Http://www.dbltek.com VoIP FXS+PSTN Gateway containing an alphanumeric string. Some gatekeepers may use this ID for authentication. 6. Gatekeeper Address - This assigns the location of the Gatekeeper for VoIP Service. 7. VOS Encryption – The VOS2000 Encryption method is widely used in China to avoid VoIP blocking by various network equipment and to insure a reliable VoIP service.
- Page 27 Http://www.dbltek.com VoIP FXS+PSTN Gateway 1. RAS Port – This Port is used to convey the registration, admissions, bandwidth change, and status messages between two H.323 endpoints. If not specified, the port address is assigned automatically. 2. Q.931 Port – This port is used for call signaling to convey Call Setup and teardown messages between two H.323 endpoints.
-
Page 28: Sip Phone
Http://www.dbltek.com VoIP FXS+PSTN Gateway 7. Signaling QoS – This parameter sets the QoS mode for VoIP Signaling for better response time and more reliable VoIP Call signaling. Both IP TOS and Diffserv modes are supported. Please check with your network administrator or ISP for the correct setting. - Page 29 Http://www.dbltek.com VoIP FXS+PSTN Gateway In SIP Phone mode, it supports registration of two phone numbers to a single SIP Server. A Backup Server option is also available to insure a more reliable SIP Service. The basic SIP settings are: Phone Number – This parameter assigns the phone number used for SIP registration.
- Page 30 Http://www.dbltek.com VoIP FXS+PSTN Gateway non-standard signaling port, add “:<port number>” to the of the location. example: If SIP Proxy = yousippbx.com, the signaling port is the standard port 5060. If SIP Proxy = yoursippbx.com:15060, the signaling port is 15060. Registry Expiry(s) – This specifies the expiry duration at the SIP Registrar after a successful registration.
- Page 31 Http://www.dbltek.com VoIP FXS+PSTN Gateway Advanced Settings More settings are available under the Advanced Settings tab. Depending on your network requirements, please consult your network administrator for the correct configuration. 1. Signaling Port – This Port is used to convey signaling message with the SIP Proxy.
- Page 32 Http://www.dbltek.com VoIP FXS+PSTN Gateway modes are supported. Please check with your network administrator or ISP for the correct setting. 7. Signaling Encryption – Three types of encryption are supported and they can be enabled individually. These are non-standard encryption for signaling.
-
Page 33: Media Settings
Http://www.dbltek.com VoIP FXS+PSTN Gateway 4.3.3.3 Media Settings Once a VoIP call is established, the Media channel is used for voice transmission. The settings listed below configure the performance and operation of the Media channel. 1. RTP Port (range) – Audio stream is transmitted via Real Time Protocol (RTP) and at least 4 ports are used per voice channel. -
Page 34: Dial Plan
Http://www.dbltek.com VoIP FXS+PSTN Gateway 7. Media NAT Traversal – NAT Traversal can be set independently for Media packets. This gives a more flexible setting for various network environment. Three modes are supported: STUN(RFC 3489), Port-forward/DMZ, and Relay Proxy. Relay Proxy mode is a proprietary NAT protocol and it requires the use of our Relay Proxy Server. - Page 35 Http://www.dbltek.com VoIP FXS+PSTN Gateway The basic syntax is “<event>:<action>|<event>:<action>|…”, where <event> defines the event to be matched. A event consists of a sequence of digits. If a specific digit has a limited range, use the syntax [A-B] where A and B are both digit (0 to 9) and B is greater than A.
-
Page 36: Phone Settings
Http://www.dbltek.com VoIP FXS+PSTN Gateway 6. Dial Plan = “13[6-9]XXXXXXXX:+0” means that the input number is restricted to 11-digit long and the first two digits must be “13” and the third digit can be 6, 7, 8,or 9. When this condition is matched, the number dialed out will have a leading “0”... - Page 37 Http://www.dbltek.com VoIP FXS+PSTN Gateway 5. Ring Parameters – The ringing frequency and cadence at the FXS port can be set here. It allows settings of 3 ringing cadences per ring cycle. 6. Caller ID – This defines the Caller ID signal to be sent from the FXS port. It supports both Bellcore/Telcordia and ETSI FSK Caller ID standards.
-
Page 38: Save Changes
Http://www.dbltek.com VoIP FXS+PSTN Gateway 4.3.5 Save Changes When all changes have been made, click on the Save Changes tab to save all settings to the Flash memory. The message window below is displayed when the saving is completed. 4.3.6 Discard Changes Click on the Discard Changes tab to ignore all changes made. -
Page 39: Tools
Http://www.dbltek.com VoIP FXS+PSTN Gateway 4.5 Tools The Tools section is intended to offer the following functions: Online Upgrade, Change Password, Reset Config, and Reboot. 4.5.1 Online Upgrade Click on the Online Upgrade tab to perform manual firmware upgrade. Enter the upgrade address as shown below. -
Page 40: Change Password
Http://www.dbltek.com VoIP FXS+PSTN Gateway WARNING: Once the upgrade starts, a message window is display to show the upgrade status. DO NOT TURN OFF THE POWER WHILE THE FIRMWARE UPGRADE IS IN PROCESS! 4.5.2 Change Password FXS+PSTN series support two login levels to the built-in webpage. The User level is intended for general user and is restricted from accessing the Call Settings page and Reset Configuration function. -
Page 41: Reboot
Http://www.dbltek.com VoIP FXS+PSTN Gateway Pleas also see section 2.1 for hardware reset option and section 3.1.1 for a star command reset option. 4.5.4 Reboot Click on the Reboot tab to reboot the device. 4.6 Gain Settings This Gain Settings page is hidden and is only intended for users who is really interested in adjusting the receive level (Input Gain) and transmit level (Output Gain) of the FXS port. -
Page 42: Parameters Of Equipment
Http://www.dbltek.com VoIP FXS+PSTN Gateway 5 Parameters of Equipment Characteristics of Parameter Parameter Remarks the hardware Type Can be customized HT-812P HT-822P Processor ARM9E 133MHz ARM9E 133MHz VDS924PM4 VDS924PM4 200MHz 200MHz FLASH Power DC24V/500mA +-10% Consumption The maximum 4 W The maximum 6 W... - Page 43 Http://www.dbltek.com VoIP FXS+PSTN Gateway VDS924PM4 VDS924PM4 200MHz 200MHz FLASH DC24V/500mA Power DC24V/500mA +-10% +-10% Consumption The maximum 6 W The maximum 6 W Impedance 600 ohm Ring Detect Range 30-150Vrms 18Hz-55Hz PSTN Port Voltage 160V Upper Limit Operate, network ,...
-
Page 44: Factory Default Parameter Table
Http://www.dbltek.com VoIP FXS+PSTN Gateway 6 Factory Default Parameter Table Parameter Default Value Dynamic IP (DHCP) Network Fixed IP: 192.168.8.1 admin admin Password user 1234 Default time zone GMT+8...
