User Manual

FXO+FXS Gateway
Model: HTM Series
DBL Technology Co.,Ltd.
Http://www.dbltek.com/en
sales@dbltek.com
Support@dbltek.com
2009-12-15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HTM series and is the answer not in the manual?

Questions and answers

Related Manuals for DBL Technology HTM series

Summary of Contents for DBL Technology HTM series

  • Page 1: User Manual

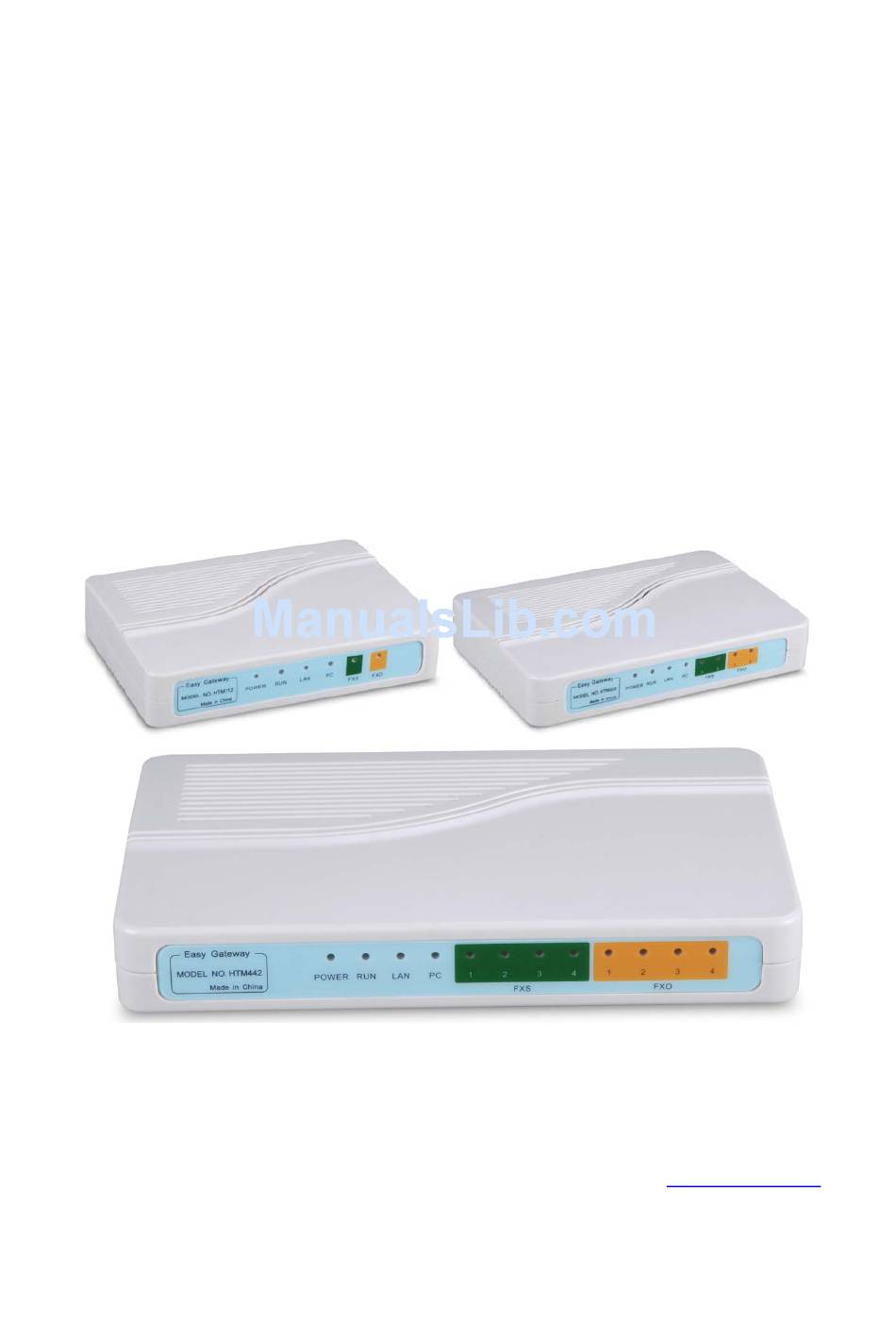

    User Manual FXO+FXS Gateway Model: HTM Series DBL Technology Co.,Ltd. Http://www.dbltek.com/en sales@dbltek.com Support@dbltek.com 2009-12-15...

  • Page 2: Table Of Contents

    http://www.DBL.com FXS+FXO Gateway Series Contents 1. Product Introduction............4 1.1 General Information ......................4 1.2 Protocol ..........................4 1.3 Hardware Specification.......................5 1.4 Software Specification ......................5 1.5 List of the Package ......................5 1.6 Appearance..........................5 1.7. Apply..........................6 2. Connection ...........................7 2.1. Interface Description:......................7 2.2. Indicator lights explanation:....................8 2.3.
  • Page 3 http://www.DBL.com FXS+FXO Gateway Series 4. Tools............................41 4.1. Online Upgrade ........................41 4.2. Change Password ......................42 4.3. Restore factory settings ....................42 4.4. Reboot the system ......................42 5. Dialing Rules........................43 5.1. Basic rules of grammar ....................43 5.2. With a limited number of digit dialing rules ..............44 6.

  • Page 4: Product Introduction

    SIP protocol, which is an important function of PBX application. Super Echo Cancellation Algorithm and Balanced Circuit make line echo minimum. Low price, Stable and performance are pronoun of the HTM series products，it is the first choice of PXS Manufacturers, Call Center and System Integrators.

  • Page 5: Hardware Specification

    http://www.DBL.com FXS+FXO Gateway Series 1.3 Hardware Specification ARM9E Processor DSP for voice codec and voice processing Two 10/100 Base T Ethernet ports with full compliant with IEEE 802.3 LEDS for Ethernet port status Direct Connect Ethernet cable Four PSTN Channels’ Connection 1.4 Software Specification LINUX OS Built-in HTTP Web Server...

  • Page 6: Apply

    http://www.DBL.com FXS+FXO Gateway Series Connect a computer or other network device to this port. (Less than 100 mid-range) 3） Power (DC24V/500mA) Connect the 24V/500mA Adapter provided to this power jack. 4） Reset Reset switch, use to start the device or delete the configuration quickly. 1.7.

  • Page 7: Connection

    http://www.DBL.com FXS+FXO Gateway Series 2. Connection 2.1. Interface Description:...

  • Page 8: Indicator Lights Explanation

    http://www.DBL.com FXS+FXO Gateway Series Diagram 2-1 Interface Name Connect to Notes FXO 1-4 Connected to four telephone lines If exposed, note lightning FXS 1-4 FXS output, connected to telephone Length of line is below than 300 meters Network input, connected to Network 10/100Base T Network output, connected to computer 10/100Base T...

  • Page 9: Connection Diagram

    http://www.DBL.com FXS+FXO Gateway Series Diagram 2-2 Name Explanation performance Power Power LED Post-Long after start Working status lights Logged, flash 250 ms; login, slow flash 500 ms; upgrading, Continuous flashing 100 LAN Network Lights Light after connect the Network, flash when Data Transmission PC Network Lights Light after connect the Network, flash when...

  • Page 10: Configuration

    FXS+FXO Gateway Series Diagram 2-3 HTM series have a LAN port and a PC port. Please connect as follows: 1. Open the package, there are a Gateway, a power, and a cable; 2. Take out of Ethernet cable and connect to the PC;...

  • Page 11: Logon To The Gateway

    IP must consistent, such as 192.168.1.3 and 192.168.1.5 are the same segment, 192.168.1.3 and 192.168.2.4 are not. C) HTM series’ PC port has fixed a LAN IP address in default setting, it is 192.168.8.1, and you can visit HTM_xxx series’ gateways through this port;...
  • Page 12 http://www.DBL.com FXS+FXO Gateway Series If the connection is correct, the Web Browser will prompt you to enter the “User name” and “Password” as shown below. Input the username and password, enter state page, as following figure:...
  • Page 13 http://www.DBL.com FXS+FXO Gateway Series State of HTM-112 State of HTM-222...
  • Page 14 State of HTM-442 Sequence number: The Gateway factory serial number; Software version number: HTM series’ software version. This parameters is identified by the system automatically, users can change by upgrading the Gateway; Hardware model: Its line configuration can be identified by system software;...

  • Page 15: Gateway Configuration

    http://www.DBL.com FXS+FXO Gateway Series 3.3 Gateway Configuration Click “Configure”, enter interface, and start to configure: 3.3.1. User options A) Language Enter the language page, you can configure it. If the current language is Chinese and you want it in English, choose “English” on top of webpage, then the webpage will changed to English at soon;...
  • Page 16 http://www.DBL.com FXS+FXO Gateway Series the Pacific Standard Time is GMT-8, while Pacific daytime is GMT-7. Time Zone shows the place where users are, only fill it correctly, CND and billing information can show the right time. C) Time Server Server address that the Gateway get Network time by Internet. The default is: pool.npt.org. D) Auto Provision Choose “Enable”...

  • Page 17: Network Configuration

    http://www.DBL.com FXS+FXO Gateway Series It is dialing tone and ring back tone, and so on. You can choose different tone according to different countries. G) China Phone Code Matching Can match all the China phone code and make sure the fastest dial time. H) Reboot Time The Gateway will reboot within the specified time, in order to clean the equipment cache, and make sure the device running normally.
  • Page 18 http://www.DBL.com FXS+FXO Gateway Series When choose Hand Set, click “standard IP” and fill the IP address, mask and Gateway address. When use standard IP, you should fill in “Main DNS” server-address to get Domain Name Service, getting this address you can consult your Internet access service providers. When need to use PPOE, click it, and input the Username and password.

  • Page 19: Call Setting

    http://www.DBL.com FXS+FXO Gateway Series When use PPOE, need to enable Gateway routing, so that the PC that connected to the Gateway can connect to the Internet correctly. Change the PC Bridge Mode into Standard IP, configure as follows: PC port enables standard IP, the mask 2555.2555.2555.0, after enable DHCP, the computer that connected to the PC port can get arbitrary IP in the range of start address and end address.

  • Page 20: Fxs Configuration

    HTM has PSTN and FXO mode, which can be chosen in the FXO Mode pattern: PSTN: In this mode, HTM series gateway’s FXO ports will work like a PSTN by Pass port; you can choose PSTN phone or VOIP channel through star commands *12 or *21 to switch between normal telephone and VOIP.
  • Page 21 http://www.DBL.com FXS+FXO Gateway Series HTM-222 HTM_442 3. As indicated in Figure, when choose H.323 protocol, you should choose “H.323 Terminal”. When several lines use the same number, choose “Single server mode”, when each line choose different numbers, choose “By wiring”. When choose “By wiring”, each line can login to different servers.

  • Page 22: Fxo Configuration

    http://www.DBL.com FXS+FXO Gateway Series B) H.323 ID A mode of account certification, users can fill according to the service provider. C) Gatekeeper address Use to find right Gatekeeper, fill the IP: 192.168.2.1 or domain: gk yourisp.com. If your port is not the standard (1719, 1720), you can add the special port in the back of the IP or domain, for example: login with 7300: 192.168.2.1:7300 or gk yourisp.com:7300.

  • Page 23: Configuration Mode

    http://www.DBL.com FXS+FXO Gateway Series HTM-222 HTM-442 3.3.3.1.3 Configuration mode When choose FXO, the configuration mode of FXS VOIP channel: 1) Single configure; 2) Configure by line; 3) Configure by group...

  • Page 24: Encryption

    http://www.DBL.com FXS+FXO Gateway Series A) Single Configure: User can make several VOIP channel share the same configuration. B) Configure by line: Every VOIP channel can be supported service by different providers, also login 2 or 4 telephone numbers on the same server, each number is bundled with corresponding VOIP channel.
  • Page 25 http://www.DBL.com FXS+FXO Gateway Series A) RAS Port RAS is communications protocol of Terminal and Gatekeeper, and state information of transferring login information, login information, broadband, and the relationship of the 2 H.323. This option can designate the UDP of this protocol, can be used by the router's port mapping.

  • Page 26: Sip Protocol

    http://www.DBL.com FXS+FXO Gateway Series 1) Inband DTMF This style makes the special dial-tone together with talk-tone and transfer out without any treatment. So Inband only has one way to set DTMF signaling. 2) Outband DTMF This style uses special methods and transfers the dial-tone to certain the correctness. The special methods are the called protocol, such as RFC2833.
  • Page 27 http://www.DBL.com FXS+FXO Gateway Series HTM-112 HTM-222...
  • Page 28 http://www.DBL.com FXS+FXO Gateway Series HTM-442 Click FXS Configuration, expand the configuration interface, and set all the parameter of the HTM_442. Two kinds of VOIP Channel formats: 1) By wiring; 2) Single-server mode. The default is “By wiring”, as following figure: In this mode, there are more advance settings of VOIP Channel.
  • Page 29 http://www.DBL.com FXS+FXO Gateway Series Certification ID Use to fill the certification account that the Gateway logins on the SIP registration server. G) Password Use to fill the certification password when the Gateway logins on the SIP registration server. H) Display Name When you call your friend John, then his phone will show you call.

  • Page 30: Fxo Configuration

    http://www.DBL.com FXS+FXO Gateway Series 3.3.3.3.2. FXO Configuration Click FXO Configuration, open the interface, setting mode is the same as FXS. When VOIP inbound, it will adapter to PSTN; if PSTN inbound, then adapters to VOIP. HTM-112...
  • Page 31 http://www.DBL.com FXS+FXO Gateway Series HTM-222 HTM-442...

  • Page 32: Configuration Mode

    http://www.DBL.com FXS+FXO Gateway Series 3.3.3.3.3. Configuration Mode When choose FXO, the configuration mode of FXS VOIP channel: 1) Single configure; 2) Configure by line; 3) Configure by group A) Single Configure: User can make several VOIP channel share the same configuration. B) Configure by line: Every VOIP channel can be supported service by different providers, also login 2 or 4 telephone numbers on the same server, each number is bundled with corresponding VOIP channel.

  • Page 33: Media Advanced Configuration

    http://www.DBL.com FXS+FXO Gateway Series This style makes the special dial-tone together with talk-tone and transfer out without any treatment. So Inband only has one way to set DTMF signaling. 2) Outband DTMF This style uses special methods and transfers the dial-tone to certain the correctness. The special methods are the called protocol, such as RFC2833.
  • Page 34 http://www.DBL.com FXS+FXO Gateway Series (5500-5520). B) RTP Packet Length The default time length of each wet packet is 20ms. Use to designate the size of media-packet, the unit is sampling time ms. C) Jitter delay processing mode Use to designate Jitter delay buffer algorithm model. Adaptive mode is the best, other modes are used for test, please do not use in the practical action.

  • Page 35: Firewall Traversal

    http://www.DBL.com FXS+FXO Gateway Series 3.3.3.4. Firewall Traversal In the advanced configuration of call settings, signal and media each has firewall configuration. 3.3.3.4.1. H.323 Signaling NAT Traversal There are four styles as follows: A） None Select None to turn off this feature. B) Nat Citron Citron is a dedicated firewall penetration agreement for GNUGK.

  • Page 36: Sip Signaling Nat Traversal

    http://www.DBL.com FXS+FXO Gateway Series 3.3.3.4.2. SIP Signaling NAT Traversal SIP Signaling NAT Traversal has 3 kinds: A) None Select None to disable this feature. B) STUN （RFC 3489） STUN (Simple Traversal of UDP (User Datagram Protocol) through NATS (Network Address Translators)) is a network protocol allowing a client behind a NAT (or multiple NATS) to find out its public address, the type of NAT it is behind and the internet-side port associated by the NAT with a particular local port.

  • Page 37: Media Nat Traversal

    http://www.DBL.com FXS+FXO Gateway Series 3.3.3.4.3. Media NAT Traversal Similar to Signaling NAT Traversal, this feature allows media packets (RTP) to be routed properly in various network environments. A）NONE Select None to disable this feature. B) Port Transparent/DMZ Port Transparent refers that put network port of the LAN into computer or inside of the LAN.

  • Page 38: Fxs Setting

    http://www.DBL.com FXS+FXO Gateway Series 3.3.4. FXS Setting HTM-112 HTM-222 HTM-442 Dialing rules: see the dialing rules Hotline: dial number when pull the phone Key Hold: in the state of “Enable call”, you can stop talking by pressing “*42” Key Transfer: Enable and press *41, then input telephone number, you can achieve Call transfer.

  • Page 39: Fxo Setting

    Net off escape: After enable it, when the Net off or fail to login VOIP, FXS mentioned Machine will put up PSTN outline. Use of billing: you can bill all the lines by using DBL technology billing software. Notes: Every line should be set separately.

  • Page 40: Save Changes

    http://www.DBL.com FXS+FXO Gateway Series As indicated in figure, when IP calls HTM_442, HTM_442 will give beep, only users input the password (1234) correctly can you get PSTN dial-tone and dial. 2. PSTN calls adapters to VOIP special number, fill the adapter number in the “call VOIP adapter number”.

  • Page 41: Abandon Changes

    http://www.DBL.com FXS+FXO Gateway Series 3.3.7. Abandon changes If your new settings are not saved, you can clean all the unsaved new parameters. 4. Tools 4.1. Online Upgrade Page shows current version information, input upgrade address, click start, wait after upgrade and start again. When the page shows “Upgrade successful”, click “OK”. Notes: Please keep in touch with the company’s technology support, in case that get the latest information and upgrade address.

  • Page 42: Change Password

    http://www.DBL.com FXS+FXO Gateway Series 4.2. Change Password Include “Ordinary user-level” (user) and “Administrator Class” (admin), input the new password two times, click “change” is ok. 4.3. Restore factory settings If you make sure that clean all configurations, click “OK”, wait start again. If not, click “Cancel”, back to current page.

  • Page 43: Dialing Rules

    http://www.DBL.com FXS+FXO Gateway Series If you are sue to reboot the system, click “OK”, if not, then click “Cancel”, back to current page. Point the “RESET” gently with Small needle-like objects, then HTM_ 442 will reboot. Notes: Press the “RESET” will lead HTM_442 restore factory settings, all the parameters that users configure will be cleaned.

  • Page 44: With A Limited Number Of Digit Dialing Rules

    http://www.DBL.com FXS+FXO Gateway Series a. Input“008522343318”，output“008522343318”； b. Input“02083185711”，output“00862083185711”； c. Input“83185700”，output“008675583185700”. 4. Rules：“0:|1 [3-9]:+0|[2-8]:+0755|:+0755”. a. Input“076322343318”，output“076322343318”； b. Input“13044557766”，output“013044557766”； or“13644557766”，output“013644557766” c. Input“23185700”，output“075523185700”. Or“73185700”，output“075573185700” 5.2. With a limited number of digit dialing rules If you want to do restriction on every phone number, the dialing number of HT-3040 is configured as “AAXXXXXXX:-aa+bb”，AAXXXXXX is the matched number and its length.

  • Page 45: Advanced Configuration

    http://www.DBL.com FXS+FXO Gateway Series 6.2. Advanced Configuration There are many configuration option in the advanced configuration, such as Agent Services, Speech Coding sequence and so on, if you familiar with our product, you can configure directly, if not, please view our detailed description, or search our technology support: support@at338.com 6.3.
