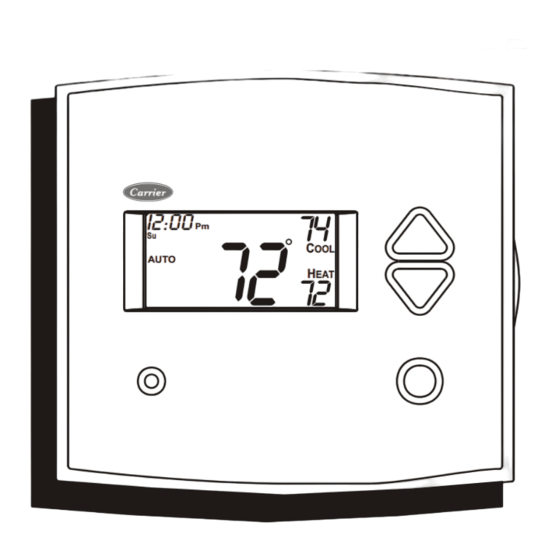

Carrier 33CS400-01 Installation Instructions Manual

Digital thermostat non programmable

Hide thumbs Also See for 33CS400-01:

Owner's manual (79 pages)

Owner's manual (78 pages)

Installation instructions manual (24 pages)

Table Of Contents

Summary of Contents for Carrier 33CS400-01

Page 1: Installation Instructions
INSTALLATION INSTALLATION COMMERCIAL COMMERCIAL THERMOSTAT THERMOSTAT INSTRUCTIONS INSTRUCTIONS P/N P/N 33CS400-01 33CS400-01 IGITAL IGITAL HERMOSTAT HERMOSTAT NON-PROGRAMMABLE NON-PROGRAMMABLE & HEAT I2:00 HEAT COOL PUMP AUTO 3 Configurable Outputs 3 Configurable Outputs Control up to 3 Heat & Control up to 3 Heat &...
Page 2 (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Thermostat 33CS400-01 Tested to Comply with FCC Standards FOR HOME OR OFFICE USE...
Page 4: Table Of Contents
Table of Contents Table of Contents Preparation Remove & Replace the Old Thermostat Configuring the MISC Outputs Wire Connections Sample Wiring Diagrams Test Operation Calibrating the Thermostat Sensors TroubleShooting Page...
Page 5: Preparation
SECTION 1 Preparation Preparation Proper installation of the thermostat will be accomplished by following these step by step instructions. If you are unsure about any of these steps, call a qualified technician for assistance. Assemble tools Flat Blade Wire cutter Screwdriver &...
Page 6: Remove & Replace The Old Thermostat
SECTION 2 Remove & Replace the Old Thermostat Remove & Replace the Old Thermostat Remove the cover of the old thermostat. If it does not come off easily check for screws. Loosen the screws holding the thermostat base or subbase to the wall, and lift away. Disconnect the wires from the old thermostat.
Page 7: Configuring The Misc Outputs
SECTION 3 Configuring the MISC Outputs Configuring the MISC Outputs Section 3 Contents: Configuring the Jumpers..3.2 Explanation of Jumper Settings........3.3 Page 3.1...
Page 8 Configuring the Jumpers Configuring the Jumpers For additional flexibility, your thermostat has three configurable outputs. These outputs are designed to have different functions depending on how the jumpers are set (below). Each output, labeled MISC1, MISC2, and MISC3 may be set for one of the six choices available.
Page 9 Explanation of Jumper Settings Explanation of Jumper Settings W3 JUMPER SETTING If the jumper for MISC1, MISC2, or MISC3 is set to W3, the corresponding MISC screw terminal on the backplate will control a third stage of heat. W3 MULTI-STAGE OPERATION EXPLAINED - SECTION 13 of the Owner’s Manual The 3rd Stage of Heat is turned on when: (A) The 1st and 2nd stages have been on for the time required (steps 27...
Page 10 Explanation of Jumper Settings Explanation of Jumper Settings (continued) (continued) HUM JUMPER SETTING If the jumper for MISC1, MISC2, or MISC3 is set to HUM, the corresponding MISC screw terminal on the backplate will control a humidification system. HUMIDIFICATION OPERATION - SECTION 9 of the Owner’s Manual If your HVAC unit is equipped with a humidification system and the Humidity Module (sold separately) has been installed, the thermostat will provide power to the MISC1, MISC2, or MISC3 terminal of the thermostat when the humidity in...
Page 11 Explanation of Jumper Settings Explanation of Jumper Settings (continued) (continued) ECON JUMPER SETTING If the jumper for MISC2 and MISC3 is set to ECON, the corresponding MISC screw terminal on the backplate will be connected to an economizer. ECONOMIZER OPERATION - If your HVAC unit is equipped with an economizer system, the thermostat will provide power to the MISC1, MISC2, or MISC3 terminal of the thermostat when the thermostat is in an occupied time period.
Page 12: Wire Connections
SECTION 4 Wire Connections Wire Connections If the terminal designations on your old thermostat do not match those on the new thermostat, refer to the chart below, or the wiring diagrams that follow. Wire from the Install on the new thermostat old thermostat Function connector marked...
Page 13: Sample Wiring Diagrams
SECTION 5 Sample Wiring Diagrams Sample Wiring Diagrams Section 5 Contents: HVAC Equipment Wiring....5.2 MISC1, MISC2, and MISC3 Wiring........5.6 Remote Sensor and CK1-CK2 wiring for Time Clock....5.8 Page 5.1...
Page 14 6 Wire, 1 Stage Cooling, 1 Stage Heat Residential & Commercial 1 Stage Cooling, Commercial Heat Pump 1 Stage Cooling with 1st Stage Gas Heat with 2 Stage Heat W1/O/B MISC1 MISC3 MISC2 RS+5 CKGND RSGND ELEC 6 Conductor 18 gauge ELEC unshielded cable from the PROG...
Page 15 6 Wire, 1 Stage Cooling, 1 Stage Heat Residential & Commercial 1 Stage Cooling, with 1st Stage Electric Heat W1/O/B MISC1 MISC3 MISC2 RS+5 CKGND RSGND ELEC 6 Conductor 18 gauge ELEC unshielded cable from the PROG DEHUM ECON thermostat to the equipment. (MISC1 MISC3 MISC2...
Page 16 6 Wire, 1 Stage Cooling, 2 Stage Heat Residential Heat Pump with O Reversing Valve 1 Stage Cooling, with 2 Stage Heat W1/O/B MISC1 MISC3 MISC2 RS+5 CKGND RSGND ELEC 6 Conductor 18 gauge ELEC unshielded cable from the PROG DEHUM ECON thermostat to the equipment.
Page 17 6 Wire, 1 Stage Cooling, 2 Stage Heat Residential Heat Pump with b Reversing Valve 1 Stage Cooling, with 2 Stage Heat W1/O/B MISC1 MISC3 MISC2 RS+5 CKGND RSGND ELEC 6 Conductor 18 gauge ELEC unshielded cable from the PROG DEHUM ECON thermostat to the equipment.
Page 18 Adding a 2nd Stage of Cooling (MISC1), Exterior Lighting System (MISC2), and 3rd Stage of Heating (MISC3) W1/O/B MISC1 MISC3 MISC2 RS+5 CKGND RSGND ELEC PROG PROG DEHUM ECON (MISC1 MISC3 MISC2 MISC1 ONLY) MISC1 MISC2 MISC3 DEHUM RS+5 CKGND INSTALL HUMIDITY MODULE WITH SENSING RSGND...
Page 19 Adding a Humidification System* (MISC1), Dehumidification System* (MISC2), and controlling an Economizer (MISC3). W1/O/B MISC1 MISC3 MISC2 RS+5 CKGND RSGND ELEC PROG PROG NO HUM DEHUM ECON (MISC1 MISC3 MISC2 MISC1 ONLY) MISC1 MISC2 MISC3 DEHUM RS+5 CKGND INSTALL HUMIDITY MODULE WITH SENSING RSGND ELEMENT OUTWARD...
Page 20 CK1 and CK2 terminals wired to a Time Clock For instructions on wiring the optional Remote and Outside Sensors, please see page 15.2 of the Owner’s Manual W1/O/B MISC1 MISC3 MISC2 RS+5 CKGND RSGND DRY CONTACT SWITCH - The terminals are ‘normally open’ (may be programmed for normally closed operation, see page 16.2 of the Owner’s Manual).
Page 21: Test Operation
SECTION 6 Test Operation Test Operation Turn the power on to the Heating/Air Conditioning system. Press the MODE button repeatedly until the HEAT icon appears on the display. Press the UP or DOWN buttons until the set temperature is 10 degrees above room temperature; The furnace should turn on.
Page 22: Calibrating The Thermostat Sensors
SECTION 7 Calibrating the Thermostat Sensors Calibrating the Thermostat Sensors Under normal circumstances it will not be necessary to adjust the calibration of the temperature and humidity sensors. If calibration is required, please contact a trained HVAC technician to correctly perform the following procedure.
Page 23: Troubleshooting
SECTION 8 TroubleShooting TroubleShooting SYMPTOM: The air conditioning does not attempt to turn on. CAUSE: The compressor timer lockout may prevent the air conditioner from turning on, for a period of time. REMEDY: Consult the Owner's Manual in the Setup section to defeat the cycles per hour and compressor timeguard.
Page 24 TroubleShooting TroubleShooting SYMPTOM: When controlling a residential heat pump, and asking for cooling, the heat comes on. CAUSE: The thermostat reversing valve jumper is set for “b”. REMEDY: Set the reversing valve jumper for “O”. See pages 5.4 and 5.5. SYMPTOM: When calling for cooling, both the heat and cool come on.
