OWNER'S
OWNER'S
MANUAL
MANUAL
&
HEAT
HEAT
COOL
PUMP
3 Configurable Outputs
3 Configurable Outputs
Control up to 3 Heat &
Control up to 3 Heat &
2 Cool Stages
2 Cool Stages
Backlit Display & Button
Legends
Aux Heat Indicator
Dry Contact Equipped
Set Point Limiting
Remote Sensor Ready
Outdoor Sensor Ready
OPTIONAL
OPTIONAL
Accepts the
Accepts the
Use with most Air Conditioning & Heating Systems including: 1 or 2 Stage
Electric Cooling & 3 Stage Gas Heating, Heat Pump, Electric or Hydronic Heat.
Carrier Corporation 04/06
COMMERCIAL
COMMERCIAL
THERMOSTAT
THERMOSTAT
P/N P/N 33CS400-01
33CS400-01
D
D
IGITAL
IGITAL
T
T
HERMOSTAT
HERMOSTAT
NON-PROGRAMMABLE
NON-PROGRAMMABLE

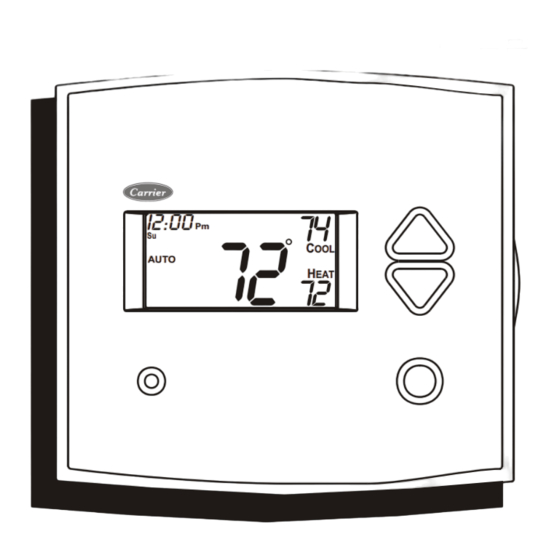

74
I2:00
Pm
Su
C
OOL
AUTO
72
H
EAT
Accepts EZ Programmer
Accepts Optional Humidity Module:
Controls Humidification,
Dehumidification and Reheat
Accepts Optional IR Remote Control
HUMIDITY MODULE
HUMIDITY MODULE
Advertisement
Chapters
Table of Contents
Related Manuals for Carrier 33CS400-01
Summary of Contents for Carrier 33CS400-01
- Page 1 HUMIDITY MODULE Use with most Air Conditioning & Heating Systems including: 1 or 2 Stage Electric Cooling & 3 Stage Gas Heating, Heat Pump, Electric or Hydronic Heat. Carrier Corporation 04/06 COMMERCIAL COMMERCIAL THERMOSTAT THERMOSTAT P/N P/N 33CS400-01 33CS400-01 IGITAL IGITAL...
- Page 2 CAUTION Follow the Installation Instructions before proceeding. Set the thermostat mode to “OFF” prior to changing settings in setup or restoring Factory Defaults. CAUTION NEVER PUT MORE THAN ONE JUMPER ON THE SAME MISC JUMPER BLOCK! THIS MAY DAMAGE YOUR THERMOSTAT.
- Page 3 How to Use This Manual How to Use This Manual The Table of Contents divides the thermostat features into sections making it easier to quickly find information. The first page of each section contains a more detailed list of the contents within that section, such as the example page shown below.
- Page 4 Glossary of Terms Glossary of Terms Auto-Changeover: A mode in which the thermostat will turn on the heating or cooling based on room temperature demand. Configurable Output Jumper: Using jumpers on the thermostat you can configure the MISC1, MISC2, and MISC3 terminals to control humidification, dehumidification, and 2nd stage cooling.
-
Page 6: Table Of Contents
Page Quick Start Getting to Know Your Thermostat Basic Operation Viewing Temperature and Humidity Sensors Override Operation Programming the Fan Operation Thermostat Display Options Humidification Dehumidification Viewing Equipment Run-Times Electric Heat and Heat Pump Operation Timers and Deadbands Programming Remote... -
Page 7: Quick Start
Mode...1.2 Selecting Your Desired Temperature...1.3 Using the Fan Button...1.3 Note: Following the instructions in this section will allow you to operate your thermostat using the factory default settings. These settings are depicted in the illustrations throughout this manual. Page 1.1... - Page 8 Selecting the Heat or Cool Mode Selecting the Heat or Cool Mode Select Mode by Pressing the MODE Button Heating Only The HEAT setting indicates the temperature the room has to reach before the furnace will turn on to heat the room. Cooling Only The COOL setting indicates the temperature the room has to...
- Page 9 Selecting Your Desired Temperature Selecting Your Desired Temperature (adjusting the setpoints) (adjusting the setpoints) AUTO MODE Pressing the UP or DOWN buttons in Auto mode will adjust both the heat and cool set temperatures simultaneously. AUTO HEAT OR COOL MODE Pressing the UP or DOWN buttons in Heat or Cool mode will adjust only the heat or cool set temperature.
-
Page 10: Getting To Know Your Thermostat
SECTION 2 Getting to Know Your Thermostat Getting to Know Your Thermostat Section 2 Contents: Front Panel Buttons...2.2 Display Features...2.3 Page 2.1... - Page 11 Front Panel Front Panel Warmer Button Backlit LCD Display (glows red) Carrier I2:00 AUTO Override Heat or Cool Demand Indicator Button Red = Heat, Green = Cool Commercial Thermostat AUTO MODE HUMIDITY OUTSIDE QUICK RELEASE FOR ACCESSORY PORT (pg. 18.1)
- Page 12 Outside icon - Section 4 Indicates the temperature displayed is from the optional outside sensor. Override icon - Section 5 Indicates the Unoccupied mode of the thermostat is being overriden for up to 4 hours. Page 2.3 Setup Outside...
- Page 13 Appears when the UV bulb should be serviced under normal conditions. Adjustable from 0 - 1950 days of operation. Remote icon - Pages 4.2, 13.3 & 17.3 Indicates the remote sensor reading of the thermostat is being viewed. Page 2.4...
- Page 14 Override FanOn AuxHeat icon - Page 12.4 Indicates 2nd stage electric strip heat is being used when the thermostat is programmed for Heat Pump operation. Humidify/DeHumidify icon - Sections 8-9 Indicates the system is currently humidifying/dehumidifying the air. Service Pan icon - Section 14 Indicates that a sensor (accessory) has detected the condensate drain pan is full and the compressor (Y1) has been locked out.
-
Page 15: Basic Operation
SECTION 3 Basic Operation Basic Operation Section 3 Contents: Programming for Auto or Manual Operation...3.2 Selecting the Proper Operating Mode...3.3 Selecting Your Desired Temperature...3.5 Note: During setup & programming pressing the UP or DOWN buttons will modify the flashing selection. Page 3.1... - Page 16 Thermostat Thermostat When the very simplest operation is desired, this thermostat may be configured to be a manual heat and cool thermostat. Follow the step below. The thermostat may be programmed to function as a Heat Only or Cool Only thermostat by selecting ‘NO’ in the setup screen below.
- Page 17 Operating Mode when the Thermostat is Configured to be: is Configured to be: MANUAL-CHANGEOVER - If the thermostat is configured to be Manual- Changeover, the following screens will be available by pressing the MODE button. Select the Mode by Pressing the MODE Button...
- Page 18 Operating Mode when the Thermostat is Configured to be: is Configured to be: AUTO-CHANGEOVER - If the thermostat is configured to be Auto- Changeover, the following screens will be available by pressing the MODE button. Select the Mode by Pressing the MODE Button...
- Page 19 Selecting Your Desired Temperature Selecting Your Desired Temperature AUTO MODE Pressing the UP or DOWN buttons in Auto mode will adjust both the heat and cool set temperatures simultaneously. For more information on this see page 12.2. AUTO HEAT OR COOL MODE Pressing the UP or DOWN buttons in Heat or Cool modes will adjust only the heat or cool set temperature.
-
Page 20: Viewing Temperature And Humidity Sensors
SECTION 4 Viewing the Temperature and Humidity Sensors Viewing the Temperature and Humidity Sensors Section 4 Contents: Viewing the Outside Temperature...4.2 Viewing the Indoor Humidity...4.3 Page 4.1... - Page 21 Viewing the Outside Temperature Viewing the Outside Temperature Requires an outside sensor (optional accessory) to be installed (see page 13.2 for wiring instructions). To read the temperature from the outside sensor, press the OUTSIDE button. The display will then show the current outside temperature. Press the OUTSIDE OUTSIDE RESE...
- Page 22 Viewing the Indoor Humidity Requires the Humidity Module (optional accessory) to be installed. To display the current humidity at the thermostat, press the HUMIDITY button. The display will then show the current indoor humidity along with the humidification setpoint (Section 8).
-
Page 23: Override Operation
Dry Contact forced it into the Unoccupied mode. For example: If the thermostat was in the Auto mode and the Dry Contact forced the thermostat into the Unoccupied mode, then pressing the OVERRIDE button will force the thermostat back into the Auto mode. -
Page 24: Programming The Fan Operation
SECTION 6 Programming the Fan Operation Programming the Fan Operation Section 6 Contents: Using the Fan Button...6.2 Smart Fan Operation...6.2 Setting the Fan-Off Time Delay...6.3 Page 6.1... - Page 25 Auto mode, and automatically de-energize during dry contact initiated Unoccupied periods (see page 14.3), except when necessary to heat or cool. To use this feature, place the thermostat in the Heat, Cool or Auto mode. Next, press the FAN button to display the FanOn icon (see below).
- Page 26 Setting the Fan-Off Time Delay Setting the Fan-Off Time Delay To increase cooling efficiency of your unit, the thermostat may be programmed to continue running the fan after a call for cooling has been satisfied. This delay may be set for 30, 60, or 90 seconds. If the Fan Off Delay is set for zero seconds, the fan will not energize after a call for cooling has been satisfied.
-
Page 27: Thermostat Display Options
SECTION 7 Thermostat Display Options Thermostat Display Options Section 7 Contents: Turning On/Off the Backlight...7.2 Programming the Thermostat to Display Temperature in Fahrenheit or Celsius...7.2 Locking/Unlocking the Keypad...7.3 Programming a Security Level...7.4 Page 7.1... -
Page 28: Turning On/Off The Backlight
Select backlight operation: ON - Light continuously. OFF - Light for 8 seconds after a button press. Programming the Thermostat to Display Programming the Thermostat to Display Temperature in Fahrenheit or Celsius Temperature in Fahrenheit or Celsius Select thermostat operation in degrees Fahrenheit or Celsius. -
Page 29: Locking/Unlocking The Keypad
Locking/Unlocking the Keypad Locking/Unlocking the Keypad To prevent unauthorized use of the thermostat, the front panel buttons may be disabled. To disable, or ‘lock’ the keypad, press and hold the MODE button. While holding the MODE button, press the UP and DOWN buttons together. The appear on the display, then release the buttons. -
Page 30: Programming A Security Level
(steps # 6 and 7). In security levels 2 and 3, the thermostat is forced into the Program On mode. To disable the security feature, set the value in step #5 to 0; this will cause steps # 6 and 7 not to appear. -
Page 31: Humidification
The manufacturer of this thermostat cannot be liable for misinstallation, improper connection or improper programming of the humidity functions of this thermostat that may result in water damage or mold growth. Additionally, the manufacturer of this thermostat is not responsible for the fitness of the humidifier and/or installation of said humidifier connected to this thermostat. - Page 32 Installing the Humidity Module Installing the Humidity Module To install the Humidity Module the thermostat must be detached from the back plate. Plug the Humidity Module into the Humidity Module connector as shown in Figure 2 below. Follow the detailed instructions included with the Humidity Module accessory.
- Page 33 Setting a Thermostat Jumper for Setting a Thermostat Jumper for Humidity Operation Humidity Operation To control a MISC output for humidification, place the MISC1, MISC2, or MISC3 jumper on the terminal labeled HUM (see diagram below). This will supply 24VAC to the selected MISC terminal based on the humidification programming in the following pages.
- Page 34 If your HVAC unit is equipped with a humidification system and the Humidity Module has been installed, the thermostat will provide power to the appropriate terminal on the backplate of the thermostat when the humidity in the home falls below the setpoint you have chosen.
-
Page 35: Dehumidification
SECTION 9 Dehumidification Dehumidification Section 9 Contents: Configuring a Thermostat Output Jumper for Dehumidification Operation...9.2 Adjusting the Dehumidification Setpoint...9.3 Using Your Air Conditioner to Dehumidify...9.4 Using the DEHUM Terminal...9.5 NOTE: The dehumidification functions described in this section will only be available if a Humidity Module has been properly installed. -
Page 36: Operation
Setting a Thermostat Jumper for Setting a Thermostat Jumper for Dehumidification Operation Dehumidification Operation To control a MISC output for dehumidification, Module and place the Humidity Jumper on HUM (see page 8.2). Then place the MISC1, MISC2, or MISC3 jumper on the terminal labeled DEHUM (see diagram below). -
Page 37: Adjusting The Dehumidification Setpoint
Adjusting the Dehumidification Setpoint Dehum Terminal: If a MISC terminal selected for DEHUM operation (see page 9.2) then the thermostat will provide power to this terminal the when the humidity in the home is above the setpoint you have chosen. See page 9.6 for detailed programming instructions. To utilize this feature your HVAC unit must be equipped with a DEHUM terminal. -
Page 38: Using Your Air Conditioner To Dehumidify
When the thermostat detects the humidity percentage is above the setpoint for dehumidification, and heating or cooling is not on, the thermostat will force the compressor to run with the fan, thus reducing moisture in the air. The green LED will blink once every eight seconds to indicate this is taking place. -
Page 39: Using The Dehum Terminal
1st stage cooling and the room humidity is greater than the dehumidification setpoint. 2) Normally Open (NO): The thermostat will energize the DEHUM terminal to allow the fan to run in low speed when there is a call for 1st stage cooling only and the room humidity is greater than the dehumidification setpoint. -
Page 40: Viewing Equipment Run-Times
SECTION 10 Viewing Equipment Run-Times Viewing Equipment Run-Times Section 10 Contents: Viewing the Override Run-Time...10.2 Viewing the Humidifier Run-Time... 10.3 Viewing the UV Light Run-Time...10.4 Page 10.1... - Page 41 Viewing the Override Operation Run-Time Viewing the Override Operation Run-Time This display will track the number of hours that your thermostat has been operating in the Override mode (see page 5.1). Press the FAN button to reset the counter. Press the MODE button. While holding...
- Page 42 Viewing the Humidification Run-Time Viewing the Humidification Run-Time After your humidification system has been operating for the number of days set in step #12 below, the Service Humidify icon will appear. This counter keeps track of the number of days since the Service Humidify icon was reset.
- Page 43 Viewing the UV Light Run-Time Viewing the UV Light Run-Time After the UV light has been operating for the number of days set in step #13 below, the Service UV Light icon will appear. This counter keeps track of the number of days since the UV light icon was last reset.
-
Page 44: Electric Heat And Heat Pump Operation
SECTION 11 Electric Heat and Heat Pump Operation Electric Heat and Heat Pump Operation Section 11 Contents: Viewing the Heat Pump and Reversing Valve Jumper Setting...11.2 Viewing the Electric Heat Jumper Setting...11.3 Using Emergency Heat...11.4 Page 11.1... - Page 45 Reversing Valve Jumper Settings Reversing Valve Jumper Settings Steps 14 and 15 are ‘Read Only’ and may only be set with the jumpers on the circuit board of the thermostat. Press the MODE button. While holding MODE the MODE, press the HUMIDITY button to enter Setup screens.
- Page 46 Viewing the Electric Heat Jumper Setting Viewing the Electric Heat Jumper Setting Placing the jumper on ELEC will cause the thermostat to turn on the fan immediately any time there is a heat demand. Since most gas furnaces control the fan, this feature should be off unless it is necessary for the thermostat to energize the fan with first stage heat.
- Page 47 Emergency Heat OPERATION: During Emergency Heat operation the thermostat will turn on the fan and the 2nd stage of heat when there is a demand for heat. Also during Emergency Heat the 1st stage of heating or cooling will be unavailable.
-
Page 48: Timers And Deadbands
SECTION 12 Timers and Deadbands Timers and Deadbands Section 12 Contents: Adjusting the Heat/Cool Differential...12.2 Adjusting the Cycles Per Hour...12.3 Adjusting the Deadband...12.4 Selecting 2nd Stage Turn Off Temperature...12.6 Page 12.1... -
Page 49: Adjusting The Heat/Cool Differential
MODE button until only the heat setpoint is displayed. Adjust the desired setpoint. Wait two seconds after adjusting the set point so the thermostat can accept the change. Press the MODE button until only the cool setpoint is displayed. -
Page 50: Adjusting The Cycles Per Hour
HVAC unit will only be allowed to energize once every 10 minutes. The Cycles Per Hour limit may be overridden and reset by pressing the UP or DOWN buttons on the thermostat. Press the MODE button. While holding... -
Page 51: Adjusting The Deadband
Adjusting the Deadband Adjusting the Deadband MULTI-STAGE OPERATION - Controls up to two Heat and two Cool stages. The 2nd Stage of heat or cool is turned on when: (A) The 1st Stage has been on for the two minutes. (B) The temperature spread from the setpoint is equal to or greater than: the setpoint... - Page 52 Adjusting the Deadband Adjusting the Deadband For more detailed information, please see the explanation on the previous page. Press the MODE button. While holding MODE the MODE, press the HUMIDITY button to enter Setup screens. HUMIDITY Press the MODE button repeatedly MODE until this setup screen appears.
-
Page 53: Selecting 2Nd Stage Turn
Off Temperature If ON is selected, the second stage of cooling or heating will remain energized until the thermostat reaches the setpoint on the thermostat display. If OFF is selected, the second stage of cooling or heating will turn off... -
Page 54: Programming Remote Sensor Operation
SECTION 13 Programming Remote Sensor Operation Programming Remote Sensor Operation Section 13 Contents: Installing the Remote Sensors...13.2 Controlling or Reading the Remote Temperature (RS1)...13.3 Page 13.1... - Page 55 (RS1) to control the temperature in another room. more than one wireless sensor is used on RS1, the thermostat will ave- rage the sensors to determine the displayed temperature reading. wired or wireless remote sensor may be installed to read the outside temperature (RS2).
- Page 56 Controlling or Reading the Remote Temperature (RS Remote Temperature (RS ) The thermostat may be programmed to only READ the remote sensor, or to CONTROL to the remote sensor. Refer to Advanced Setup step #21, below. Read Only Sensor (RS1): If step #21 is set to only READ to the...
-
Page 57: Programming The Dry Contact
SECTION 14 Programming the Dry Contact Programming the Dry Contact Section 14 Contents: Dry Contact Operation... 14.2 Dry Contact Polarity...14.2 Dry Contact Programming...14.3 Override Operation...14.4 Random Start...14.5 Page 14.1... - Page 58 Dry Contact Operation Dry Contact Operation If the dry contact is going to be used, select YES in step #22 below; if the dry contact is not going to be used, select NO. in step #22 below. DRY CONTACT POLARITY - The terminals may be set to be Normally Open (NO) or Normally Closed (NC) in step #23.
- Page 59 OVERRIDE OR SERVICE THE CONDENSATE DRAIN PAN - If Override is selected in step #24 (below), when the dry contact is energized the thermostat will be forced into or out of Unoccupied setpoints (next page) depending on the polarity of the Dry Contact.
- Page 60 Dry Contact Programming UNOCCUPIED SETPOINTS - If Override is selected in step #24 (see previous page), when the dry contact is energized the thermostat will be forced into or out of Unoccupied setpoints. To adjust the Unoccupied setpoints follow the setup steps below.
- Page 61 This feature causes a 2 to 30 second delay before energizing the thermostat outputs after any of these events: Loss of Power to the thermostat: When power to the thermostat is interrupted and then restored, Random Start will lockout the outputs of the thermostat for a random amount of time.
-
Page 62: Programming The Run-Time Alerts
SECTION 15 Programming Run-Time Alerts Programming Run-Time Alerts Section 15 Contents: Setting and Resetting the Service Filter (Fan Run-Time) Alert...15.2 Setting and Resetting the UV Light Run-Time Alert...15.3 Setting and Resetting the Humidify Run-Time Alert...15.4 Page 15.1... - Page 63 How to Set and Reset the Service Filter How to Set and Reset the Service Filter (Fan Run-Time) Alert (Fan Run-Time) Alert This counter keeps track of the number of hours of fan run-time whether the fan is energized in the Heating or Cooling modes, or in stand alone fan operation.
- Page 64 How to Set and Reset the UV Light How to Set and Reset the UV Light Run-Time Alert Run-Time Alert This counter keeps track of the number of days since the UV Light counter has been reset. The UV Light icon will appear after the number of days has been achieved, as shown in step #29 (below).
- Page 65 How to Set and Reset the Humidifier How to Set and Reset the Humidifier Run-Time Alert Run-Time Alert This counter keeps track of the number of days since the Service Humidify icon was last reset; this icon will appear after the number of days set in step #30 (below) has elapsed.
-
Page 66: Configuring The Misc Outputs
SECTION 16 Configuring the MISC Outputs Configuring the MISC Outputs Section 16 Contents: Configuring the Jumpers...16.2 Explanation of Jumper Settings...16.3 Page 16.1... - Page 67 Configuring the Jumpers Configuring the Jumpers For additional flexibility, your thermostat has three configurable outputs. These outputs are designed to have different functions depending on how the jumpers are set (below). Each output, labeled MISC1, MISC2, and MISC3 may be set for one of the four choices available.
- Page 68 If your HVAC unit is equipped with a humidification system and the Humidity Module (sold separately) has been installed, the thermostat will provide power to the MISC1, MISC2, or MISC3 terminal of the thermostat when the humidity in the home falls below the humidity setpoint you have chosen. The value for this setpoint ranges from 0% to 60%.
- Page 69 Explanation of Jumper Settings Explanation of Jumper Settings Y2 JUMPER SETTING If the jumper for MISC1 is set to Y2 the MISC1 screw terminal on the backplate will control a second stage of cooling. Y2 OPERATION - SECTION 12.4 The 2nd Stage of heat or cool is turned on when: (A) The 1st Stage has been on for the two minutes.
-
Page 70: Factory Defaults, Calibration, And Sensors
SECTION 17 Factory Defaults, Calibration, and Sensors Factory Defaults, Calibration, and Sensors Section 17 Contents: Resetting the Thermostat to the Factory Default Settings...17.2 Calibrating the Temperature and Humidity Sensors...17.3 Page 17.1... - Page 71 Resetting the Thermostat to the Resetting the Thermostat to the Factory Default Settings Factory Default Settings (for default values see page 19.1) (for default values see page 19.1) If, for any reason, you desire to return all the stored settings back to the factory default settings, follow the instructions below.
- Page 72 UP or DOWN buttons. If a remote sensor is not installed, only dashes will appear. HUMIDITY SENSOR Press the MODE button once. The relative humidity at the thermostat will be MODE displayed and may be calibrated using the UP or DOWN buttons.
-
Page 73: Accessories
RJ11 Type Jack IR RECEIVER / REMOTE CONTROL IR Receiver is connected, the thermostat can be controlled using an IR Remote Control. The thermostat may also interface with other wireless systems in your home. For more information see the instruction sheet for the IR Receiver P/N P374-0431. -
Page 74: Advanced Setup Table
Cycles Per Hour 12.3 d1, d 2-6 Deadband/Temp. 12.5 1 - 6 Swing 1st Stage 2nd Stage turn off at 12.6 On/Off setpoint Thermostat control 13.3 Yes/No to RS1? Dry Contact 14.2 Yes/No Operation Dry Contact Polarity 14.2 NO/NC Dry Contact 14.3... - Page 75 SECTION 20 Index Index outside, 2.2, 4.2 Override, 2.2, 5.1 Reset Filter, 2.2, 15.2 up, 1.2, 2.2, 7.3, 11.4 Accessory Port, 18.1 Alerts see Run-Time Auto adjust temperature, 1.4, 3.5 C, 7.2, 19.1 changeover, 3.4, 19.1 Calibration, 17.3 differential, see Celsius, 7.2 Differential Compressor Lockout,...
- Page 76 SECTION 20 Index Index Drain Pan Overflow Buttons Alarm, see Dry Contact off time delay, 6.3, Dry Contact 19.1 override, 14.3, 19.1 on during heat, see Electric Heat operation, 14.2, 19.1 on icon, 1.3, 2.4, 6.2 run-time, 15.2 polarity, 14.2, 19.1 random start, 14.5 2nd stage heat, see service pan, 14.3...
- Page 77 Multi-stage gas electric, 11.2 Operation, 12.4 heat pump, 11.2, 19.1 HUM, 8.2, 16.2-16.3 reversing valve, 11.2, 19.1 Y2, 16.2-16.3 Non-Programmable Thermostat, 3.3-3.4 Normally Open/Closed, dry contact, 14.2 Keypad Lockout, 2.4, dehum terminal, O Reversing Valve, Page 20.3 12.2 Off Mode, 1.2, 2.3...
- Page 78 SECTION 20 Index Index 13.4, 17.1 outside, see Outside degree icon blink, remote, see Remote 13.2-13.3 thermostat, see icon, 2.4 Thermostat outside temperature, Service see Outside filter icon, 15.2 read to, 13.3 humidify icon, 15.4 wiring, 13.2 pan icon, see Dry...
- Page 79 Section 21 Warranty Warranty Five-Year Warranty - This Product is warranted to be free from defects in material and workmanship. If it appears within five year from the date of original installation, whether or not actual use begins on that date, that the product does not meet this warranty, a new or remanufactured part, at the manufacturer’s sole option to replace any defective part, will be provided without charge for the part itself provided the defective part is returned to the distributor through a qualified servicing dealer.
