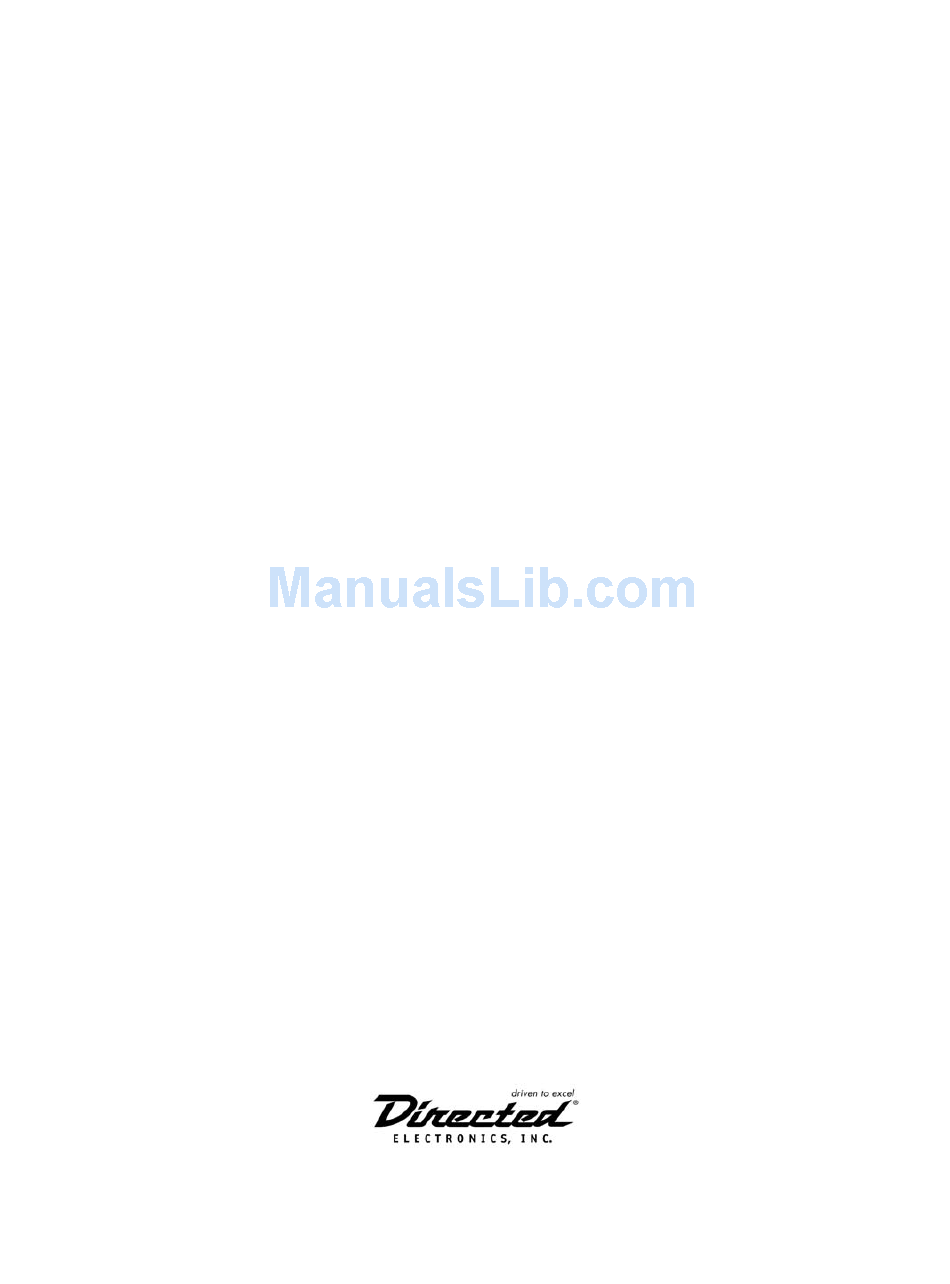

Valet 712T Installation Manual

Car security
Hide thumbs Also See for 712T:

Advertisement

Table of Contents

Enlarged version
V V a a l l e e t t
® ®
M M o o d d e e l l 7 7 1 1 2 2 T T
I I n n s s t t a a l l l l a a t t i i o o n n G G u u i i d d e e
NOTE:
This product is intended for installation by a professional installer only!
Any attempt to install this product by any person other than a trained professional
may result in severe damage to a vehicle's electrical system and components.
© 2005 Directed Electronics, Inc. Vista, CA
N712T 01-05

Advertisement

Table of Contents
loading

Related Manuals for Valet 712T

Summary of Contents for Valet 712T

  • Page 1 V V a a l l e e t t ® ® M M o o d d e e l l 7 7 1 1 2 2 T T I I n n s s t t a a l l l l a a t t i i o o n n G G u u i i d d e e NOTE: This product is intended for installation by a professional installer only! Any attempt to install this product by any person other than a trained professional...

  • Page 2: T T R R A A N N S S M M I I T T T T E E R R / / R R E E C C E E I I V V E E R R L L E E A A R R N N R R O O U U T T I I N N E

    ® , Ghost Switch ® , Learn Routine™, Nite-Lite ® Nuisance Prevention Circuitry, NPC , Revenger , Silent Mode™, Soft Chirp , Stinger®, Valet ® ® ® ® ® Vehicle Recovery System , VRS , and Warn Away are all Trademarks or Registered Trademarks of ®...

  • Page 3: Table Of Contents

    Valet/Program Switch, 2-Pin BLUE Plug ........

  • Page 4: P P R R I I M M A A R R Y Y H H A A R R N N E E S S S S ( ( H H 1 1 ) ) , , 1 1 2 2 - - P P I I N N C C O O N N N N E E C C T T O O R

    primary harness (H1), 12-pin connector (+) 12V CONSTANT POWER INPUT H1/1 BLUE (-) 200 mA SECOND UNLOCK OUTPUT H1/2 BLACK/WHITE-1 INPUT OF DOMELIGHT SUPERVISION RELAY #87 H1/3 BLACK/WHITE OUTPUT OF DOMELIGHT SUPERVISION RELAY #30 H1/4 GREEN/BLACK LOCK #30 COMMON OUTPUT H1/5 WHITE/BLACK LOCK #87 NORMALLY CLOSED...
  • Page 5 H1/3 BLACK/WHITE-1 Domelight Supervision Input This wire determines what the output polarity of H1/4 will be. If the door pin circuit is negative, connect to chassis ground. If the door circuit is positive, connect to a fused 12V source. IMPORTANT! The H1/3 wire is not required for wiring the door locks. Depending on the type of door lock system, there may be additional wires for the Door Lock wiring that are not required.
  • Page 6 This wire provides a (-) 200 mA output whenever the transmitter code controlling Channel 3 is received. This output will continue as long as that transmission is received. Use for options such as Directed’s 551T Valet ® Start system, 529T or 530T power window controllers, etc.
  • Page 7 H1/15 YELLOW (+) Switched Ignition Input Connect this wire to an ignition source. This input must show (+)12V with the key in run position and during cranking. Make sure that this wire cannot be shorted to the chassis at any point. This wire will trigger the system if the ignition is turned on before the unit is disarmed (doors unlocked with the remote).

  • Page 8: P P E E R R I I P P H H E E R R A A L L P P L L U U G G - - I I N N H H A A R R N N E E S S S S E E S

    IMPORTANT! Never use this wire to drive anything but a relay or a low-current input! The transistorized output can only supply 200 mA of current. Connecting directly to a solenoid, motor, or other high-current device will cause it to fail. Peripheral Plug-In Harnesses Super Bright LED, 2-Pin WHITE Plug The super bright LED operates at (+) 2 volt DC and plugs into the two-pin WHITE port.

  • Page 9: System Features Learn Routine

    T T o o e e n n t t e e r r t t h h e e l l e e a a r r n n r r o o u u t t i i n n e e : : K K e e y y . . Turn the ignition on and then back off. C C h h o o o o s s e e . . Within 10 seconds, press and release the Valet ®...
  • Page 10 For example, to program the arming mode from active to passive, within 10 seconds of turning the ignition off, and press and release the Valet/Program switch once. Then press it again and hold it. The LED will flash in groups of one and the horn will honk once (if connected). While holding the Valet /Program switch, press the unlock button.

  • Page 11: System Features Menus

    System Features Menus Feature Default LED ON Setting LED OFF Setting Number (Press Channel 1) (Press Channel 2) Ignition-controlled door lock ON Ignition-controlled door lock OFF Ignition-controlled door unlock ON Ignition-controlled door unlock OFF Ignition-controlled domelight ON Ignition-controlled domelight OFF 0.8 second door lock pulses 3.5 second door lock pulses/0.4 sec.
  • Page 12 K K e e y y . . Turn the key to the ON position. C C h h o o o o s s e e . . Within 10 seconds, press and release the Valet/program switch the number of times corresponding to the desired channel listed below.
  • Page 13 T T r r a a n n s s m m i i t t . . While holding the Valet/Program button, press the button from the transmitter that you wish to assign to the selected channel. The unit will chirp indicating successful programming. It is not possible to teach a transmitter button to the system more than once.

  • Page 14: Transmitter Configurations

    Transmitter Configurations The transmitters can be programmed with the standard or single button arm/disarm configurations by using the Auto Learn functions in the Transmitter/Receiver Learn Routine. Standard Configuration A remote that uses the standard configuration operates similarly to many factory keyless entry remotes.

  • Page 15: Wiring Quick Reference Guide

    Wiring Quick Reference Guide © 2005 Directed Electronics, Inc.
