Summary of Contents for Alcohawk AlcoHAWK PT500P

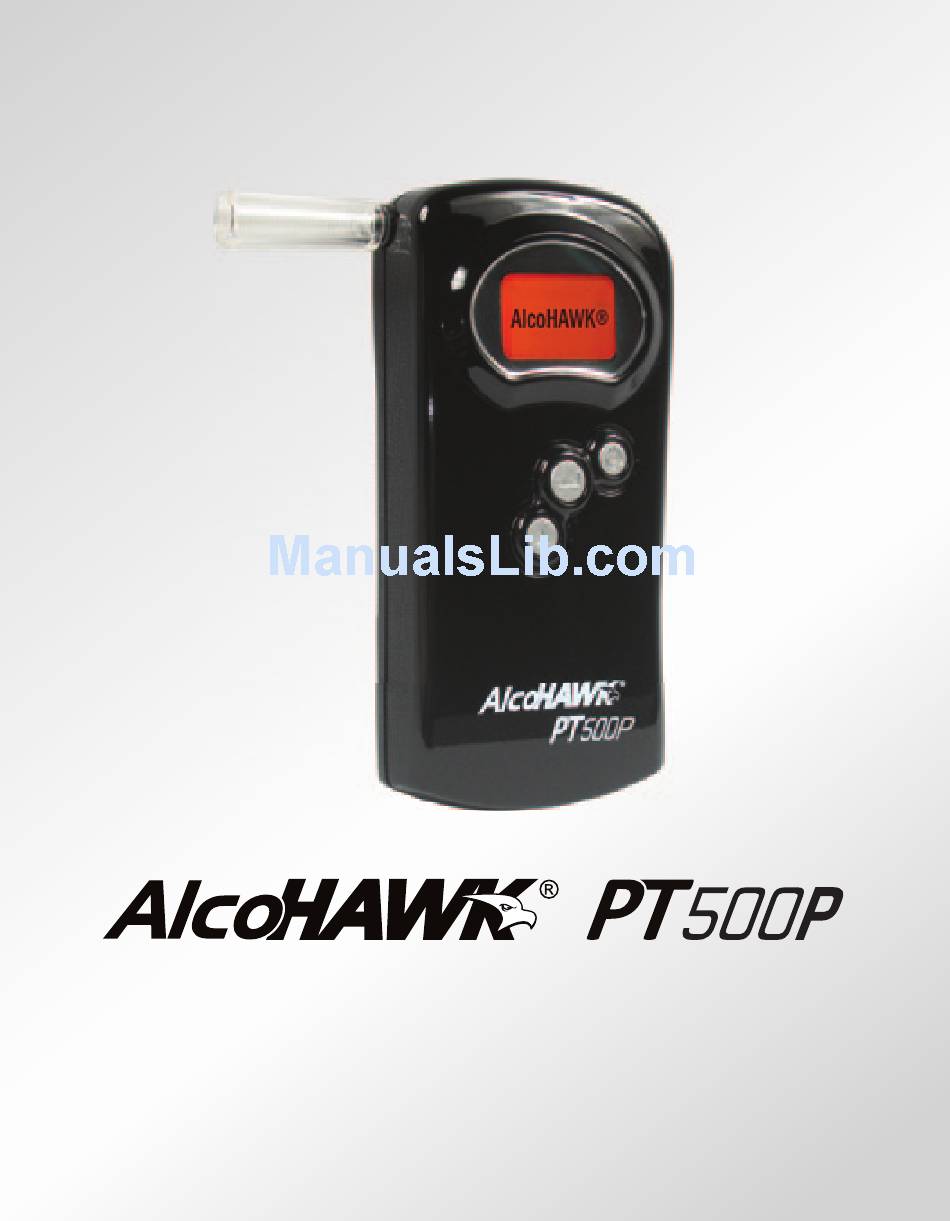

- Page 1 Owner’s Manual © 2010 Q3 Innovations v030210...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION .................1 EFFECTS OF ALCOHOL ..............2 PREPARATION ...................3 COMPONENTS DIAGRAM ..............4 OPERATION ..................5 READ THE RESULTS .................6 ERROR MESSAGES ................6 MENU OPTIONS .................7 PRINTING ...................8 PRECAUTIONS ..................9 SPECIFICATIONS ................10 ACCESSORIES ................10 CALIBRATION ..................11... -
Page 3: Introduction
INTRODUCTION Intended Use This Breath Alcohol Tester is intended to measure alcohol in human breath. Readings obtained by this device are used in the diagnosis of alcohol intoxication. The accuracy of this device has been established at a Blood Alcohol Concentration (BAC) of 0.008 and 0.032. Accuracy at a BAC greater than .032 has not been established. -
Page 4: Effects Of Alcohol
EFFECTS OF ALCOHOL Dose-Specific Effects Generally no loss of coordination, slight euphoria or loss of shyness. 0.020-0.039% Depressant effects are not apparent. General feeling of well-being, relaxation, lower inhibitions, sensation of 0.040-0.069% warmth. Euphoria. Some minor impairment of reasoning and memory. Lowering of caution. -
Page 5: Preparation
PREPARATION Install the Batteries Apply a small amount of pressure on the battery cover located on the back of the product. Push down and away from the product to release the cover. Install 2 AA batteries and slide cover back in place. PUSH Insert a New Mouthpiece Insert a new mouthpiece firmly into the BREATH PIPE IN hole on the... -
Page 6: Components Diagram
COMPONENTS DIAGRAM BREATH OUT DO NOT COVER WHILE TESTING BREATH PIPE IN DISPLAY ON/OFF POWER BUTTON ENTER BUTTON SELECT BUTTON... -
Page 7: Operation
OPERATION Wait 20 minutes after the subject smokes, eats or drinks before testing. Failure to wait 20 minutes can give inaccurate BAC read- ings and harm the sensor. Step 1) Press and hold the ON/OFF power button for 1 second until you hear a BEEP. -
Page 8: Read The Results
Step 6) To turn off the unit, press and hold the ON/OFF power button for 1 second. READ THE RESULTS The displayed result is an estimate of the test subject’s BAC. A breath alcohol tester cannot determine the exact BAC in the blood of the test subject. -
Page 9: Menu Options
MENU OPTIONS When the screen displays “Test” and “Options”, press the SELECT button to view the menu options. Use the SELECT button to move down through the menu options. Use the ENTER button to enter the selected menu option. Test Counter To read the number of tests that have been performed since the last time the unit was calibrated, press the SELECT button to view the... -
Page 10: Printing
PRINTING The AlcoHAWK PT500P has the ability to print test results wirelessly. ® This feature requires the use of an AlcoHAWK PT Series Wireless ® Thermal Printer (sold separately). Follow these steps to print a test result. Step 1) Turn on the printer by pressing and holding the power button for two (2) seconds. -
Page 11: Precautions
PRECAUTIONS 1. After drinking, smoking and eating, users should wait at least 20 minutes before testing. 2. Avoid testing in strong winds, in a closed room with a heavy amount of smoke, or where alcohol is present. 3. When the battery low symbol appears replace the AA batteries. -
Page 12: Specifications
SPECIFICATIONS Dimensions 5” x 2.63” x 1.25” (12.7 cm x 6.68 cm x 3.18 cm) Weight 3.6 oz (102 g) without batteries; 5.2 oz (147 g) with batteries Power Supply Two (2) AA alkaline batteries Battery Life 200 tests Sensor Technology PT Core™... -
Page 13: Calibration
CALIBRATION Calibration of the AlcoHAWK PT500P occurs during manufacturing ® using advanced alcohol simulation equipment. The manufacturer passes known BAC levels through the sensor to set baseline values for testing. During testing, the unit compares users’ breath samples to these baseline values. If the verification determines that the BAC is not consistent with actual BAC levels, a technician calibrates the unit. - Page 14 2349 Jamestown Ave., Suite #4 • Independence, IA 50644 Tel: 888-399-1687 • Fax: 319-334-3421 Sales Email: sales@q3i.com • Service Email: service@q3i.com www. .com © 2010 Q3 Innovations v030210...
