Alcohawk Slim Owner's Manual

Hide thumbs Also See for AlcoHawk Slim:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
Owner's Manual
© 2010 Q3 Innovations
v030110

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AlcoHawk Slim and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alcohawk AlcoHawk Slim

Summary of Contents for Alcohawk AlcoHawk Slim

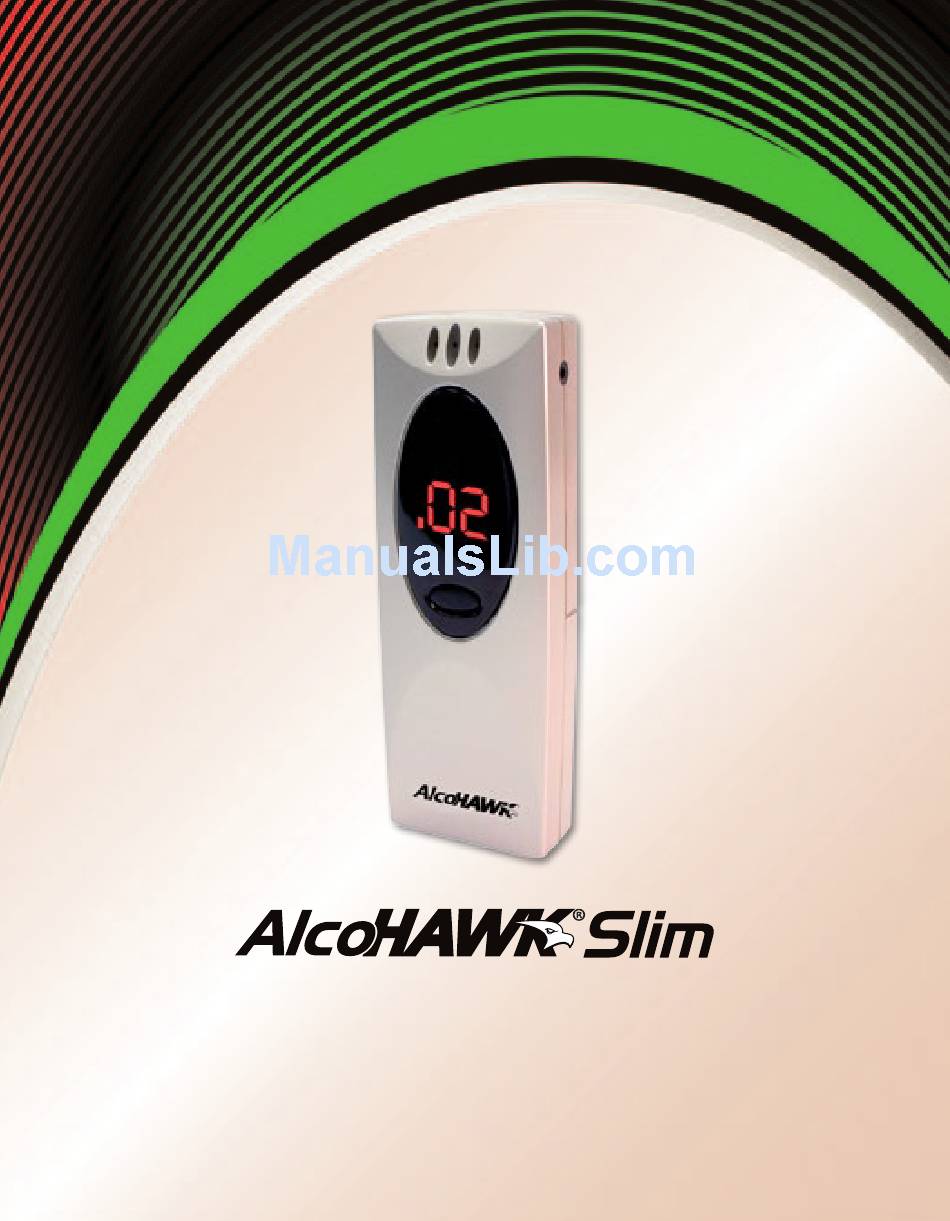

  • Page 1 Owner’s Manual © 2010 Q3 Innovations v030110...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION Intended Use Overview Effects of Alcohol PREPARATION Install the Batteries Insert a New Mouthpiece COMPONENTS DIAGRAM OPERATION READ THE RESULTS ERROR MESSAGES PRECAUTIONS SPECIFICATIONS VERIFICATION AND CALIBRATION WARRANTY DISCLAIMER...

  • Page 3: Introduction

    INTRODUCTION Intended Use This breath alcohol tester is intended to measure alcohol in human breath. Readings from this device are used to determine alcohol intoxi- cation. The accuracy of this device has been proven at a Blood Alcohol Concentration (BAC) of 0.008 and 0.032. Accuracy at a BAC greater than .032 has not been established.
  • Page 4 Dose-Specific Effects Generally no loss of coordination, slight euphoria or loss of shyness. 0.020-0.039% Depressant effects are not apparent. General feeling of well-being, relaxation, lower inhibitions, sensation of 0.040-0.069% warmth. Euphoria. Some minor impairment of reasoning and memory. Lowering of caution. Driving skills may be impaired. Slight impairment of balance, speech, vision, reaction time, and hearing.

  • Page 5: Preparation

    PREPARATION Install the Batteries Apply a small amount of pressure on the indentation of the battery compartment cover located on the back of the product. Push down and away from the product to release the cover. Install 2 AA batteries and slide compartment cover back in place.

  • Page 6: Components Diagram

    COMPONENTS DIAGRAM FOLDING MOUTHPIECE DIGITAL DISPLAY ON/OFF BUTTON...

  • Page 7: Operation

    OPERATION Wait 20 minutes after the test subject smokes, eats or drinks before testing. Failure to wait 20 minutes can give inaccurate BAC readings and damage the sensor. Step 1) Place a fitted cover over the mouthpiece each time you test another individual.

  • Page 8: Read The Results

    READ THE RESULTS The displayed result is an estimate of the test subject’s BAC. A breath alcohol tester cannot determine the exact BAC in the blood of the test subject. Correlation between BrAC and BAC depends on many factors, such as temperature and health conditions. Therefore, only use this device as a tool to screen for the presence of alcohol.

  • Page 9: Precautions

    PRECAUTIONS 1. After drinking, smoking and eating, users should wait at least 20 minutes before testing. 2. Avoid testing in strong winds, in a closed room with a heavy amount of smoke, or where alcohol is present. 3. When the unit displays Lo, replace the AA alkaline batteries. 4.

  • Page 10: Specifications

    SPECIFICATIONS Dimensions 5” x 1.75” x .75” (12.7 cm x 4.45 cm x 1.91 cm) Weight 1.8 oz (51 g) without batteries; 3.4 oz (96 g) with batteries Housing Shock resistant, molded plastic Power Supply Two (2) AA alkaline batteries Battery Life 150 tests Sensor Technology...

  • Page 11: Warranty

    ONE-YEAR LIMITED WARRANTY Q3 Innovations (Q3I) warrants this unit to be free from defects in workmanship or material (excluding calibration) under normal use for ONE (1) YEAR from the date of retail purchase by the original purchaser (”Warranty Period”).

  • Page 12: Disclaimer

    ber and shipping instructions. Return the unit postage paid, insured and in suitable packaging. 2. For your protection, obtain a proof of delivery receipt. Shipping costs are your responsibility. 3. You must enclose the following with the unit: a. The completed RMA form (available at www.q3i.com/support. php) b.
  • Page 13 Q3I does not warrant that the operation of the product will be error-free. Q3I is not responsible for any consequences arising from failure to follow instructions or relating to the product’s use. This warranty does not apply: (a) to consequences caused by accident, abuse, tamper- ing, misuse, flood, fire, earthquake or other external causes;...
  • Page 14 PATED SAVINGS; LOSS OF BUSINESS; LOSS OF OPPORTUNITY; LOSS OF GOODWILL, OR LOSS OF REPUTATION. Some countries, states and provinces do not allow the exclusion or limi- tation of incidental or consequential damages or allow limitations on how long an implied warranty or condition may last, so the above limitations or exclusions may not apply to you.
  • Page 15 DO NOT DRINK ALCOHOL AND DRIVE ALWAYS USE A DESIGNATED DRIVER AFTER DRINKING ALCOHOL BE SAFE AND RESPONSIBLE...
  • Page 16 Q3 INNOVATIONS Personal Safety & Monitoring Devices 2349 Jamestown Ave., Suite #4 • Independence, IA 50644 Tel: 888-399-1687 • Fax: 319-334-3421 Sales Email: sales@q3i.com • Service Email: service@q3i.com www. .com © 2010 Q3 Innovations v030110...
