Alcohawk Slim Owner's Manual

Hide thumbs Also See for AlcoHAWK Slim:
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual
©2006 Q3 Innovations, LLC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AlcoHAWK Slim and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alcohawk AlcoHAWK Slim

Summary of Contents for Alcohawk AlcoHAWK Slim

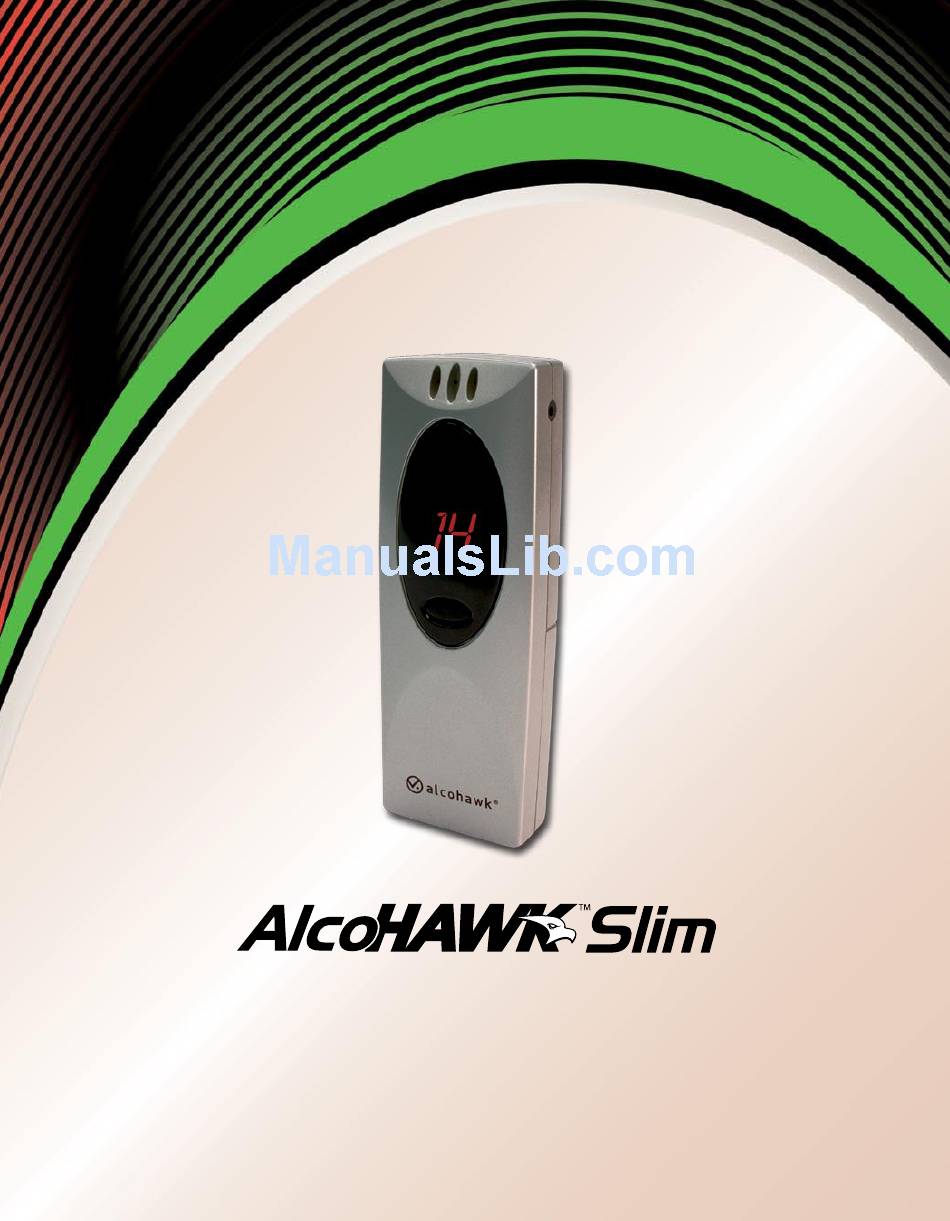

  • Page 1 Owner’s Manual ©2006 Q3 Innovations, LLC...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION Overview of the AlcoHAWK Slim ® Alcohol Testing Theory Description of Testing System Dose-Specific Effects of Alcohol Intoxication Uses of Breath Alcohol Screening Devices PREPARATION Installing the Battery Opening the Mouthpiece COMPONENTS DIAGRAM OPERATION Operating Instructions Error Messages Understanding the Results Precautions...

  • Page 4: Introduction

    INTRODUCTION Overview of the AlcoHAWK Slim ® The AlcoHAWK Slim is a breath alcohol tester designed to test for the ® presence of alcohol in the blood. This device provides a digital reading of an individual’s approximate blood alcohol concentration (BAC) in seconds.

  • Page 5: Description Of Testing System

    When performing a breath alcohol test, it is necessary to analyze an alveolar or deep lung air sample. If the test sample is not based on a deep lung sample, the sample analyzed could be diluted with breath of lower alcohol concentration from the upper respiratory tract. This would result in a lower than optimum test result.
  • Page 6 Some states prohibit driving with a .08% BAC or above reading, and in many states, individuals can be prosecuted for driving under the influence at any level. Some states also prohibit driving commercial vehicles or any vessel with .04% or more. There is no safe way to drive under the influence of alcohol.

  • Page 7: Uses Of Breath Alcohol Screening Devices

    Uses Of Breath Alcohol Screening Devices Breath alcohol screeners are used in a wide variety of applications. For example, law enforcement officials use breath alcohol screeners on the roadside to determine if a subject should be tested on an evidential alcohol test (a test given to determine an exact blood alcohol concentration).

  • Page 8: Opening The Mouthpiece

    Opening The Mouthpiece Pull up on the folding mouthpiece located on the left side of the unit until the mouthpiece extends straight out from the unit. If testing multiple individuals, it is suggested to place a new cover over the mouthpiece each time for sanitary purposes.

  • Page 9: Components Diagram

    COMPONENTS DIAGRAM FOLDING MOUTHPIECE DIGITAL DISPLAY ON/OFF BUTTON OPERATION Operating Instructions WAIT 20 MINUTES AFTER SMOKING, EATING, OR DRINKING BEFORE USE. FAILURE TO DO SO CAN ALTER THE BAC READING AND CAN DAMAGE THE SENSOR. 1) Place a fitted cover over the mouthpiece each time you test another individual.
  • Page 10 it perpares the sensor for testing. Note: The device will restart a count down from 10 if the sensor is not ready within the first 60 second countdown. 4) WAIT until the RED LIGHT IS SOLID RED and you hear a SINGLE BEEP.

  • Page 11: Error Messages

    Error Messages Error Message Cause and Course Of Action Sn or PL There has been an error with the sensor. This can occur if the test subject does not wait at least 20 minutes after smoking, eating or drinking before using the unit. or if the unit has not been used for an extended period of time.

  • Page 12: Precautions

    Precautions 1. After drinking, smoking and eating, users should wait at least 20 minutes before testing. 2. Avoid testing in strong winds, in a closed room with a heavy amount of smoke, or where a lot of alcohol is being consumed. 3.

  • Page 13: Specifications

    SPECIFICATIONS Dimensions 5 x 1.75 x .75 inches Weight .3 lbs (240 grams) Housing Shock Resistant, Molded Plastic Power 2 AA Batteries Battery Life 150 Tests Sensor Sensitive Semiconductor Sensor Blowing Time 5 Seconds Response Time 5 Seconds Digital Display 2 Digits (.00% B.A.C.) Operating Temp 10 –...

  • Page 14: Verification And Calibration

    VERIFICATION AND CALIBRATION Overview Verification is a procedure using an advanced Alcohol Breath Test Simulator that verifies whether the unit is displaying the specific BAC level. If the verification procedure determines that the BAC is not consistent with actual BAC levels, calibration of the device is performed by using an advanced Alcohol Breath Test Simulator.
  • Page 15 In the event of a defect, malfunction or other failure to conform to this warranty, manufacturer or Q3 Innovations, LLC, (Q3I), will, at its sole discretion, repair or replace the unit at no charge. You are responsible for all shipping cost in connection with warranty service.
  • Page 16 instructions. Remember to return the device postage paid, insured and in suitable packaging. 2. For your own protection, obtain a proof of delivery receipt. Shipping costs are your responsibility. 3. You must enclose with the unit the following information: a. Your name, complete return address and written description of the problem.

  • Page 17: Disclaimer

    DISCLAIMER Manufacturer and Q3I make no warranties, expressed or implied, as to the ability of this device to determine whether a person is legally intoxicated, and Q3I expressly disclaims any liability for incidental, special, or consequential damages of any nature. Decisions and/or actions based upon the reading of this device shall be at such person’s own risk.
  • Page 18 DO NOT DRINK ALCOHOL AND DRIVE ALWAYS USE A DESIGNATED DRIVER AFTER DRINKING ALCOHOL BE SAFE AND DRINK RESPONSIBLY Q3 Innovations, LLC www.q3i.com...
  • Page 19 NOTES...
  • Page 20 Q3 INNOVATIONS, LLC Innovators of Intelligent Technology www.q3i.com ©2006 Q3 Innovations, LLC ©2006 Q3 Innovations, LLC...
