TOPEX MobiLink ISDN2GSM User`s Manual

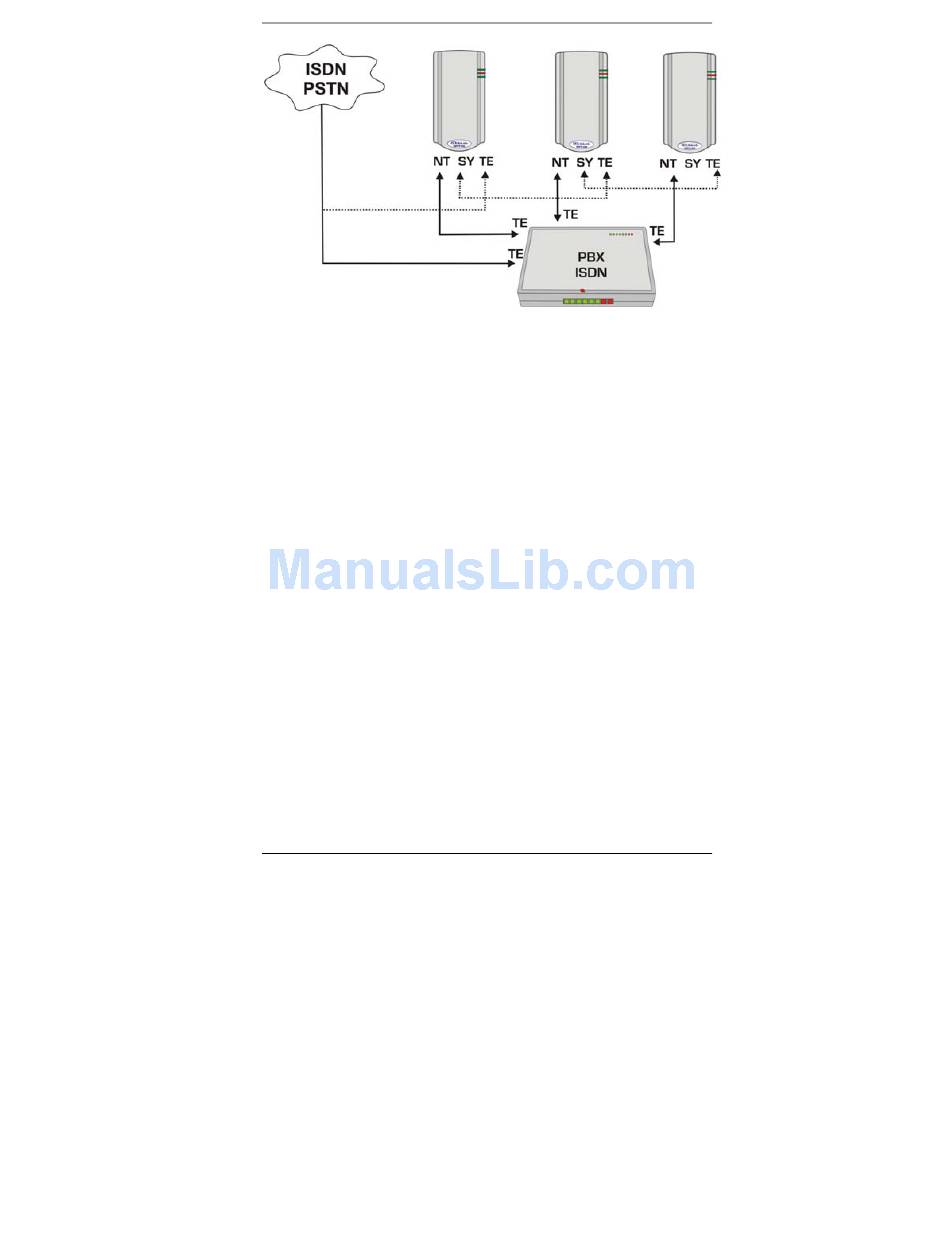

Figure 3-10 Usage of SY connector

For details see Chapter 4.2, about modes of connecting the
MobiLink ISDN 2 GSM unit.

3.12. Mounting the MobiLink ISDN 2 GSM equipment

When selecting the location for mounting MobiLink please bear in
mind the recommendations from the paragraph "Operating
environment"
ISDN 2 GSM
The Topex equipment can be placed either in vertical
position on a wall or horizontally on a desk or in a shelf.
MobiLink ISDN 2 GSM and its antennas must be located as far as
possible from equipment that is sensitive to electromagnetic
interferences (radios, audio or video appliances, computer monitor,
TV receivers etc). Also, the GSM antennas must be mounted in a
place with maximum strength of the received signal.
For mounting MobiLink ISDN 2 GSM on a wall you must use the
mounting kit (plastic dowels, woodscrews, etc) provided by Topex.
27
