CONTENT Cleaning and Storage Introduction Parts Specification Safety Precautions Problems & Troubleshooting Setting Up Your Non-contact Forehead Warranty Thermometer Using Your Non-contact Forehead Explanation of Symbols on Unit 8-11 Thermometer Measurement Process EMC Table 17-22 Functions 9-10 Replacing Battery...
Introduction Thank you for purchasing The Kinetik Non-contact Forehead Thermometer (Model NCT1). For optimal use of this product, please read the User Manual before any measurements are taken. For safe and proper use of this product, please read and fully understand the Safey Precautions in this User Manual.

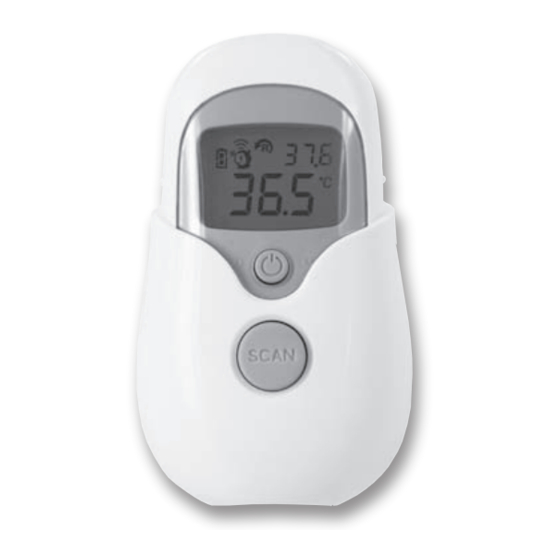

Parts Product Structure: Sensor Lens Battery Last reading Battery Cover Release Room temperature Hole ON/MEMORY Surface temperature Battery Forehead temperature Scan Cover Memory...
Safety Precautions Warning marks and symbols are indicated for safe and proper use of this product and prevention of any injury to you and others. See Table below for description of warning marks and symbols: Read operating instruction. WARNING Means a possibility of personal injury if the thermometer is not used correctly. NOTICE Means a possibility of personal injury or property damage* if the thermometer is not used correctly.
Page 6
Safety Precautions WARNING MUST OBSERVE It is not advisable for users to make a self – diagnosis and self treatment based on the temperature results obtained. Seek medical advice. A self – diagnosis may result in deterioration of the condition. Do not touch or blow the infrared sensor.
Page 7
Safety Precautions NOTICE PROHIBITED Do not use the Non-contact forehead thermometer for purposes other than those for which it was designed. Do not drop, stand on or subject the Non-contact forehead thermometer to vibration or impact. ATTENTION Dispose battery with care. Do not throw battery in fire.
Setting Up Your Non-contact Forehead Thermometer Preparations: 1. To activate the Non-contact forehead thermometer, pull out the insulated strip. 2. For accurate reading, condition the thermometer at room temperature for 30 minutes before use. 3. An unexpected change in ambient temperature is likely to reduce the reading accuracy. Any attempt to perform temperature measurment in front of an air conditioning unit will result in inaccurate readings.
Using Your Non-contact Forehead Thermometer Measurement Process: 1. Always make sure the probe lens is clean without any damage and the forehead is clean. 2. Power on: Press the ON/MEMORY button (see figure 1). 3. Measuring body temperature on the forehead: Figure 1 Forehead mode is the default mode.
Using Your Non-contact Forehead Thermometer Functions: The thermometer has been designed for practical use. It’s not meant to replace a visit to the doctor. Please also remember to compare the Forehead measurement result to your regular body temperature. Please consult temperature with doctor if you have health concerns.
Using Your Non-contact Forehead Thermometer Functions: After getting a new temperature reading, the last reading will be shown Last reading on the screen (at top right corner) with the icon. There are 25 memories for forehead measurements. Memory After power on, press the ON/MEMORY button to see the locations temperature records with the...
Using Your Non-contact Forehead Thermometer Replacing Battery : This device is supplied with one lithium cell CR2032x1. Battery 1. Open the battery cover: Gently insert a small pointed object such Cover Release as a watch-makers screwdriver into battery cover release hole. Hole At the same time, use thumb to push battery cover out.
Cleaning and Storage: Please make sure the probe is clean to ensure an accurate reading. The probe lens is the most delicate part of the thermometer. Use with care when cleaning the probe lens to avoid damage. a. Use the alcohol swab or the soft cotton moistened with the alcohol to clean the probe lens. b.
Specification Temperature measurement range: Forehead mode: 34~42.2°C (93.2~108°F) Surface mode: -22~80°C (-7.6~176°F) Operating temperature range: 10~40°C (50~104°F) Storage temperature range: It should be stored at room temperature between -20~+50°C , RH≦85% Transportation temperature shall be less than 70°C, RH≦95% Comply with ASTM E1965-98, IEC/EN60601-1-2(EMC), IEC/EN60601-1(Safety) standards. Accuracy: Forehead mode: ±0.2°C for 36.0~39.0°C, others ±0.3°C (0.5°F) Surface mode: ±4% of reading or ±2°C (4°F) whichever is greater...
Problems & Troubleshooting Error Message Problem Solution Unload the battery, wait for 1 minute and Error 5~9, the system is not functioning repower it. If the message reappears, properly. contact the retailer for service. Measurement before device stabilization. Wait until all the icons stop flashing. The device showing a rapid ambient temperature change.
Warranty Accessories: 1 x User Manual Warranty : One year warranty is available from purchasing date, excluding user-caused failures listed below: 1. Failure resulting from unauthorised disassembly and modification. 2. Failure resulting from unexpected dropping during application or transportation. 3. Failure resulting from not following the instructions in the user manual.
Manufacturer BF type applied part Battery Recycling Paper Recycling Harvard Medical Devices Ltd. Kinetik Medical Devices Ltd. Unit 1301-2, 13th Floor, Railway Plaza, Harvard House, The Waterfront, Elstree Road, 39 Chatham Road South, Tsimshatsui, Elstree, Herts WD6 3BS, UK Kowloon, Hong Kong.
EMC Table Guidance and manufacturer’s declaration – electromagnetic emissions The NCT1 is intended for use in the electromagnetic environment specified below. The customer or the user of the NCT1 should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment –...
Page 19
EMC Table Guidance and manufacturer’s declaration – electromagnetic immunity The NCT1 is intended for use in the electromagnetic environment specified below. The customer or the user of the NCT1 should assure that it is used in such an environment. IEC 60601 Compliance Immunity test Electromagnetic environment –...
Page 20
EMC Table Guidance and manufacturer’s declaration – electromagnetic immunity NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. a.
Page 21
EMC Table Guidance and manufacturer’s declaration – electromagnetic immunity The NCT1 is intended for use in the electromagnetic environment specified below. The customer or the user of the NCT1 should assure that it is used in such an environment. IEC 60601 Immunity test Compliance level Electromagnetic environment –...
Page 22
EMC Table Guidance and manufacturer’s declaration – electromagnetic immunity IEC 60601 Immunity test Compliance level Electromagnetic environment – guidance test level <5 % UT (>95 % dip in UT) for 0,5 cycle interruptions 40 % UT and voltage Mains power quality should be that of a typical commercial (60 % dip in UT) variations on or hospital environment.
EMC Table Recommended separation distances between portable and mobile RF communications equipment and the ME EQUIPMENT or ME SYSTEM The NCT1 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the NCT1 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the NCT1 as recommended below, according to the maximum output power of the communications equipment.
