Kinetik DT-K111D Operating Instructions

0197

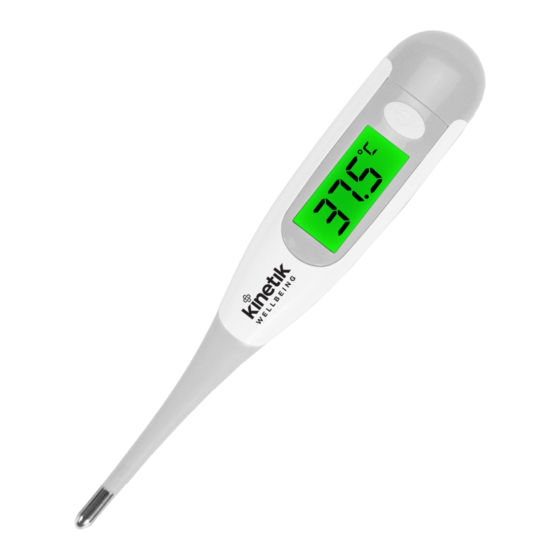

Rapid Flexible tip Digital Thermometer
Model: DT-K111D
Thermometric sensor LCD ON/OFF Button
Thermometer tip Battery compartment
Congratulations on your purchase of this product. Please
read the instructions carefully before using the thermom-
eter for the rst time, and keep these in a safe place. This
product is intended for the measurement of human body
temperature. this product is for home and hospital use,
operator shall be at least 11 years old and patient can
be operator.
Operating Instructions
Before using, please disinfect the probe at rst. To switch
on, press the ON/OFF button next to the display; a short
beep will sound, indicating that the thermometer is
operational. At the same time the thermometer runs a
self-check test, during which all the digital segments
appear on the LCD. When the letters "L" and a ashing
"°C" or "°F" display, the thermometer is now ready for
use. If the ambient temperature is below 32°C or 89.6°F,
then "L°C" or "L°F" will appear on the LCD and if it is
more than 42°C or 107.6°F, then "H°C" or "H°F" will
appear on the LCD.
During the reading, the current temperature is displayed
continuously and the "°C" or "°F" symbol ashes. The
measurement is completed when a constant temperature
value has been reached. The temperature value is
considered constant when the temperature rises less than
0.1°C within 4 seconds. As soon as the constant
temperature value is reached, a beep will sound 12 times,
and the "°C" or "°F" symbol will stop ashing. The
highest temperature measured appears on the LCD.
However, please note that this thermometer is a
maximum thermometer, i.e. the displayed temperature
can increase slightly if measurement continues after the
beep, this is particularly the case with axillary
measurements, the temperature value should
be recorded which approximates the core body
temperature. In this instance please note the description
under "Methods of measuring temperature". When the
measurement is completed, please switch the
thermometer off by pressing the ON/OFF button. After
the temperature has been displayed, the thermometer will
shut off automatically after 4 minutes and a beep sound.
Memory function
Switch the thermometer on, a short beep will sound. At
the same time the thermometer runs a self-check test,
during which all the digital segments appear on the LCD.
After that The last reading value with "°C" or "°F" will
appear automatically on the LCD for about 2 seconds.
The reading is only over-written when a new temperature
value is recorded.
Methods of measuring temperature
It is important to remember that the body temperature
reading depends on the site where it is measured. For this
reason, the measurement site must always be speci ed in
order to ensure that a correct temperature reading is
recorded.
In the rectum(rectal)
This is the most accurate method from a medical point
of view, because it comes closest to the core body
temperature. Lubricating the thermometer tip with
ungluing agents before use. Do not use vaseline. The
By cmlam at 3:53 pm, Jul 26, 2021
thermometer tip is inserted carefully into the rectum for a
maximum of 13 mm. The usual measuring time is
approximately 10 seconds.
Under the arm(axillary)
Placing the thermometer in the armpit provides a
measurement of surface temperature that can uctuate
by around 0.5°C to 1.5°C from rectal temperature
readings in adults. The usual measuring time for this
method is approximately 23 to 29 seconds. It should be
noted that an exact reading won't be obtained if, for
example, the armpit temperature is lower than normal (the
armpit temperature has been cooled down). If in this
case, we recommend extending the measuring time by
around 5 minutes in order to obtain the most precise
possible reading that corresponds as closely as possible
to the core body temperature.
In the mouth(oral)
There are different heat zones in the mouth. As a general
rule, the oral temperature is 0.3°C to 0.8°C lower than the
rectal temperature. To ensure that reading is as accurate
as possible, place the thermometer tip to the left or right
of the root of the tongue. The thermometer tip must have
constant contact with the tissue during the reading and
be placed under the tongue in one of the two heat
pockets at the back, keep the mouth closed during the
reading and breathe evenly through the nose. Do not eat
or drink anything before the measurement. The usual
measuring time is approximately 25 seconds.
Note: We strongly recommend the rectal method as
the most accurate method for identifying the basal
temperature, and advise you to extend the measuring
time by 1 Minutes after the beep.
How to change the measuring unit
Under the power off state, press the ON/OFF button for
2 seconds, the display will show " " and the unit in use.
Press the ON/OFF button to switch the unit, Then the
thermometer will be operational after 3 seconds.
Cleaning and disinfection
The best way to clean the thermometer tip is by applying
a disinfectant (e.g. 70% medical alcohol) with a damp
cloth. It shall be disinfected before each use. The
Waterproof thermometers can be immersed in liquid or
lukewarm water for through cleaning and disinfection.
Safety precautions
• The incorrect methods of measuring temperature may
lead to inaccurate measurement results.
• Do not allow the device to come into contact with hot
water.
• Do not expose to high temperatures or direct sunlight.
• Do not drop the thermometer. It is neither shock-proof
nor impact-resistant.
• Do not modify this device without the authorization of
the manufacturer.
• Do not bend or open the device (except the battery
compartment).
• Do not clean with thinners, petrol or benzenel. Only
clean with water or disinfectant.
• Do not immerse the Waterproof thermometers under
water 15cm for longer than 30 minutes.
• The thermometer contains small parts (battery, battery
this reason, do not leave the thermometer unattended in
the hands of children.
• Avoid bending the thermometer tip by more than45
degrees.
• If the ambient temperature is over 35°C or 95°F, dip the
thermometer tip in cold water for approx. 5 to 10 seconds
prior to measuring the temperature.
• Persistent fever, in particular in children, has to be
treated by a doctor, please get in touch with your doctor!
• Do not use near strong electromagnetic elds, i.e. keep
it away from any radio systems and mobile phones.
Battery replacement
The battery is low voltage and needs to replace when
the" " battery symbol appears on the right of The LCD
Remove the battery cover. Pull out the inner frame gently,
then take out the battery with a toothpick or tweezers,
replace the battery of the same type. The electrode of
battery: the "+" sign up and "-" sign down.
We advise you to remove the batteries if the device is
not going to be used for a longer period of time.
The backlight of different thermometers will have
differences, it may be related to the battery power or the
versions of thermometer, attribute normal phenomenon.
Product disposal
Please ensure environmental protection. Batteries do not
belong in the domestic waste. Please hand them in at
collection point or the municipal recycle
material centre as special waste.The lithium
battery or fuel cell may lead to excessive
temperatures, re or explosion.
This symbol on products and/or accompanying
documents means that consumed electronic products
must not be mixed with conventional domestic waste.
Take these products to the corresponding collection
points for correct treatment and recycling, where they
will be accepted free of charge. For more information on
the closest collection point, Please enquire with your
local authorities.
Technical data
Type: maximum thermometer
Measurement range: (32.0~42.0)°C/(89.6~107.6)°F
Measurement accuracy:
+/- 0.1°C/0.2°F (35.5°C~42.0°C/95.9°F~107.6°F)
+/- 0.2°C/0.4°F (32.0°C~35.5°C/89.6°F~95.9°F)
Storage/transportation temperature:
(-25~55)°C, ≤95%RH
Ambient temperature during use: (5~35)°C, ≤80%RH
Min Scale: 0.1°C/0.1°F
Battery type:
Lithium battery, type CR 1632, 3V, service life minimum
100 hours under continuous operation.
Weight: Approx. 19g
Dispaly: Illuminated display
Atmospheric pressure: 700~1060hPa
Explanation of symbols
or Battery is empty Type BF equipment
Manufactured by Manufacture date
Product disposal instructions for electronic
devices
Read the instructions (actual symbol colours
are white on a blue background)
Classi cation according to the degree of
protection against ingress of water as detailed
in IEC 60529
The battery in this product complies with the
requirements stated in European Directives
2006/66/EEC
CE conformity marking
Stand by
L°C or L°F: temperature under 32°C or 89.6°F
H°C or H°F: temperature over 42°C or 107.6°F
Legal requirements and guidelines
This product complies with the European Directive for
Medical Devices 93/42/EEC and carries the CE mark.
The device also complies with the speci cations of the
European Standard EN 12470-3 Clinical thermometers -
Part 3: Performance of compact electrical thermometers
(non-predictive and predictive) with maximum device.
The CE marking con rms that this is a medical device
with a measuring function in the sense of the Medical
Devices Act which has undergone a conformity
assessment procedure. A Noti ed Body con rms that
this product ful ls all the appropriate statutory
regulations.
Calibration check
This thermometer is initially calibrated at the time of
manufacture. If this thermometer is used according to
the operation instruction, periodic re-adjustment is not
required. The calibration check has to be carried out
immediately, if there are indications that the product does
not keep the de ned error limits or the calibration
properties could have been affected by an intervention or
by any other means. Please also observe any national
statutory regulations. The calibration check can be
carried out by the competent authorities or by authorised
service providers. A test instruction for calibration check
can be provided to the relevant authorities and authorised
services providers on request.
Support
Our manual should provide you with all the information
you need to set up and use this product.
If you have a question, have a look at our Troubleshooting
page!
For further assistance, why not contact our Customer
Care team directly? We're here to help!
Our Customer Care team are available from 9am-5pm,
Monday to Friday (excluding bank holidays).
We promise to respond to all queries and will ensure to
resolve any issue you may be having.
You can reach us by...
Phone (UK):
+44 1483 937967
Post (UK):
Kinetik Medical Devices Limited
Unit 3, Perrywood Business Park, Honeycrock Lane,
Salfords, Redhill. RH1 5DZ
Phone (NZ):
(09) 801 0627
Post (NZ):
Kinetik Wellbeing NZ
44 John Brian Drive, 0794 Redvale, Albany,
Auckland, NewZealand
Live Chat:
Simply visit www.kinetikwellbeing.com and send us a
message.
Email:
customercare@kinetikwellbeing.com
Hangzhou Hua'an Medical & HealthInstruments Co., Ltd
Building 2, 1# Fuzhu Nan RD, Wuchang Town,
Yuhang District, Hangzhou, Zhejiang 310023 China
Shanghai International Holding Corp. GmbH (Europe)
Eiffestrasse 80, 20537 Hamburg Germany
E-Mail: shholding@hotmail.com
Tel.: 049-40-2513175 Fax.: 049-40-255726
Kinetik DT-K111D NZ IB 20210720
