Summary of Contents for Kinetik NCT2 Series

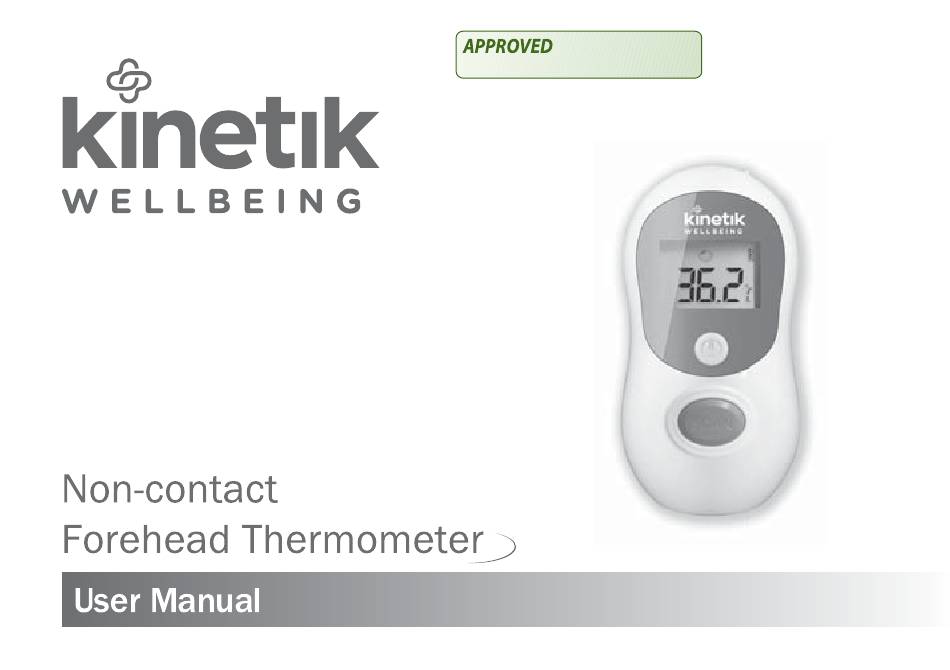

  • Page 1 By cmlam at 2:33 pm, Dec 12, 2017 NCT2 Series...
  • Page 2: Table Of Contents

    Content Introduction Parts Safety Precautions 3 - 7 Setting Up Your Non-contact Forehead Thermometer Using Your Non-contact Forehead Thermometer 9 - 12 Specification EMC Table 14 - 19 Problems & Troubleshooting 20 - 21 Explanation of Symbols on Unit...
  • Page 3: Introduction

    Thanks for choosing the Kinetik Non-contact Forehead Thermometer. Before using this product, please read the user manual carefully. Please keep this user manual for later reference.
  • Page 4: Parts

    Parts Product Structure : 1. LCD Display 2. ON/Memory Button 3. Scan Button 4. Sensor Lens 5. Battery Cover 6. Protective Cap 3. Body Measurement Mode 4. Memory 6. Temperature Unit...
  • Page 5: Safety Precautions

    Safety Precautions Warning marks and symbols are indicated for safe and proper use of this product and prevention of any injury to you and others. See Table below for description of warning marks and symbols. Read the instructions (actual symbol colours are white on a blue background.) WARNING - Means a possibility of personal injury if the thermometer is not used correctly.
  • Page 6 Safety Precautions WARNING MUST OBSERVE It is not advisable for users to make a self-diagnosis or administer self treatment based on the temperature results obtained. If in doubt always seek medical attention. A self - diagnosis may result in deterioration of the condition. Do not touch or blow the infrared sensor.
  • Page 7 Safety Precautions NOTICE PROHIBITED Do not use the non-contact forehead thermometer for purposes other than those for which it was designed. Do not drop, stand on or subject the non-contact forehead thermometer to vibration or impact. ATTENTION Dispose batteries with care. Do not incinerate used batteries.
  • Page 8 Safety Precautions Use the NCT2 Thermometer in the draught-free environment, at a constant temperature of between 10°C and ● 40°C (50°F and 104°F) Do not take a temperature reading if the person is sitting in a draught or if the subject has: ●...
  • Page 9 Safety Precautions Do not use the thermometer on a sweaty forehead as the temperature reading will be inconsistent. ● The sensor is located at the end of the device and is the most delicate part of the thermometer. It must be kept ●...
  • Page 10: Setting Up Your Non-Contact Forehead Thermometer

    Setting Up Your Non-contact Forehead Thermometer Preparation : 1. Insert batteries before use (see page 12). 2. For accurate reading, condition the thermometer at room temperature for 30 minutes before use. 3. An unexpected change in ambient temperature is likely to reduce the reading accuracy. Any attempt to perform temperature measurment in front of an air conditioning unit will result in inaccurate readings.
  • Page 11: Using Your Non-Contact Forehead Thermometer

    Using Your Non-contact Forehead Thermometer Operation Forehead measurement mode ● Operation of temperature measurement 1. Press button to power on , all icons will be shown on the display. After a double beep sound, the thermometer is ready to measure. 2.
  • Page 12 Using Your Non-contact Forehead Thermometer •While measuring, please keep your forehead clean. If there is any sweat or make up, please clean first. Avoid measuring areas that contain scar tissue. •Always close the probe cap after measuring. ● Surface measurement mode This mode displays actual and unadjusted temperature, and is different from body measurement mode.
  • Page 13 Using Your Non-contact Forehead Thermometer Other operations Room temperature mode ● Operation of measuring temperature Press button to power on, all icons will be shown on the display. After a double beep sound, the thermometer is ready to measure. 2. When there is no operation for 60 seconds, the device will automatically enter oom temperature mode.
  • Page 14: Using Your Non-Contact Forehead Thermometer

    Using Your Non-contact Forehead Thermometer Note : Memory function is only for forehead measurement. The default measurment is ● Power off To fully switch off, press and hold the button for seven seconds. Changing the batteries ● The product uses AAA 1.5v x 2. 1.
  • Page 15: Specification

    Specification ● Size : (L)60 x (W)32 x (H)90 mm ● Battery : 1.5V AAA x 2 pcs ● Memory capacity: 30 measured results ● Enclosure Rating : IP22 ● Accuracy : - Forehead mode : ±0.2°C for 36.0~39.0, others ±0.3°C(0.5°F) - Surface mode : ±4% of reading or ±3°C(5°F) whichever is greater ●...
  • Page 16: Emc Table

    EMC Table...
  • Page 17 EMC Table...
  • Page 18 EMC Table...
  • Page 19 EMC Table...
  • Page 20 EMC Table...
  • Page 21: Emc Table

    EMC Table...
  • Page 22: Problems & Troubleshooting

    Problems & Troubleshooting Message Solution The temperature detection circuit is out of operational range, please wait and measure after 30 minutes or more. If the problem persists, please contact the local retailer/agency The frequency of repeat measurements is excessive, please wait 10 minutes and try again.
  • Page 23: Problems & Troubleshooting

    Problems & Troubleshooting Message Solution (1)In forehead measurement mode, measured temperature is lower than 32°C (89.6°F) (2)In surface measurement mode, measured temperature is higher than -9.9°C (-14.2°F) (3)In surroundings measurement mode, measured temperature is higher than 0°C (32°F) Low voltage warning. When the battery voltage is lower than 2.6V±0.1V, the low voltage symbol will flash - please change the batteries.
  • Page 24: Explanation Of Symbols On Unit

    Authorized representative in the European community Model Reference Harvard Medical Devices Ltd. Unit 1002, 10th Floor, Railway Plaza, 39 Chatham Road South, Tsimshatsui, Kowloon, Hong Kong. Kinetik Medical Devices Ltd. Medicity Nottingham, D6 Building West, For self-testing Thane Road, Nottingham. NG90 6BH...
  • Page 25 KINETIK NCT2 UK IB 20171211...
