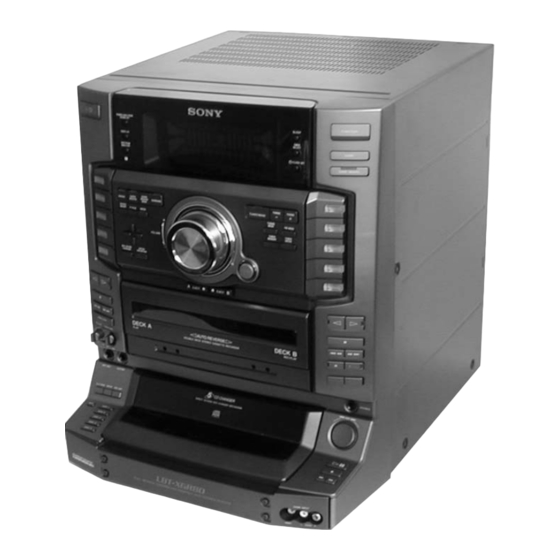

Sony HCD-XGR80 Service Manual

Compact hi-fi stereo system
Hide thumbs
Table of Contents

Advertisement

Quick Links

SERVICE MANUAL
Ver 1.1 2003.07
• HCD-XGR80 is the Amplifier,
CD player, tape deck and tuner
section in LBT-XGR80.
Amplifier section
The following measured at AC 120/220/240V, 50 Hz
DIN power output (rated)
Continuous RMS power output (reference)
Inputs
DJ MIX RETURN*:
(phono jacks)
GUITAR:
(phone jack)
PHONO IN:
(phono jacks)
MIX MIC:
(phone jack)
GAME INPUT:
(phono jacks)
Sony Corporation
9-873-638-02
2003G02-1
Home Audio Company
© 2003.07
Published by Sony Engineering Corporation
HCD-XGR80
CD
Section
TAPE
Section
SPECIFICATIONS
125W x 2 + 125W x 2
watts
(6 ohms at 1 kHz, DIN)
170 W x 2 + 170 W x 2
(6 ohms at 1 kHz, 10% THD)
sensitivity 250 mV,
impedance 47 kilohms
sensitivity 75 mV,
impedance 470 kilohms
sensitivity 3 mV,
impedance 47 kilohms
sensitivity 1 mV,
impedance 10 kilohms
sensitivity 250 mV,
impedance 47 kilohms
Model Name Using Similar Mechanism
CD Mechanism Type
Base Unit Name
Optical Pick-up Name
Model Name Using Similar Mechanism
MD (VIDEO) IN:
(phono jack)
Outputs
DJ MIX SEND*:
(phono jacks)
PHONES:
(stereo phone jack)
MD (VIDEO) OUT:
(phono jacks)
FRONT SPEAKER:
* Mexican model only
COMPACT Hi-Fi STEREO SYSTEM
E Model
HCD-XGR60
CDM37B-30BD60C
BU-30BD60C
A-MAX.3
HCD-XGR60
sensitivity 450 mV
(250 mV), impedance
47 kilohms
sensitivity 250 mV,
impedance 1 kilohms
accepts headphones of
8 ohms or more
voltage 250 mV
impedance 1 kilohms
accepts impedance of 6 to
16 ohms (SUPER WOOFER)
accepts impedance of 6 to
16 ohms (TWEETER & WOOFER)
— Continued on next page —

Advertisement

Table of Contents
loading

Related Manuals for Sony HCD-XGR80

Summary of Contents for Sony HCD-XGR80

  • Page 1 HCD-XGR80 SERVICE MANUAL E Model Ver 1.1 2003.07 • HCD-XGR80 is the Amplifier, CD player, tape deck and tuner section in LBT-XGR80. Model Name Using Similar Mechanism HCD-XGR60 CD Mechanism Type CDM37B-30BD60C Section Base Unit Name BU-30BD60C Optical Pick-up Name A-MAX.3...
  • Page 2 MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE Dimensions (w/h/d) Approx. 355 x 425 x 451 mm COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS Mass : Approx. 16.4 kg APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
  • Page 3 HCD-XGR80 NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body.

  • Page 4: Table Of Contents

    HCD-XGR80 TABLE OF CONTENTS 1. GENERAL ·········································································· 5 6-13.Printed Wiring Board – CD-L,CD-R,Headphone,Front Input,D-SW Section – ·· 34 2. DISASSEMBY ··································································· 7 6-14.Schematic Diagram – CD-L,CD-R,Headphone,Front Input,D-SW Section – ·· 35 3. TEST MODE ···································································· 15 6-15.Printed Wiring Board – Panel VR Section – ······················ 36 6-16.

  • Page 5: General

    HCD-XGR80 SECTION 1 This section is extracted from GENERAL instruction manual. Main unit ALPHABETICAL ORDER A – D E – G H – R A EJECTZ/Z B EJECT wh (13) EDIT ea (15) H SPEED DUB ql (14) AMS./> wa (9, 10)

  • Page 6: Display

    HCD-XGR80 This section is extracted from instruction manual. BUTTON DESCRIPTIONS @/1 1 S – X c/CLOCK SET qs SLEEP 0 (18) h/H qj eh SPECTRUM ANALYZER 4 (20) x qj eh SUPER WOOFER ek (16) .m /M> qj eh SUPER WOOFER MODE ek (16)

  • Page 7: Disassemby

    HCD-XGR80 SECTION 2 DISASSEMBLY • The equipment can be removed using the following procedure. Case Front panel section Tape mechanism deck PANEL FL board, TC-A board, TC-B board PANEL VR board MIC/GUITAR board, HEADPHONE board FRONT INPUT board D-SW board, CD-L board, Lid (CD) assy, CD-R board...
  • Page 8 HCD-XGR80 2-2. FRONT PANEL SECTION 4 Connector (CN903) 3 Connector (CN311) 5 Connector (CN722) 7 Screw (BVTP 3 X 8) 8 Lug 2 Flat type wire (CN431) 1 Flat type wire (CN371) 9 Screw (BVTP 3 X 8) 0 Lug...
  • Page 9 HCD-XGR80 2-4. PANEL FL BOARD, TC-A BOARD, TC-B BOARD qa Five screws (BVTP 2.6 X 8) w; TC-A board qs Three screws (BVTP 2.6 X 8) 1 Screw (BVTP 2.6 X 8) 2 Lug qk PANEL FL board 3 Bracket (TA)
  • Page 10 HCD-XGR80 2-6. MIC/GUITAR BOARD, HEADPHONE BOARD 1 Connector (CN812) 2 Two screws (BVTP 2.6 X 8) 3 MIC bracket 4 MIC/GUITAR board 5 Two screws (BVTP 2.6 X 8) 6 HEADPHONE bracket 7 HEADPHONE board Front panel 2-7. FRONT INPUT BOARD...
  • Page 11 HCD-XGR80 2-8. D-SW BOARD, CD-L BOARD, LID (CD) ASSY, CD-R BOARD 1 Screw (BVTP 2.6 X8) 5 Two screws 0 Spring (CD) (BVTP 2.6 X 8) 2 D-SW board qf Two screws qa Lid (CD) assy (BVTP 2.6 X 8)
  • Page 12 HCD-XGR80 2-10. CD MECHANISM DECK (CDM37B-30BD60C) 6 Two screws (BVTP 3 X 8) 1 Flat type wire (CN401) 4 Three screws (BVTP 3 X 8) 3 Four screws (BVTP 3 X 8) Wire holder 2 Connector (CN411) 5 Two screws...
  • Page 13 HCD-XGR80 2-11. BASE UNIT-1 (BU-30BD60C) 3 Base unit (BU-30BD60C) 2 Boss 1 BU fitting screw 2-12. BASE UNIT-2 (BU-30BD60C) 6 Base unit (BU-30BD60C) 1 Two floating screws (DIA.12) 2 Two screws (BVTP 2.6 X 8) 3 Two stoppers (BU) 4 Two coil springs...
  • Page 14 HCD-XGR80 2-13. BD BOARD BU-30BD60C 4 Flat type wire (CN102) 5 BD board 1 Remove the two solders. 3 Rivet 2 Remove the two solders. 2-14. DISC TABLE Note: When the disc table is installed, adjust the positions of roller cam and mark B as shown in the figure, then set to the groove of disc table.

  • Page 15: Test Mode

    HCD-XGR80 SECTION 3 TEST MODE [MC Cold Reset] [Sled Servo Mode] (CD service mode) • The cold reset clears all data including preset data stored in the • This mode can run the CD sled motor freely. Use this mode, for RAM to initial conditions.
  • Page 16 HCD-XGR80 2. Tape Deck Section 3. CD Section • The sequence during the aging mode is following as below. • The sequence during the aging mode is following as below. • If an error occurred, stop display that step. • If an error occurred, stop display that step.

  • Page 17: Mechanical Adjustments

    HCD-XGR80 SECTION 4 SECTION 5 MECHANICAL ADJUSTMENTS ELECTRICAL ADJUSTMENTS Precaution DECK SECTION 0 dB = 0.775 V 1. Clean the following parts with a denatured alcohol-moistened Precaution swab: 1. Demagnetize the record/playback head with a head demagne- record/playback heads pinch rollers tizer.
  • Page 18 HCD-XGR80 Record/Playback Head Azimuth Adjustment Adjustment Location: Playback Head (Deck A). Record/Playback/Erase Head (Deck B). DECK A DECK B Note: Perform this adjustments for both decks Procedure: 1. Mode: Playback (FWD) test tape MAIN board P-4-A100 MD (VIDEO) OUT jack (J701) (10 kHz, –...
  • Page 19 HCD-XGR80 REC Bias Adjustment DECK B REC Level Adjustment DECK B Procedure: Procedure: 1. Mode: Record 1. Mode: Record FUNCTION: VIDEO FUNCTION: VIDEO MAIN board MAIN board MD(VIDEO) IN jack (J701) MD (VIDEO) IN jack (J701) L-CH, R-CH L-CH, R-CH ...
  • Page 20 HCD-XGR80 Note: Clear RF signal waveform means that the shape “◊” can be CD SECTION clearly distinguished at the center of the waveform. Note : VOLT/DIV : 200mV 1. CD Block is basically designed to operate without adjustment. TIME/DIV : 500ns Therefore, check each item in order given.

  • Page 21: Diagrams

    HCD-XGR80 SECTION 6 DIAGRAMS 6-1. CIRCUIT BOARD LOCATION Note on Schematic Diagram: Note on Printed Wiring Boards: • All capacitors are in µF unless otherwise noted. pF: µµF • X : parts extracted from the component side. 50 WV or less are not indicated except for electrolytics •...

  • Page 22: Block Diagram - Cd Servo Section

    HCD-XGR80 6-2. BLOCK DIAGRAMS – CD SERVO SECTION – FILTER DIGITAL SIGNAL PROCESSOR, DIGITAL FILTER, D/A CONVERTER J702 IC101 (1/2) RF AMP, 56 53 FOCUS/TRACKING ERROR AMP SEND IC103 CD D+5V R-CH PCMD DJ MIX INTERFACE LRCK RETURN C2PO RFAC...

  • Page 23: Block Diagram - Tuner/Tape Deck Section

    HCD-XGR80 –TUNER/TAPE DECK SECTION – IC341 AMS DETECT R-CH Q341-343 MUTE Q344,345 DECK-A PB-L PB-OUT1 HEAD (Page 24) R-CH REC/PB SWITCH IC321 DECK-B REC/PB DECK A/B SELECT SWITCH HEAD PB/REC EQUALIZER AMP RV351 Q321,322 IC301 REC(L) R-CH LEVEL R-CH C322,L321...

  • Page 24: Block Diagram - Main Section

    HCD-XGR80 – MAIN SECTION – DISTORTION DISTORTION (Page 25) ON/OFF SWITCH GUITAR AMP Q880 – 883 IC853 J802 MIC OUT REC-L GUITAR AMP MIC AMP (Page 23) GUITAR IC852 IC850 (2/2) RV601 GUITAR LEVEL J801 MIC AMP MD OUT MIX MIC...

  • Page 25: Display/Key Control/Power Supply Section

    HCD-XGR80 – DISPLAY/KEY CONTROL/POWER SUPPLY SECTION – (Page 24) (Page 24) FLUORESCENT INDICATOR TUBE DRIVER, SUB POWER BAND-PASS FILTER KEY CONTROL TRANSFORMER IC602 IC601 T901 EVER +3.9V REGULATOR RECT SYSTEM CONTROLLER (IC501) , NFF02 IC901 BPF-F02 D902 – 905 FL DRIVER (IC601) B+...

  • Page 26: Printed Wiring Board - Bd Section

    HCD-XGR80 6-3.PRINTED WIRING BOARD – BD SECTION – • See page 21 for Circuit Boards Location. OPTICAL PICK-UP BD BOARD BLOCK OP ASSY(A-MAX.3) M101 SPINDLE MOTOR MAIN BOARD (Page 33) M102 SLED MOTOR • Semiconductor Location 1-680-003- (12) Ref. No.

  • Page 27: Schematic Diagram - Bd Section

    HCD-XGR80 6-4. SCHEMATIC DIAGRAM – BD SECTION – • See page 46 for IC Pin Function. OPTICAL PICK-UP BLOCK (A-MAX.3) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified.

  • Page 28: Printed Wiring Board - Motor, Led Section

    HCD-XGR80 6-6.SCHEMATIC DIAGRAM – MOTOR LED SECTION – 6-5.PRINTED WIRING BOARD – MOTOR LED SECTION – • See page 21 for Circuit Boards Location. LED BOARD SENSOR BOARD TABLE MOTOR DRIVER MOTOR BOARD MAIN BOARD (Page 33) MAIN BOARD(2/3) (Page 31)

  • Page 29: Schematic Diagram - Mic/Guitar Section

    HCD-XGR80 6-7.SCHEMATIC DIAGRAM – MIC/GUITAR SECTION – 6-8.PRINTED WIRING BOARD – MIC/GUITAR SECTION – • See page 21 for Circuit Boards Location. MIC/GUITAR BOARD TC–A BOARD (Page 38) MAIN BOARD (Page 33) 1-683-455- (11) • Semiconductor Location Ref. No. Location...

  • Page 30: Schematic Diagram - Main (1/3) Section

    HCD-XGR80 6-9.SCHEMATIC DIAGRAM – MAIN (1/3) SECTION –...

  • Page 31: Schematic Diagram - Main (2/3) Section

    HCD-XGR80 6-10.SCHEMATIC DIAGRAM – MAIN(2/3) SECTION – • See page 48 for IC Pin Function. ST-CLK ST-CE ST+10V TUNED STEREO A-GND ST-MUTE...

  • Page 32: Schematic Diagram - Main (3/3) Section

    HCD-XGR80 6-11. SCHEMATIC DIAGRAM – MAIN (3/3) SECTION – The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified.

  • Page 33: 6-12.Printed Wiring Board - Main Section

    HCD-XGR80 6-12.PRINTED WIRING BOARD – MAIN SECTION – • See page 21 for Circuit Boards Location. TAPE MOTOR MECHANISM PANEL FL DECK BOARD BOARD BOARD MAIN BOARD (Page 28) (Page 26) (Page 38) BOARD (Page 40) • Semiconductor TAPE A...

  • Page 34: 6-13.Printed Wiring Board - Cd-L,Cd-R,Headphone,Front Input,D-Sw Section

    HCD-XGR80 6-13.PRINTED WIRING BOARD – CD-L, CD-R, HEADPHONE, FRONT INPUT, D-SW SECTION – • See page 21 for Circuit Boards Location. FRONT INPUT BOARD D–SW BOARD GAME INPUT AUDIO VIDEO CD–R BOARD (11) CD–L BOARD > > TC–A BOARD (Page 38) TC–B...

  • Page 35: 6-14.Schematic Diagram - Cd-L,Cd-R,Headphone,Front Input,D-Sw Section

    HCD-XGR80 6-14. SCHEMATIC DIAGRAM – CD-L, CD-R, HEADPHONE, FRONT INPUT, D-SW SECTION –...

  • Page 36: Printed Wiring Board – Panel Vr Section

    HCD-XGR80 6-15.PRINTED WIRING BOARD – PANEL VR SECTION – • See page 21 for Circuit Boards Location. PANEL FL BOARD PANEL VR BOARD (Page 38) • Semiconductor Location 1-683-447- Ref. No. Location D701 D702 (11) D703 D704 D705 D706 D707...

  • Page 37: Schematic Diagram - Panel Vr Section

    HCD-XGR80 6-16. SCHEMATIC DIAGRAM – PANEL VR SECTION –...

  • Page 38: Printed Wiring Board – Panel Fl,Tc-A,Tc-B Section

    HCD-XGR80 6-17.PRINTED WIRING BOARD – PANEL FL, TC-A, TC-B SECTION – • See page 21 for Circuit Boards Location. PANEL FL BOARD MAIN BOARD (Page 33) L901 PANEL VR BOARD TC-A BOARD L902 (Page 36) CD–L BOARD > (Page 34) •...

  • Page 39: Printed Wiring Board - Panel Fl,Tc-A,Tc-B Section - · 38 6-18. Schematic Diagram - Panel Fl,Tc-A,Tc-B Section

    HCD-XGR80 6-18.SCHEMATIC DIAGRAM – PANEL FL, TC-A, TC-B SECTION – • See page 50 for IC Pin Function.

  • Page 40: Printed Wiring Board - Pa Section

    HCD-XGR80 6-19.PRINTED WIRING BOARD – PA SECTION – • See page 21 for Circuit Boards Location. TRANS TRANS SUB AMP SUB AMP HEADPHONE BOARD BOARD BOARD BOARD BOARD PA BOARD (Page 44) (Page 44) (Page 42) (Page 42) (Page 34) –...

  • Page 41: Schematic Diagram - Pa Section

    HCD-XGR80 6-20.SCHEMATIC DIAGRAM – PA SECTION – The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified.

  • Page 42: Printed Wiring Board - Sub Amp Section

    HCD-XGR80 6-21.PRINTED WIRING BOARD – SUB AMP SECTION – • See page 21 for Circuit Boards Location. SUB AMP BOARD BOARD (Page40) 1-683-451- (11) BOARD (Page40) • Semiconductor Location Ref. No. Location D101 D102 D103 D151 IC101 Q101 Q151...

  • Page 43: Schematic Diagram - Sub Amp Section

    HCD-XGR80 6-22.SCHEMATIC DIAGRAM – SUB AMP SECTION – The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified.

  • Page 44: Printed Wiring Board - Trans,Sub Trans Section

    HCD-XGR80 6-23.SCHEMATIC DIAGRAM – TRANS, SUB TRANS SECTION – 6-24.SCHEMATIC DIAGRAM – TRANS, SUB TRANS SECTION – • See page 21 for Circuit Boards Location. BOARD (Page 40) TRANS BOARD BOARD (Page 40) * NOT REPLACEABLE: BUILT IN TRANSFORMER 1-683-444-...
  • Page 45 HCD-XGR80 WAVEFORMS – MAIN BOARD – – BD BOARD – IC101 el FE IC501 qa XC-OUT 3.0Vp-p 0.15Vp-p 32KHz VOL/DIV : 0.1V AC VOL/DIV : 1V AC TIME/DIV : 10 µ sec TIME/DIV : 1msec IC101 ra TE IC501 qd X-OUT 2.0Vp-p...

  • Page 46: Ic Pin Function Description

    HCD-XGR80 6-25. IC PIN FUNCTIONS • IC101 DIGITAL SIGNAL PROCESSOR (CXD3017Q) (BD Board) Pin No. Pin Name Description SOSQ Sub-Q serial output SQCK Clock input for SQSO read-out XRST System reset SYSM Muting input DATA Serial date input,supplied from CPU...
  • Page 47 HCD-XGR80 Pin No. Pin Name Description CLTV Control voltage input for master VCO FILO Filter output for master PLL FILI Filter input for master PLL Chage-pump output for master PLL AVDD3 — Powr supply (+3.3V) — Ground — Power supply (+3.3V)
  • Page 48 HCD-XGR80 • IC501 M30620MCN-A01FP SYSTEM CONTOL (MAIN Board) Description Pin No. Pin Name AUDIO-OUT MD output mute signal output STEREO Stereo signal input TUNED Tuned signal input SIRCS SIRCS input CD-MUTE CD mute signal output – — Not used (open) –...
  • Page 49 HCD-XGR80 Discription Pin No. Pin Name CAPM-H/L Capstan motor high/low signal output CAPM-CTRL Capstan motor REV/FWD/STOP control signal output A-PLAY TCM-A play switch input B-PLAY TCM-B play switch input TC-MUTE TC line mute signal output REC/PB/PASS Not used (open) NR ON/OFF...

  • Page 50: Guitar Distortion

    HCD-XGR80 • IC601 MB90M407APF-G-112-BND DISPLAY CONTROL (PANEL FL Board) Description Pin No. Pin Name 1 to 10 GR-16 to GR-7 FLD grid output VSS-IO — Ground 12 to 17 GR-6 to GR-1 FLD grid output 18 to 22 SEG-1 to SEG-5...

  • Page 51: Ic Block Diagram

    HCD-XGR80 6-26. IC BLOCK DIAGRAMS IC101 CXD3017Q (BD BOARD) 59 58 57 46 45 44 Digital LRCK OP Amp PCMD Interface Digital Asymmetry Converter Analog SW Corrector XTSL TES1 Clock EMPH Generator XVDD TEST XTAI XTAO SERVO DSP GENERATOR XVSS...
  • Page 52 HCD-XGR80 IC103 CXA2581N-T4 (BD BOARD) DC_OFST RW/ROM RFDCI DVCC 28 RFDCO EQ IN 26 RFC 25 VFC 24 BST AC SUM ON/OFF 23 RFG VOFST 22 VCC RW/ROM VOFST RW/ROM RW/ROM 19 TE_BAL DVCC RW/ROM 18 TE APC-OFF(Hi-Z) RW/ROM SW 12...
  • Page 53 HCD-XGR80 IC201 TA8409S (MOTOR BOARD) VREF BLOCK STANDBY BLOCK HEAT CUT OFF BLOCK OUT2 OUT1 VREF IC602 BA3830F (PANEL FL BOARD) RESET RESET REFERENCE CURRENT REFERENCE CURRENT LINE NF LINE IN BAND – PASS FILTER REC NF REC IN –...

  • Page 54: Exploded Views

    HCD-XGR80 SECTION 7 Ver 1.1 2003.07 EXPLODED VIEWS NOTE: • -XX, -X mean standardized parts, so they may • Hardware (# mark) list and accessories are The components identified by have some differences from the original one. given in the last of this parts list.

  • Page 55: Front Panel Section-1

    HCD-XGR80 7-2. FRONT PANEL SECTION-1 not supplied not supplied not supplied Front panel section-2 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 4-237-635-01 KNOB (MIC) 4-237-659-01 SPRING (LEVER) A-4727-633-A MIC/GUITAR BOARD, COMPLETE 1-796-333-11 DECK, MECHANICAL 1-683-448-11 TC-A BOARD 4-951-620-01 SCREW (2.6X8), +BVTP...

  • Page 56: Front Panel Section-2

    HCD-XGR80 7-3. FRONT PANEL SECTION-2 not supplied FL601 supplied supplied with S763 not supplied Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 4-237-649-21 BUMPER (PANEL) 1-773-118-11 WIRE (FLAT TYPE) (19 CORE) 1-683-452-11 CD-L BOARD 4-237-639-01 HOLDER (LED 1)

  • Page 57: Chassis Section

    HCD-XGR80 7-4. CHASSIS SECTION not supplied not supplied F951 T951 not supplied F961 F962 F963 F964 not supplied not supplied CDM37B-30BD60C not supplied The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified.

  • Page 58: Cd Mechanism Deck Section

    HCD-XGR80 7-5. CD MECHANISM DECK SECTION (CDM-30BD60C) M201 BU-30BD60C Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 4-987-976-01 SCREW, STEP 1-659-059-13 LED BOARD 4-944-490-01 BELT (TIMING) A-4660-978-A GEAR (PULLEY) ASSY 1-659-058-13 SENSOR BOARD 4-978-421-01 GEAR (MID)

  • Page 59: Base Unit Section (Bu-30Bd60C)

    HCD-XGR80 7-6. BASE UNIT SECTION (BU-30BD60C) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks A-4735-188-A BU-30 (60) ASSY 3-531-576-11 RIVET A-4728-678-A BD BOARD, COMPLETE 4-233-832-01 GEAR (LB) 4-233-831-01 GEAR (LA) 1-757-710-11 WIRE (FLAT TYPE) (16 CORE)

  • Page 60: Electrical Parts List

    HCD-XGR80 SECTION 8 ELECTRICAL PARTS LIST NOTE: Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks • Due to standardization, replacements in the • COILS uH: µH parts list may be different from the parts The components identified by...
  • Page 61 HCD-XGR80 CD-L CD-R D-SW FRONT INPUT Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R103 1-216-835-11 METAL CHIP 1/16W R773 1-249-421-11 CARBON 2.2K 1/4W F R104 1-216-839-11 METAL CHIP 1/16W R774 1-247-843-11 CARBON 3.3K 1/4W R105...
  • Page 62 HCD-XGR80 FRONT INPUT HEADPHONE MAIN Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks C702 1-162-294-31 CERAMIC 0.001uF C115 1-126-795-11 ELECT 10uF C703 1-115-871-11 ELECT C116 1-130-487-00 MYLAR 0.022uF C704 1-164-159-21 CERAMIC 0.1uF C117 1-130-487-00 MYLAR 0.022uF...
  • Page 63 HCD-XGR80 MAIN Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks C333 1-130-485-00 MYLAR 0.015uF C609 1-162-974-11 CERAMIC CHIP 0.01uF C334 1-130-481-00 MYLAR 0.0068uF 5% C610 1-126-933-11 ELECT 100uF C335 1-130-481-00 MYLAR 0.0068uF 5% C611 1-126-947-11 ELECT...
  • Page 64 HCD-XGR80 MAIN Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks CN722 1-691-767-11 PLUG (MICRO CONNECTOR) 5P 1-216-295-91 SHORT CN901 1-778-982-21 CONNECTOR, BOARD TO BOARD 13P 1-216-295-91 SHORT 1-216-295-91 SHORT CN902 1-778-982-21 CONNECTOR, BOARD TO BOARD 13P...
  • Page 65 HCD-XGR80 MAIN Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks Q341 8-729-620-05 TRANSISTOR 2SC2603-EF R137 1-216-295-91 SHORT Q342 8-729-029-86 TRANSISTOR DTC124ESA R138 1-216-295-91 SHORT Q343 8-729-029-86 TRANSISTOR DTC124ESA R161 1-216-825-11 METAL CHIP 2.2K 1/16W Q344 8-729-029-86 TRANSISTOR DTC124ESA...
  • Page 66 HCD-XGR80 MAIN Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R352 1-216-829-11 METAL CHIP 4.7K 1/16W R530 1-216-809-11 METAL CHIP 1/16W R531 1-216-833-11 METAL CHIP 1/16W R354 1-216-825-11 METAL CHIP 2.2K 1/16W R532 1-216-809-11 METAL CHIP...
  • Page 67 HCD-XGR80 MAIN MIC/GUITAR Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R657 1-216-821-11 METAL CHIP 1/16W < VIBRATOR > R658 1-216-845-11 METAL CHIP 100K 1/16W R701 1-216-821-11 METAL CHIP 1/16W X501 1-567-098-41 VIBRATOR, CRYSTAL (32.768kHz) R702...
  • Page 68 HCD-XGR80 MIC/GUITAR MOTOR Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R852 1-249-441-11 CARBON 100K 1/4W < CAPACITOR > R853 1-249-417-11 CARBON 1/4W F C401 1-126-963-11 ELECT 4.7uF R854 1-249-437-11 CARBON 1/4W C412 1-162-306-11 CERAMIC 0.01uF...
  • Page 69 HCD-XGR80 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks < CONNECTOR > Q834 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA Q851 8-729-140-84 TRANSISTOR 2SC1841-PAFAEA CN803 1-778-981-21 CONNECTOR, BOARD TO BOARD 13P Q855 8-729-231-55 TRANSISTOR 2SC2878-AB CN804 1-778-981-21 CONNECTOR, BOARD TO BOARD 13P...

  • Page 70: Game Mixing

    HCD-XGR80 PANEL FL Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks R833 1-247-856-00 CARBON 1/4W C605 1-162-306-11 CERAMIC 0.01uF R834 1-249-429-11 CARBON 1/4W R835 1-249-437-11 CARBON 1/4W C606 1-126-963-11 ELECT 4.7uF R836 1-249-417-11 CARBON 1/4W F...
  • Page 71 HCD-XGR80 PANEL FL Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks Q606 8-729-047-58 TRANSISTOR DTC114TLTL2 R666 1-249-441-11 CARBON 100K 1/4W Q607 8-729-047-58 TRANSISTOR DTC114TLTL2 R667 1-249-441-11 CARBON 100K 1/4W Q608 8-729-047-58 TRANSISTOR DTC114TLTL2 R668 1-249-441-11 CARBON...

  • Page 72: Mix Guitar/Karaoke

    HCD-XGR80 PANEL VR SENSOR Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks < VIBRATOR > R714 1-249-429-11 CARBON 1/4W R715 1-249-431-11 CARBON 1/4W X601 1-577-358-21 VIBRATOR, CERAMIC (4MHz) ****************************************************** R716 1-249-433-11 CARBON 1/4W R718 1-249-415-11 CARBON...
  • Page 73 HCD-XGR80 SUB AMP SUB TRANS TC-A Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 0 R138 < RESISTOR > 1-220-893-11 METAL 0.22 R151 1-249-417-11 CARBON 1/4W F R207 1-249-416-11 CARBON 1/4W F R152 1-249-441-11 CARBON 100K...
  • Page 74 HCD-XGR80 TC-A TC-B TRANS Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks < SWITCH > < FUSE HOLDER > S810 1-762-875-21 SWITCH, KEYBOARD (G) FH951 1-533-217-31 HOLDER, FUSE (AR,E,E51) S811 1-762-875-21 SWITCH, KEYBOARD (g) FH952 1-533-217-31 HOLDER, FUSE...
  • Page 75 HCD-XGR80 MEMO...

  • Page 76: Revision History

    HCD-XGR80 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 2002.03...
