HCD-XGR6/XGR60
SERVICE MANUAL
Ver 1.0 2002.02
• HCD-XGR6/XGR60 are the Amplifier,
CD player, tape deck and tuner in LBT-
XGR6/XGR60.
AUDIO POWER SPECIFICATIONS
(LBT-XGR6 USA models only)
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
With 6 ohm loads, both channels driven, from
120-10,000 Hz; rated 140 watts per channel
minimum RMS power, with no more than 10%
total harmonic distortion from 250 milli watts
to rated output.
Amplifier section
North American models:
LBT-XGR6
Continuous RMS power output (reference)
Total harmonic distortion less than 0.07%
Other models:
LBT-XGR60
The following measured at AC 120/220/240V, 50 Hz
DIN power output (rated) 150 + 150 watts
Continuous RMS power output (reference)
Sony Corporation
9-873-567-01
Home Audio Company
2002B0200-1
Published by Sony Engineering Corporation
© 2002. 02

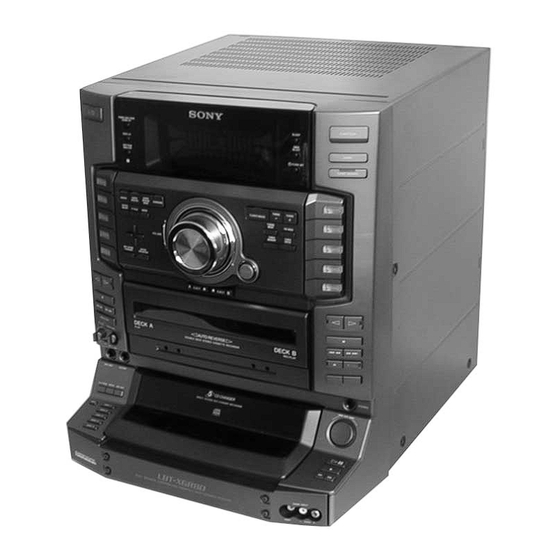

PHOTO :HCD-XGR60
CD
Section
TAPE
Section
SPECIFICATIONS
160 + 160 watts (6 ohms at
1 kHz, 10% THD)
(6 ohms at 1 kHz, 70 W)
(6 ohms at 1 kHz, DIN)
200 + 200 watts
(6 ohms at 1 kHz, 10% THD)
Model Name Using Similar Mechanism
CD Mechanism Type
Base Unit Name
Optical Pick-up Name
Model Name Using Similar Mechanism
Inputs
DJ MIX RETURN*:
(phono jacks)
sensitivity 250 mV,
impedance 47 kilohms
GUITAR:
(phone jack)
sensitivity 75 mV,
impedance 470 kilohms
PHONO IN:
(phono jacks)
sensitivity 3 mV,
impedance 47 kilohms
MIX MIC:
(phone jack)
sensitivity 1 mV,
impedance 10 kilohms
GAME INPUT:
(phono jacks)
sensitivity 250 mV,
impedance 47 kilohms
MD (VIDEO) IN:
(phono jack)
sensitivity 450 mV
(250 mV), impedance
47 kilohms
Outputs
DJ MIX SEND*:
(phono jacks)
sensitivity 250 mV,
impedance 1 kilohms
PHONES:
(stereo phone jack)
accepts headphones of
8 ohms or more
COMPACT Hi-Fi STEREO SYSTEM
US Model
HCD-XGR6
E Model
HCD-XGR60
NEW
CDM37B-30BD60C
BU-30BD60C
A-MAX.3
NEW
— Continued on next page —
