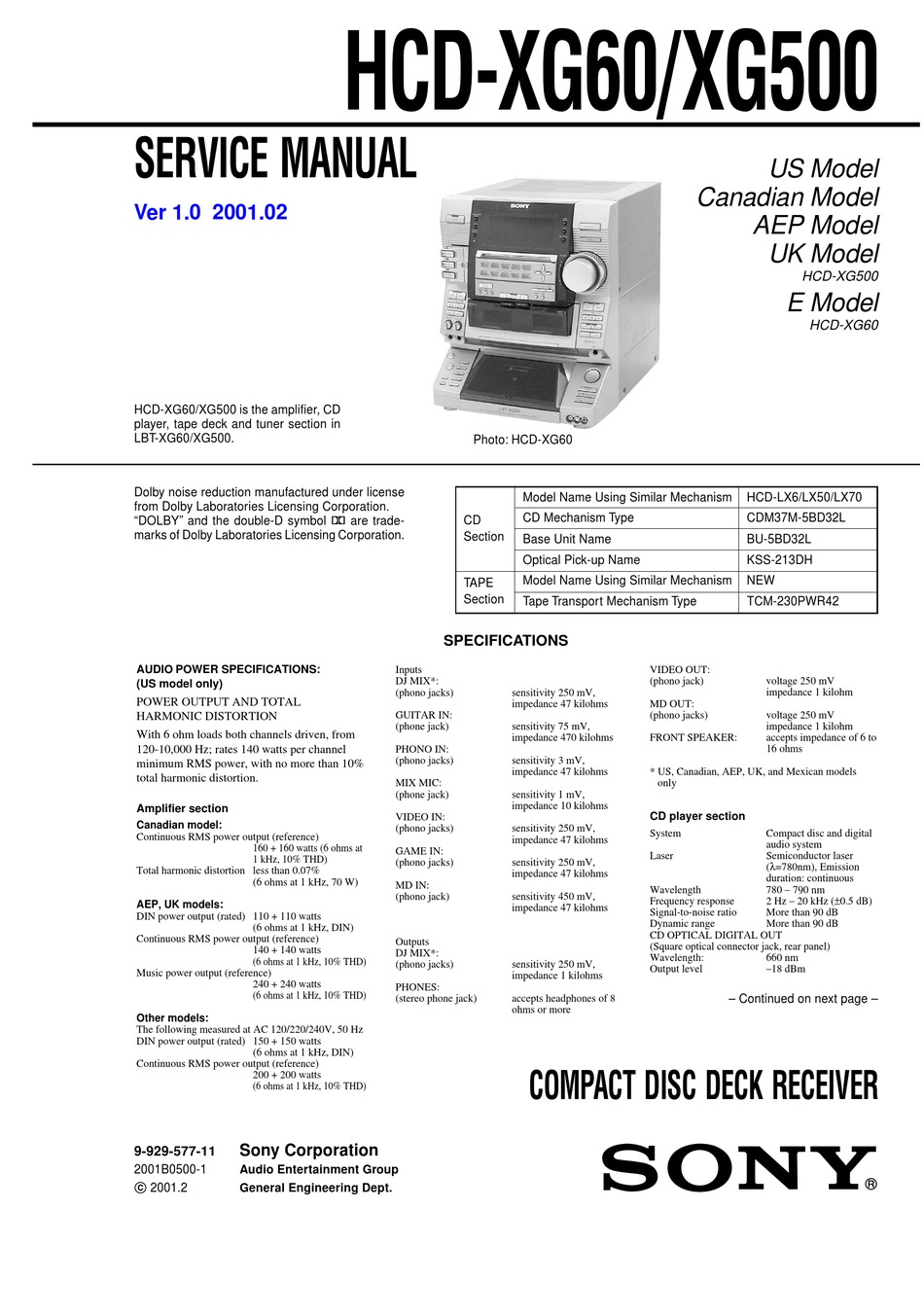

SERVICE MANUAL
Ver 1.0 2001.02
HCD-XG60/XG500 is the amplifier, CD
player, tape deck and tuner section in
LBT-XG60/XG500.
Dolby noise reduction manufactured under license
from Dolby Laboratories Licensing Corporation.
"DOLBY" and the double-D symbol ; are trade-
marks of Dolby Laboratories Licensing Corporation.
AUDIO POWER SPECIFICATIONS:
(US model only)
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION
With 6 ohm loads both channels driven, from
120-10,000 Hz; rates 140 watts per channel
minimum RMS power, with no more than 10%
total harmonic distortion.
Amplifier section
Canadian model:
Continuous RMS power output (reference)
160 + 160 watts (6 ohms at
1 kHz, 10% THD)
Total harmonic distortion less than 0.07%
(6 ohms at 1 kHz, 70 W)
AEP, UK models:
DIN power output (rated) 110 + 110 watts
(6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference)
140 + 140 watts
(6 ohms at 1 kHz, 10% THD)
Music power output (reference)
240 + 240 watts
(6 ohms at 1 kHz, 10% THD)
Other models:
The following measured at AC 120/220/240V, 50 Hz
DIN power output (rated) 150 + 150 watts
(6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference)
200 + 200 watts
(6 ohms at 1 kHz, 10% THD)
Sony Corporation
9-929-577-11
2001B0500-1
Audio Entertainment Group
C 2001.2
General Engineering Dept.
HCD-XG60/XG500
Photo: HCD-XG60
CD
Section
TAPE
Section
SPECIFICATIONS
Inputs
DJ MIX*:
(phono jacks)
sensitivity 250 mV,
impedance 47 kilohms
GUITAR IN:
(phone jack)
sensitivity 75 mV,
impedance 470 kilohms
PHONO IN:
(phono jacks)
sensitivity 3 mV,
impedance 47 kilohms
MIX MIC:
(phone jack)
sensitivity 1 mV,
impedance 10 kilohms
VIDEO IN:
(phono jacks)
sensitivity 250 mV,
impedance 47 kilohms
GAME IN:
(phono jacks)
sensitivity 250 mV,
impedance 47 kilohms
MD IN:
(phono jack)
sensitivity 450 mV,
impedance 47 kilohms
Outputs
DJ MIX*:
(phono jacks)
sensitivity 250 mV,
impedance 1 kilohms
PHONES:
(stereo phone jack)
accepts headphones of 8
ohms or more
Canadian Model
Model Name Using Similar Mechanism
CD Mechanism Type
Base Unit Name
Optical Pick-up Name
Model Name Using Similar Mechanism
Tape Transport Mechanism Type
VIDEO OUT:
(phono jack)
MD OUT:
(phono jacks)
FRONT SPEAKER:
* US, Canadian, AEP, UK, and Mexican models
only
CD player section
System
Laser
Wavelength
Frequency response
Signal-to-noise ratio
Dynamic range
CD OPTICAL DIGITAL OUT
(Square optical connector jack, rear panel)
Wavelength:
Output level
COMPACT DISC DECK RECEIVER
US Model
AEP Model
UK Model
HCD-XG500
E Model
HCD-XG60
HCD-LX6/LX50/LX70
CDM37M-5BD32L
BU-5BD32L
KSS-213DH
NEW
TCM-230PWR42
voltage 250 mV
impedance 1 kilohm
voltage 250 mV
impedance 1 kilohm
accepts impedance of 6 to
16 ohms
Compact disc and digital
audio system
Semiconductor laser
(λ=780nm), Emission
duration: continuous
780 – 790 nm
2 Hz – 20 kHz (±0.5 dB)
More than 90 dB
More than 90 dB
660 nm
–18 dBm
– Continued on next page –
