HCD-XGV6/XGV8/XGV10AV
SERVICE MANUAL
Ver 1.2 2004.09
• HCD-XGV6/XGV8/XGV10AV are the
Amplifier, CD player, tape deck and
tuner section in LBT-XGV6/XGV8/
XGV10AV.
Amplifier section
LBT-XGV10AV
Front Speaker:
The following measured at AC 120/220/240 V, 50 Hz
DIN power output (Rated)
150 + 150 watts
(6 ohms at 1 kHz, DIN)
Continuous RMS power output (Reference)
200 + 200 watts
(6 ohms at 1 kHz, 10% THD)
Center Speaker:
DIN power output (Rated)
35 watts
(8 ohms at 1 kHz, DIN)
Continuous RMS power output (Reference)
50 watts
(8 ohms at 1 kHz, 10% THD)
Rear Speaker:
DIN power output (Rated)
35 + 35 watts
(8 ohms at 1 kHz, DIN)
Continuous RMS power output (Reference)
50 + 50 watts
(8 ohms at 1 kHz, 10% THD)
LBT-XGV8
The following measured at AC 120/220/240V, 50 Hz
DIN power output (rated)
125W x 2 + 125W x 2
(6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference)
170 W x 2 + 170 W x 2
(6 ohms at 1 kHz, 10% THD)
Sony Corporation
9-873-959-03
Audio Group
2004I02-1
Published by Sony Engineering Corporation
© 2004.09

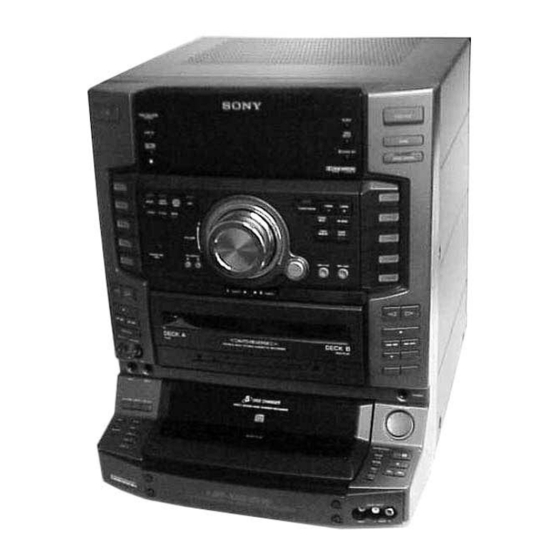

Photo : HCD-XGV10AV
Model Name Using Similar Mechanism
CD
CD Mechanism Type
Section
Base Unit Name
Optical Pick-up Name
TAPE
Model Name Using Similar Mechanism
Section
SPECIFICATIONS
LBT-XGV6
The following measured at AC 120/220/240V, 50 Hz
DIN power output (rated)
Continuous RMS power output (reference)
Inputs
PHONO IN:
(phono jacks)
MIC1/2:
(phone jacks)
GAME INPUT:
(phono jacks)
MD (VIDEO) IN:
(phono jack)
DVD INPUT (XGV10AV)
FRONT, REAR, CENTER, WOOFER (phono jacks):
COMPACT Hi-Fi STEREO SYSTEM
E Model
NEW
CDM37B-30BD62
BU-30BD62
A-MAX.3
HCD-XGR90AV
150 + 150 watts (6 ohms at 1 kHz, DIN)
200 + 200 watts (6 ohms at 1 kHz,
10% THD)
sensitivity 3 mV,
impedance 47 kilohms
sensitivity 1 mV,
impedance 10 kilohms
sensitivity 250 mV,
impedance 47 kilohms
sensitivity 450 mV
(250 mV),
impedance 47 kilohms
sensitivity 450 mV,
impedance 47 kilohms
— Continued on next page —
