INSTALLATIONS
Typical installation scenarios
■

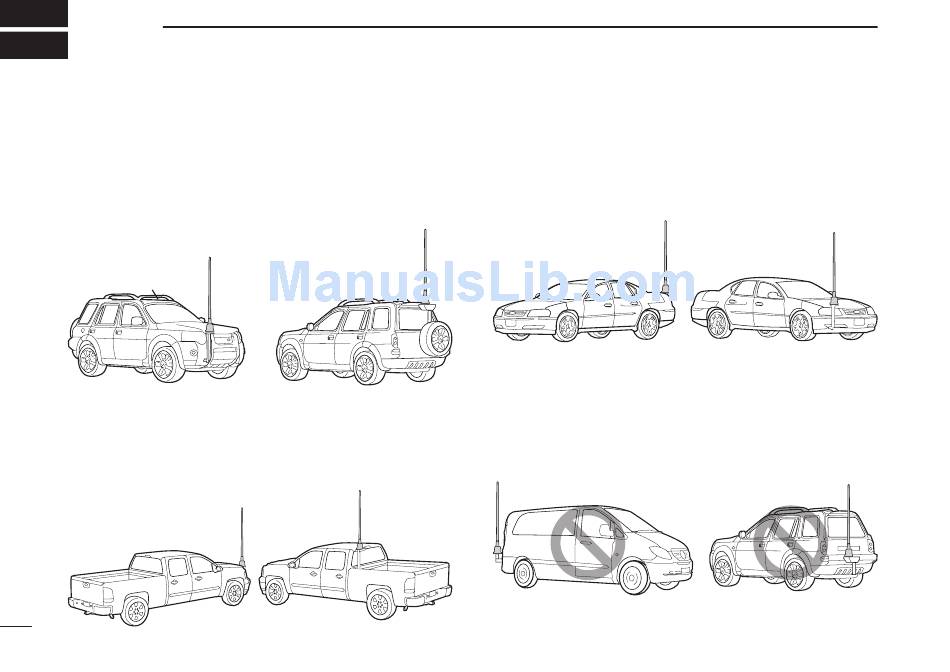

Most recommended SUV installation scenarios use a Uni-
versal Gibbet Mounting System (front) or the Spare Wheel
Antenna Bracket (rear). Note the tuning antenna unit is kept
clear of the vehicle's hood and other metal panels. Best com-
munications in all directions is ensured.
Recommended installation options on a typical pickup vehicle
use a Universal Gibbet Mounting System (front) and a cus-
tomer provided bracket (middle). Both methods provide effec-
tive communications in all directions.
2
2
Recommended installation options on a typical sedan vehicle
use a Universal Gibbet Mounting System for both front and
rear antenna locations. Note the tuning antenna unit is opti-
mally raised above the trunk and hood of the vehicle.
NON-RECOMMENDED installation methods use a Universal
Gibbet Mounting System (both at the rear) shown on a typi-
cal minivan or 4WD vehicles. Note the entire Antenna Main
Assembly and partially Whip Section are OBSTRUCTED by
vehicle metal panels. Communications will be affected.
