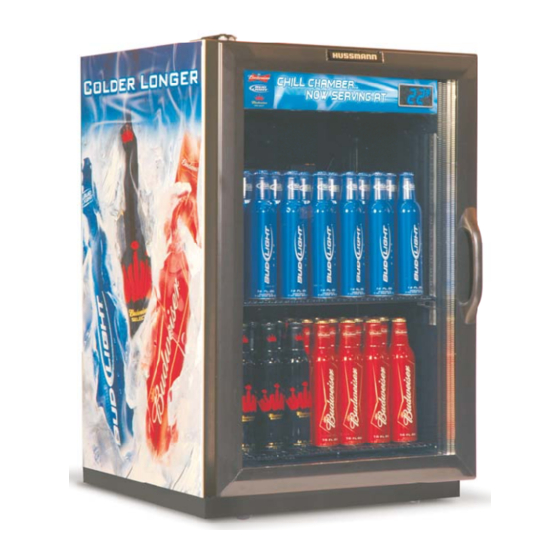

Hussmann MAXI-140 Operator's Manual

Chill chamber
Hide thumbs Also See for MAXI-140:

Advertisement

Table of Contents

See also: Owner's Manual
™
MAXI-140
Operator's Manual
P/N 31033596_B
01 June 2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAXI-140 and is the answer not in the manual?

Questions and answers

Related Manuals for Hussmann MAXI-140

Summary of Contents for Hussmann MAXI-140

  • Page 1 ™ MAXI-140 Operator’s Manual P/N 31033596_B 01 June 2007...
  • Page 2 Proper installation is required to maintain certification. Near the serial plate, each case carries a label identifying the type of application for which the case was certified. ANSI/NSF-7 Type II – Display Refrigerator / Freezer ( Beverage Cooler) Intended for 80°F / 55%RH Ambient Application This equipment is intended for the storage and display of nonpotentially hazardous, bottled or canned products only.

  • Page 3: Safety First

    Such changes do not entitle the buyer to corresponding changes, improvements, additions or replacements for equipment previously sold or shipped. ©2007 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. U.S. & CANADA 1-800-504-4828 • WWW.CHILLCHAMBER.HUSSMANN.COM MAXI-140 MAXI-140 MAXI-140 MAXI-140 MAXI-140...
  • Page 4 Front and Back After leveling, use field-supplied FDA food- grade silicone sealant* to seal the gap between the base of the MAXI-140 and the countertop. * Examples of FDA food grade silicone sealant: Permatex Inc. Silicone RTV Sealant for Food Zone Henkel Loctite Corp.
  • Page 5 01 June 2007 Optional Leg Kit To maintain NSF standards of cleanability when sealing cannot be done, Hussmann offers optional leg kits that raises the MAXI-140 four or six inches. Directions are included with the optional leg kit. LEVEL Chill Chambers must be level front-to-back and side-to-side to operate at peak efficiency.

  • Page 6: Install Shelves

    ©2007 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. U.S. & CANADA 1-800-504-4828 • WWW.CHILLCHAMBER.HUSSMANN.COM DOOR HINGES The MAXI-140 Chill Chamber door is not self-closing. The top door hinge has slots that allow the door to be adjusted if the gasket doesn’t seal completely.
  • Page 7 • Open the Safe-NET controller using a small flat blade screwdriver to pop off the oval cover (this may be tight). • Plug in the MAXI-140. Be careful of moving parts in the compressor compartment. DOWN SELECT Button...
  • Page 8 MAXI-140 • Press and release the SELECT button until you are in the proper menu. Once in the proper menu press the UP or DOWN button to enter the menu and to scroll through the menu. • Once at the menu item that you want, press the SELECT button until the item flashes between the value and the title.
  • Page 9 Safe-NET controller can be set to meet the requirements of your business. For MAXI-140 defrost, the evaporator fan motor stops during defrost and WILL NOT came back on when the compressor kicks on because it has a delay in order to cool down the evaporator before blowing air again.
  • Page 10 MAXI-140 Set Defrost Time (Pass Code Needed) • Press the SELECT button (top left button) until you see dEFr. • Then press the UP button twice to get to StAr and press SELECT. • Press the UP or DOWN button to change minutes;...
  • Page 11 /0461391A_SafeNET.pdf. Run Before Stocking Allow the Chill Chamber to run at least 30 minutes before stocking. ©2007 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. U.S. & CANADA 1-800-504-4828 • WWW.CHILLCHAMBER.HUSSMANN.COM MAXI-140 MAXI-140 MAXI-140 MAXI-140 MAXI-140 LOADING 1. Add the maximum quantity (66 bottles) allowed of Anheuser-Busch aluminum bottles.

  • Page 12: Care And Cleaning

    MAXI-140 CARE AND CLEANING Long life and satisfactory performance of any equipment is dependent upon the care it receives. To ensure long life, proper sanitation and minimum maintenance costs, this unit should be thoroughly cleaned, all debris removed and the interiors washed down.
  • Page 13 Product allowed to warm above the operating temperature (22°F) may freeze when restocked. Removing Shelves The MAXI-140 comes standard with one fixed wire shelf (upper) with dividers for 16oz. aluminum bottles and one removable flat wire shelf (lower).

  • Page 14: Lamp Replacement

    MAXI-140 Condenser Coil To maintain peak operating efficiency, use a soft hand brush or soft brush attachment on a vacuum to remove accumulated dust from the coil at least once each month. A dirty coil will slow product cooling significantly and can increase energy consumption by as much as 20%.
  • Page 15 3. With a screwdriver, loosen, but do not remove, the LED lighting bracket from one side only. ©2007 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. U.S. & CANADA 1-800-504-4828 • WWW.CHILLCHAMBER.HUSSMANN.COM MAXI-140 LED lighting bracket. 4. Rotate loosened lighting bracket and remove LED light tube. LED connector...

  • Page 16: Operating Tips

    MAXI-140 OPERATING TIPS • The unit must be allowed to stand in place for 30 minutes before it is plugged in. • Once the unit is running, the real time clock must be set. Once fully charged, the real time clock’s battery will keep the clock memory for...

  • Page 17: Troubleshooting Guide

    Chill Chamber, the longer the time needed to cool the product. Allow time for temperature display to catch up with stocking -- about 30 minutes. Remove moisture with soft cloth. Reduce ambient humidity. Move unit to area of lower humidity. MAXI-140 Solution/Action ™...
  • Page 18 HUSSMANN CORPORATION Limited Warranty for Chill Chambers in the United States & Canada This warranty is made to the original user at the original installation site and is not transferable. BASIC WARRANTY Hussmann Chill Chambers are warranted to be free from defect in material and workmanship under normal use and service for twelve months.
  • Page 19 PATENT WARRANTY Hussmann warrants that its products do not infringe the claims of any existing United States patent, but Hussmann makes no warranty against infringement by reason of the use thereof either in combination with other products or in the operation of any process or use of products other than for their intended purpose. This warranty is subject to purchaser promptly notifying Hussmann in the event of any action for such infringement brought against purchaser and permitting Hussmann to participate in the defense of such action.
  • Page 20 22 F...
