Carrier HUMCCSBP2017-A Series Product Data

Carrier HUMCCSBP2017-A Series Product Data

Hide thumbs Also See for HUMCCSBP2017-A Series:

Advertisement

Quick Links

Model HUMCCLFP1025-A--
Model HUMCCWTR2019-A--
Copyright 1998 Carrier Corporation
Product
Data
Model HUMCCSFP1016-A--
Model HUMCCLBP2018-A--

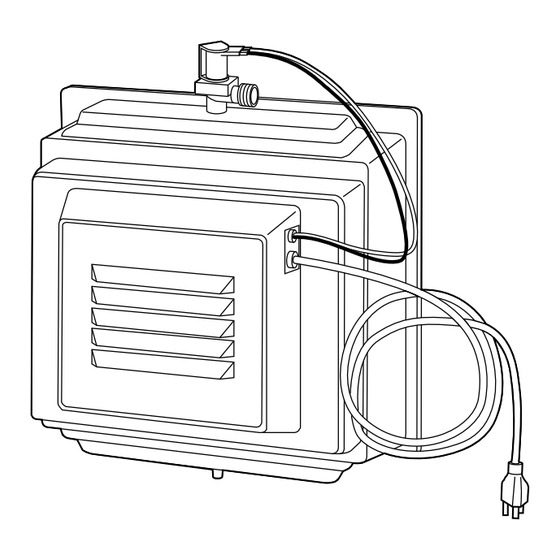

Model HUMCCSBP2017-A--
HUM
Humidifiers
All Carrier humidifiers are designed
for easy installation and quiet
operation with heat pumps as well as
upflow, downflow, or horizontal
furnaces. Humid air is circulated
throughout the home by the central
heating system. All Carrier humidifiers
are equipped with a humidistat to
maintain the desired humidity level.
Access to the media pad in the
humidifier is convenient and tools are
not required, allowing easy pad
replacement.
The fan-powered humidifiers, Model
HUMCCLFP and HUMCCSFP, are
designed for simple installation on
supply ductwork, without a bypass
duct required. Humidity is achieved by
drawing heated supply air through a
wet media pad, by means of the
humidifier's fan. The HUMCCLFP
offers high evaporation rate, up to 25
gallons of moisture per day. For
smaller, tighter constructed, or well
insulated homes, the HUMCCSFP can
deliver up to 16 gallons of moisture per
day.
The bypass humidifiers, Model
HUMCCLBP and HUMCCSBP, are
designed for installation on the supply
or return ductwork, by means of a
bypass duct on a forced air heating
system. Bypass humidifiers operate on
the pressure differential between
supply and return ductwork, bypassing
heated supply air through the wet
media pad, and back into the return air.
The HUMCCLBP offers up to 18
gallons of moisture per day with front
bypass duct discharge. The
HUMCCSBP can deliver up to 17
gallons of moisture per day and has a
reversible side bypass duct discharge.
The humidifiers mentioned are
constructed of high-impact, Lexan
thermoplastic to provide years of
Form HUM-1PD

Advertisement

loading
Need help?

Need help?

Do you have a question about the HUMCCSBP2017-A Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Carrier HUMCCSBP2017-A Series

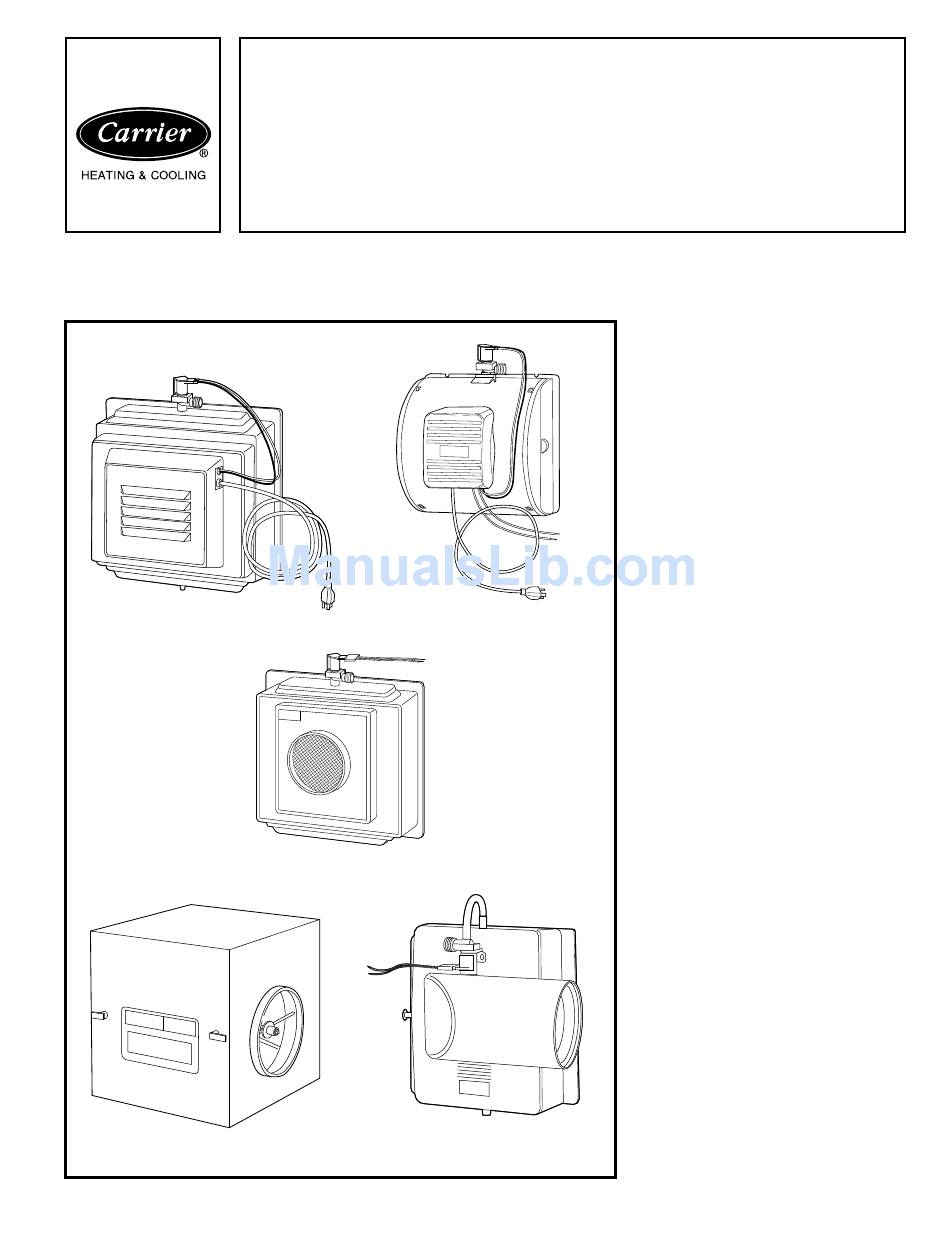

  • Page 1 Product Humidifiers Data All Carrier humidifiers are designed for easy installation and quiet operation with heat pumps as well as upflow, downflow, or horizontal furnaces. Humid air is circulated throughout the home by the central heating system. All Carrier humidifiers are equipped with a humidistat to maintain the desired humidity level.
  • Page 2 durability. Mineral buildup is reduced The Model HUMCCWTR is rated up left duct runs. A rotating foam drum is by continual flushing with fresh water. to 19 gallons of moisture per day and operated by a synchronous motor and a The water valves are low-voltage DC because of its no-drain construction, it float valve maintains the water level to...
  • Page 3: Physical Data

    Physical data MODEL HUMCCSBP2017-A-- HUMCCLBP2018-A-- HUMCCLFP1025-A-- HUMCCSFP1016-A-- HUMCCWTR2019-A-- ARI CAPACITY* Gallons/Day @ 140°F (Lbs/hr) 17 (5.9) 18 (6.3) 25 (8.7) 16 (5.6) 19 (6.6) Gallons/Day @ 120°F (Lbs/hr) 12.8 (4.4) 13.5 (4.7) 18.8 (6.5) 12.8 (4.4) 14.3 (5.0) TYPE Airflow...
  • Page 4 ″ ⁄ ″ 6″ DIA ⁄ ″ ⁄ ″ ⁄ OVER-FLOW DRAIN ″ ⁄ ″ ″ ″ 6″ ⁄ ⁄ ⁄ ″ DRAIN ⁄ ″ ⁄ ″ ″ ⁄ ⁄ DRAIN PLUG ″ ⁄ A96484 A98360 Model HUMCCWTR2019-A-- Model HUMCCSBP2017-A--...
  • Page 5 RECOMMENDED RELATIVE HUMIDITY INDOOR RELATIVE HUMIDITY LIMIT BY OUTDOOR TEMPERATURE FOR NO WINDOW CONDENSATION (Indoor Air at 74°F Dry Bulb ) MAXIMUM OUTDOOR SINGLE DOUBLE OUTDOOR RECOMMENDED TEMPERATURE (°F) PANE WINDOWS (%) PANE WINDOWS (%) OUTDOOR RELATIVE INDOOR RELATIVE INDOOR TEMP HUMIDITY HUMIDITY (%)
  • Page 6: Performance Data

    Performance data GALLONS/DAY EVAPORATION RATE VS STATIC & AIR TEMP (˚F) HUMCCLFP HUMCCLBP HUMCCSBP HUMCCWTR HUMCCSFP 31.5 29.8 33.3 27.0 25.5 28.5 31.3 22.5 21.3 23.8 21.3 RATING POINT 18.8 13.5 12.8 14.3 12.8 12.5 0.10 0.20 0.30 0.40 0.50 0.60 BYPASS DIFFERENTIAL STATIC IN.
  • Page 7 Typical humidifier installations HORIZONTAL A98353 A96491 DOWNFLOW UPFLOW UPFLOW A98354 A96493...
  • Page 8: Service Training

    [ ] Packaged Service Training [ ] Classroom Service Training A94328 • Copyright 1998 Carrier Corporation Indianapolis, IN 46231 7-98 Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
