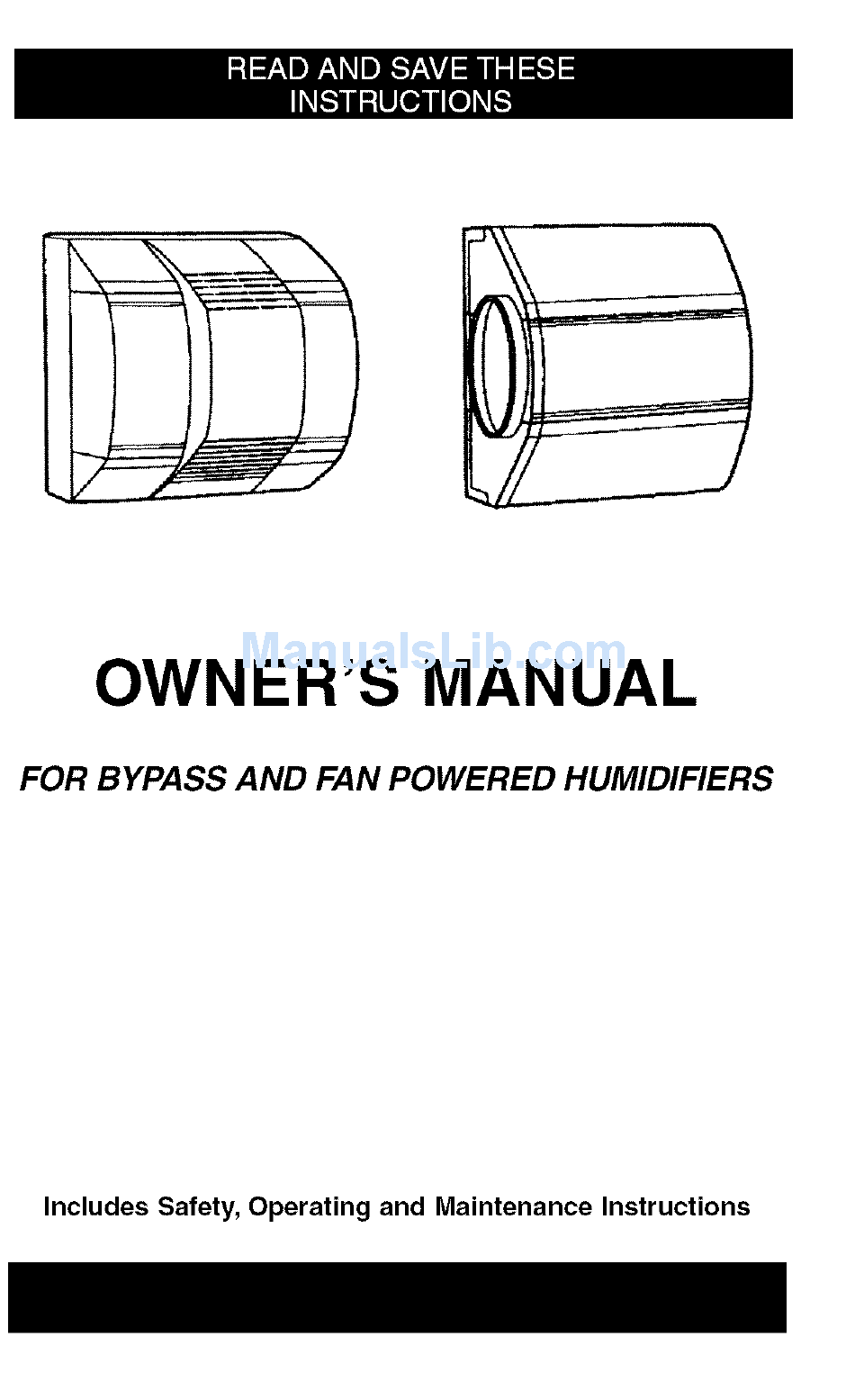

- Page 1 OWNER'S MANUAL FOR BYPASS AND FAN POWERED HUMIDIFIERS Includes Safety, Operating and Maintenance Instructions...
- Page 2 Bypass and Fan Powered Humidifiers Table of Contents Page Introduction ..........Principle of Operation.......... OperatingInstructions ......... Effect of Water Characteristics ......... Annual Maintenance .......... Annual Summer Shutdown ........Periodic Preventative Maintenance ......Maintenance Instructions Small and Large Bypass Humidifiers......FanPowered Humidifiers ........Introduction Thankyoufor your recent humidifier purchase,We sincerely appreciate your businessand are pleasedto add your nameto our growing list of customers.
- Page 3 benefits from it.This booklet isintended toanswer these questions. The humidifier operates inconjunction withthe furnace b lower motor. When thehumidistat calls f orhumidity and theblower motor isoperating, water flows tothedistribution pan located a tthetopoftheunit. The water i suniformly dis- tributed a cross thewidth ofthepan and through ascientifically designed system ofoutlets.
- Page 4 II. Operating Instructions Your new humidifier is controlled by a manual humidistat,HumidiTrac ThermidistatZM,installed either in the living area or in the cold air return. It is importantto anticipate a drop in temperature and reducethe setting according- ly to avoid excessive condensation. Forexample,with an outside temperature of 20 °...
- Page 5 IV. Annual Maintenan(e Forbestperformance, we recommend that youreplacethe evaporative media in yourhumidifierannually. • Callthe installer of your humidifier.This information is often found on your equipment. V. Annual Summer Shutdown FORTHESUMMERHUMIDIFIERSHUTDOWN, S IMPLYTURNTHE HUMIDISTAT CONTROL TOTHE "OFF"SETTING ANDCLOSE THEDAMPER IN THEBYPASSHUMIDIFIER. Vl.
- Page 6 ,,,,, 1. Front Cover 2. Feed Tube 3. Nozzle 4. Water PanekEveporetive Assembly 5. Distribution Tray 6. "V" Notches 7. Water Panel 8. Scale Control Insert 9. Drain Hose CAUTION!Suddenoperationmay causepersonalinjuryor propertydamage. Turnhamidistatto "OFF" beforeservicing. Note humidistat setting and turn humidistat to the "OFF" position. At the side of the unit oppositethe airflow duct, pull front cover (1)off holdingwith both hands and set aside.
- Page 7 1. Front Cover 2. Base 3. Evaporative Assembly 4. Distribution Tray 5. "V" Notcbes 6. Evaporative Media 7. Scale Control Insert 8. Drain Hose 9. Power Cord WARNING!120VOLTS may causeseriousinjuryfromelectricalshock. Disconnect powerandshutoffwater supplybeforeservicing. Note humidistat setting andturn humidistat to the "OFF" position. Disconnect electrical power and turn off water supply.
- Page 8 © 2OO2 CAC/BDP R0. Box 70, Indianapolis, IN 46206 DP #10005591 12.20.00 Form: OG-HUM-01 504.250M Catalog: 63HU-M02...
