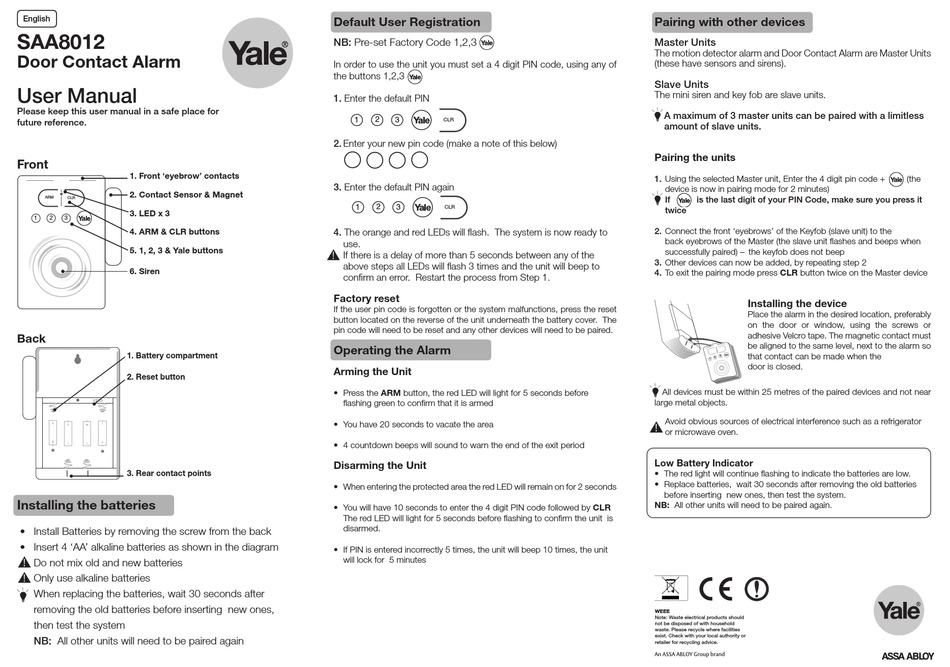

Yale SAA8012 User Manual

English
SAA8012
Door Contact Alarm
User Manual
Please keep this user manual in a safe place for
future reference.
Front
1. Front 'eyebrow' contacts
2. Contact Sensor & Magnet
ARM CLR
3. LED x 3
2 3
1
4. ARM & CLR buttons
5. 1, 2, 3 & Yale buttons
6. Siren
Back
1. Battery compartment
2. Reset button
3. Rear contact points

Installing the batteries

• Install Batteries by removing the screw from the back
• Insert 4 'AA' alkaline batteries as shown in the diagram
Do not mix old and new batteries
Only use alkaline batteries
When replacing the batteries, wait 30 seconds after
removing the old batteries before inserting new ones,
then test the system
NB: All other units will need to be paired again
Default User Registration
ARM CLR
NB: Pre-set Factory Code 1,2,3
1 2 3
ARM CLR
In order to use the unit you must set a 4 digit PIN code, using any of
the buttons 1,2,3
2
1 3
ARM CLR
1. Enter the default PIN

Specifications

2
1 3
ARM CLR
2. Enter your new pin code (make a note of this below)
2
1 3
All devices
ARM
CLR
3. Enter the default PIN again
EMC
Tested to ETS 300 683
Radio Components tested to EN
1 2 3
ARM
CLR
300 220-1
Environmental conditions
-10°C to 40°C, relative humidity
4. The orange and red LEDs will flash. The system is now ready to
1 2 3
70% non-condensing for all units
use.
except the external siren. Siren: -20°C
to 50°C, relative humidity 95% non-
! If there is a delay of more than 5 seconds between any of the
condensing
above steps all LEDs will flash 3 times and the unit will beep to
Radio operational range
confirm an error. Restart the process from Step 1.
30m in a typical domestic
installation, range can vary depending
on building construction, device
Factory reset
positions and RF environment
If the user pin code is forgotten or the system malfunctions, press the reset
Housings ABS/polycarbonate
button located on the reverse of the unit underneath the battery cover. The
Siren
pin code will need to be reset and any other devices will need to be paired.
Siren output 104dBA sound pressure @
1m minimum
Operating the Alarm
Radio 433.92MHz AM super heterodyne
receiver with jamming detection
Power supply 6V, 4 x D alkaline cells. 3
Arming the Unit years typical service life
• Press the ARM button, the red LED will light for 5 seconds before
flashing green to confirm that it is armed
• You have 20 seconds to vacate the area
• 4 countdown beeps will sound to warn the end of the exit period
Disarming the Unit
• When entering the protected area the red LED will remain on for 2 seconds
• You will have 10 seconds to enter the 4 digit PIN code followed by CLR
The red LED will light for 5 seconds before flashing to confirm the unit is
disarmed.
• If PIN is entered incorrectly 5 times, the unit will beep 10 times, the unit
will lock for 5 minutes
18
Pairing with other devices
Master Units
The motion detector alarm and Door Contact Alarm are Master Units
(these have sensors and sirens).
Slave Units
The mini siren and key fob are slave units.
A maximum of 3 master units can be paired with a limitless
amount of slave units.
Pairing the units
Passive infra red (PIR) detector
Power supply 3 x AAA alkaline cells. 3
1. Using the selected Master unit, Enter the 4 digit pin code +
years typical domestic service life
ARM CLR
Alarm processing Microprocessor device is now in pairing mode for 2 minutes)
Help button
controlled dual edge sequential pulse
If is the last digit of your PIN Code, make sure you press it
2
count with pulse length discrimination 1 3
Radio 433.92MHz AM transmitter EMC Tested to EN 300 220-1 and ETS
twice
Power supply 4.5V, 3 x AA alkaline cells. 300 683
3 years typical domestic service life, 1- Environmental conditions -10°C to
minute sleep timer 40°C, relative humidity 70% non-
2. Connect the front 'eyebrows' of the Keyfob (slave unit) to the
Movement detection range 15m, 110° condensing
Radio operational range 30m in a
back eyebrows of the Master (the slave unit flashes and beeps when
Door/window contact
typical domestic installation. Can vary
depending on building construction and
successfully paired) – the keyfob does not beep
RF environment
Radio Microprocessor controlled
3. Other devices can now be added, by repeating step 2 Radio Microprocessor controlled
433.92MHz AM transmitter
433.92MHz AM transmitter
Power supply 3V, 2 x AAA alkaline cells. 3
4. To exit the pairing mode press CLR button twice on the Master device
Power supply 12V 23A/MN21 alkaline
years typical domestic service life
miniature 'lighter battery'. 3 years
typical domestic service life
Smoke detector
Radio Microprocessor controlled
Installing the device
433.92MHz AM transmitter
Power supply 6V, 4 x AAA alkaline cells. 3
Place the alarm in the desired location, preferably
years typical domestic service life
on the door or window, using the screws or
Keyfob remote control
adhesive Velcro tape. The magnetic contact must
Radio Microprocessor controlled
be aligned to the same level, next to the alarm so
433.92MHz AM transmitter
that contact can be made when the
Power supply 12V, 23A/MN21 alkaline
miniature "lighter" battery. 3 years
door is closed.
typical domestic service life
Keypad remote control
Radio Microprocessor controlled
All devices must be within 25 metres of the paired devices and not near
433.92MHz AM transmitter
large metal objects.
Avoid obvious sources of electrical interference such as a refrigerator
or microwave oven.
Low Battery Indicator
• The red light will continue flashing to indicate the batteries are low.
• Replace batteries, wait 30 seconds after removing the old batteries
before inserting new ones, then test the system.
NB: All other units will need to be paired again.
0560
WEEE
Note: Waste electrical products should
not be disposed of with household
waste. Please recycle where facilities
exist. Check with your local authority or
retailer for recycling advice.
ARM CLR
