DIMENSION AND INSTALLATION GUIDE
MODELS:
GHP16, GHP17, GHP765

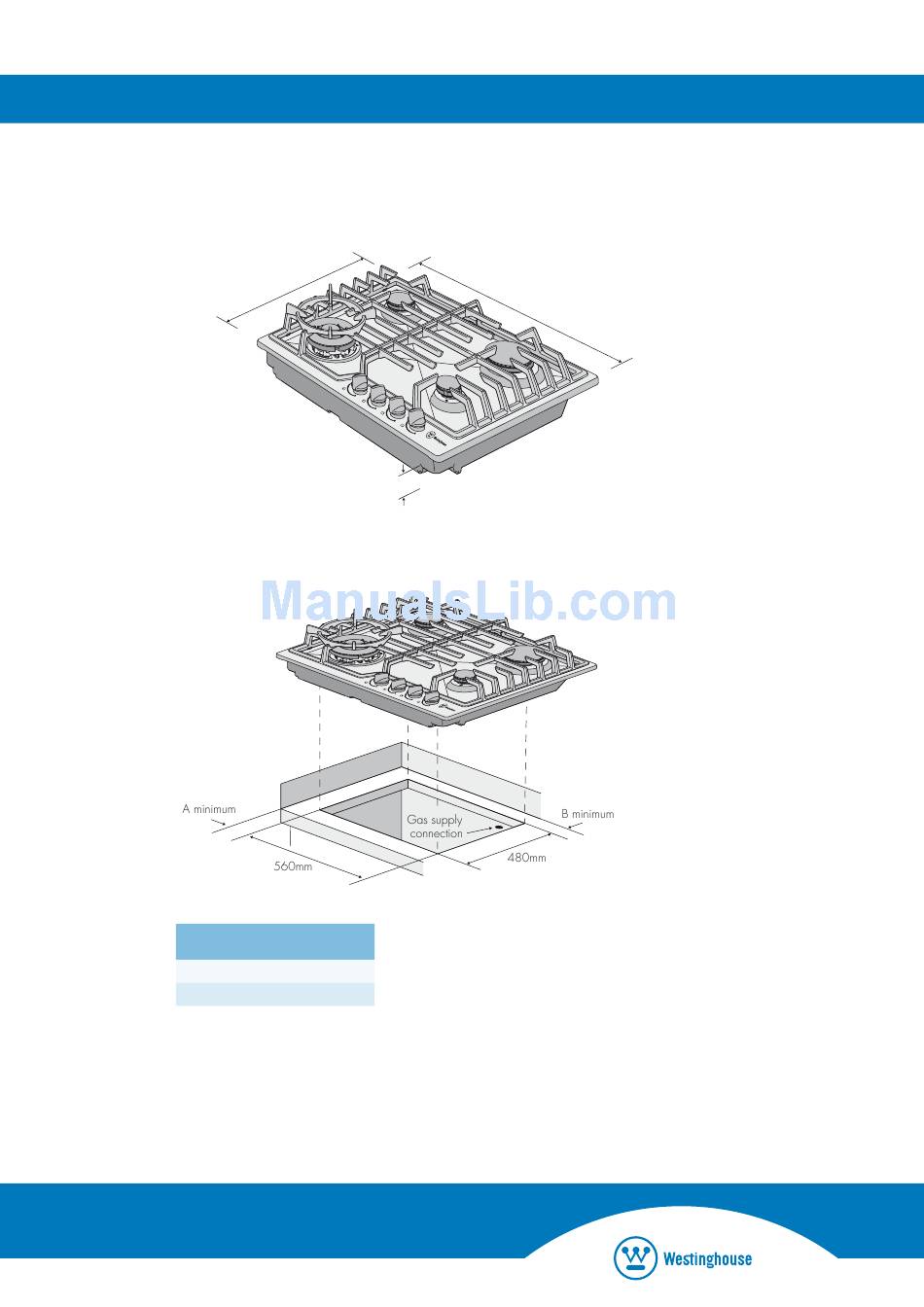

cooktop dimensions
building-in cut-out dimensions
A
B
NOTE: All appliances must be installed to Australian Standard AS5601
510mm
50mm
(built-in height)
minimum distance to
combustible vertical surface
148mm
154mm
594mm
Note: Electrical connection
Requires 240V 10AMP power outlet
Walls around cooktop must be
heat resistant for temperatures up to
o
90
C to a height of 150mm above
the bench top.
These models are supplied with
10Amp plug and lead

gas cooktop

©
2008 Electrolux Home Products Pty Ltd
WDIMGHP16/17/765 Current as at Jul 2008
